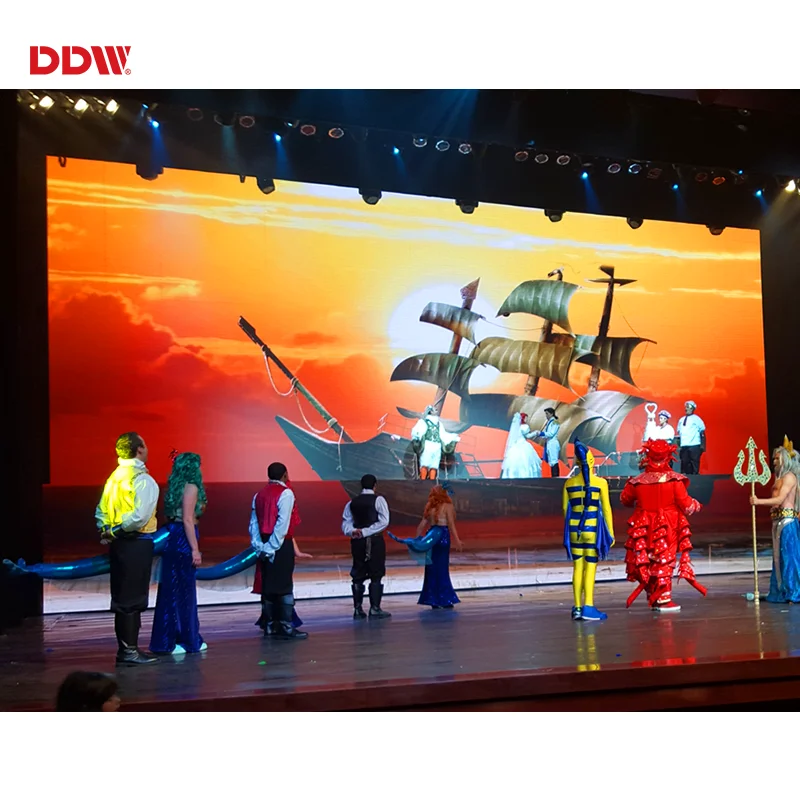

CE ROHS FCC certified P1.95 P2.5 P2.6 P2.97 P3.91 P4.81 indoor outdoor high grey led video wall panel rental LED display screen
- Category: >>>
- Supplier: Shenzhen DDW Technology Co. Ltd.
Share on (1600088995656):
Product Overview
Description

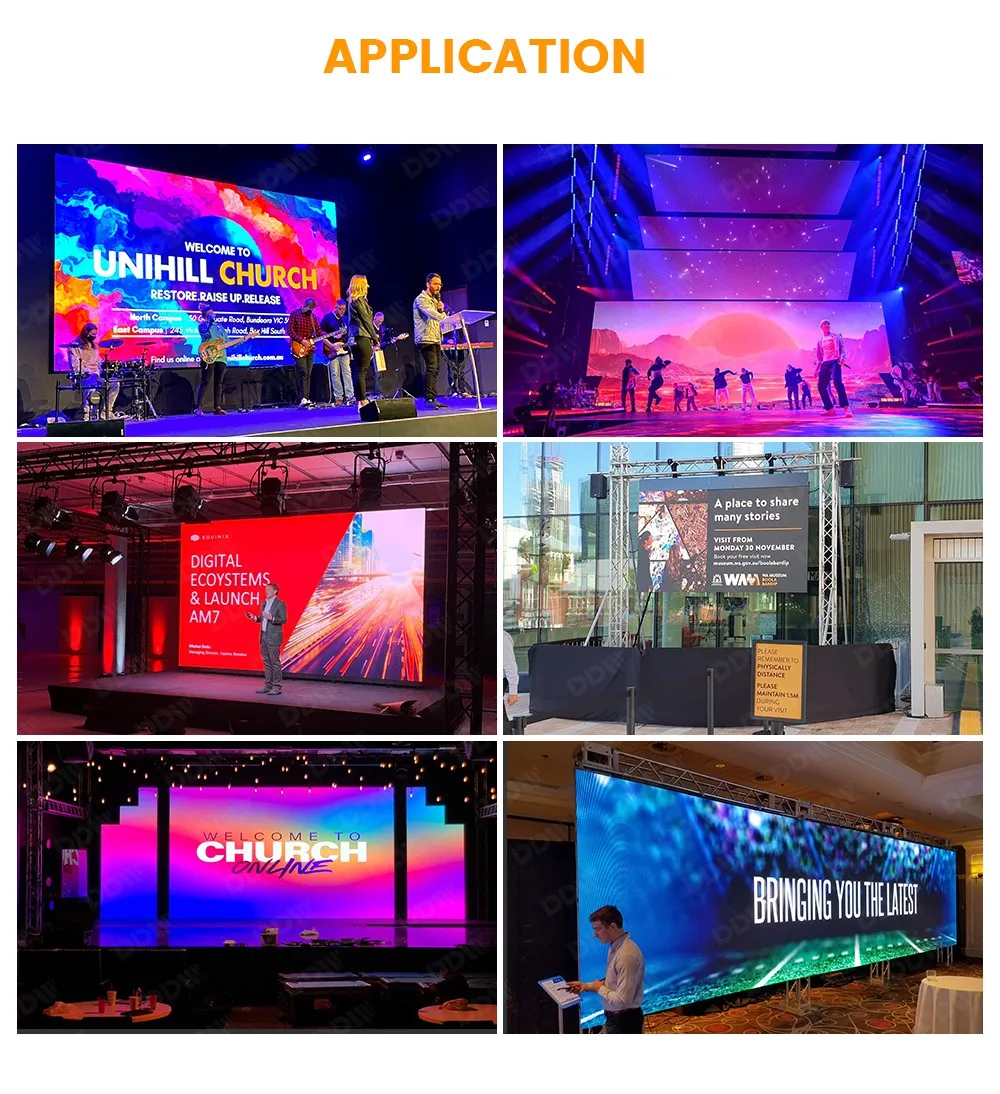

Discover Your Right Application , Make Your Business Possible !
Common warranty in LED field is 2 years, ours is 3 years Longer warranty periods, better after-sale services, worry-free user experience

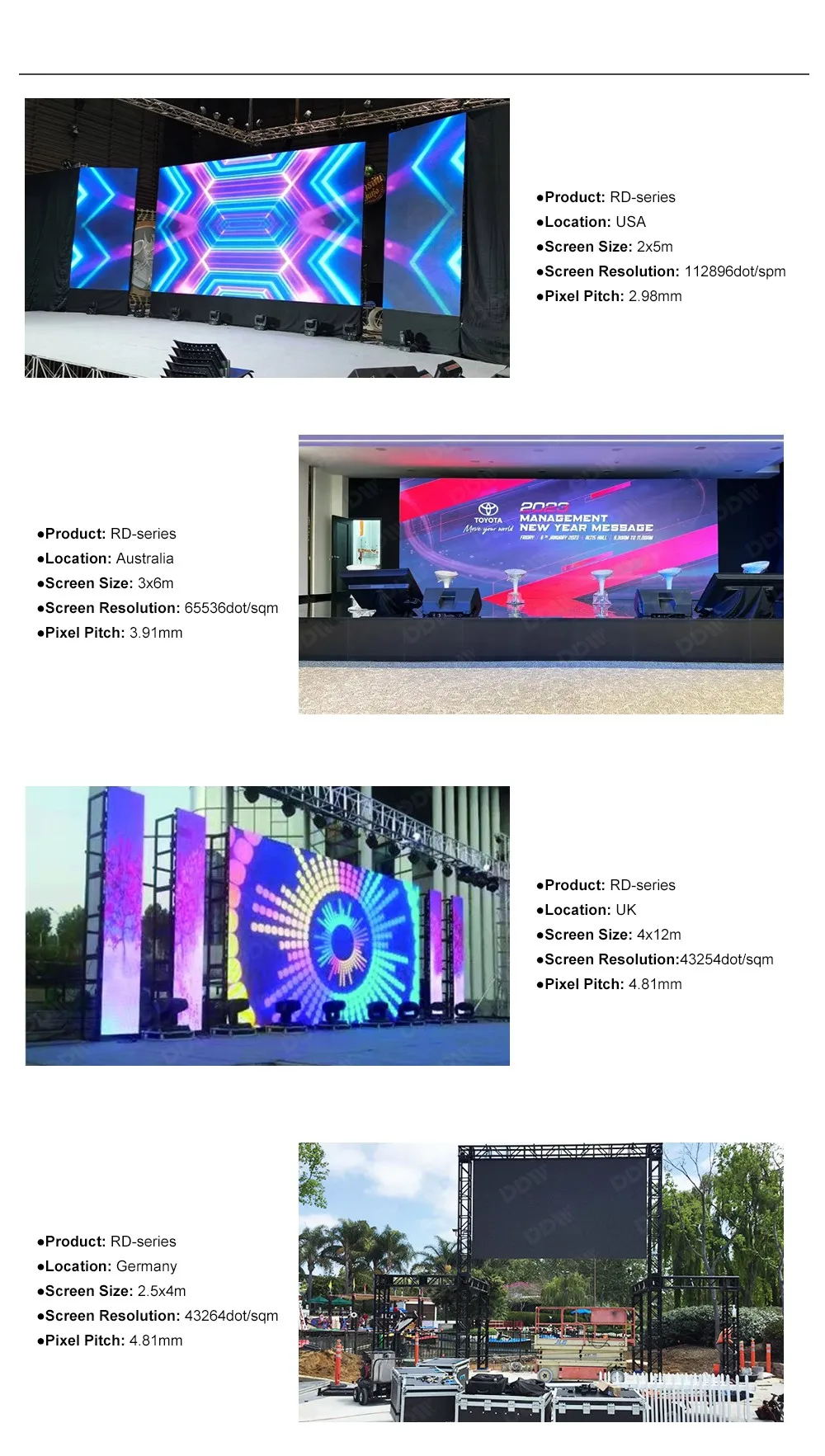

Project Case
LED displays have been exported to many countries and rigions in the World, and we are highly praised by our customers.
Products Description

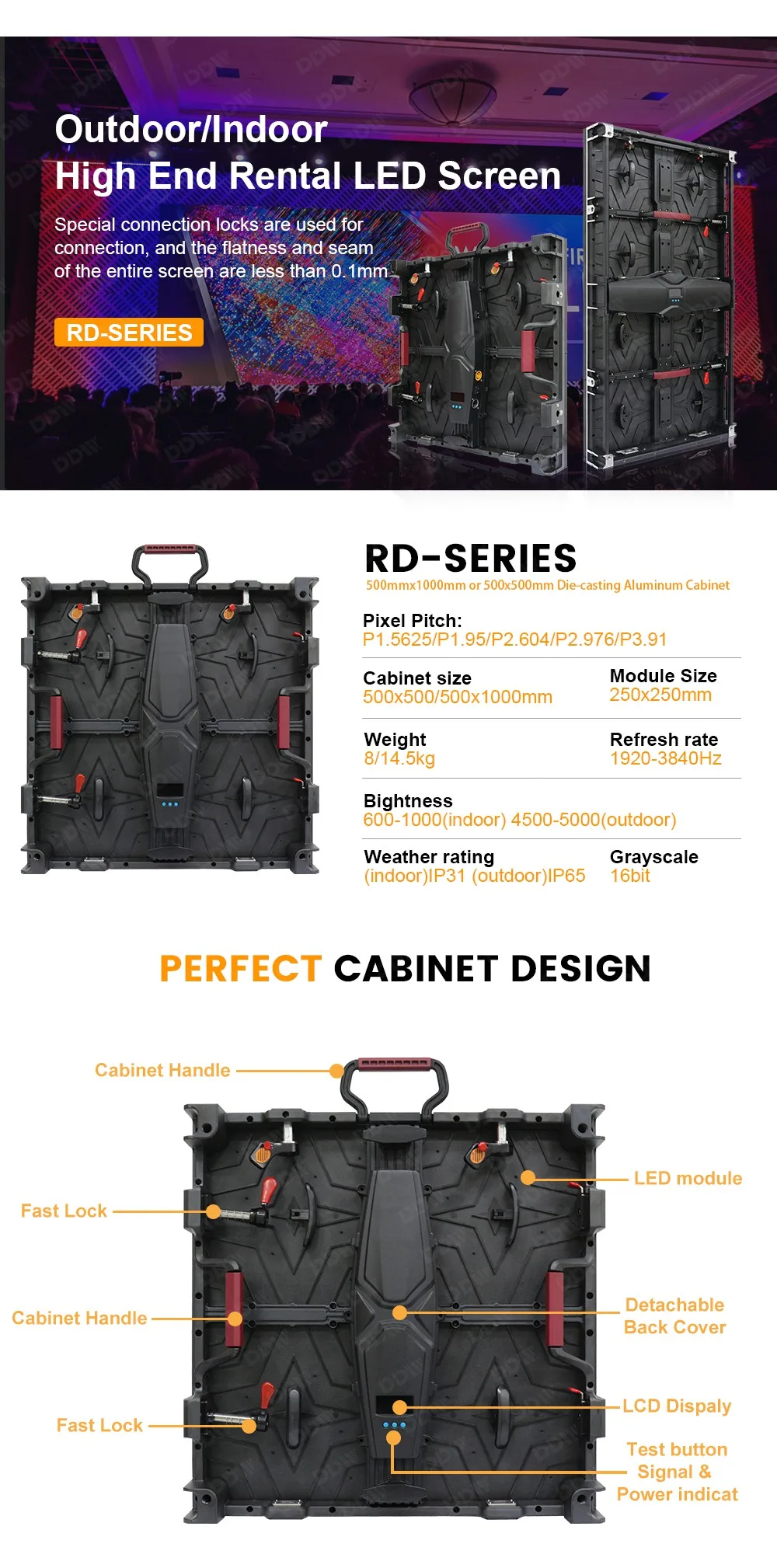

Specifications
P1.95 | P2.5 | P2.604 | P2.98 | P3.91 | P4.81 | P5.95 | |||||||
LED Type | SMD1515 | SMD1515 | SMD1415 | SMD1415 | SMD1921 | SMD1921 | SMD2727 | ||||||
Physical Density (Dot/sqm) | 262144 | 160000 | 147456 | 112896 | 65536 | 43264 | 28224 | ||||||
Module Resolution | 128x128 | 100x100 | 96x96 | 84x84 | 64x64 | 52x52 | 42x42 | ||||||

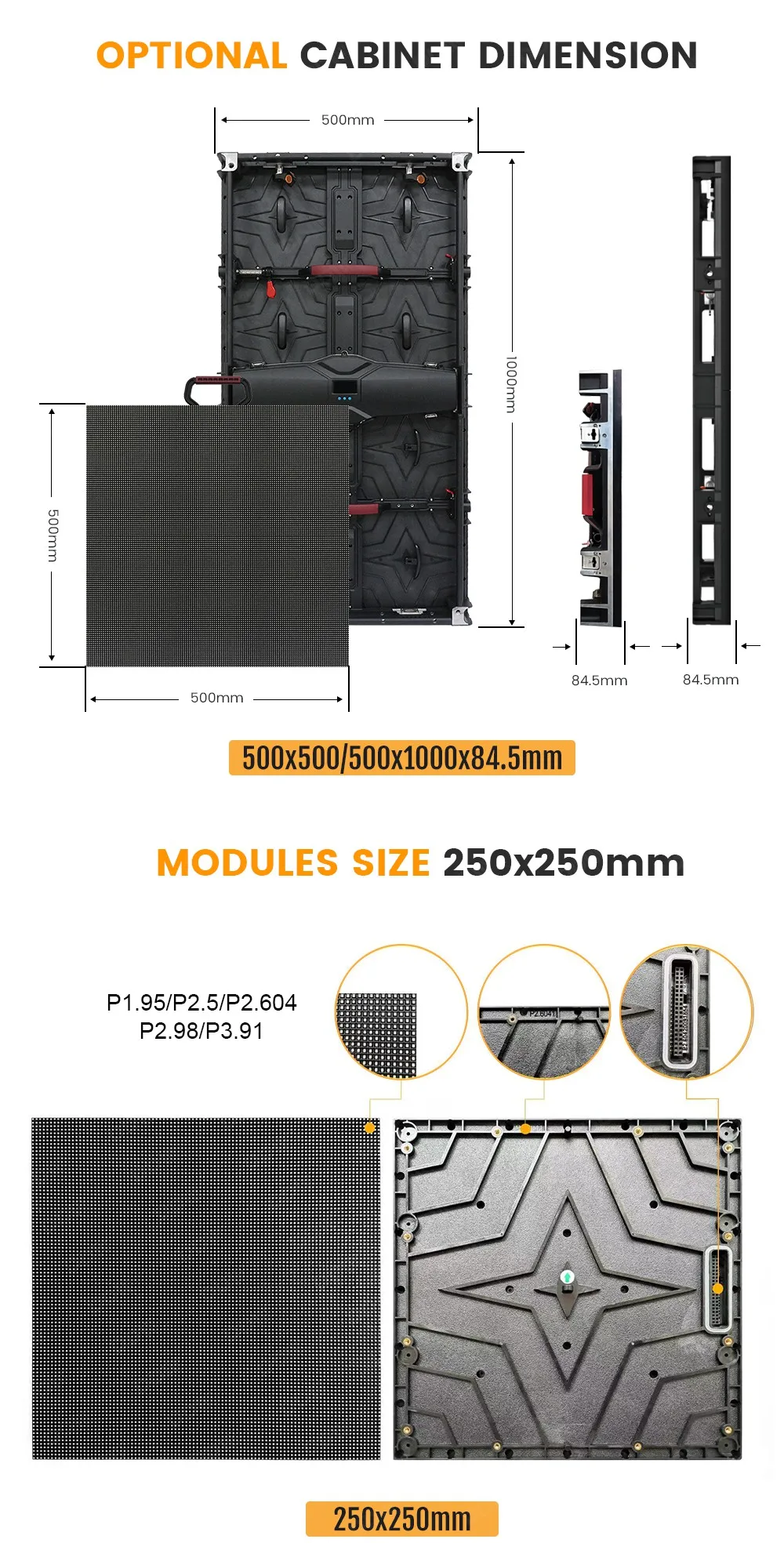

Module Size (WXH) | 250x250 | ||||||||||||
Panel Dimension (WXHXD ) | 500x500(1000)x84.5 | ||||||||||||
Panel Resolution (Dot/sqm) | 256x256/ 256x512 | 200x200/200x400 | 192x192 | 168x168/168x336 | 128x128/128x256 | 104x104/104x208 | 84x84/84x168 | ||||||
Module Qty per Cabinet | 2x2/2x4 | 2x2/2x4 | 2x2 | 2x2/2x4 | 2x2/2x4 | 2x2/2x4 | 2x2/2x4 | ||||||

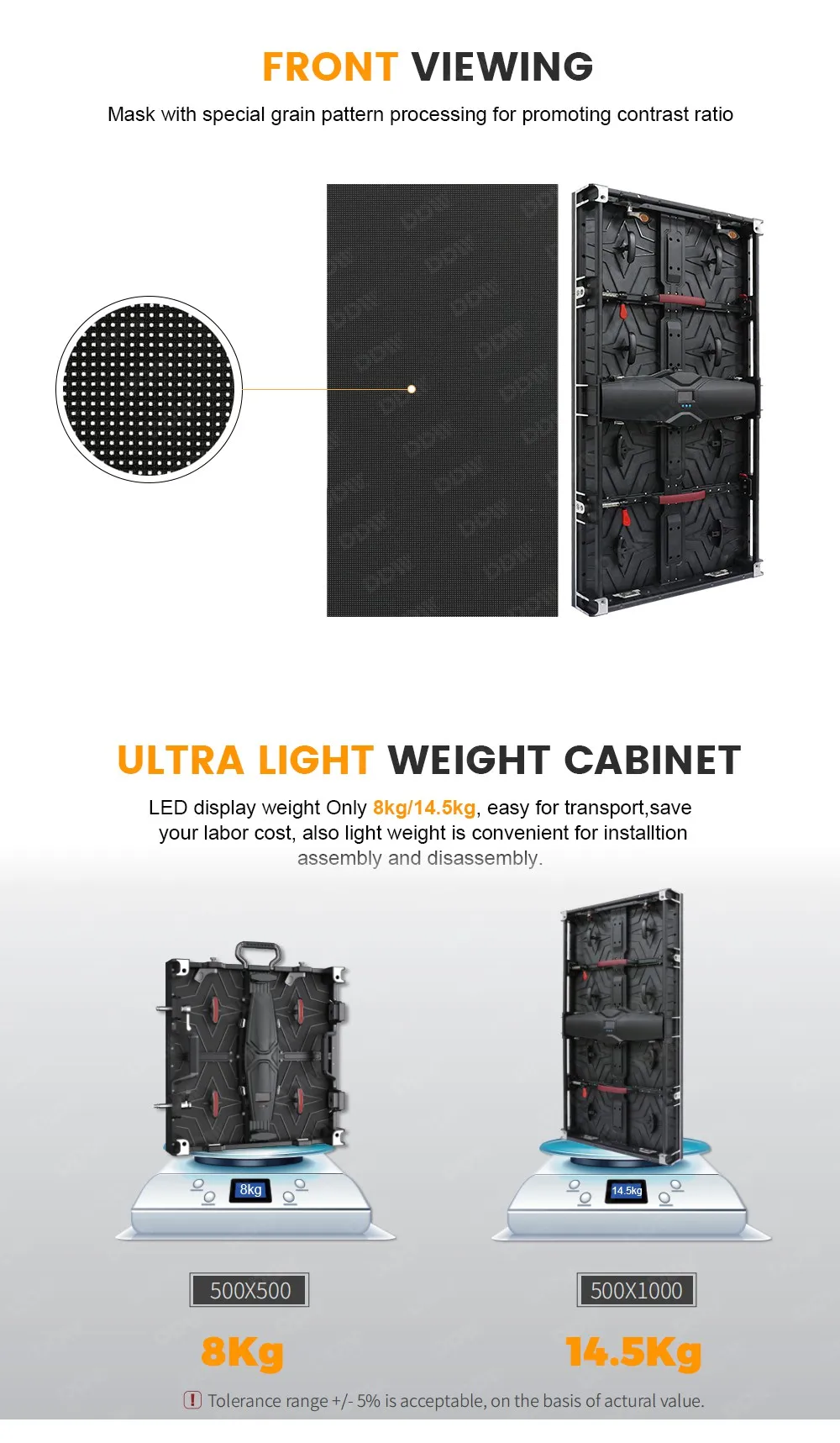

Panel Weight (kg/Panel) | 7.5/ 12.5 | 7.5/ 12.5 | 8.5 | 8.5/13.5 | 8.5/13.5 | 8.5/13.5 | 8.5/13.5 | ||||||
Grey Level | ≥16bit | ||||||||||||

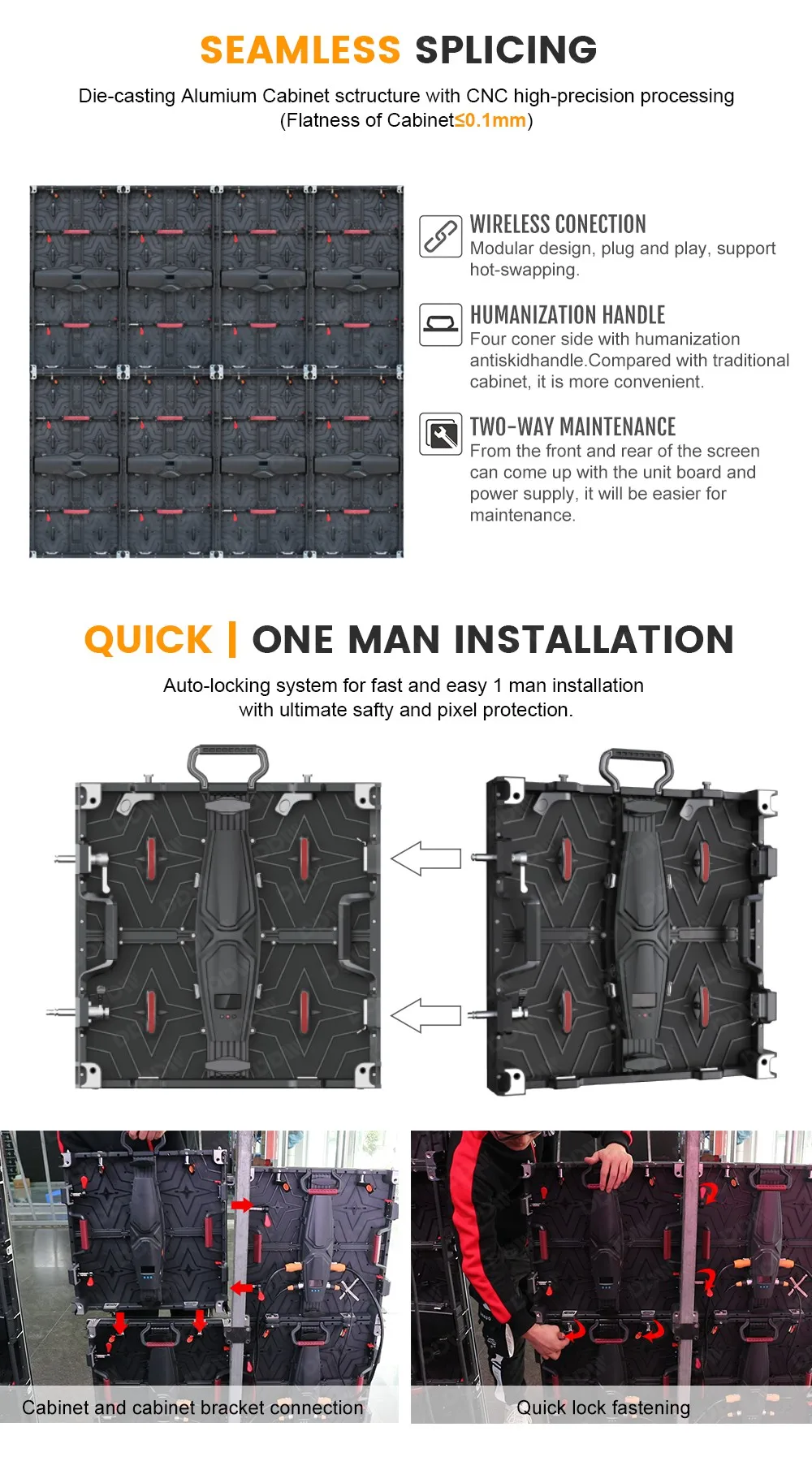

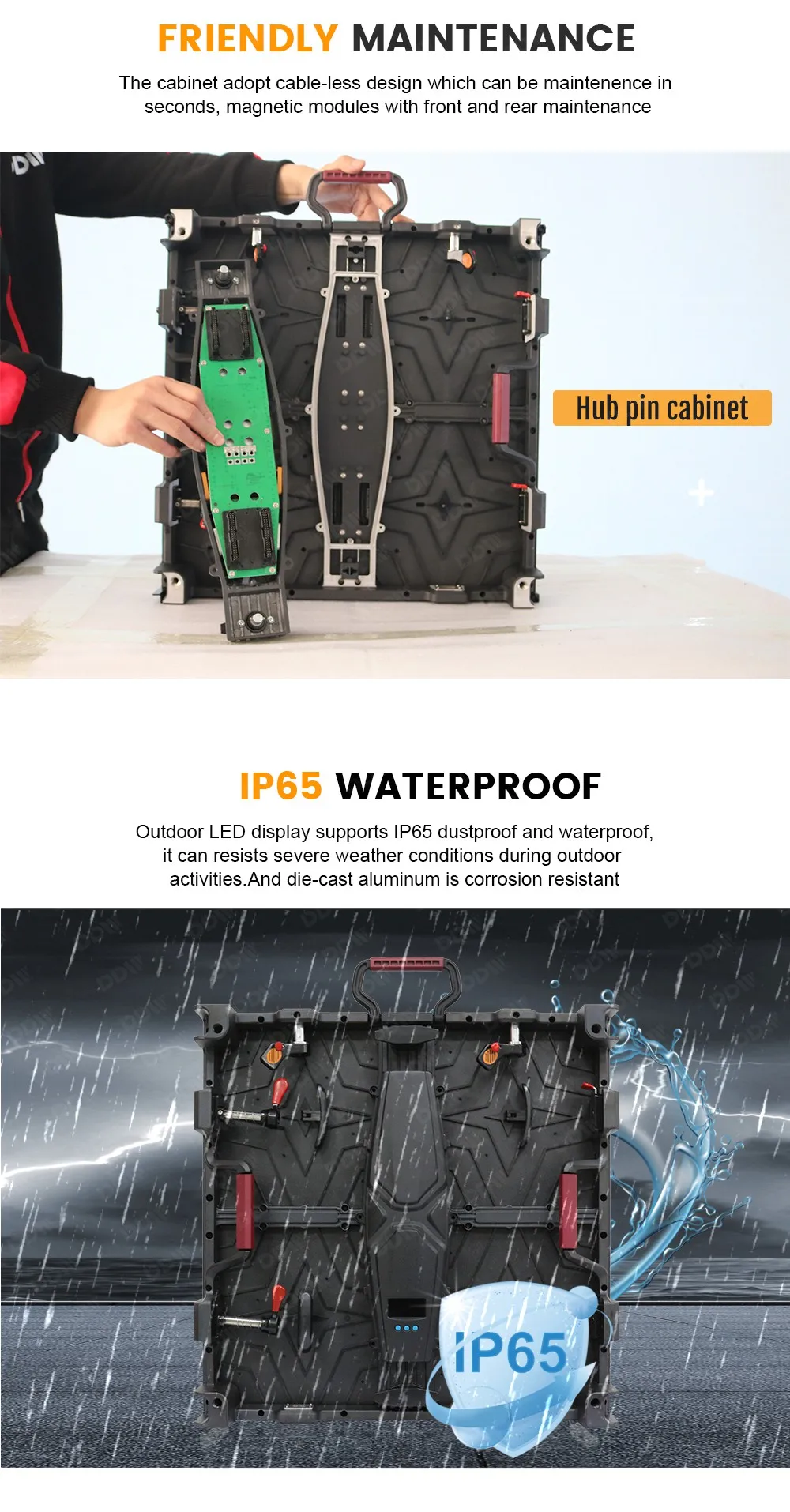

Maintenance Mode | Front/ rear Maintenance | ||||||||||||
Cabinet Frame | Die-casting Aluminum | ||||||||||||
Brightness (CD/m2) | ≥1000 | ≥1000 | ≥4500 | ≥4500 | ≥5000 | ≥5000 | ≥5000 | ||||||
Color Temperature (K) | 3200-9300 Optional | 3200-9300 Optional | 1000-18500 Optional | 1000-18500 Optional | 1000-18500 Optional | 1000-18500 Optional | 1000-18500 Optional | ||||||

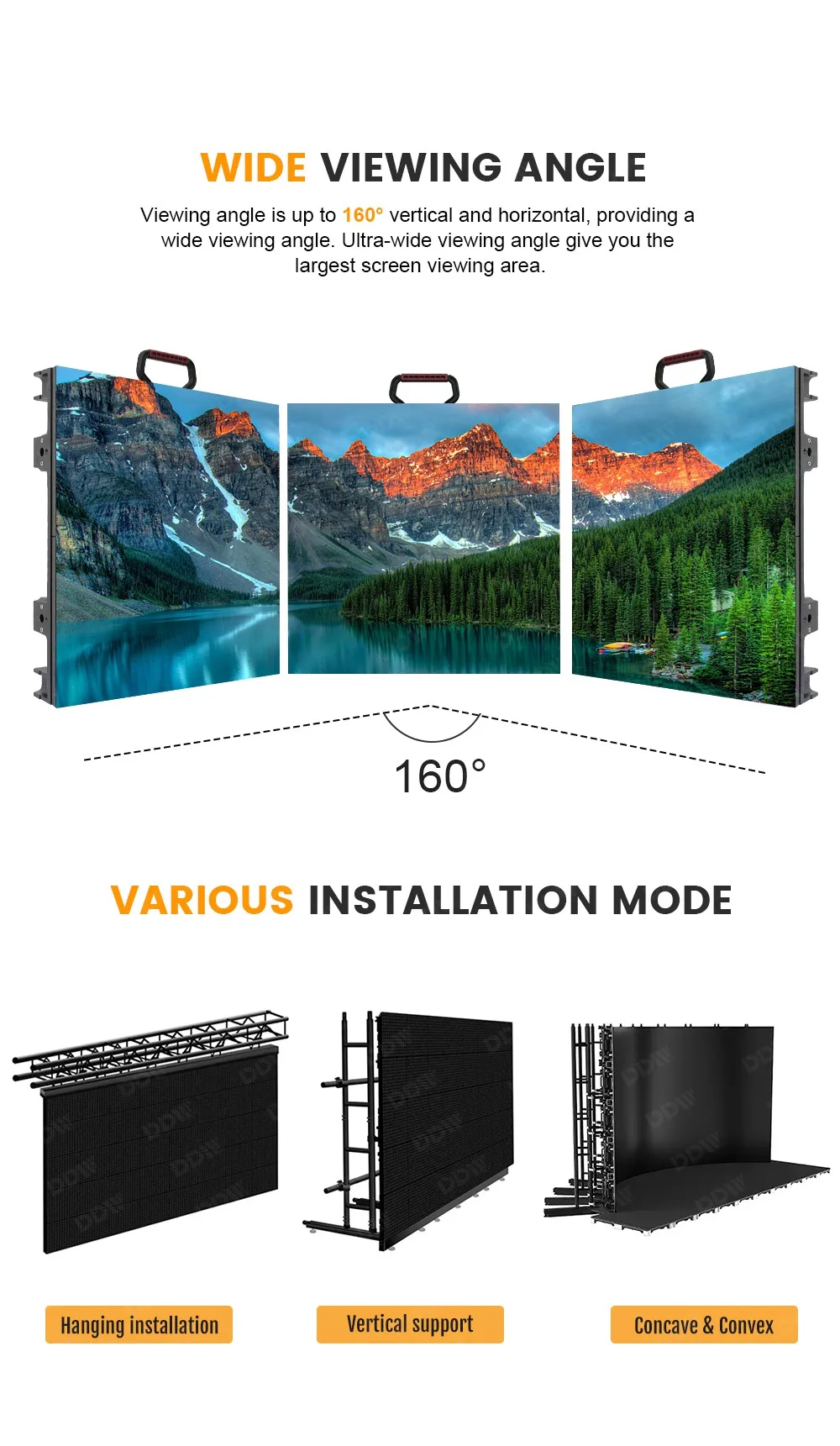

Viewing Angle (HN) | 160*/160° | ||||||||||||
The Optimal Viewing Distance | 2-50M | 2.5-50M | 3-50m | 3-100m | 4-150m | 4-150m | 6-200m | ||||||
Display Color | 68.7 billion | 68.7 bilion | 687 billion | 687 billion | 687 billion | 687 billion | 687 billion | ||||||
Contrast Ratio | 5000:1 | ||||||||||||
Frame Frequency (Hz) | 50/60 | ||||||||||||
Drving Mode | 1/32 Scan | 1/25 Sca | 1/32scan | 1/28scan | 1/16scan | 1/16scan | 1/16scan | ||||||

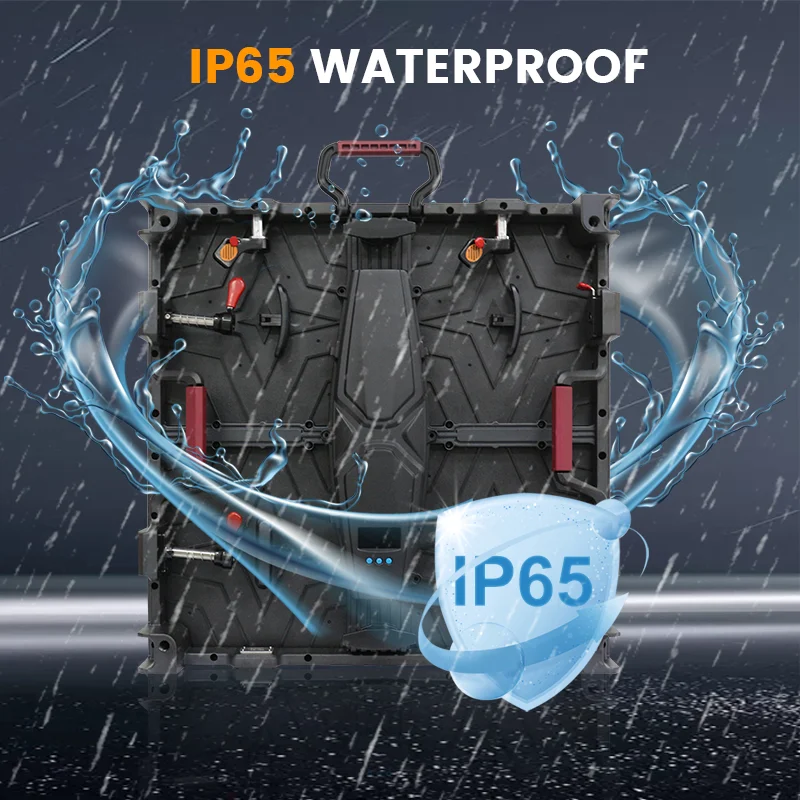

Protection Degree | IP31 | IP31 | IP65 | IP65 | IP65 | IP65 | IP65 | ||||||
Maximum Power Consumption | 800w/m² | ||||||||||||
Average Power Consumption | 200-300w/m² | ||||||||||||
Company Profile
About DDW
Shenzhen DDW Technology Co, Ltd is a professional manufacturer and developer of LED display screens in Shenzhen, China since 2012. DDW Display focus on providing indoor outdoor creative LED screen, LED poster, Rental LED screen,Ultra fine HD LED screen,Flexible LED Display,Transparent LED display and various of LED display screens. We are always committed to providing high-quality hardware and software, our excellent pre-sales and after-sales service, and win-win cooperation for all customers.
