High precision F6600 128G SSD solid state drive USB cnc controller for 6 axis Portable type plasma cutting machine
- Category: >>>
- Supplier: Shanghai Fangling Computer Software Co. Ltd.
Share on (1600089009334):
Product Overview
Description
Product Description
The F6000 V2 series CNC control system is a CNC system developed by our company absorbing the advantages of many CNC systems at home and abroad, and taking reference of first generation F6000 system of our company, which is more ergonomic, easy to operate and better in performance. The new F6000 V2 system not only retains the original position control mode, but also adds the bus control mode based on EtherCAT. The wiring is flexible and convenient, and the long-term maintenance is simple. It is suitable for cutting pipe of different shapes, such as round pipe, square pipe, channel steel, H-beam, etc. The cutting mode supports oxygen gas, plasma and laser cutting. The system is beautiful and generous, using touch screen design, easy to operate, all the operation with menu or graphical prompts, touch & Play operation, which can minimize the operator's learning costs.
Characteristics
1.Realize six-axis linkage control, the axis can be expanded.
1.Realize six-axis linkage control, the axis can be expanded.
2.Support EtherCAT protocol, which can drive EtherCAT bus servo.
3.The motion control card realizes motion interpolation and is more stable.
4.Support square tube, round tube, angle steel, channel steel, I-beam, H-beam, waist round tube, oval tube, tapered tube, head and other tube cutting and groove cutting (depending on the mechanical structure).
5.Real-time display of 3D graphics cutting
6.One-click system backup and restore
7.Support for four bar linkage, fitting angle, infinite rotation, mechanical arm (customized) and many other groove end mechanisms
Technical Specification | ||
Control Axis | Maximum up to 8 axis linkage | |
CPU | Intel Core I3-6100 | |
Control accuracy | +/-0.001mm | |
Max pulses | 200 kHz | |
Max speed | 30,000 mm/m | |
Hard disk | 120G SSD Solid state hard disk（can be upgraded） | |
Working Voltage | DC +24V | |
Memory | 4GB DDR4（can be upgraded） | |

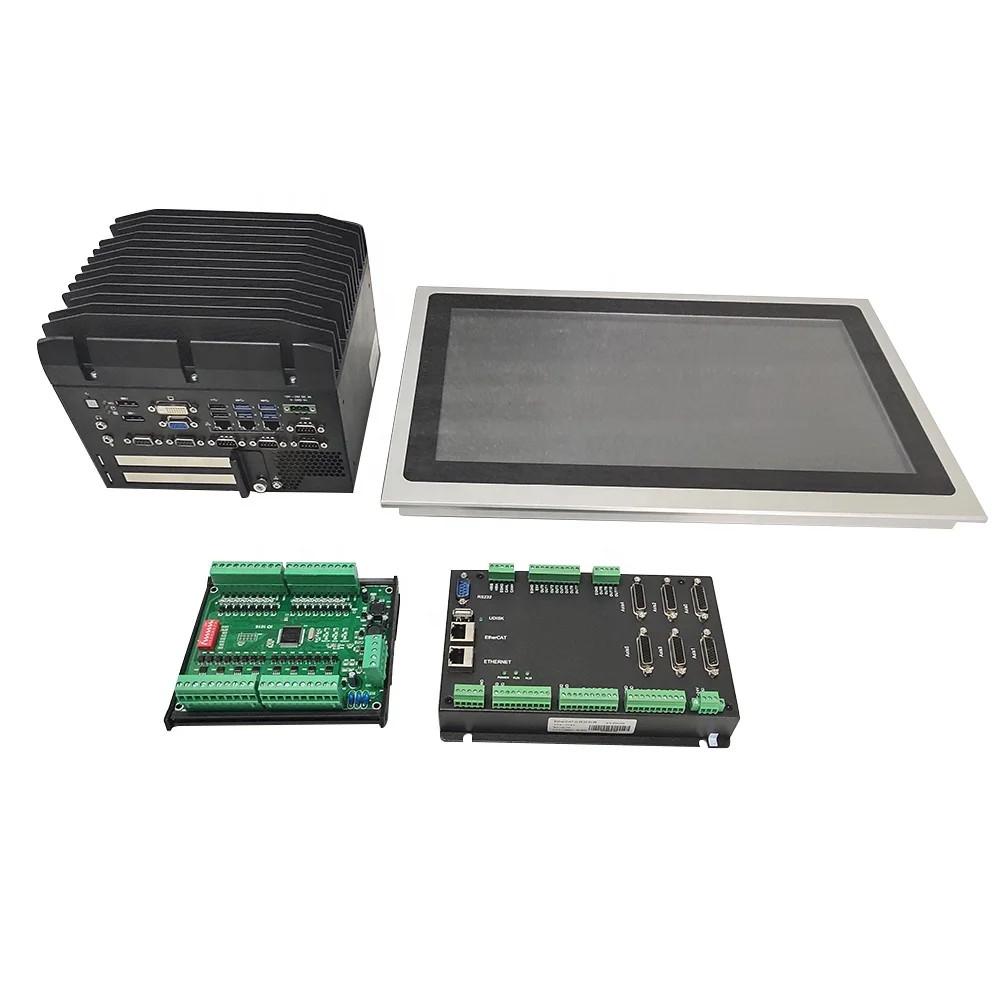

Details Images

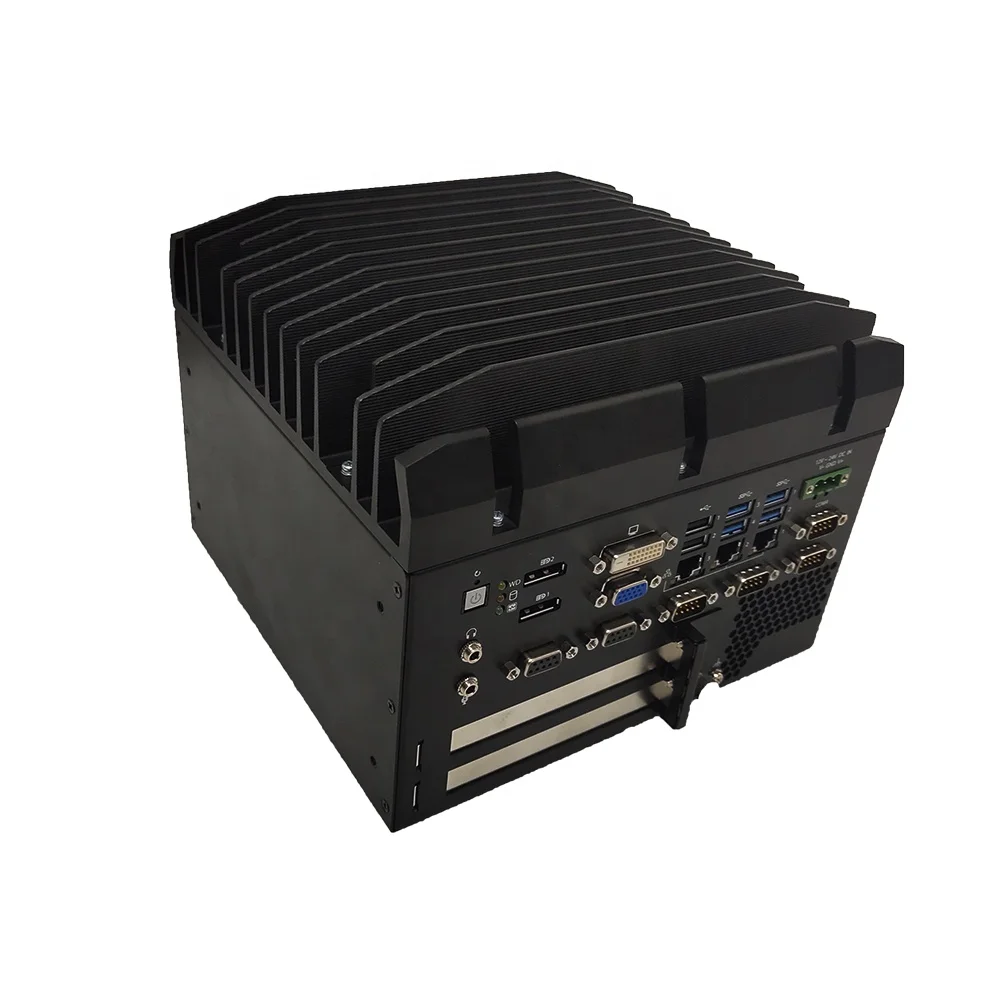

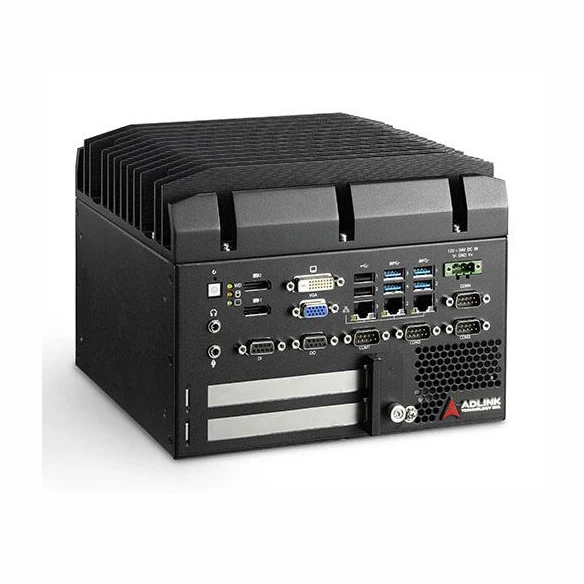

Win10 operating system
1. CPU: Intel Core I3-6100
2. Memory: 4GB DDR4 (upgradeable)
3. Hard disk: 120G SSD solid state drive (upgradeable)
4. Ethernet: 3×Gbe
5. USB: 4×USB3.0 2×USB2.0

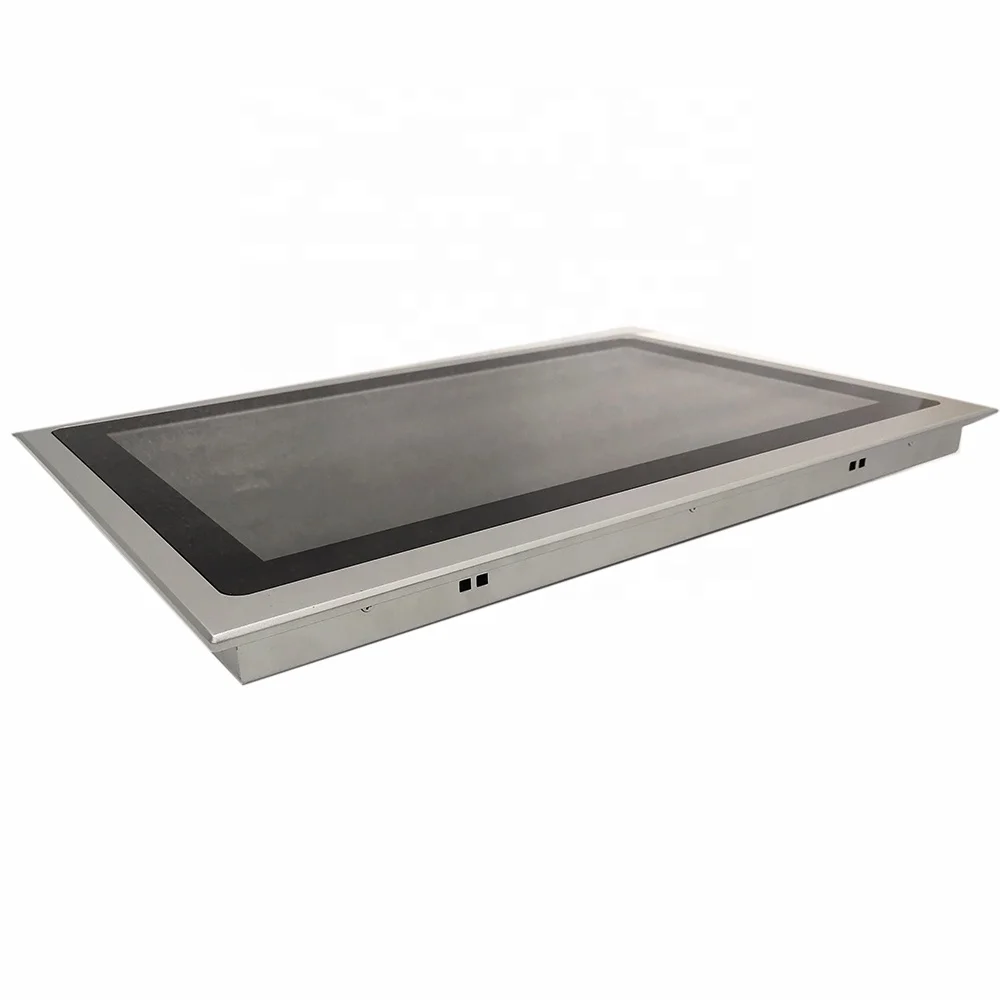

Monitor
1.18.5 inch 1366× 768 high resolution true color high bright LCD screen.
2. Touch screen: resistive or capacitive touch screen3.Industrial grade resistive touch screen.
4.Ultra-thin design, beautiful and sturdy all-aluminum box.•
5.Support VGA, digital HDMI signal input.

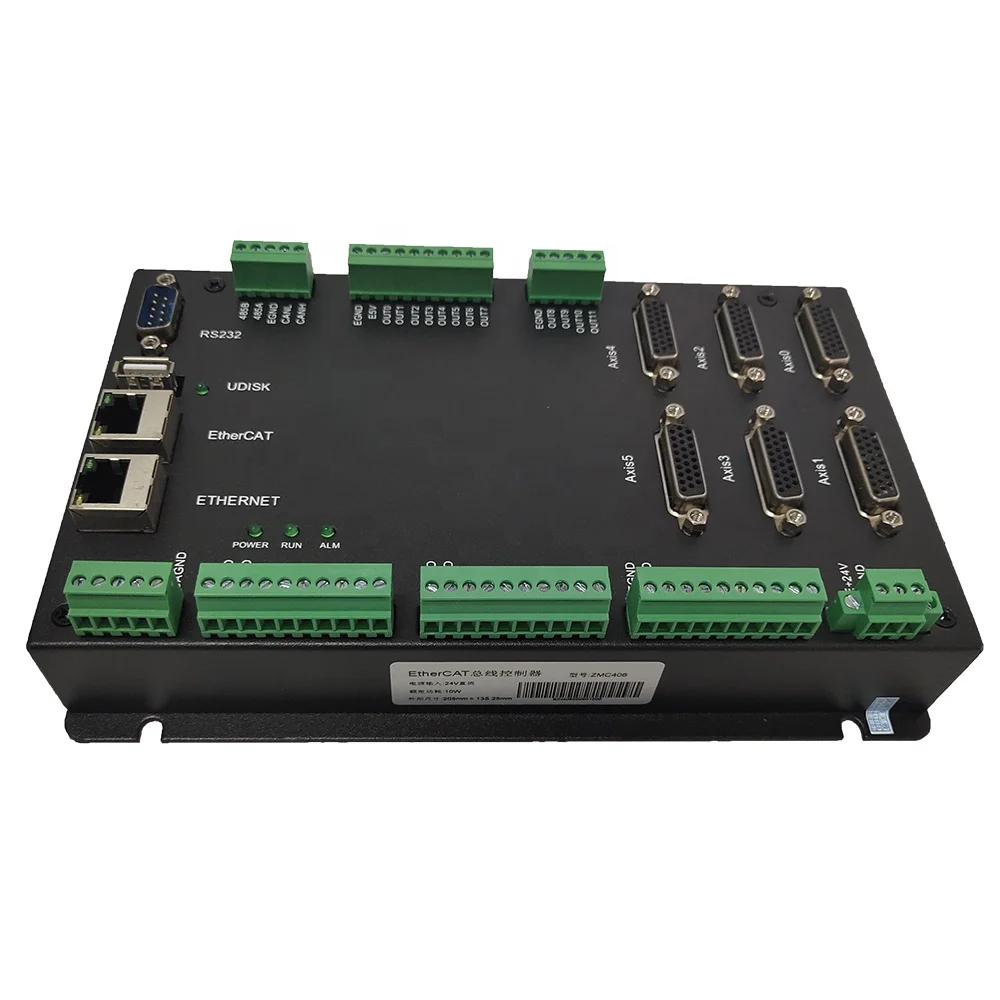

Motion control card
1.Support position control mode, pulse output mode: direction/pulse or double pulse.
2.Support EtherCAT bus mode servo driver.
3. Use network cable for data communication with the host.
4.The maximum output pulse frequency of each axis is 10MHz.
5.12 comes isolated outputs, isolated input channel 24, through the CAN bus, IO expansion may be achieved.

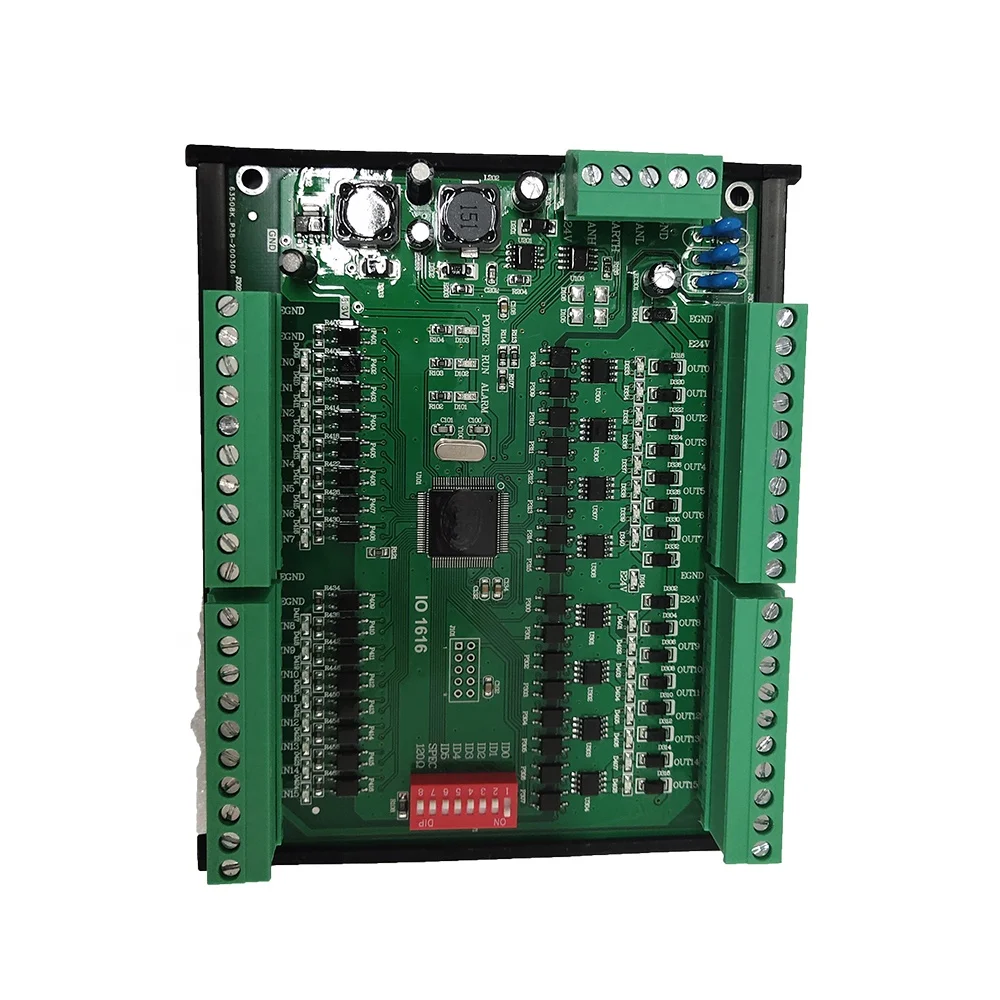

Digital IO expansion module
1.With 16 universal input ports, 16 universal output ports
2.With a CAN bus interface to connect the main controller
Company Profile
Shanghai Fangling Computer Software Co., Ltd is the high-tech enterprise which has more than 10 years’ experience in research, development, production and marketing of Computer Numerical Control(CNC) Field. Nowadays, the company has successfully launched several product lines that include Plasma/Flame plate cutting controller, Built-up Welding Control System, Drilling Control System, Tube Cutting CNC controller, C-beam/H-beam Cutting CNC controller and other related CNC field control systems.
These products are widely being used in multiple manufacturing businesses such as Marine Engineering, Mineral Engineering, Construction, and Automobile manufactory. The market is not only covering China, but also covering Southeast Asia, Russian, Africa, Europe, and South America, etc.. The products are being highly spoken because of their performance and cost-effectiveness.
Exhibition
Our Advantages
Pre-sales service:
1.Office visit
2.Pre-consult and technical guidance
3.Pipe cutting solution guidance
2.Pre-consult and technical guidance
3.Pipe cutting solution guidance
After-sales service:
1.Network technical support and guidance
2.Related documents access
3.Cutting Solution consulting
2.Related documents access
3.Cutting Solution consulting
Packing & Delivery
FAQ
Q: How do you guarantee the quality?
A: We have the professional engineer to test the goods and make sure they are 100% working before they are dispatched.
Q: How do I make the payment?
A: We accept T/T, Western Union(only for a small amount).
Q: Do you provide training for your product?
A: We will provide a manual for our controller to help you study, and we have a professional after-sales agent to guide you through the whole process.
Q: What if I am not sure which controller I need? What if I need some technical consult?
A: Please make sure you consult our sales before you decide to purchase, our goal is to provide you a complete and efficient CNC cutting solution.
Q: How do you pack the goods?
A: Our controllers are light and compact size, It is very easy to pack it up, we usually pack our goods with carton box with extra foam to absorb the shock. We will make sure the package will protect the goods 100% OK.
A: We have the professional engineer to test the goods and make sure they are 100% working before they are dispatched.
Q: How do I make the payment?
A: We accept T/T, Western Union(only for a small amount).
Q: Do you provide training for your product?
A: We will provide a manual for our controller to help you study, and we have a professional after-sales agent to guide you through the whole process.
Q: What if I am not sure which controller I need? What if I need some technical consult?
A: Please make sure you consult our sales before you decide to purchase, our goal is to provide you a complete and efficient CNC cutting solution.
Q: How do you pack the goods?
A: Our controllers are light and compact size, It is very easy to pack it up, we usually pack our goods with carton box with extra foam to absorb the shock. We will make sure the package will protect the goods 100% OK.
