10PCS/LOT RFM95 RFM95W 868Mhz 915Mhz RFM95 868MHz RFM95 915MHz LoRaTM Wireless Transceiver SX1276
- Category: >>>
- Supplier: Shenzhen Duoweisi Tech Co. Ltd.
Share on (1600089028588):
Product Overview
Description
RFM98W 433MHZ USE SX1278 MAIN CHIPS .
RFM96W 433MHZ USE SX1276 MAIN CHIPS .
RFM95W 868MHZ AND RFM95W 915MHZ USE SX1276 MAIN CHIPS .
FAQs:
FAQ 1: What`s the difference between RFM95 & RFM95W?
A: “W” for overseas market. RFM95 = RFM95W, only marking different.
FAQ 2: Why the chip on RFM95W module is RFM96, is it correct?
A: Yes, it is correct, you can see the module number (RFM95W) on its back.
Special statement:

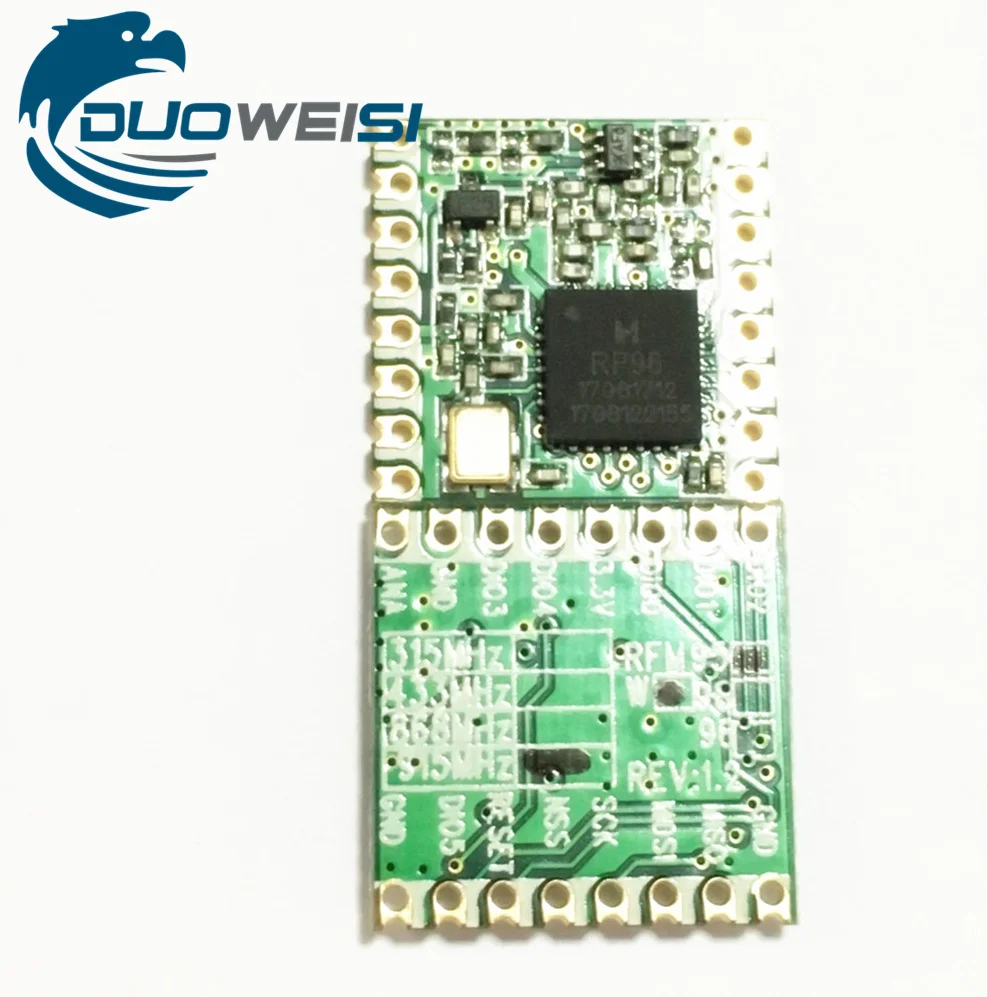

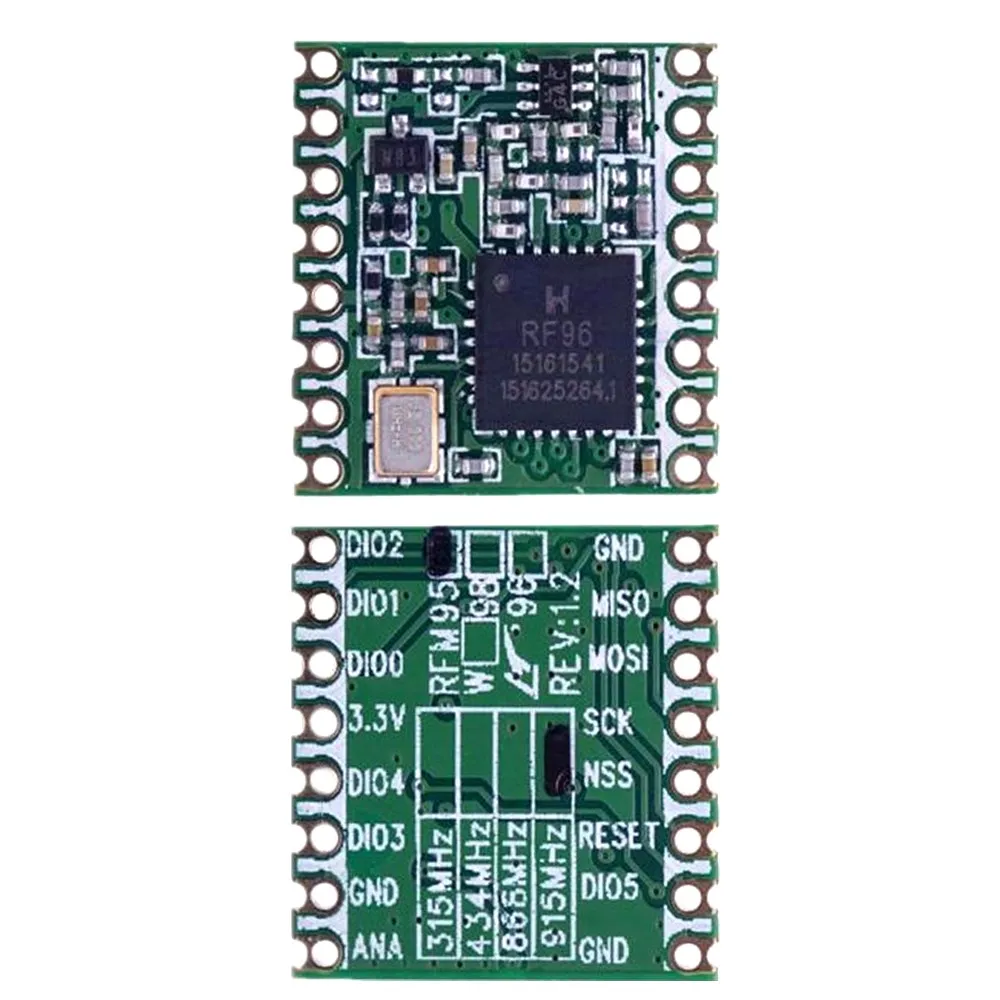

The RFM95 module uses RFM96 chip, and the picture is a physical map.
Mind customers please do not buy, thank you.
Do not accept the submission of disputes and bad reviews because the chip is RFM96, hereby declare.
RFM95 | RFM95 wireless transceiver module | LoRa spread spectrum communication | 868MHz | 915MHz | SX1276 | 16 * 16mm |8000m
Low power Long Range wireless transceiver module
working frequency:868/915MHZ
Modulation mode:LoRA/FSK/GFSK/00K
Transmit power:20dBm
Receiving sensitivity:-148dBm(AT)FSK
0.018K~37.5Kbps(AT)LoRa
Transmission rate:200Kbps
emission current:120mA(AT)20dBm
receiving current:10.3mA
standby current:0.2uA
data interface:SPI interface
communication distance:>8000m (AT)LoRa
antenna resistance:50 Ohm
operation temperature:-20 ~ 70 °C
power:DC 1.8V ~ 3.7V

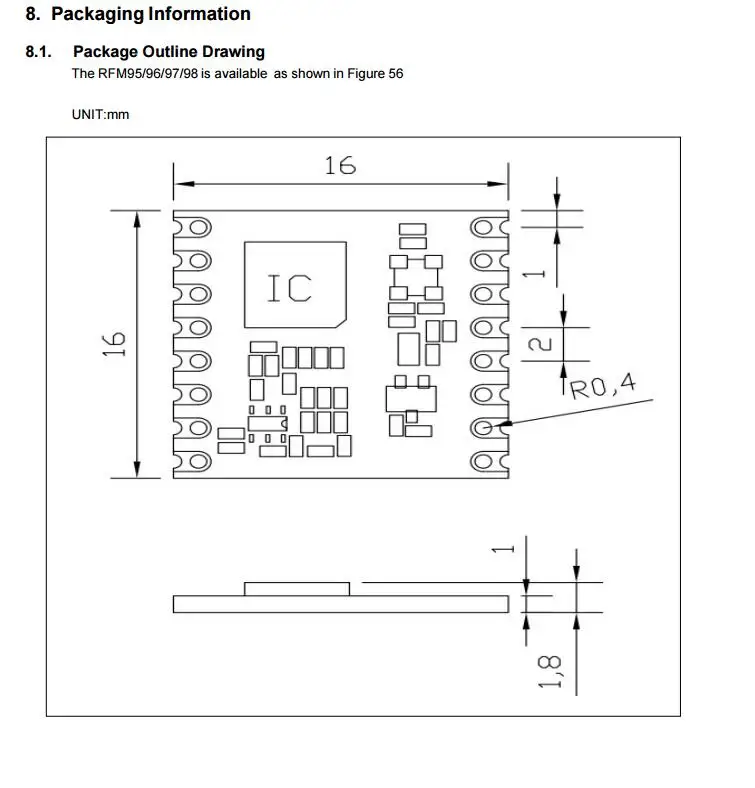

size:16*16mm
