New original F1650 THC torch height controller with New dynamic pierce button for plasma cutting machine
- Category: >>>
- Supplier: Shanghai Fangling Computer Software Co. Ltd.
Share on (1600089062502):
Product Overview
Description
Product Description
Technical Specification | ||
CPU | High performance ARM Processor | |
Regulator motor | position control type stepper / servo motor | |
Position control accuracy | ±0.001mm | |
Maximum pulse frequency | 160KHz | |
Maximum operating speed | 30m/min | |
Chassis | Full-steel structure | |
Working Voltage | DC +24V | |
DC motor output power | maximum 45W | |
Voltage divider ratio | 100:1 or 50:1 | |
Arc voltage setting range | 30V~600V | |
F1650 fine plasma arc pressure regulator adopts high-performance ARM9 processor and ultra-large-scale programmable device FPGA to realize precise, fast and stable arc pressure height control of plasma lifter. It achieves better cutting effect, smoother cutting surface and better perpendicularity.

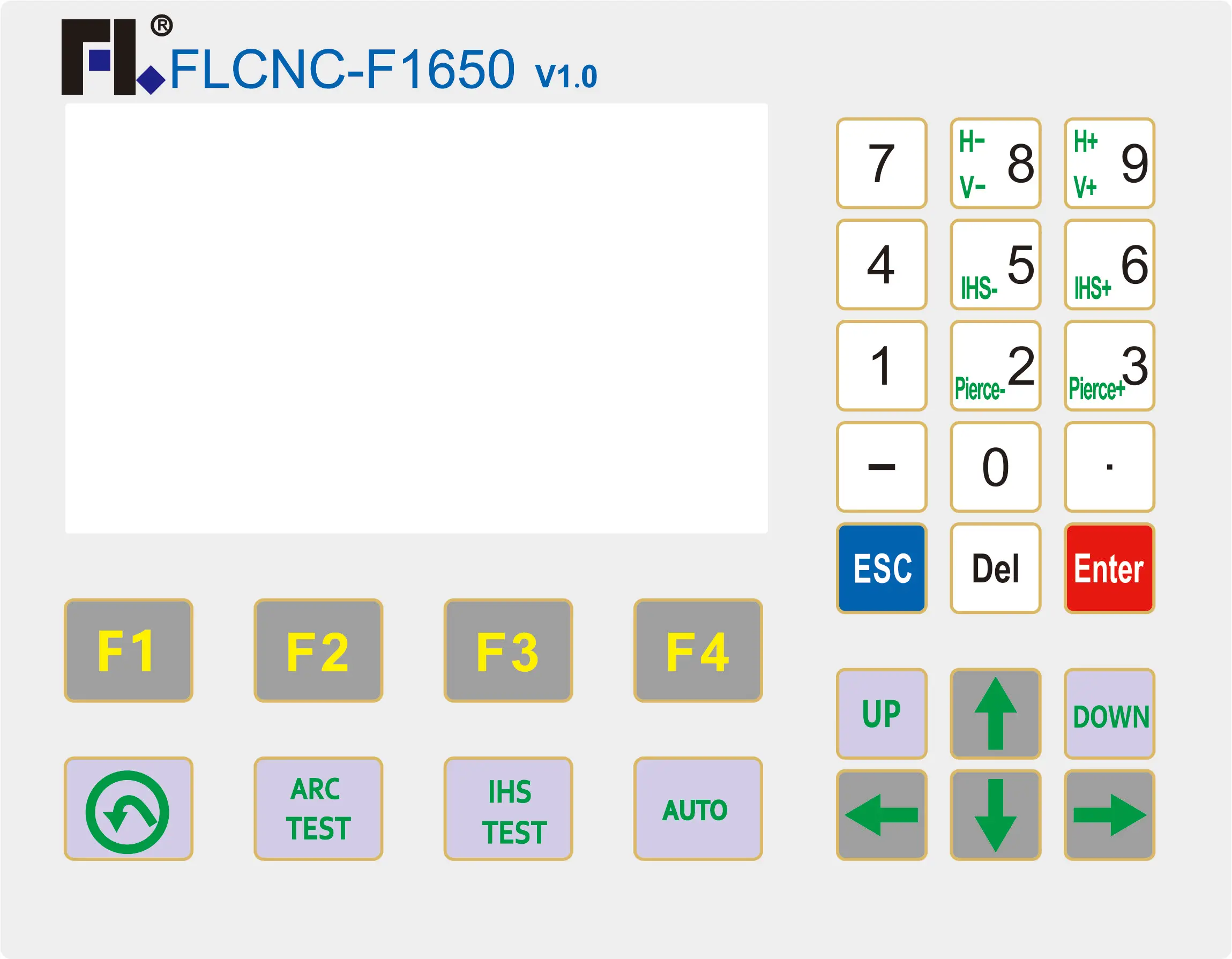

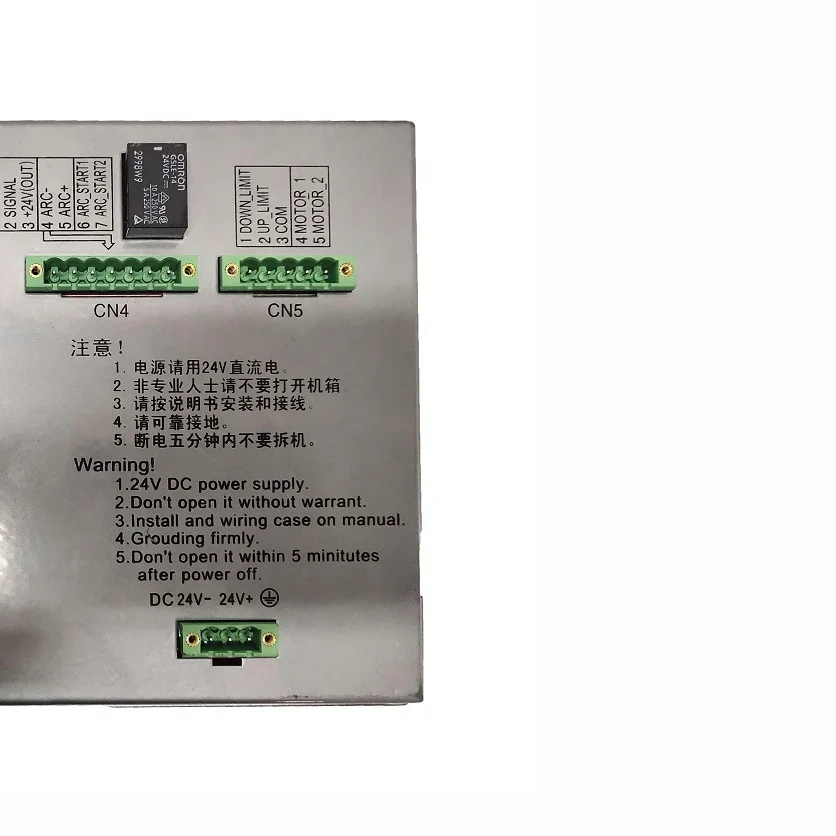

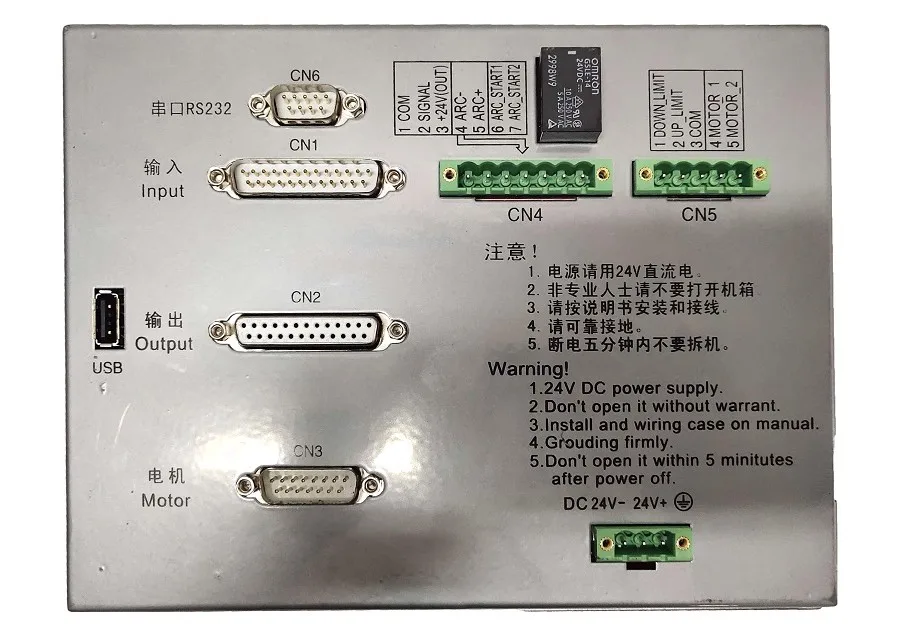

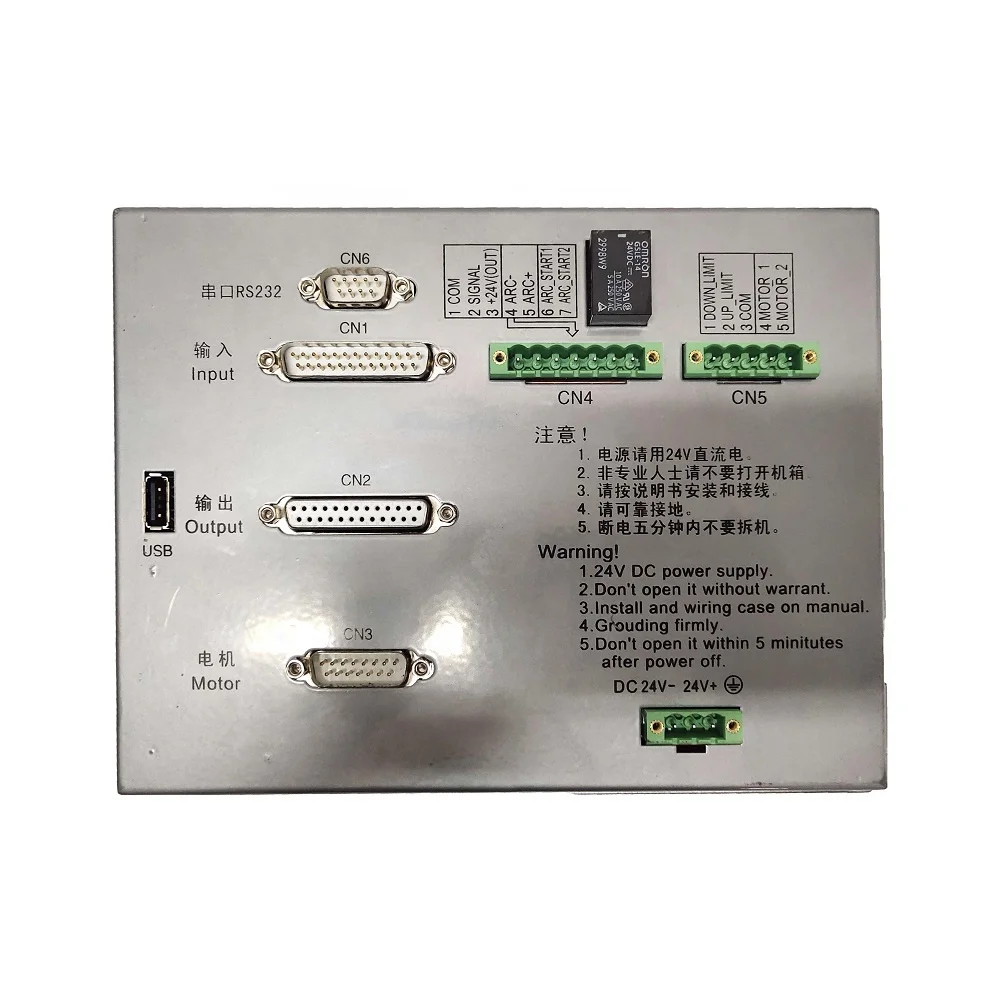

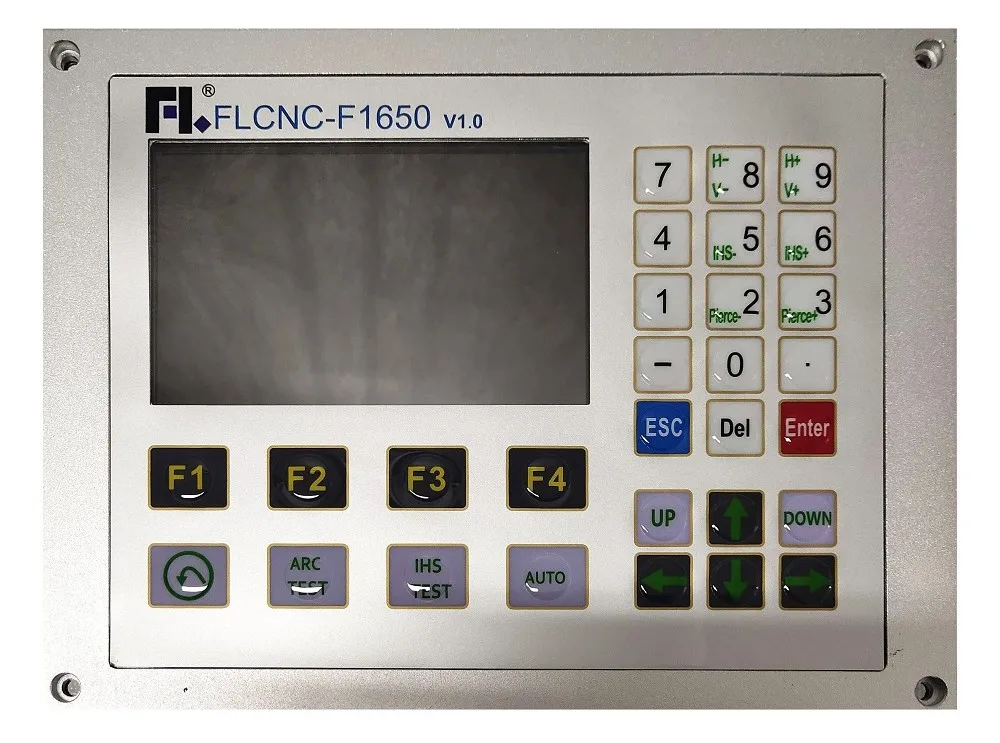

F1650 adopts aluminum front panel, which is more beautiful and grander, 5 inches high-definition color screen display, full digital button operation, so that its operation of parameter settings is more convenient, intuitive. There are two ways of connection with CNC system, RS232 bus and IO.
F1650 adopts aluminum front panel, which is more beautiful and grander, 5 inches high-definition color screen display, full digital button operation, so that its operation of parameter settings is more convenient, intuitive. There are two ways of connection with CNC system, RS232 bus and IO.
Functional characteristics
1.Support servo, stepper and DC three motor lifts.
2.In position control mode, support arc pressure tracking mode and height tracking mode.
3.Supporting fine 1:1 small circular hole cutting process
4.Support RS232 interface, adopt Modbus protocol and system bus connection to reduce wiring.
2.In position control mode, support arc pressure tracking mode and height tracking mode.
3.Supporting fine 1:1 small circular hole cutting process
4.Support RS232 interface, adopt Modbus protocol and system bus connection to reduce wiring.

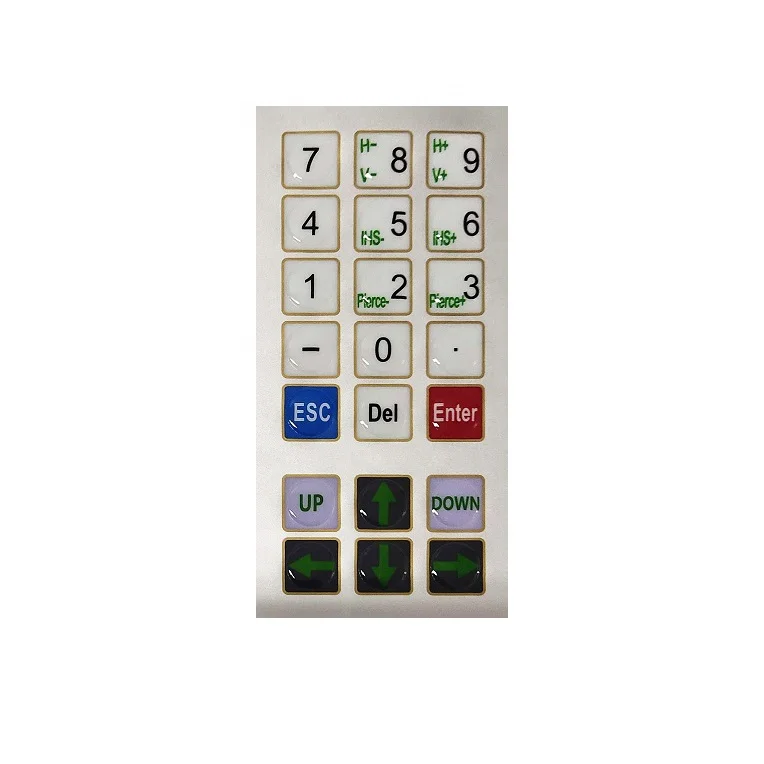

5.All digital keyboard, high definition color screen, graphical user interface, convenient for user operation.
Details Images
Company Profile
Shanghai Fangling Computer Software Co., Ltd is the high-tech enterprise which has more than 10 years’ experience in research, development, production and marketing of Computer Numerical Control(CNC) Field. Nowadays, the company has successfully launched several product lines that include Plasma/Flame plate cutting controller, Built-up Welding Control System, Drilling Control System, Tube Cutting CNC controller, C-beam/H-beam Cutting CNC controller and other related CNC field control systems.
These products are widely being used in multiple manufacturing businesses such as Marine Engineering, Mineral Engineering, Construction, and Automobile manufactory. The market is not only covering China, but also covering Southeast Asia, Russian, Africa, Europe, and South America, etc.. The products are being highly spoken because of their performance and cost-effectiveness.
Exhibition
Our Advantages
Pre-sales service:
1.Office visit
2.Pre-consult and technical guidance
3.Pipe cutting solution guidance
2.Pre-consult and technical guidance
3.Pipe cutting solution guidance
After-sales service:
1.Network technical support and guidance
2.Related documents access
3.Cutting Solution consulting
2.Related documents access
3.Cutting Solution consulting
Certifications
Packing & Delivery
FAQ
Q: How do you guarantee the quality?
A: We have the professional engineer to test the goods and make sure they are 100% working before they are dispatched.
Q: How do I make the payment?
A: We accept T/T, Western Union(only for a small amount).
Q: Do you provide training for your product?
A: We will provide a manual for our controller to help you study, and we have a professional after-sales agent to guide you through the whole process.
Q: What if I am not sure which controller I need? What if I need some technical consult?
A: Please make sure you consult our sales before you decide to purchase, our goal is to provide you a complete and efficient CNC cutting solution.
Q: How do you pack the goods?
A: Our controllers are light and compact size, It is very easy to pack it up, we usually pack our goods with carton box with extra foam to absorb the shock. We will make sure the package will protect the goods 100% OK.
A: We have the professional engineer to test the goods and make sure they are 100% working before they are dispatched.
Q: How do I make the payment?
A: We accept T/T, Western Union(only for a small amount).
Q: Do you provide training for your product?
A: We will provide a manual for our controller to help you study, and we have a professional after-sales agent to guide you through the whole process.
Q: What if I am not sure which controller I need? What if I need some technical consult?
A: Please make sure you consult our sales before you decide to purchase, our goal is to provide you a complete and efficient CNC cutting solution.
Q: How do you pack the goods?
A: Our controllers are light and compact size, It is very easy to pack it up, we usually pack our goods with carton box with extra foam to absorb the shock. We will make sure the package will protect the goods 100% OK.
