Product Overview
Description
Details Images

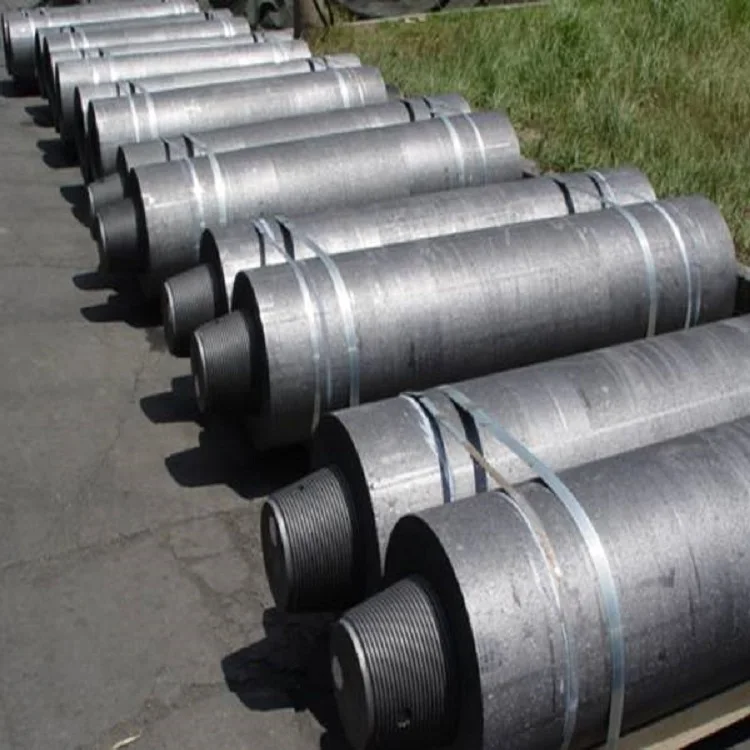

The electrodes carry the electricity that heats electric arc furnaces, the vast majority steel furnaces. They are made from
petroleum coke after it is mixed with petroleum pitch, extruded and shaped, then baked to sinter it, and then graphitized by
heating it above the temperature (3000 °C) that converts carbon to graphite. They can vary in size up to 11 ft. long and 30 in. in
diameter.
petroleum coke after it is mixed with petroleum pitch, extruded and shaped, then baked to sinter it, and then graphitized by
heating it above the temperature (3000 °C) that converts carbon to graphite. They can vary in size up to 11 ft. long and 30 in. in
diameter.
RP (Regular Power Grade Graphite Electrodes | ||||||||||||||
ITEM | UNIT | (M M)NOMINAL DIAMETER | ||||||||||||
75-130 | 150-230 | 250-350 | 400-500 | 75-130 | ||||||||||
BULK DENSITY | ELECTRODE | G/CM3 | ≥1.58 | ≥1.58 | ≥1.58 | ≥1.58 | ≥1.58 | |||||||
NIPPLE | ≥1.65 | ≥1.65 | ≥1.65 | ≥1.65 | ≥1.65 | |||||||||
RESISTIVITY | ELECTRODE | μΩM | ≤ 8.5 | ≤ 8.5 | ≤ 8.5 | ≤ 8.5 | ≤ 8.5 | |||||||
NIPPLE | ≤ 5.0 | ≤ 5.0 | ≤ 5.0 | ≤ 5.0 | ≤ 5.0 | |||||||||
BENDING STRENGTH | ELECTRODE | MPA | ≥12.0 | ≥12.0 | ≥12.0 | ≥12.0 | ≥12.0 | |||||||
NIPPLE | ≥16.0 | ≥16.0 | ≥16.0 | ≥16.0 | ≥16.0 | |||||||||
ELASTIC MODULUS | ELECTRODE | GPA | ≤8.0 | ≤8.0 | ≤8.0 | ≤8.0 | ≤8.0 | |||||||
NIPPLE | ≤12.0 | ≤12.0 | ≤12.0 | ≤12.0 | ≤12.0 | |||||||||
C.T.E. (100-600/℃) | ELECTRODE | 10-6/℃ | ≤ 2.9 | ≤ 2.9 | ≤ 2.9 | ≤ 2.9 | ≤ 2.9 | |||||||
NIPPLE | ≤ 2.9 | ≤ 2.9 | ≤ 2.9 | ≤ 2.9 | ≤ 2.9 | |||||||||
ASH | % | ≤0.3 | ≤0.3 | ≤0.3 | ≤0.3 | ≤0.3 | ||||||||
Standard Size of Electrodes and Tapered Nipples | |||||||||||||||
Diameter (mm) | Standard Nipple size | Diameter Tolerance | Nominal Length | ||||||||||||
4 T.P.I Nipple | 3 T.P.I Nipple | Max (mm) | Min (mm) | Low Spot (mm) | Supplied (mm) | ||||||||||
Dia (mm) | Length (mm) | Dia (mm) | Length (mm) | ||||||||||||
75 | 46.04 | 76.20 | 78 | 73 | 72 | 1000,1200 | |||||||||
100 | 69.85 | 101.60 | 103 | 98 | 97 | 1000,1200,1500 | |||||||||
130 | 79.38 | 127.00 | 132 | 127 | 126 | 1000,1200,1500 | |||||||||
150 | 92.08 | 139.70 | 154 | 149 | 146 | 1200,1500,1800 | |||||||||
175 | 107.95 | 165.10 | 179 | 174 | 171 | 1200,1500,1800 | |||||||||
200 | 122.24 | 177.80 | 205 | 200 | 197 | 1200,1500,1800 | |||||||||
225 | 139.70 | 177.80 | 230 | 225 | 222 | 1500,1800 | |||||||||
250 | 152.40 | 190.50 | 155.58 | 220.10 | 256 | 251 | 248 | 1500,1800 | |||||||
300 | 177.80 | 215.90 | 177.17 | 270.90 | 307 | 302 | 299 | 1500,1800,2100 | |||||||
350 | 203.20 | 254.00 | 215.90 | 304.80 | 357 | 352 | 349 | 1500,1800,2100 | |||||||
400 | 222.25 | 304.80 | 215.90 | 304.80 | 409 | 403 | 400 | 1500,1800,2100,2400,2700 | |||||||
400 | 222.25 | 355.60 | 241.30 | 338.70 | 409 | 403 | 400 | 1500,1800,2100,2400,2700 | |||||||
450 | 241.30 | 304.80 | 24I.30 | 304.80 | 460 | 454 | 451 | 1800, 2100, 2400, 2700 | |||||||
450 | 241.30 | 355.60 | 273.05 | 355.60 | 460 | 454 | 451 | 1800, 2100, 2400, 2700 | |||||||
500 | 269.88 | 355.60 | 273.05 | 355.60 | 511 | 505 | 502 | 1800, 2100, 2400, 2700 | |||||||
500 | 269.88 | 457.20 | 298.45 | 372.60 | 511 | 505 | 502 | 1800, 2100, 2400, 2700 | |||||||
550 | 298.45 | 355.60 | 298.45 | 372.50 | 562 | 556 | 553 | 1800, 2100, 2400, 2700 | |||||||
550 | 298.45 | 457.20 | 562 | 556 | 553 | 1800, 2100, 2400, 2700 | |||||||||
600 | 317.5 | 355.60 | 613 | 607 | 604 | 1800, 2100, 2400, 2700 | |||||||||
600 | 317.5 | 457.20 | 613 | 607 | 604 | 1800, 2100, 2400, 2700 | |||||||||
650 | 355.60 | 457.20 | 657 | 663 | 655 | 2400, 2700 | |||||||||
650 | 355.60 | 558.80 | 657 | 663 | 655 | 2400, 2700 | |||||||||
700 | 374.65 | 457.20 | 714 | 708 | 705 | 2400, 2700 | |||||||||
700 | 374.65 | 558.80 | 714 | 708 | 705 | 2400, 2700 | |||||||||
An increasing proportion of global steel is made using electric arc furnaces, and the electric arc furnace itself is getting more
efficient and making more steel per tonne of electrode.
efficient and making more steel per tonne of electrode.
Products Categores
Applications
About Us
Exhibition

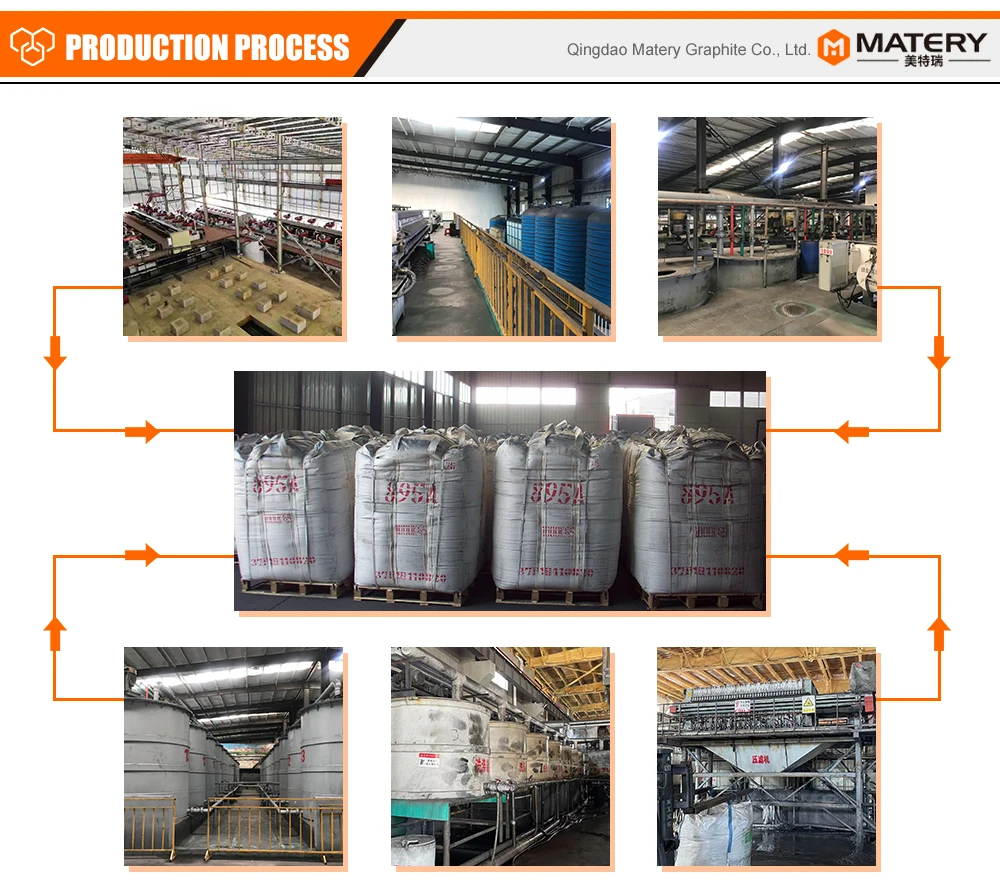

Production Process
