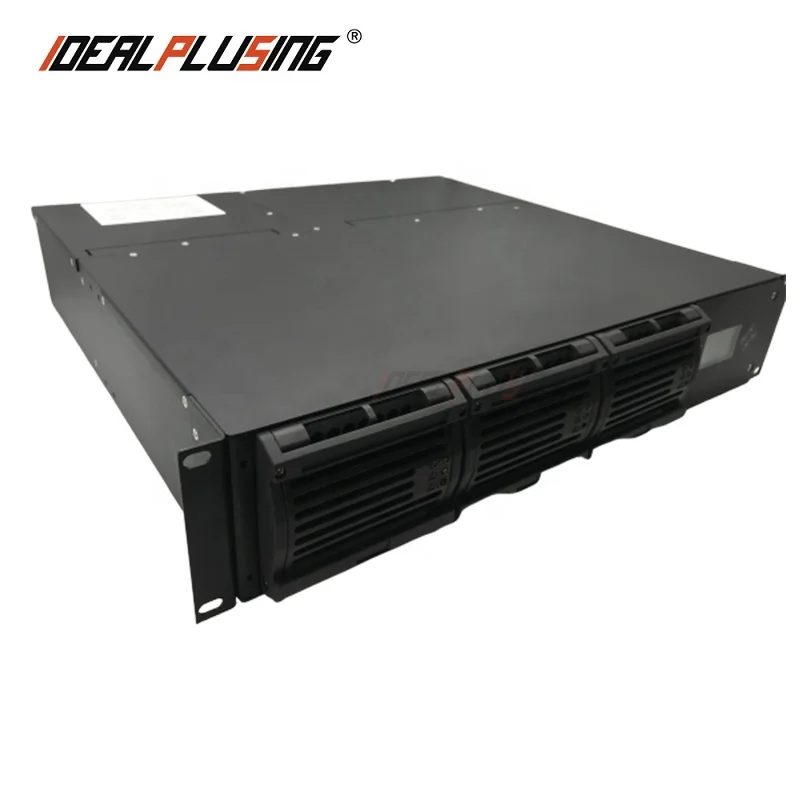

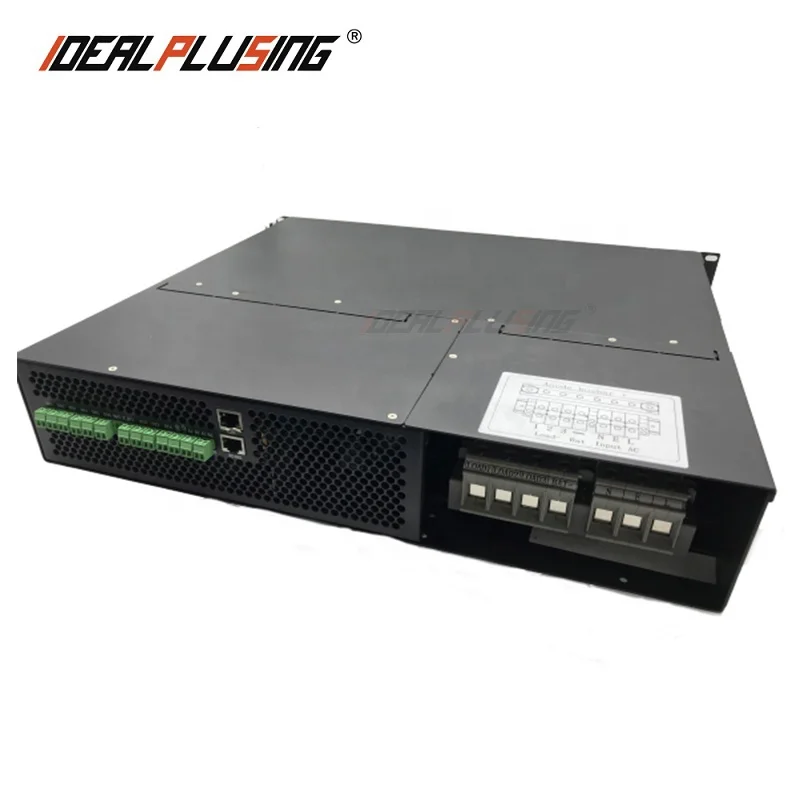

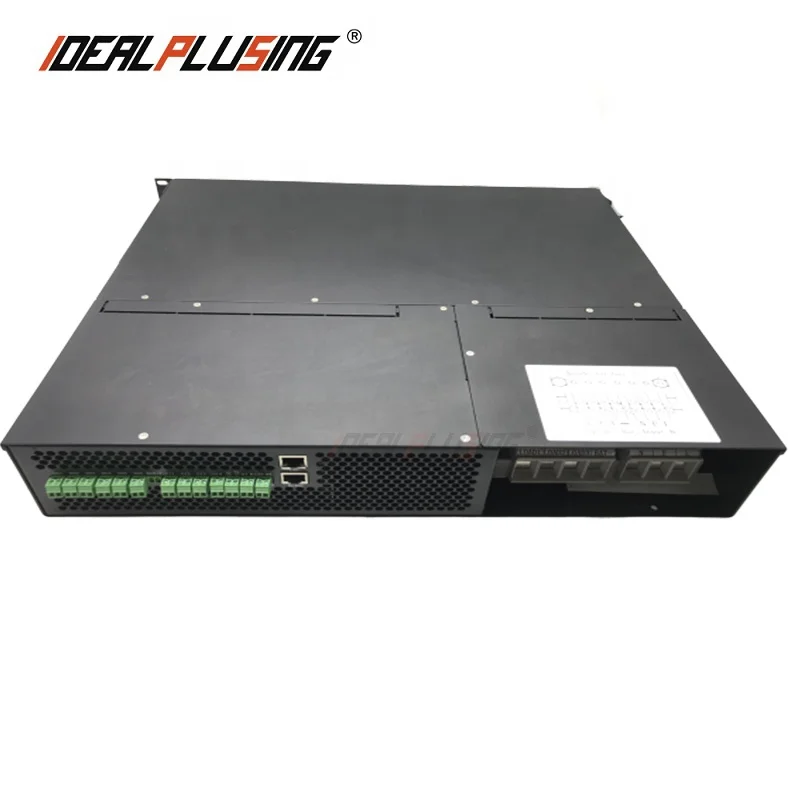

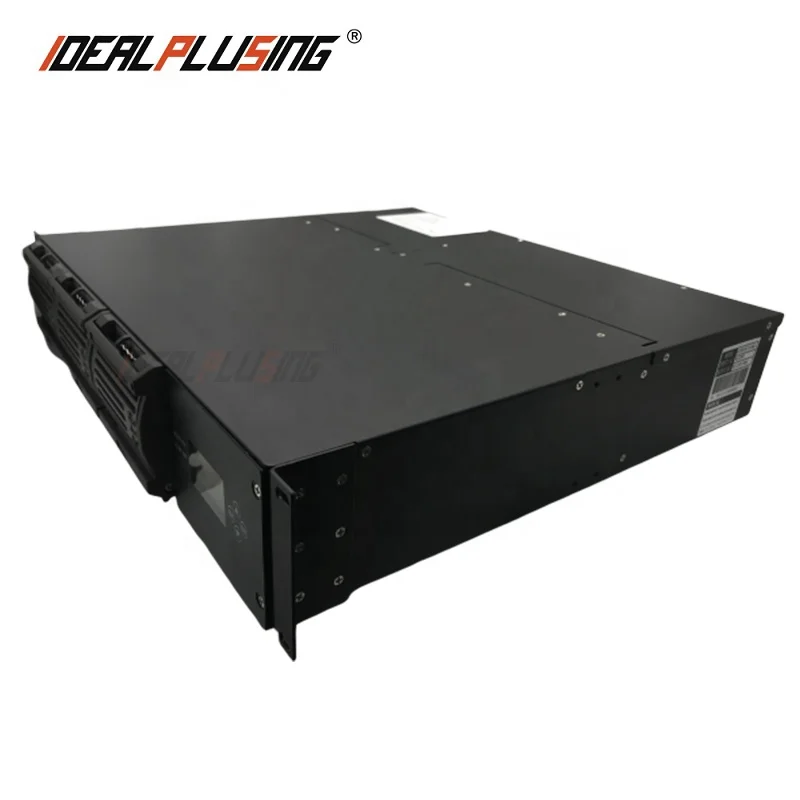

19 Inch Rack Mount Embedded Power Supply 48V 100A Telecom Rectifier
- Category: >>>
- Supplier: Guangzhou Idealplusing Information Technology Co. Ltd.
Share on (1600089196307):
Product Overview
Description
19 Inch Rack Mount Embedded Power Supply 48V 100A Telecom Rectifier
Product Description
Model | IPS-RS48100-2U |
Input | |
Rated voltage | 220VAC |
Input voltage | 180-250VAC |
Output | |
Rated voltage | 48VDC |
Output Voltage | 42-59VDC |
Rate current | 100A |
Rate power | 4800W |
Conversion efficiency | >95% |
Voltage regulation | ±1% |
Load regulation | ± 2% |
Ripple (Full load test) | < 150mV |
No-load current | < 60mA |
Working temperature | -5~45℃ |
Waterproof rating | IP67 |
Protection | Over-current / voltage / load protection |
Overheat protection | |
Lower voltage protection | |
Intrusion protection | |
Short-circuit protection and automatic recovery | |
Full waterproof potting | |
Size(MM) | 482*410*88(W*D*H) |
N.W/GW(KG) | 21KG/23KG |
Product Overviews
FAQ
Q1. Can I have a sample order of 48V 100A Telecom Rectifier?
A: Yes, sample order is acceptable to test and check quality for the first cooperation
Q2. What about the lead time?
A: Most of the model in the stock, sample lead time after receive payment 1-3 working days
Q3. Do you have any MOQ limit?
A: Low MOQ, 1 unit for sample checking is available.
Q4. How do you ship the goods and how long does it take to arrive?
A: We often ship by DHL, UPS, FedEx, or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping is also optional.
Q5. How to proceed with an order?
A: Initially, let us know your requirements or application. Besides, We quote according to your requirements or our suggestions. Thirdly, customers confirm the samples and places deposit for formal order. Finally, We arrange the production.
Q6. Is it acceptable to print the buyer logo on the product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q7: How to deal with the flaw?
A: Our products are produced in a strict quality control system and the percent of pass is often maintained over 99.8%.
Q8: Do you offer a guarantee for the products?
A: Yes, we offer a 1-year warranty for all power supply.
Customization scope
IPS-RS22010 | Single phase 220VAC | 220VDC | 10A | 2U-482*410*88 | 17KG/19KG |
IPS-RS22020 | Single phase 220VAC | 220VDC | 20 | 2U-482*410*88 | 21KG/23KG |
IPS-RS22030 | Single phase 220VAC | 220VDC | 30A | 2U-482*410*88 | 25KG/28KG |
IPS-RS22040 | Single phase 220VAC | 220VDC | 40A | 3U-482*410*132 | 30KG/33KG |
IPS-RS22050 | Single phase 220VAC | 220VDC | 50A | 4U-482*410*176 | 36KG/39KG |
IPS-RS22060 | Single phase 220VAC | 220VDC | 60A | 4U-482*410*176 | 40KG/43KG |
IPS-RS22070 | Single phase 220VAC | 220VDC | 70A | 4U-482*410*176 | 44KG/47KG |
Further information request for 48V 100A Telecom Rectifier, please contact with IDEALPLUSING Sale team.
Note: If you can find the right model you need, please contact our sales team. Having any questions, please select the easiest method to contact us.
