80 Ton Construction Machinery Brake Shoess Linings Equipment
- Category: >>>
- Supplier: Hunan Wandefu Trade Co. Limited
Share on (1600089219950):
Product Overview
Description

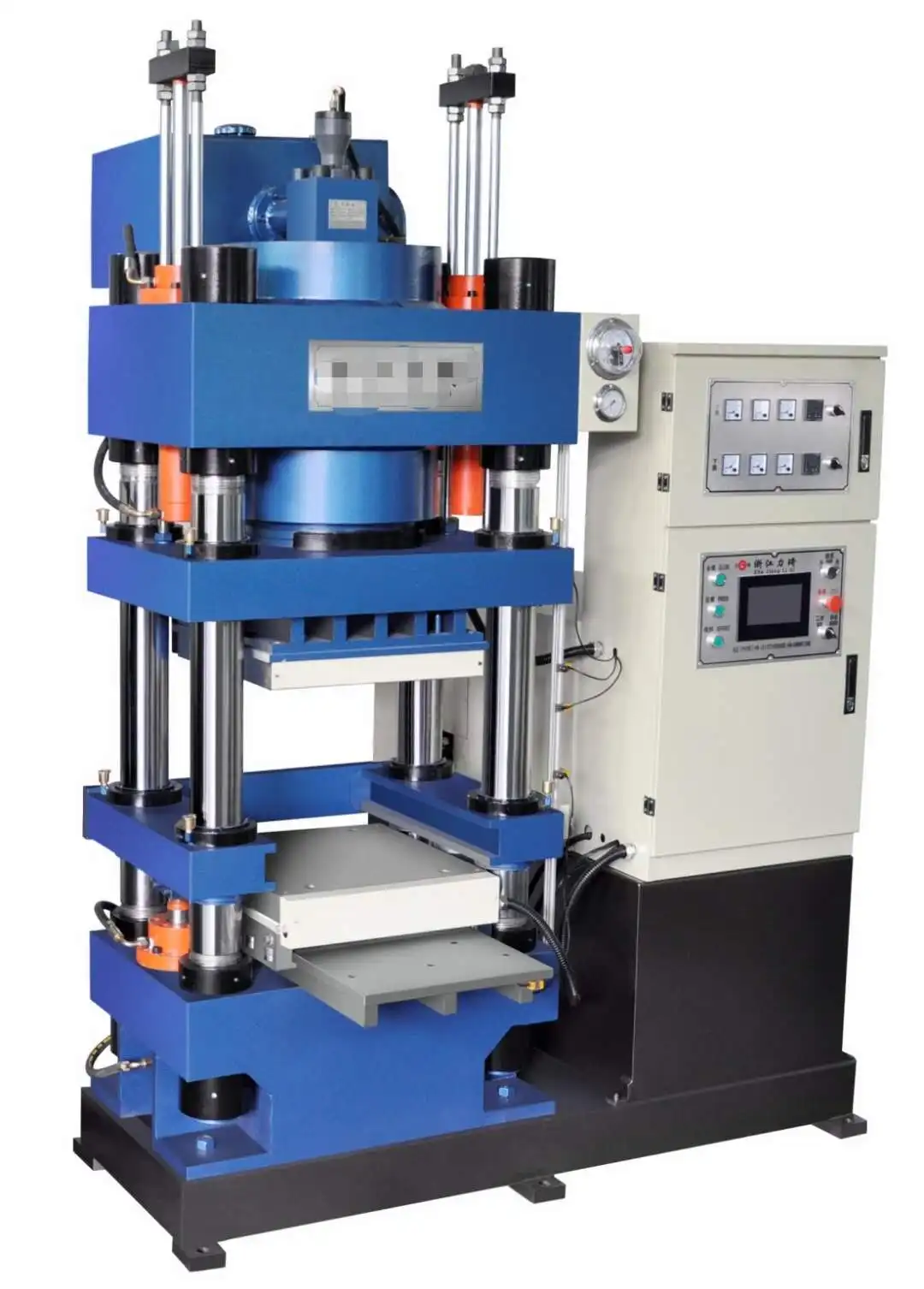

Brake pad making hydraulic press machine 100 ton to 300 ton
We can offer professional brake pad making machine and mould and whole production line and technology support.
Sample product
Advantage:
This machine can save both labor and time, female can operate two sets of 300T easily.
High precision:This machine is special for brake pad of cars and motor bikes. Low energy consumption, low noise ,low oil temperature. The main hydro-cylinder adopted no flange structure to improve the leak resistance performance. The high hardness alloy steel used for the main piston rod to increase the wear resistance. The totally enclosed structure for the oil box and electric box are dust-proof.
Advanced Function: Loading the steel sheet and the powder of the brake pad are done out of the machine to ensure the operation safety. During the pressing, the middle mould will be locked automatically to avoid the leaking of the material. And it has the function of separating automatically, The bottom mold, the middle mold, and the top mold can move automatically, which will make full use of the mold area, improve the production and save labor.
Technical Parameters
Description | Unit | Item No:SGSCP-X | ||||||
120T | 200T | 300T | 400T | |||||
Max Pressure | Ton | 120 | 200 | 300 | 400 | |||
Max Stroke | mm | 300 | 350 | 350 | 400 | |||
Mold Sizs | mm | 320*450 | 500*500 | 500*500 | 600*500 | |||
open height | mm | 350 | 400 | 450 | 500 | |||
motor power | kw | 4 | 4 | 4 | 7.5 | |||
heating power | kw | 6.4 | 9.6 | 9.6 | 12 | |||
working table height | mm | 800-900 | 800-900 | 800-900 | 800-900 | |||
