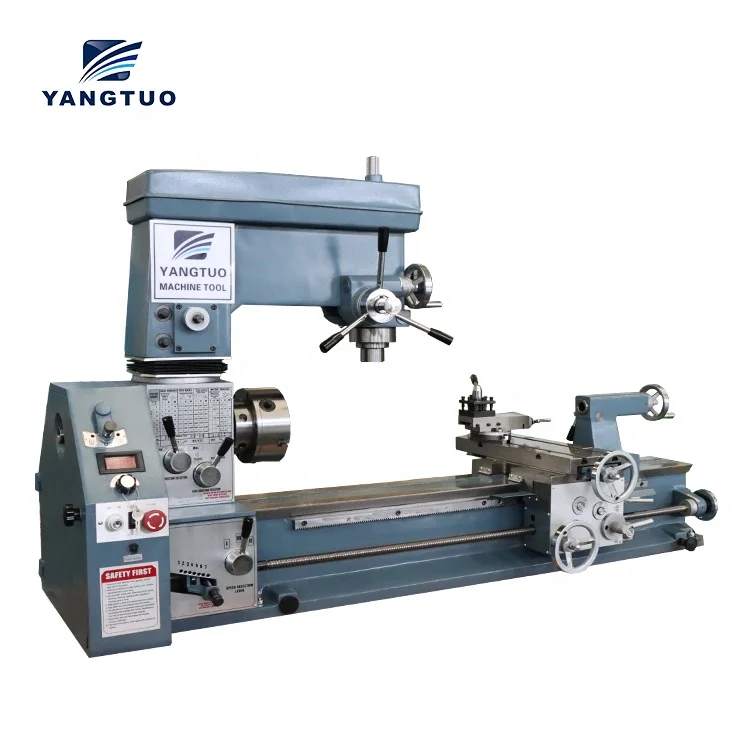

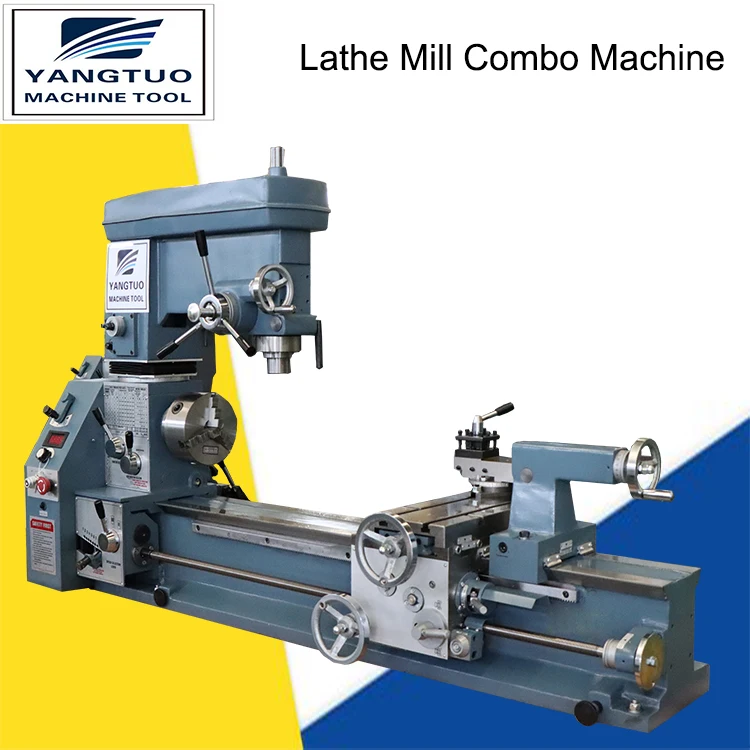

Токарный и сверлильный станок 1340 токарный станок tornio fresa Combo
Токарный и сверлильный станок 1340 токарный станок tornio fresa Combo
Токарный и сверлильный станок 1340 токарный станок tornio fresa Combo
Токарный и сверлильный станок 1340 токарный станок tornio fresa Combo
Токарный и сверлильный станок 1340 токарный станок tornio fresa Combo
Токарный и сверлильный станок 1340 токарный станок tornio fresa Combo
Токарный и сверлильный станок 1340 токарный станок tornio fresa Combo

Токарный и сверлильный станок 1340 токарный станок tornio fresa Combo

Share on (1600089346012):


Price:2 714,00 $ - 3 070,00 $

Quantity:


Product Overview

Description


Product Description
lathe and drilling machine 1340 lathe tornio fresa combinato
SPECIFICATIONS
G1324
G1340
Swing diameter over bed
330mm
13"
330mm
13"
Swing diameter over table
190mm
7.5"
190mm
7.5"
Distance between centers
610mm
24"
1000mm
40"
Spindle bore
28mm
1.1"
28mm
1.1"
Spindle speed (infinitely)
50-3000r/min
50-3000r/min
Longitudinal stoke
510mm
20"
890mm
35"
Cross stoke
185mm
7.3"
185mm
7.3"

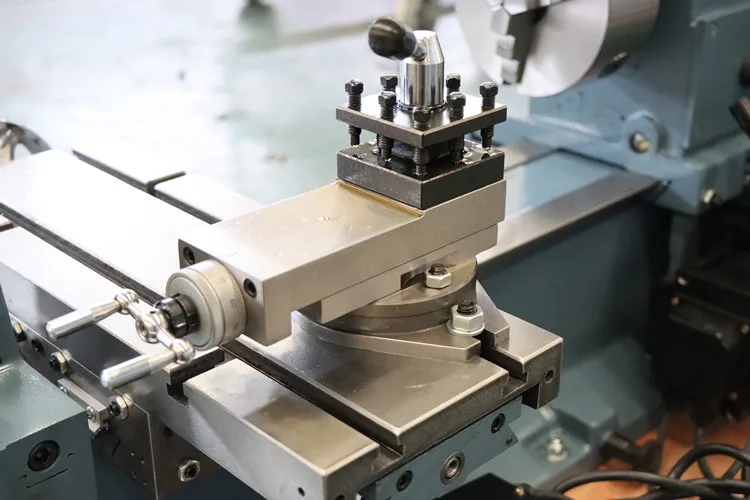

Small toolpost stroke
70mm
2.75"
70mm
2.75"
Metric pitch/grade
0.35-6.5mm /24
0.35-6.5mm /24
Inch pitch/grade
7-52T.P.I/21
7-52T.P.I/21
Longitudinal feed/grade
0.067-0.5mm/r/21
0.067-0.5mm/r/21
Cross feed/grade
0.021-0.157mm/r/21
0.021-0.157mm/r/21
Milling-drilling spindle taper
MT3
R8
MT3
R8
Milling-drilling shaft stroke
127mm
5"
127mm
5"
Milling-drilling box stroke
110mm
4.33"
110mm
4.33"
Table size
450x170mm
17.7"x6.7"
450x170mm
17.7"x6.7"
Drilling dia.
24mm
0.95"
24mm
0.95"
Power of motor
1.1KW
1.1KW
N.W./G.W.
300/350kg
300/380kg

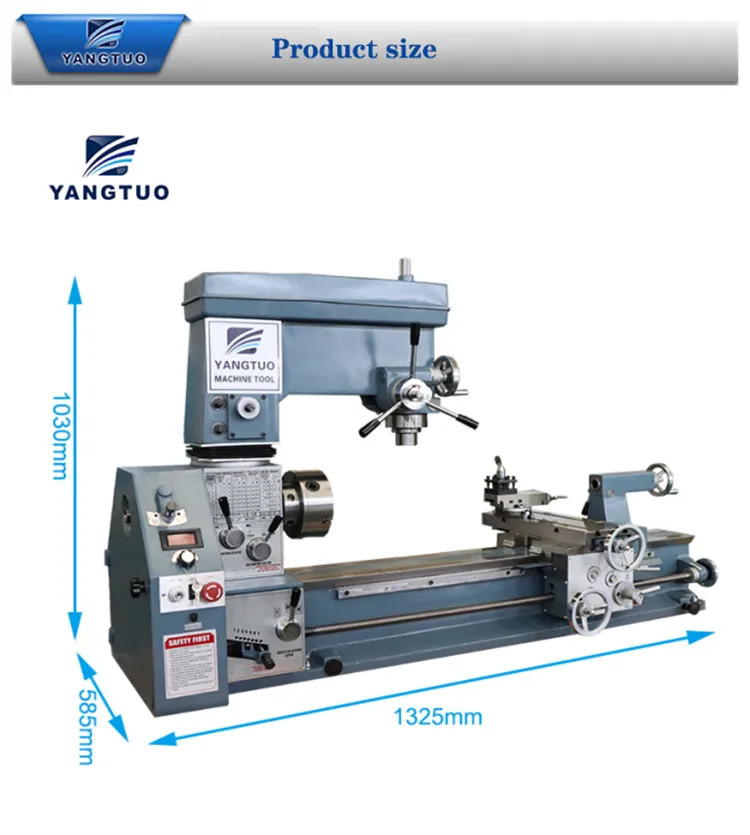

Overall Dimensions of machine(L*W*H)
1325x585x1030mm
1705x585x1030mm
Case dimensions of machine(L*W*H)
1260x570x1100mm
1640x570x1100mm
Case dimensions of stand(L*W*H)
left:760x450x410,right:760x 450x350mm
left:760x450x410,right:760x 450x350mm
*INTRODUCTION:
*Has the purposes of turning, drilling, milling, boring & thread-cutting
*DC brushless motor, big torque at low speed, infinitely variable speed
*Power-driven for table in milling

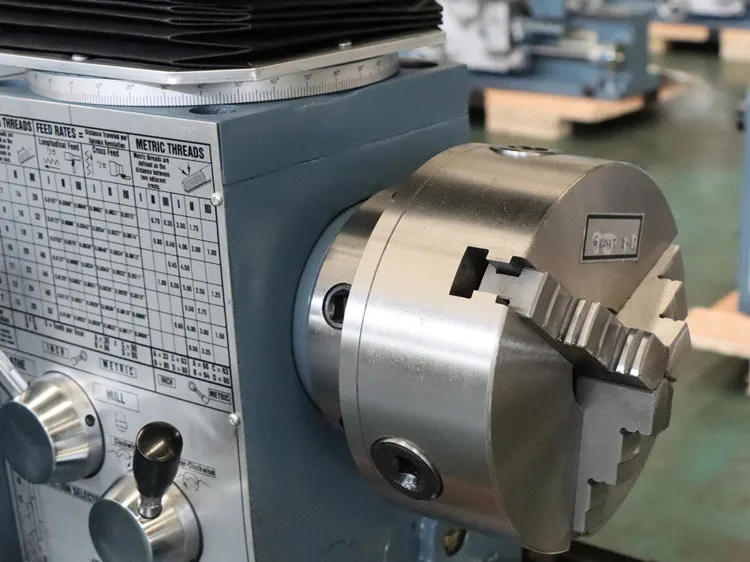

*Cam clamping chuck
*Lengthened table
Features:
*Has the devices of safety interlock & an overload safety
*Lengthened drilling/milling box, 360 degree rotation in vertical plane
Detailed Images
Related Products
one year During warranty period, if you have any parts broken because of qulity problem,we will supply to you free of charge by express. Out of warranty period, if you have any question, you can contact with us, we will supply our best service to you as usual.
FAQ


1.How to send my enquiry?
You can contact us by email, phone call, Instant Messenger (WhatsApp, WeChat, Skype).

2 . How can I choose the most suitable machines?
Please tell us your requirement of the machine, or you can also send us the products drawing, our engineer can help to choose the best model for you.

3: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .

4: What's the Payment Terms ?

A : T/T ,30% initial payment when order ,70% balance payment before shipment ;

Irrevocable LC at sight .

5.Check the acceptance

When receiving the goods, please check product carefully: Whether there is packing damage, leakage and whether the goods are damaged; Whether product quantity and accessories are same as required; Whether all machine details are fine If there is any problem about machine, please take pictures and contact us immediately.

6.OEM Service

We accept purchase orders with customers' brand or trade mark.
