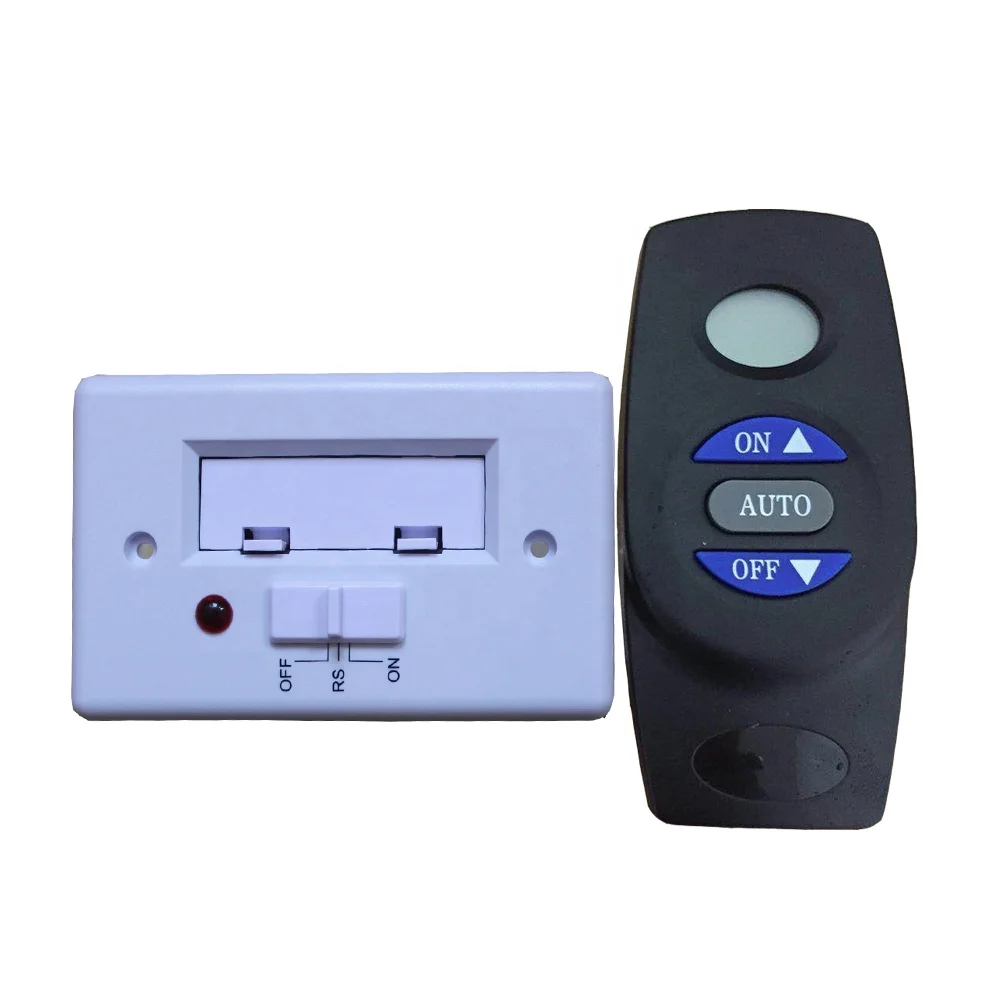

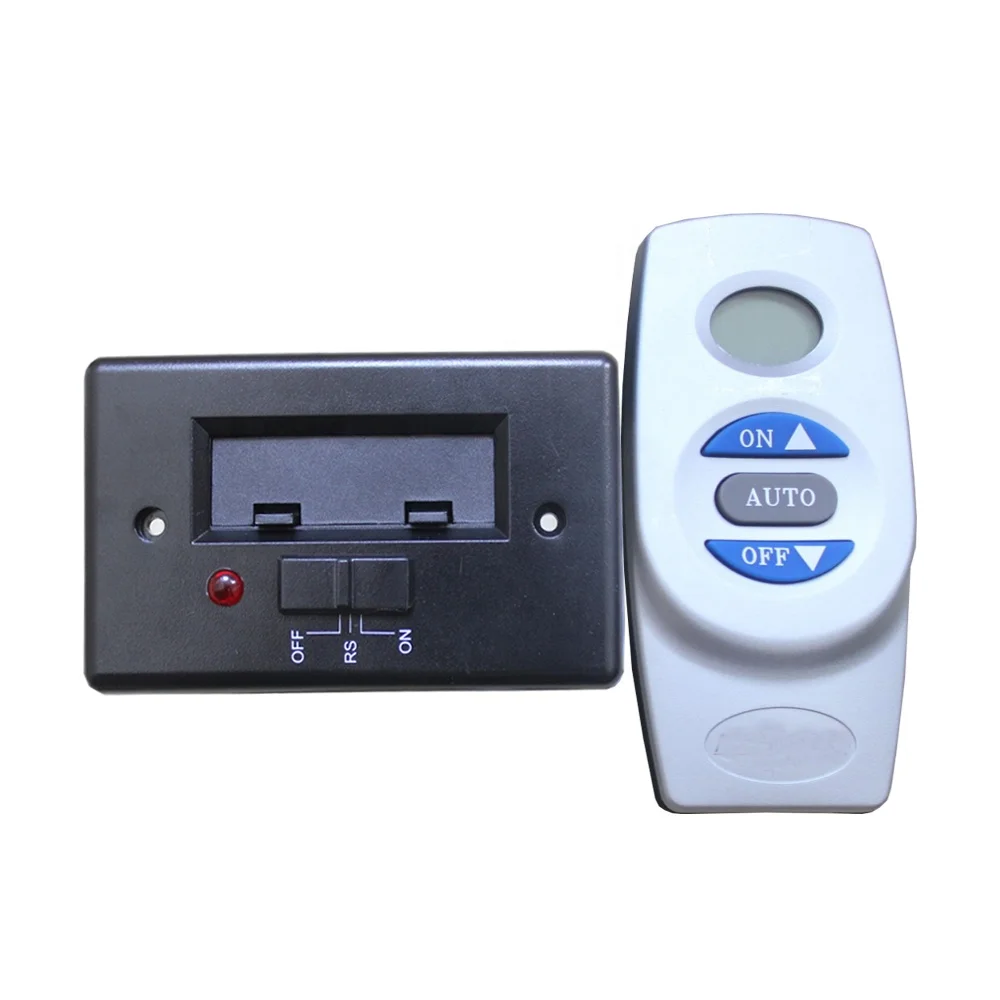

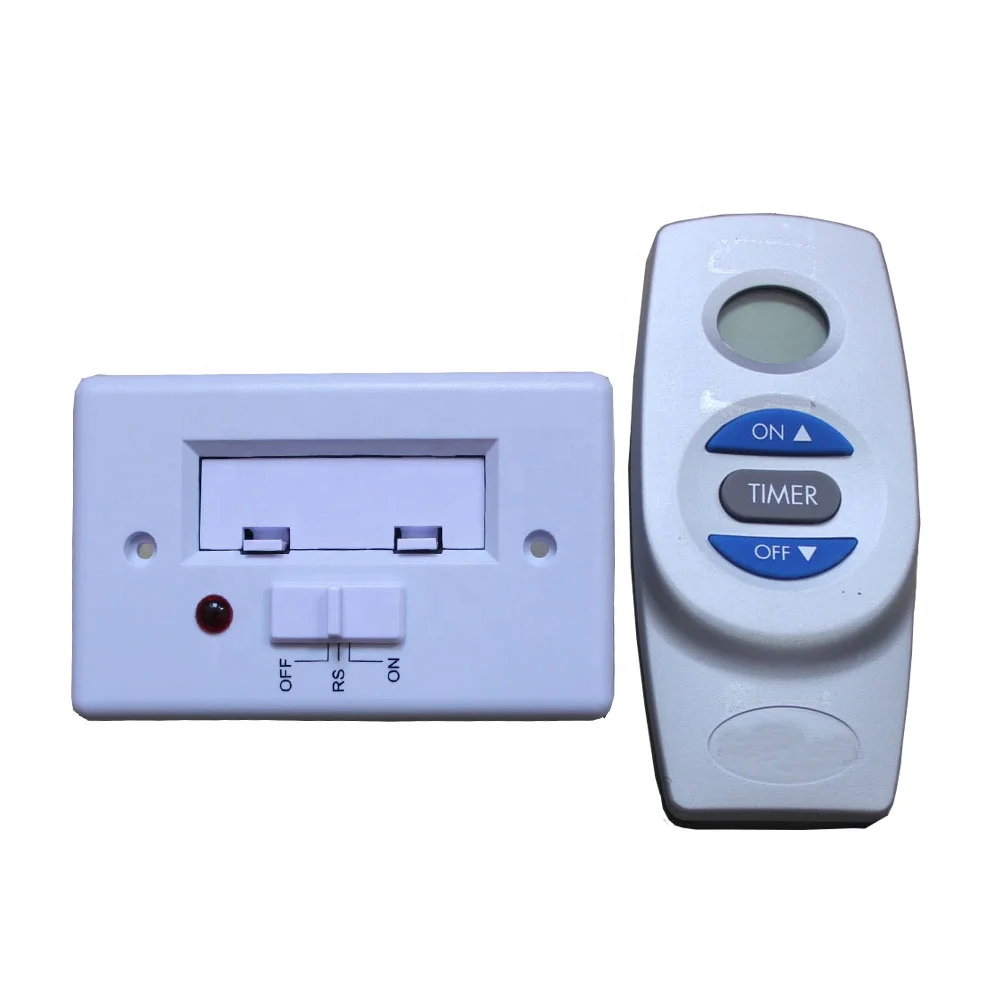

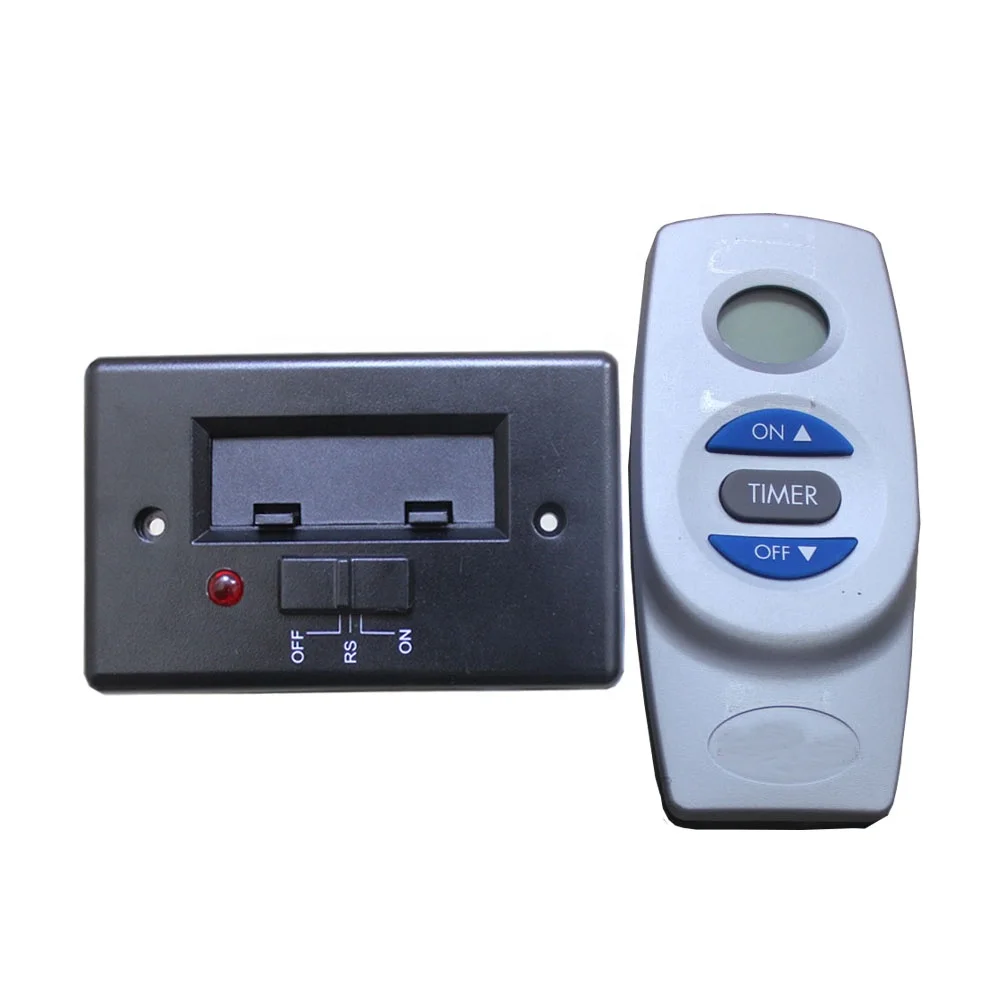

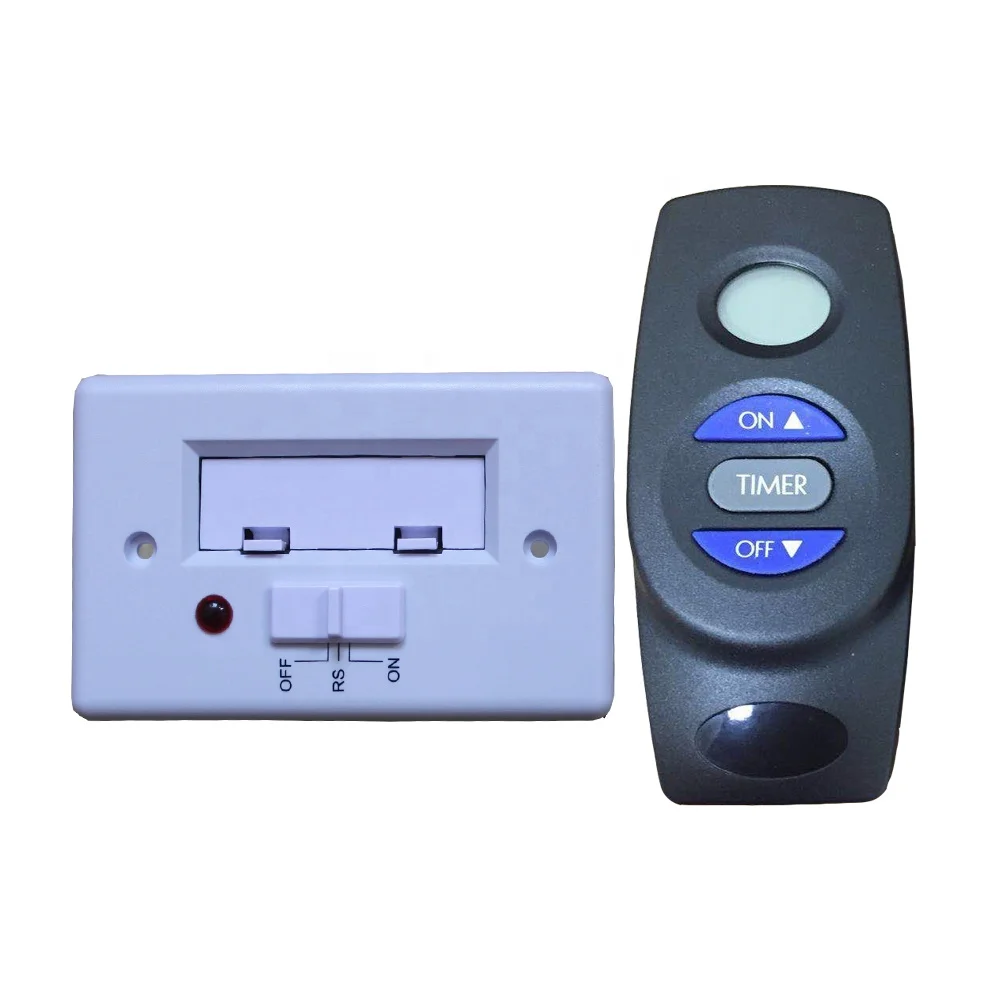

Standard Thermostatic On/Off Remote Control for millivolt valve gas fireplace transmitter and receiver with thermo function

FEATURES/SPECIFICATIONS

1, Easy Access Thermostatic Control

2, Battery Powered Transmitter and Receiver

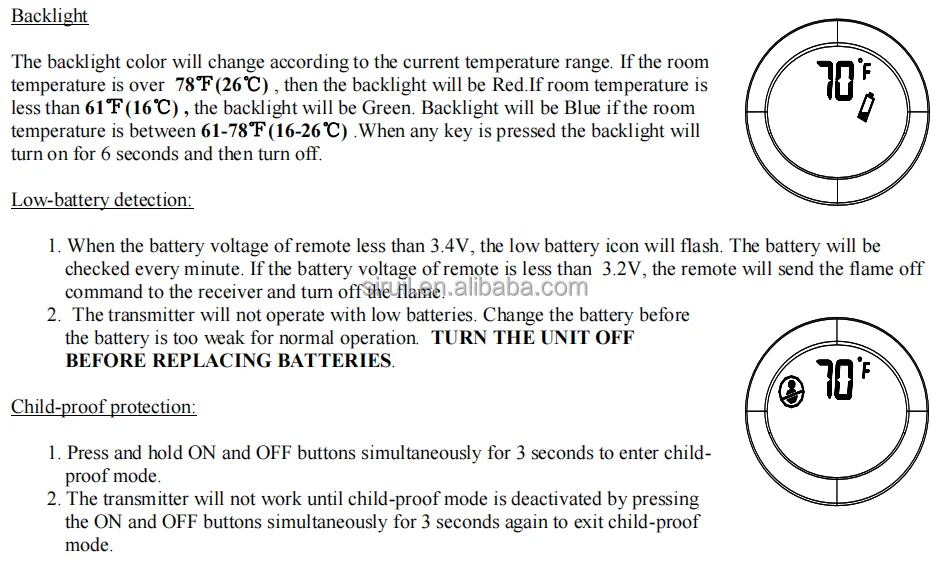

3, Low battery Indication

4, Child Proof Lock-out

5, 16 Security Codes

6, 6 hour Shut Down (Optional)

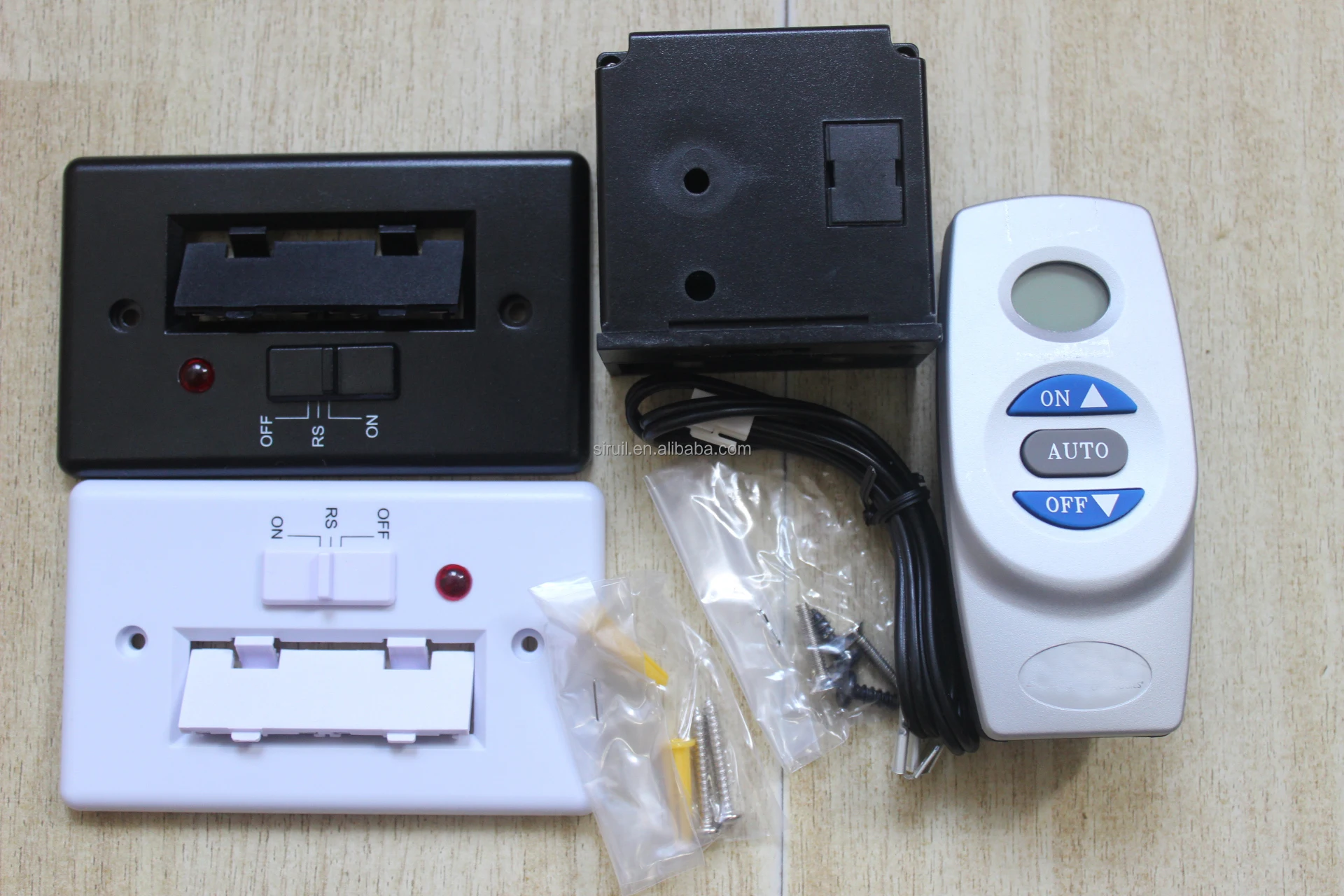

7, Quick Disconnect Wiring Assembly

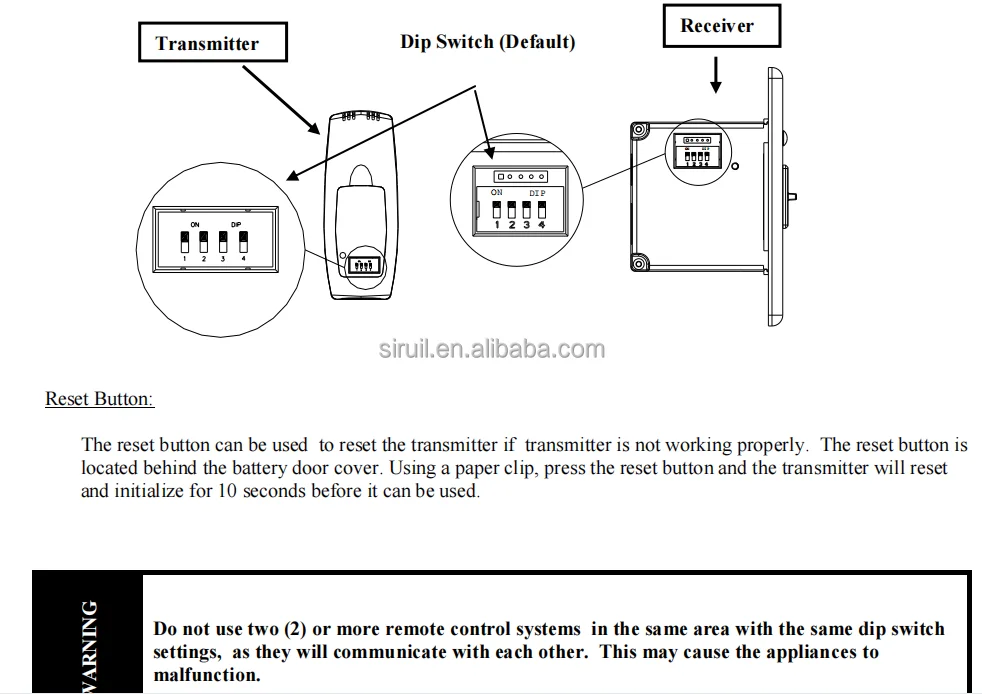

8.Reset Button

Important Safety Information

1,Read this manual thoroughly prior to installing, programming or operating any remote control

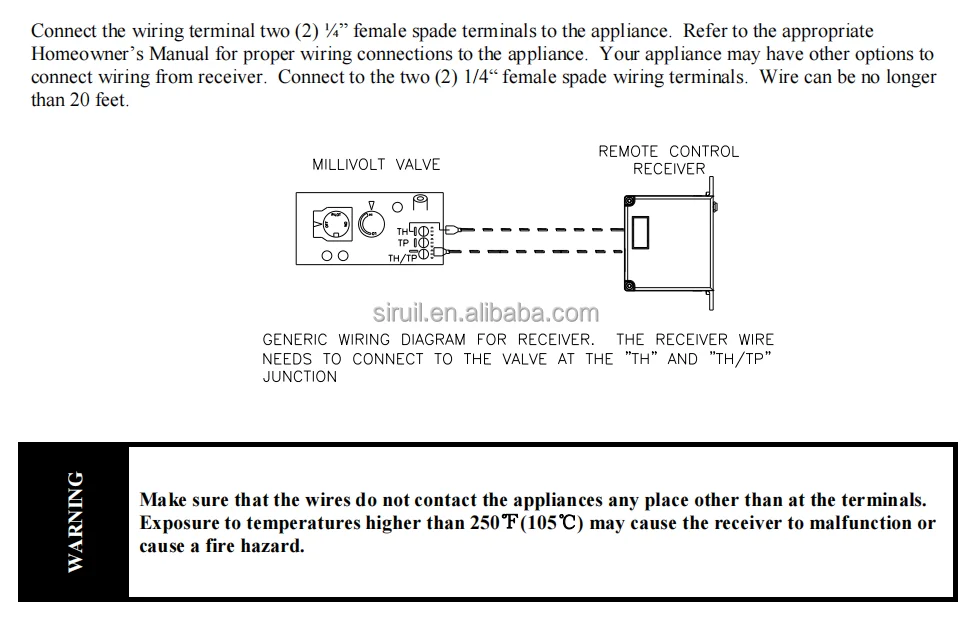

2, This remote control system is designed for use with a millivolt or 24V gas valve system. Do not use this remote control system on applications with voltages above 24 Volts AC/DC and 1 amp current

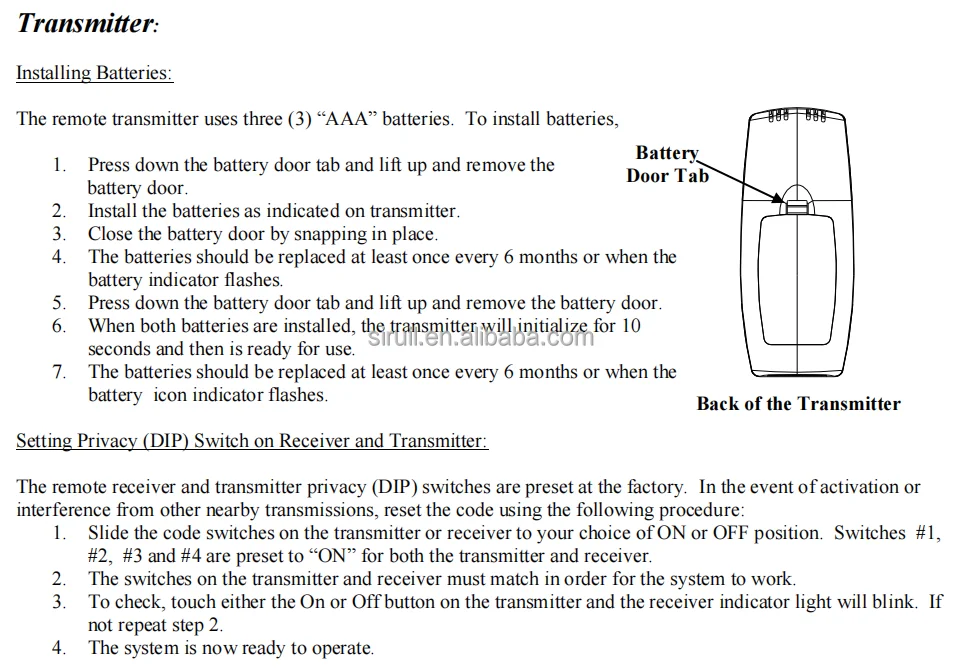

3, This remote control system requires three (3) “AAA” and four (4) “AA” alkaline batteries to power the transmitter and receiver.

4,Wiring must conform to appliance requirement and building codes/ordinances as required by local and national code authorities having jurisdiction.

5, Do not short (or jumper) across the gas valve terminals to test the remote control installation. This could damage the unit and void the warranty.

6,This remote control system should only be used as described in this manual. Any other use is prohibited and will void the warranty
