TY40 Puller Machine For Overhead Line

Product Overview

Description

TY40 Puller Machine For Overhead Line

Together with tension machine, this model allows for the tension stringing of 220kV lines in mountainous and hilly areas and can be used for the traction stringing of OPGW or ADSS cable in various terrains.



Performance

Max intermittent pull: 40KN

Max continous pull: 30KN

Speed at max pull: 2.5km/h

Max speed: 5km/h

Pull at max speed: 20KN



Engine

Diesel: 77kw(103hp)

Cooling system: water

Electrical system: 24V



Characteristics

Bull-wheel diameter: 400mm

Groove number:7

Max rope diameter: 16mm

Max diameter of rope reel: 1200mm

Total weight: 3000kg

Overall dimension (length*width*height): 3600×2600×2200mm



Main configuration

Engine: Cummins

Main pump: German Rexroth

Main moter speed reducer: German Rexroth

Tail bracket hoisting motor: American Eton

Hydraulic meter: German WIKA

Operating handle: German Rexroth



Configuration

Control instruments for hydraulic system and diesel engine

Manual front stabilizer

Grounding connection point

Hydraulic dynamometer with set-point and automatic control of maximum pull

Hydraulic oil cooling system

On board reel winder with automatic level wind, suitable for standard reel mod. 1100 and 1200



Hydraulic Transmission

Closed hydraulic circuit for step less speed variation in both rotating directions. This machine is provided with a pull pro-setting system that maintains the pre-set pulling value (also when the speed is reduced to "0") by automatically adjusting the operation speed according to the friction and unexpected loads which may occur.



Additional Devices

Trailer for towing at max speed of 30 km/h

Lighting system for the trailer

Swivel guide rope roller

Hydraulic rope clamp for reel change

Extra shaft

Digital speed and meter counter (extra charge)

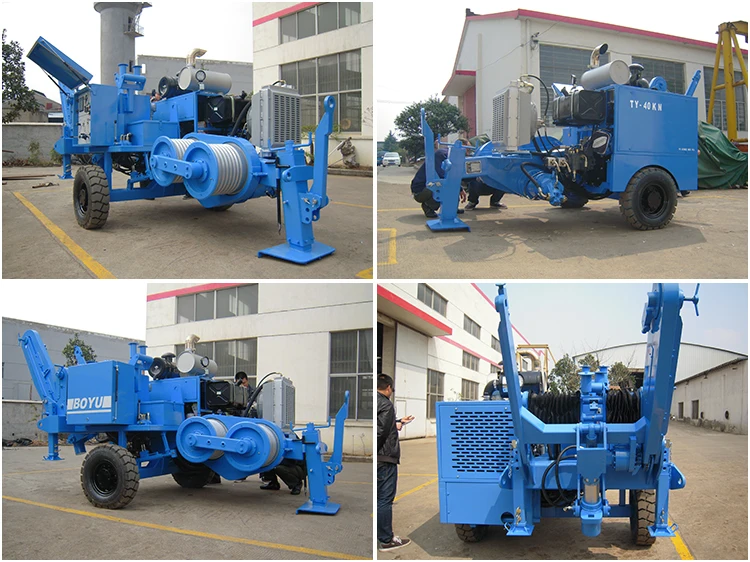

Product Show

Model		TY40	TY60	TY120	TY150	TY220	TY280	TY380
Performance
Max intermittent pull	KN	40	60	120	150	220	280	380
Max continuous pull	KN	30	50	100	120	180	250	350
Speed at max pull	km/h	2.5	2.5	2.5	2.5	2.5	2.5	2.5
Max speed	km/h	5	5	5	5	5	5	5
Pull at max speed	KN	20	25	50	60	90	120	170
Engine
Diesel	kw(hp)	77(103)	77(103)	129(173)	129(173)	239(320)	298(400)	440(590)
Cooling system		Water
Electrical system	V	24
Characteristics
Bull-wheel diameter	mm	400	450	600	600	760	960	960
Groove number		7	7	10	10	10	11	11
Max rope diameter	mm	16	18	24	24	30	38	38
Max diameter of rope reel	mm	1200	1400	1400	1600	1600	1600	1900
Total weight	kg	3000	3500	4800	5500	6800	12800	13600
Overall dimension	mm	3600*2600 *2200	3800*2100 *2300	4000*2300 *2300	4300*2300 *2400	5300*2360 *2750	5800*2300 *2700	6000*2600 *2800

The after-sale service is an important part of our marketing and sales work. The quality of service provided will not only influence the company credit, but also closely relate to the safely running of the equipment. In order to maintain the good reputation of BOYU, we will strictly observe relevant national regulations about Product-Quality Law and provide high quality products with the principle of hospitable reception, enthusiastic service, quick response and prompt resolution. We will conscientiously implement the after-sale service work in full-scale, and make commitment to our clients as follows:



Training courses

Get the best performance from BOYU machines

Boyu is not a "simple manufacturer" - BOYU is Your best partner! Our Professional Group can offer their expertise by holding technical courses to all customers maximum one month time, and provide accommodation. From Operation to maintenance, BOYU technical training courses are also customized according to different levels of knowledge and to what kind of aim a customer would attain.



Customer support

Customer is our first priority

Our contact person will do the best to deal with the problems our customers encountered, in order to ensure our customers' satisfaction and without any commitment from your side. An introduction course has been planned for all the customers that buy BOYU machines, we provide free technical support by means of phone or mail. Also our customers can download operation and maintenance videos from our website.

We will provide some easily damaged parts of the equipment to ensure the normal operation.

If any quality problems such as design, manufacture, function or procedure occur within the guarantee period, BOYU shall take full responsibility and bear all the economic losses incurred.

If any other quality problems occurs within the guarantee period, BOYU shall provide online video service after receive the buyer’s notice in 24 hrs.

If any big quality problems occurs out of the guarantee period, BOYU will also provide online video service after receive the buyer’s notice in 48 hrs.

BOYU will provide a lifetime favorable price to the buyer with the materials and spare parts used in system operation, equipment maintenance, and guarantee 7days courier door by door.
