ASTM B231M 04 AAC/AAAC cable Bare aluminum conductor All Aluminum Alloy Conductor
- Category: Other Wires, Cables & Cable Assemblies >>>
- Supplier: Henan,Huaxing,Wires,And,Cables,Co.,Ltd.
Share on:
Product Overview
Description
Product description

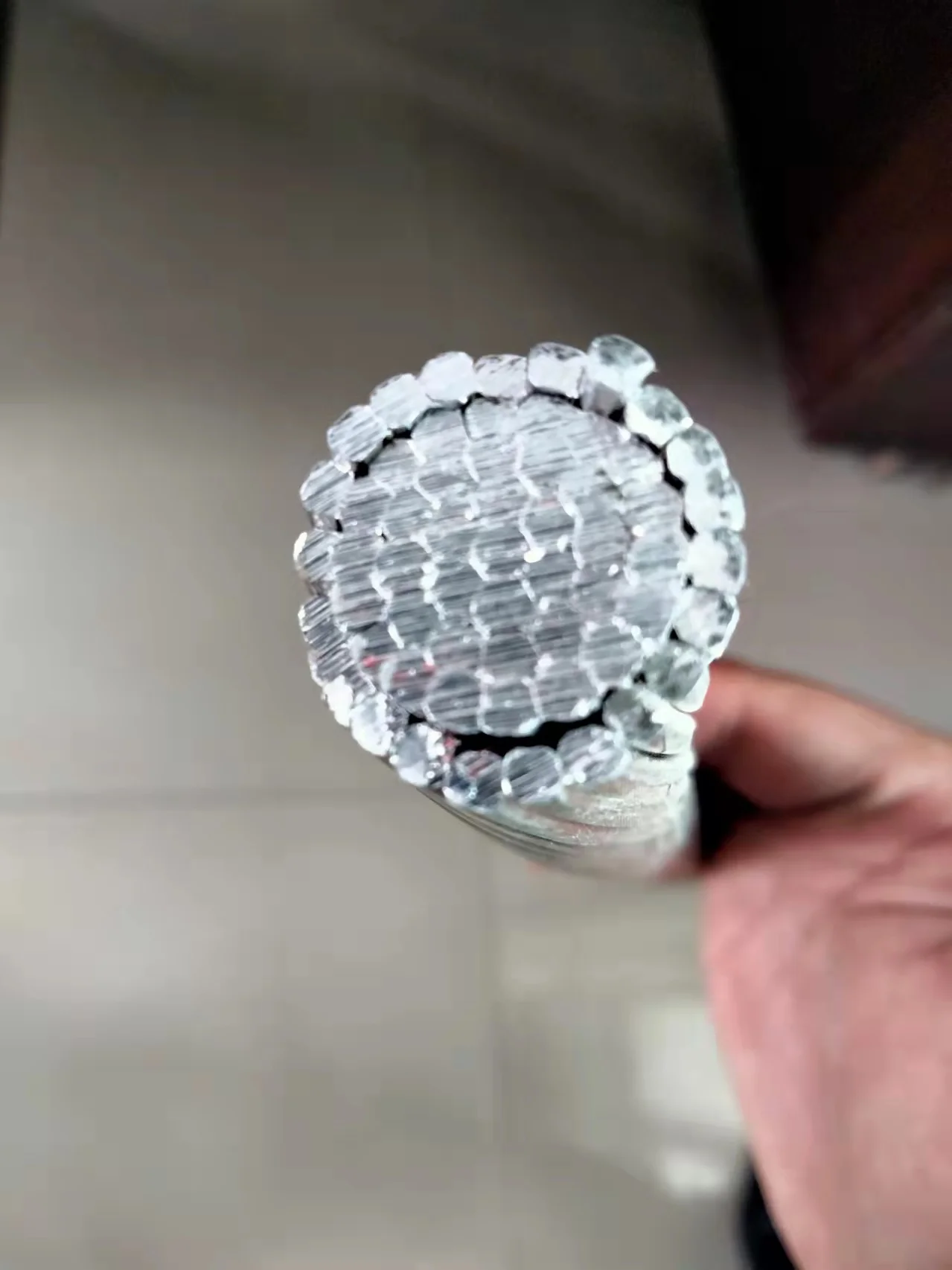

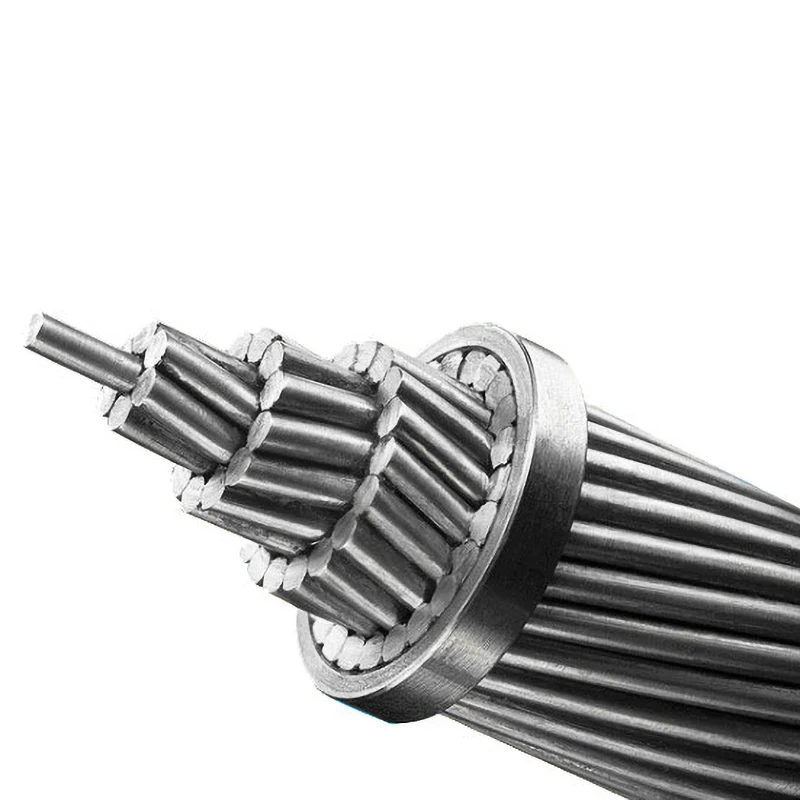

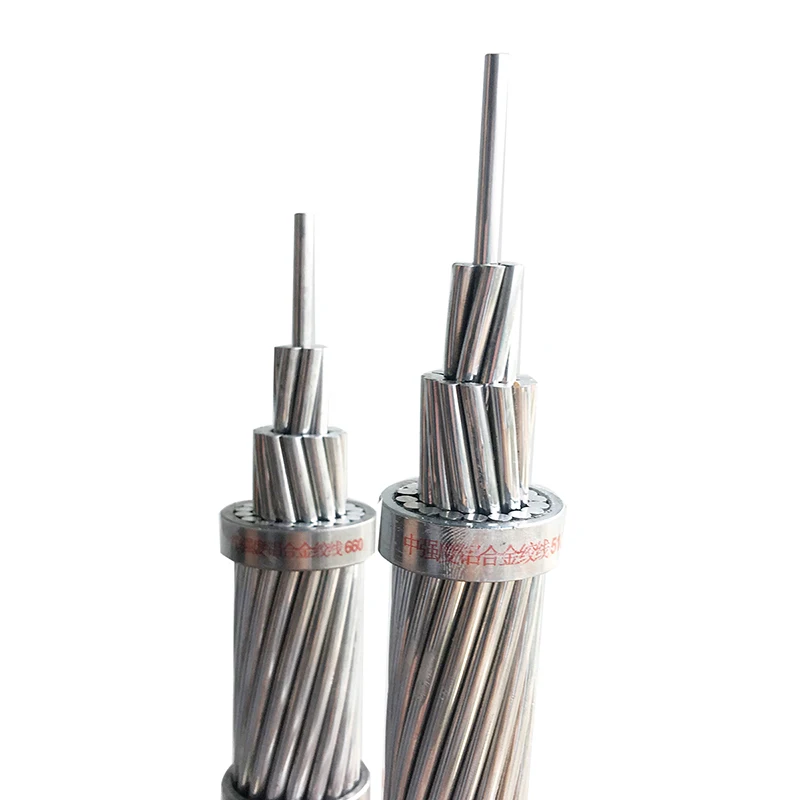

All Aluminum Conductor-AAC
Standard:
B-230 Aluminum Wire, 1350-H19 for Electrical Purposes
B-231 Aluminum Conductors, Concentric-Lay-Stranded
B-400 Compact Ronud Concentric-Lay-Stranded Aluminum 1350 Conductors
Application:
Class AA 1350 for bare conductors usually used in overhead lines.
Product Parameter
IEC Sizes IEC 61089:1991 | ||||||||||||
Code Word | Stranding&Wire Diameter | Overall Diameter | Sectional Area | Approximate Weight | Breaking Load | DC Resistance | ||||||
mm | mm | mm2 | kg/km | kN | ohm/km | |||||||
10 | 7/1.35 | 4.05 | 10 | 27.4 | 1.95 | 2.8633 | ||||||
16 | 7/1.71 | 5.12 | 16 | 43.8 | 3.04 | 1.7896 | ||||||
25 | 7/2.13 | 6.40 | 25 | 68.4 | 4.50 | 1.1453 | ||||||
40 | 7/2.70 | 8.09 | 40 | 109.4 | 6.80 | 0.7158 | ||||||
63 | 7/3.39 | 10.20 | 63 | 172.3 | 10.39 | 0.4545 | ||||||
100 | 19/2.59 | 12.90 | 100 | 274.8 | 17.00 | 0.2877 | ||||||
125 | 19/2.89 | 14.50 | 125 | 343.8 | 21.25 | 0.2302 | ||||||
160 | 19/3.27 | 16.40 | 160 | 439.8 | 26.40 | 0.1798 | ||||||
200 | 19/3.66 | 18.30 | 200 | 549.7 | 32.00 | 0.1439 | ||||||
250 | 19/4.09 | 20.50 | 250 | 687.1 | 40.00 | 0.1151 | ||||||
315 | 37/3.29 | 23.00 | 315 | 867.9 | 51.97 | 0.0916 | ||||||
400 | 37/3.71 | 26.00 | 400 | 1102.0 | 64.00 | 0.0721 | ||||||
450 | 37/3.94 | 27.50 | 450 | 1239.8 | 72.00 | 0.0641 | ||||||
500 | 37/4.15 | 29.00 | 500 | 1377.6 | 80.00 | 0.0577 | ||||||
560 | 37/4.39 | 30.70 | 560 | 1542.9 | 89.60 | 0.0515 | ||||||
630 | 61/3.63 | 32.60 | 630 | 1738.3 | 100.80 | 0.0458 | ||||||
710 | 61/3.85 | 34.60 | 710 | 1959.1 | 113.60 | 0.0407 | ||||||
800 | 61/4.09 | 36.80 | 800 | 2207.4 | 128.00 | 0.0361 | ||||||
900 | 61/4.33 | 39.00 | 900 | 2483.3 | 144.00 | 0.0321 | ||||||
1000 | 61/4.57 | 41.10 | 1000 | 2759.2 | 160.00 | 0.0289 | ||||||
1120 | 91/3.96 | 43.50 | 1120 | 3093.5 | 179.20 | 0.0258 | ||||||
1250 | 91/4.18 | 46.00 | 1250 | 3452.6 | 200.00 | 0.0231 | ||||||
1400 | 91/4.43 | 48.70 | 1400 | 3866.9 | 224.00 | 0.0207 | ||||||
1500 | 91/4.58 | 50.40 | 1500 | 4143.1 | 240.00 | 0.0193 | ||||||
Other Sizes | Conductor standards can be customized according to customer region | |||||||||||
Product packaging
Product testing
Certifications
Company Profile
About Huaxing
Henan Huaxing Cable Co., Ltd. was founded in 1984, 2005 production enterprises, is China’s Henan large cable production enterprises. The company is located in Gongyi industrial zone with a total area of 67,000 square meters and an investment of 60 million DOLLARS.Main products include: All aluminum conductor (AAC), All aluminum alloy conductor(AAAC), Aluminum conductor steel reinforced(ACSR), Aluminum conductor aluminum alloy reinforced(ACAR), Aluminum alloy conductor steel reinforced (AACSR), Aerial bundle cable (ABC), PVC insulated wire and flexible wire, PVC insulated power cable, crosslinked insulated power cable, control cable , PV cable and power cable, etc.
