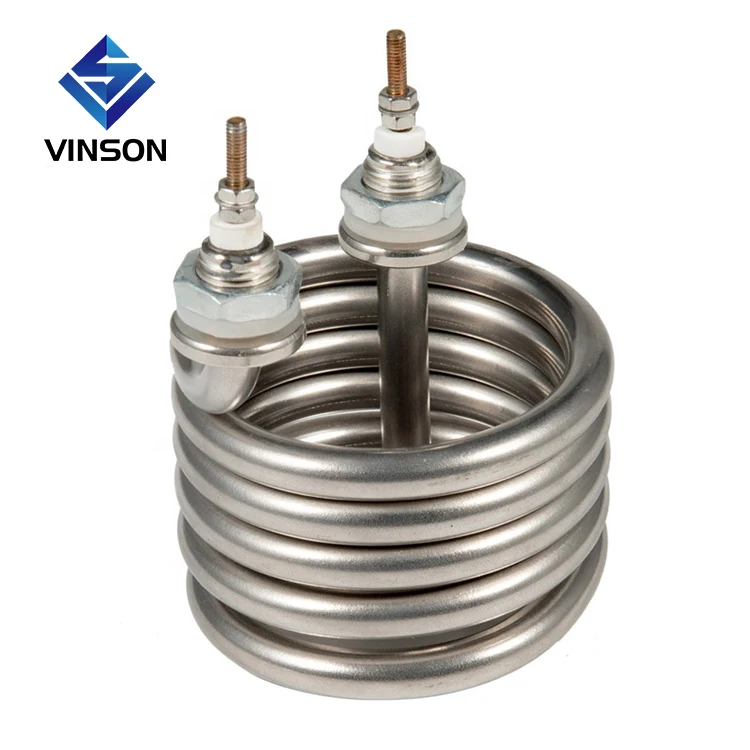

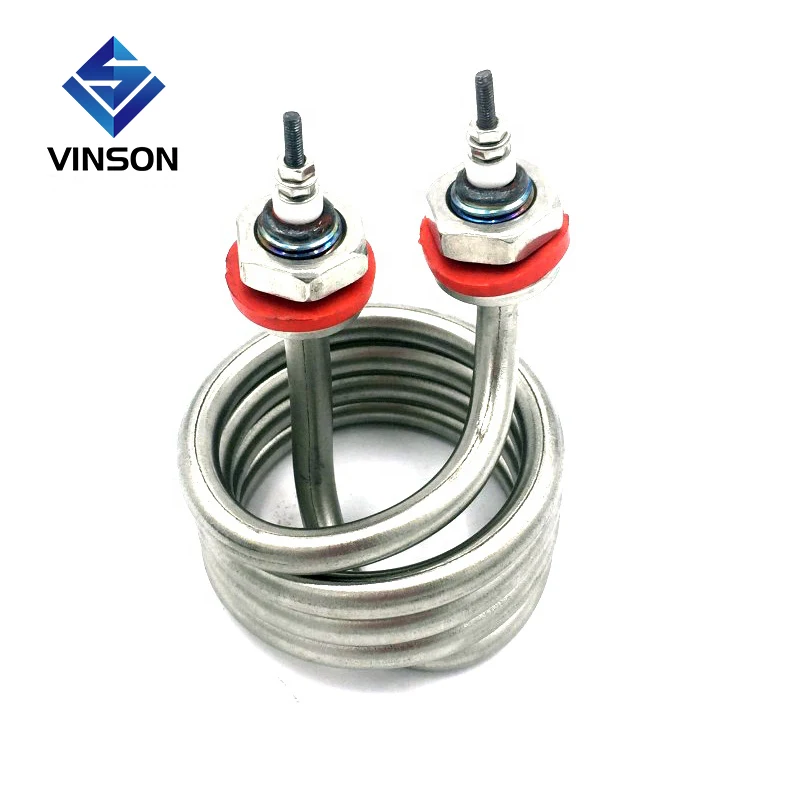

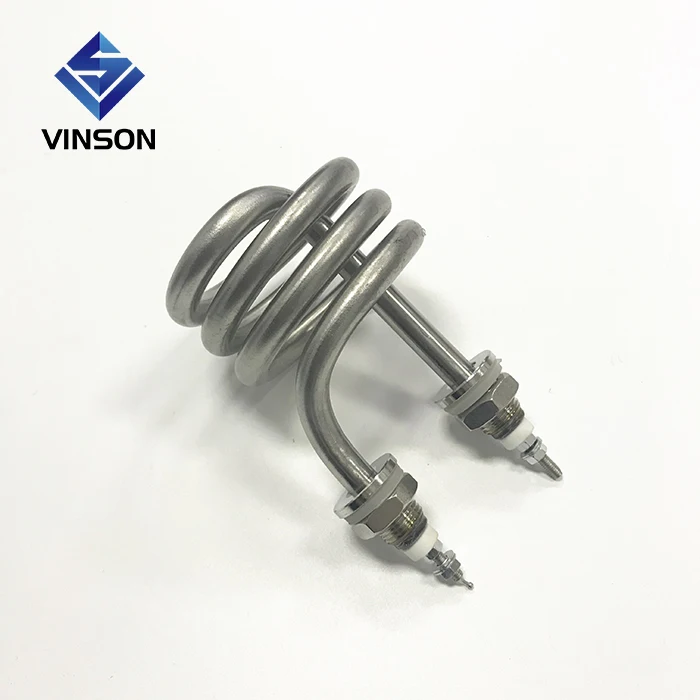

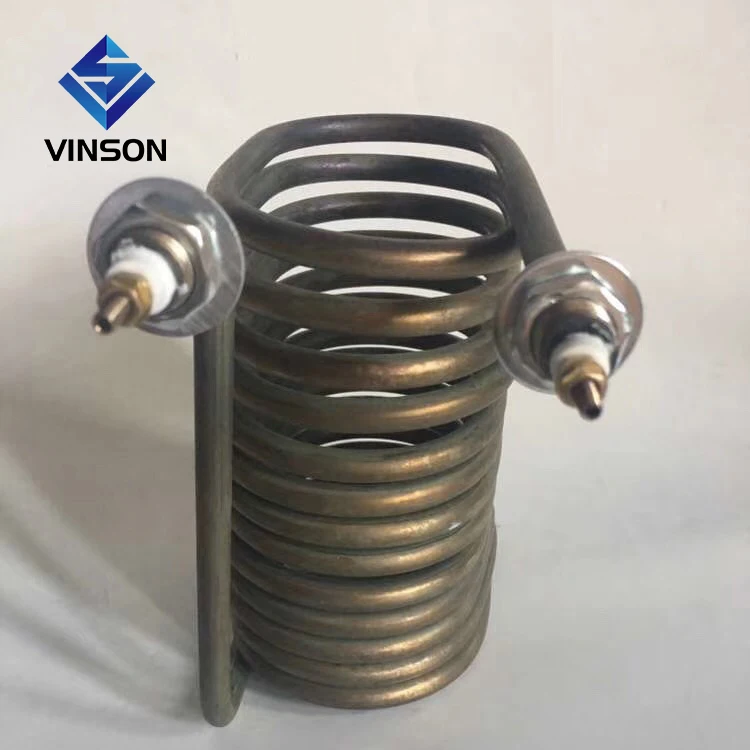

220v 600w 2000W immersion tank electric coil tubular heater for water heating
- Category: >>>
- Supplier: Yancheng Vinson Technology Co. Ltd.
Share on (1600089660642):
Product Overview
Description
Product Description
220v 600w 2000W immersion tank electric coil tubular heater for water heating
Highly versatile and economical Vinson tubular heating elements are applied in virtually every conceivable type of heating application. These robust heaters are a reliable thermal source used to heat a multitude of liquids, gases, and solids and can be applied straight or bent into complex formations. Tubular heaters are also used for radiant heating in open air or in vacuum atmospheres. The elements can be cast into or clamped onto metal to form heated parts. A wide selection of standard designs are available or they can be custom designed for your requirements.Vinson Industries' application and design engineering team are available to assist in specifying the proper heater configuration.
Description
*Tubular heating element are custom designed in a various shapes to as client's requirements for direct immersion in liquids such as water, oils, solvents and process solutions, molten materials as well as air and gases.
*Tubular heaters are produced using Incoloy, stainless steel or Copper sheath materials and also there is huge variety of selection of termination styles available. Insulation of Magnesium offers greater heat transfer.*Tubular heaters can be used in any application. Straight tubular can be inserted in machined groves for conductive heat transfer and formed Tubular provides consistent heat in any type of special application.
Main Features
1.Material:stainless steel (SS304, SS316, SS321),also can be copper, titanium, Inconel & Incolloy sheath
2.Nickel chrome resistance wire
3.Various sizes of diameters
2.Nickel chrome resistance wire
3.Various sizes of diameters
Tubular heater data sheet
Diameter | 6mm,8mm,11mm,12.5mm,16mm18mm |
Length | Customized |
Wire length | Customized |
Leads type | Direct line, SUS 304 braided, metal hose, etc.+5%,-10% |
Voltage Supply | Customized |
Total capacity | 3.7-380V |
Resistance Tolerance | +10% - 5% (closer tolerances are available upon special request) |
Heating length | Customized |
Sheath Material | Nickel800,SS304,SS321,SS316,copper,titanium |
Insulation material | Magnesium Oxide Powder |
Maximum Temperature | 800 degress Celsius |
Special Specifications | Flange heating tube, nut electric tube, explosion-proof electric heating tube,etc. |
Certifications
Detailed Image
*Voltages:120v, 208v, 240v, 480v and so on.
*Maximum sheath temprature steel: 750 F (400 C) ST.ST/Incoloy: 900 F (480 C)*Shapes:Straight type,U type,W type,Round type,and so on
Features:
1.Nickel Chrome resistance wire
2.Immersion Heaters are available with screw plug flanges
3.Air Heaters are available with MS or SS fins
4.Tubular heating elements with additional teflon sleeving is available for heating corrosive chemicals.
Applications for Electric Tubular Heater
1.Plastic Processing machinery.
2.Water and Oil Heating Appliances.3.Packaging machineries
4.Vending Machines.
5.Dies and Tools.
6.Heating Chemical Solutions.
7.Ovens & Dryers
8.Kitchen equipments
9.Medical equipments
Used in many other applications.
Material | Maximum Sheath Temperature |
Copper | 350℉(170℃) Application: Water, Oil, Grease |
Steel | 750℉(400℃) Application: Alkaline cleaning solutions, Tars, Asphalt or air heating |
1200℉(600℃) Application: Corrosive liquids, food processing equipment, Radiant heating | |
Incoloy | 1500℉(815℃) Application: Cleaning and degreasing solutions, Corrosive liquids |
Order Guidance
When you order the tubular heater, please note the specifications as follows:
1.Drawings preferred
2.Power,voltage,shape
3.Working temperature
4.Material requirement
5.Quantity
6.Other requirement required.
Please kindly note that we could do any customized type for you.
