portable auto Horizontal fillet welding carriage welding trolley welding tractors and carriages
- Category: >>>
- Supplier: Shandong Rayman Machinery Co. Ltd.
Share on (1600089852507):
Product Overview
Description
portable auto Horizontal fillet welding carriage welding trolley welding tractors and carriages
Product Description

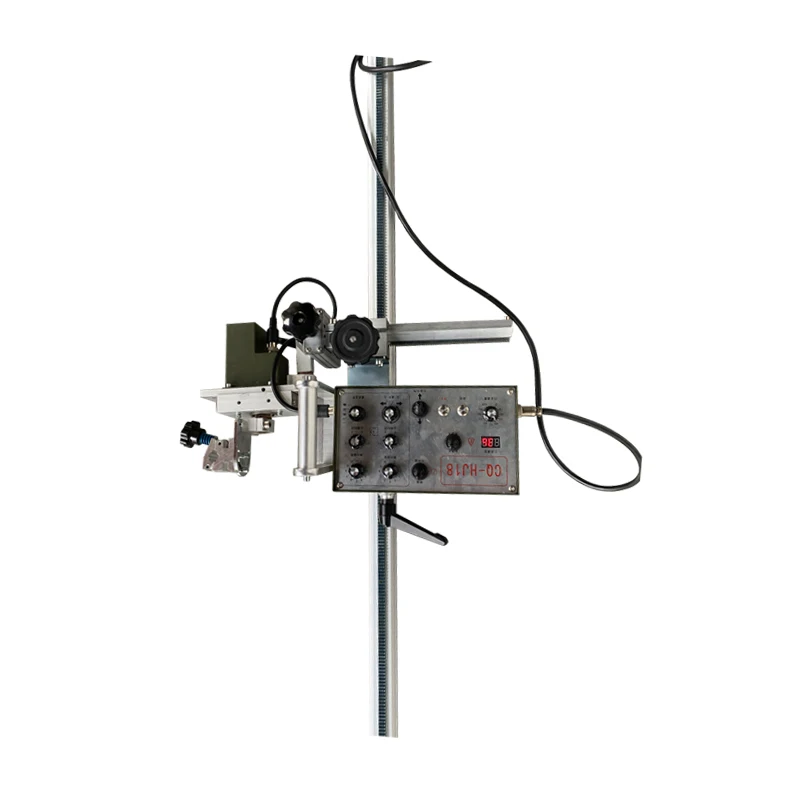

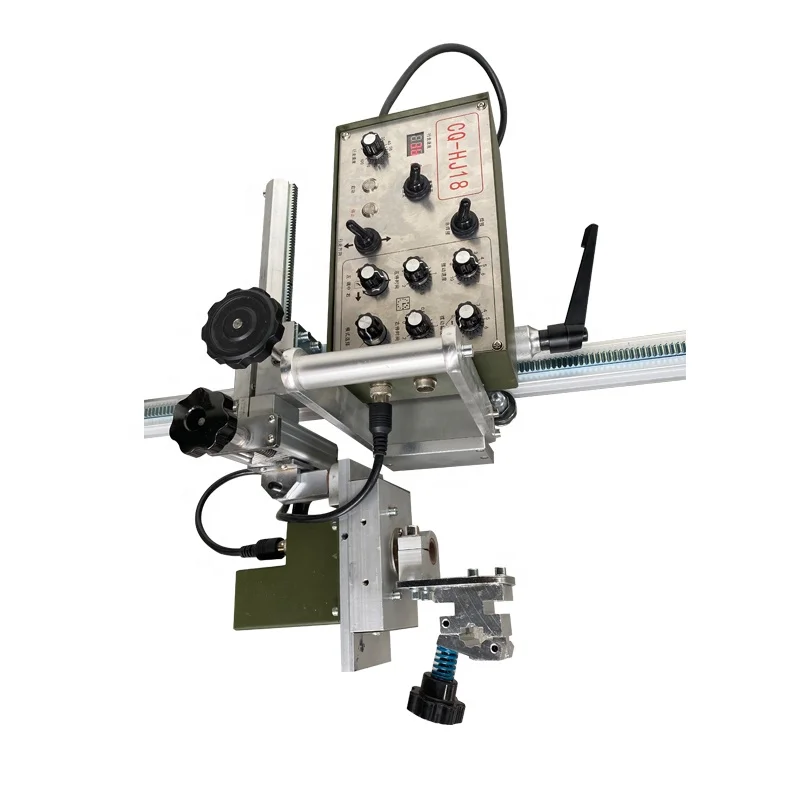

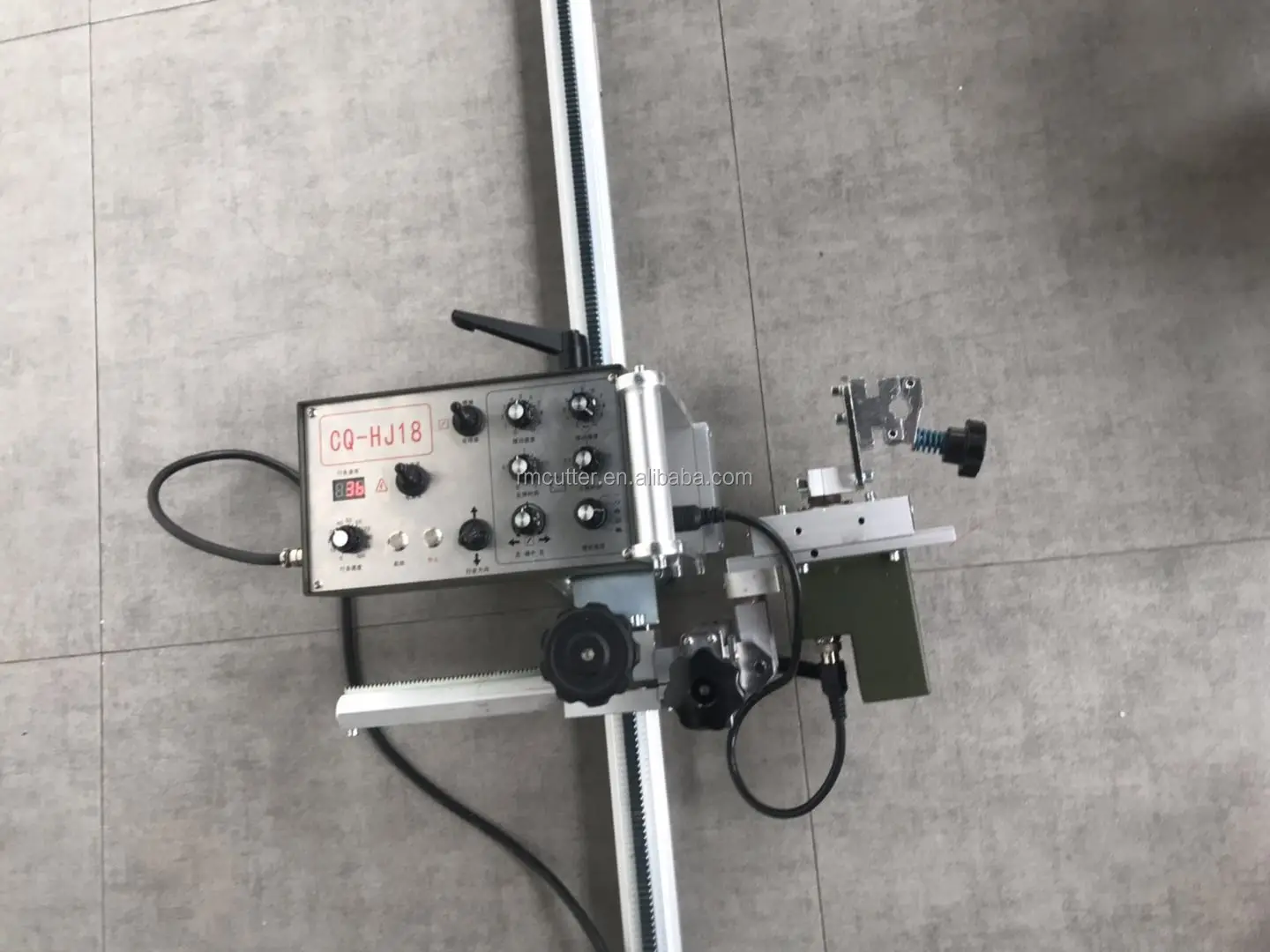

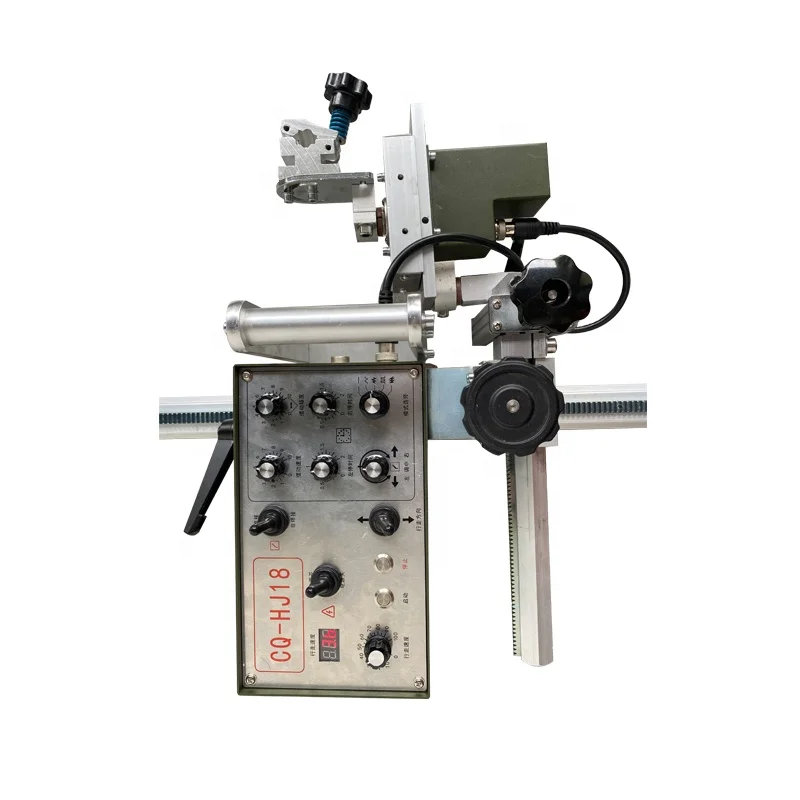

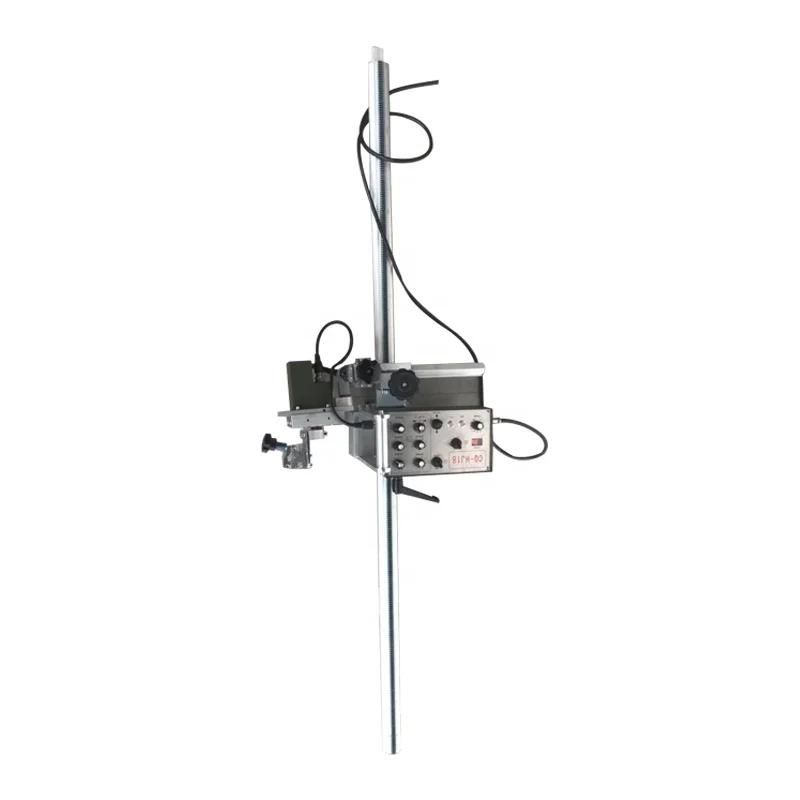

* Magnetic Rail Wavering Auto Welding Carriage is automatic.
* It can gain more wide welded seam at a time.

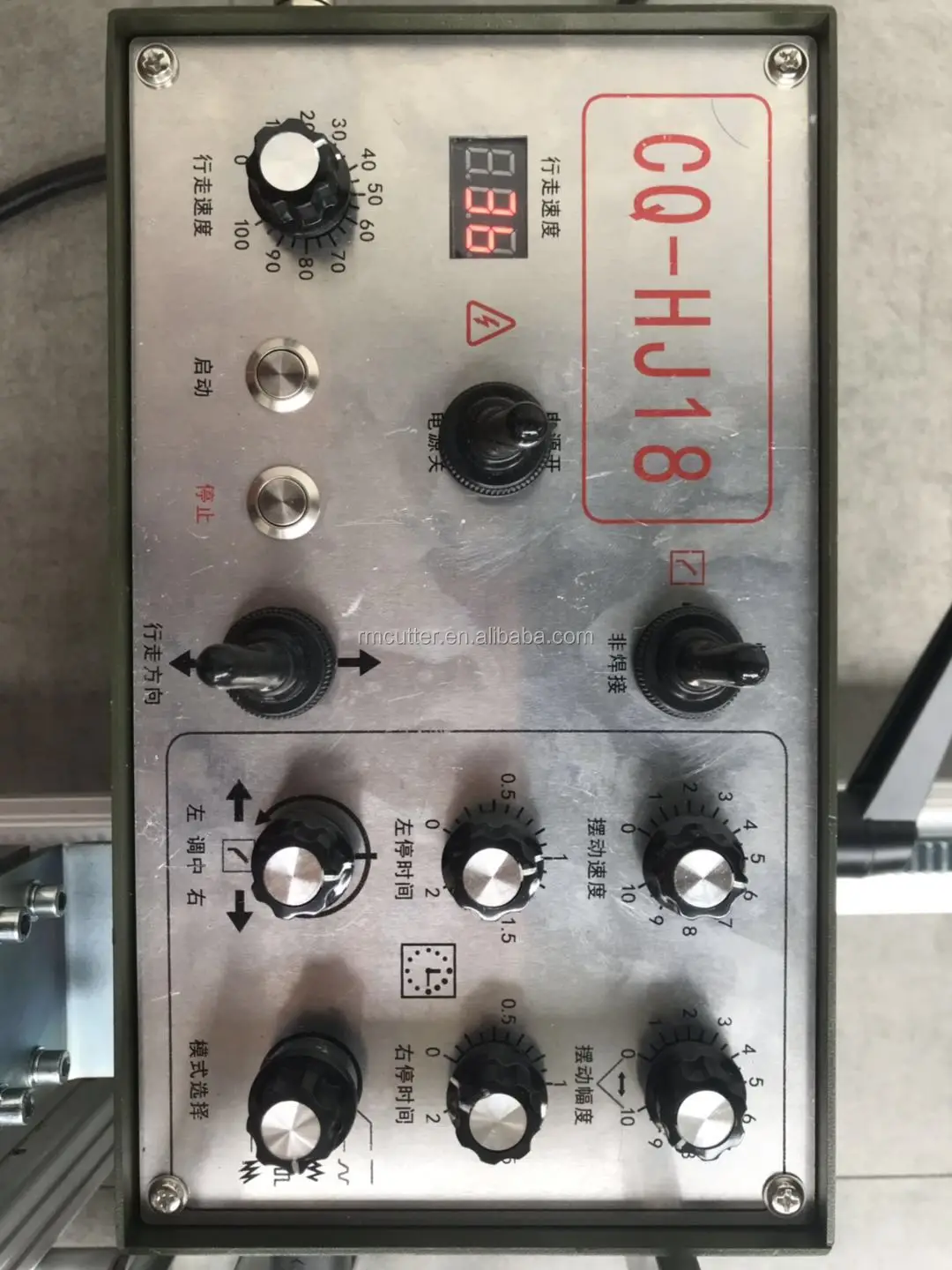

* You can adjust swing speed, swing angle, offset position of centre and length of stay.
* It suits for vary specs beads.
* In unloding state, the biggest trolley speed is 1300mm/min.
* The magnetron hand grip can decrease a few magnetism, so it is convenient to clear iron waste and moving trolley.
| Project | Content | Remarks | |
| Carriage | power supply | AC 220V,50/60Hz | |
| Dimensions | 500 x355 x 243 | W×L×H | |
| Weight | 10.6Kg | ||
| Drive way | Rack drive | ||
| Walking speed | 0~1040mm/min | Digital display | |
| Welding gun adjustment range | Up and down | 55mm | |
| Front and back | 55mm | ||
| Operating angle |
360° |
||
| Left and right | 215mm | ||
| Proceeding angle |
±90° |
||
| Track | Installation form | Magnet removable | |
| Dimensions | 42×29.3 ×1500 | W×H×L | |
| Material | Aluminum | ||
| Weight | 6Kg |
Including magnet |
|
