MICC High density high temperature electric heating element cartridge heater

Share on:

Price:$3.00 - $20.00
Price in USD:Details


Product Overview


Product Description

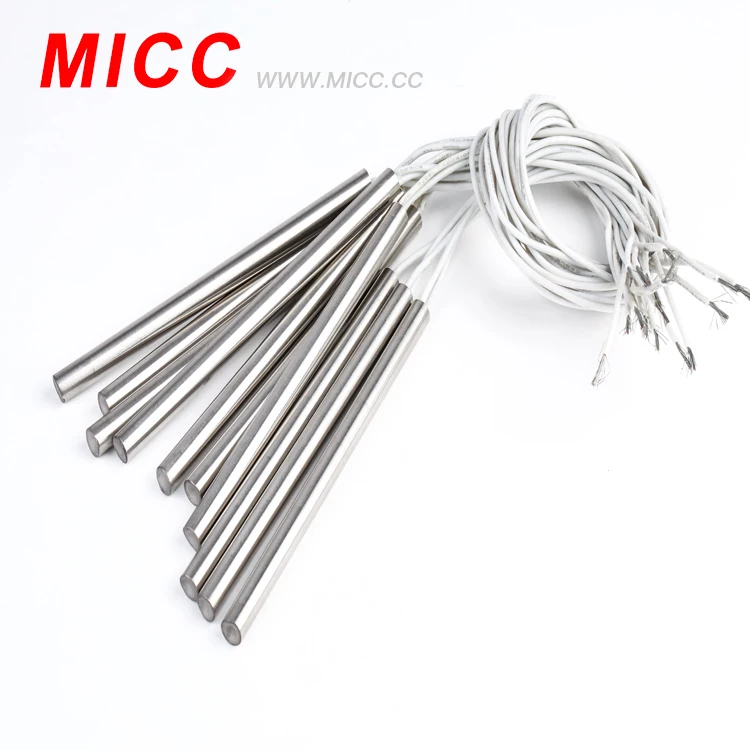

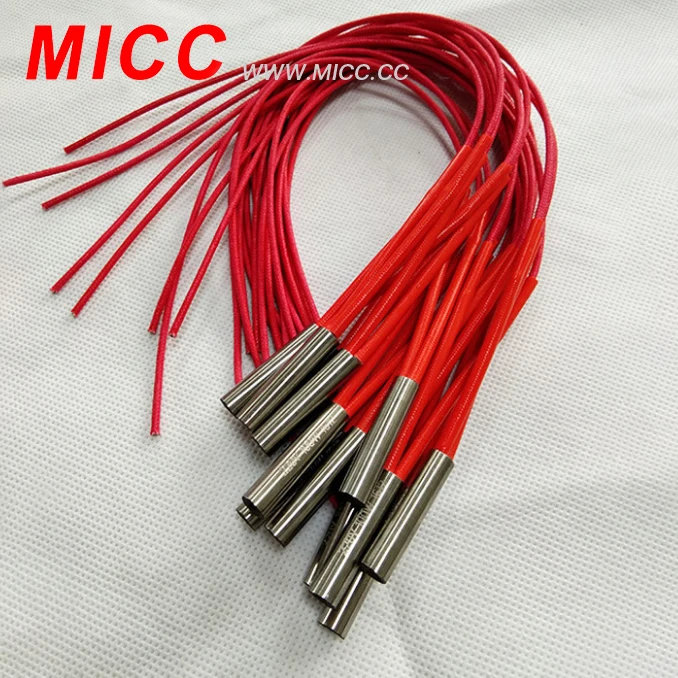

Electric heater cartridge is a piece of equipment, made of MgO powder or MgO tube, ceramic cap, resistance wire(NiCr2080),High temperature leads, seamless stainless steel sheath(304,321,316,800,840). usually in tube form,
that is used in heating applications by way of insertion into metal blocks via a series of drilled holes. Cartridge heaters are
manufactured in two basic forms - high density and low density.
High density cartridge heaters are used to heat plastic injection moulds, dies, platens and so forth, whereas low density
cartridge heaters are more suitable for packing machinery, heat sealing, labelling machines and hot stamping applications.

Industrial heater
Immersion cartridge water heater with thermocouple
Resistance heating wire
NiCr 80/20 wire
stainless steel 304,321,316, Incoloy 800, Incoloy 840
Maximum temperature
800 degree Celsius
Wattage Tolerance
+5%, -10%
Resistance tolerance
+10%, -5%
Voltages available
380V,240V, 220V,110V,36V,24V or 12V
Length tolerance
±1 mm
Diameter tolerance
Standard Cold Zone

  • Application

Injection moulding - Internal heating of nozzles
· Hot runner systems - Heating of manifolds
· Packaging industry - Heating of cutting bars
· Packaging industry - Heating of hot stamps
· Laboratories - Heating of analytical equipment
· Medical: Dialysis, Sterilization, Blood Analyzer, Nebulizer, Blood/Fluid Warmer, Temperature Therapy
· Telecommunications: Deicing, Enclosure Heater
· Transportation: Oil/Block Heater, Aircraft Coffee Pot Heaters,
· Food Service: Steamers, Dish Washers,
· Industrial: Packaging Equipment, Hole Punches, Hot Stamp.
