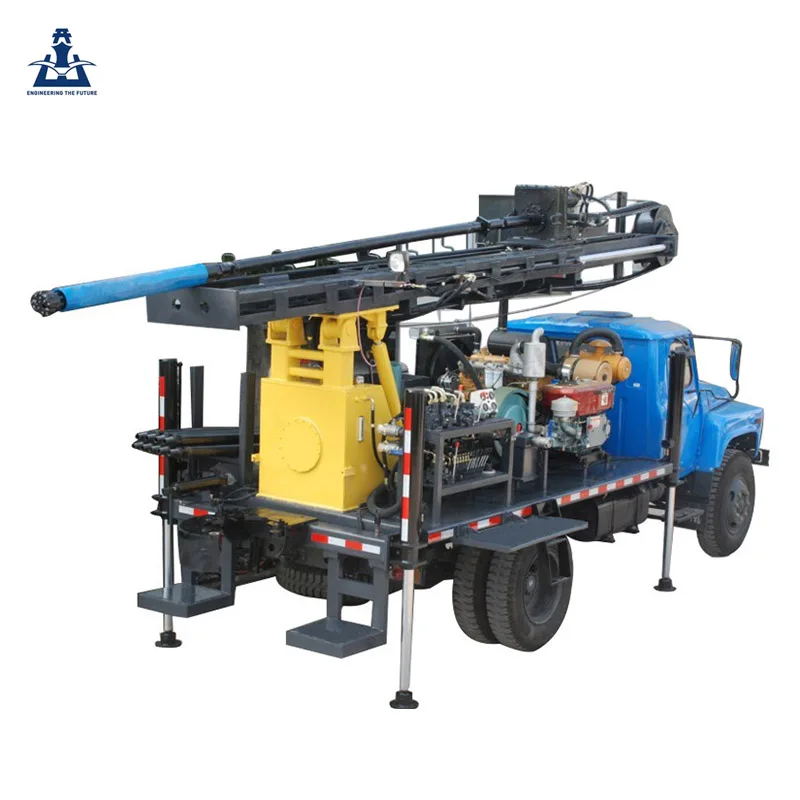

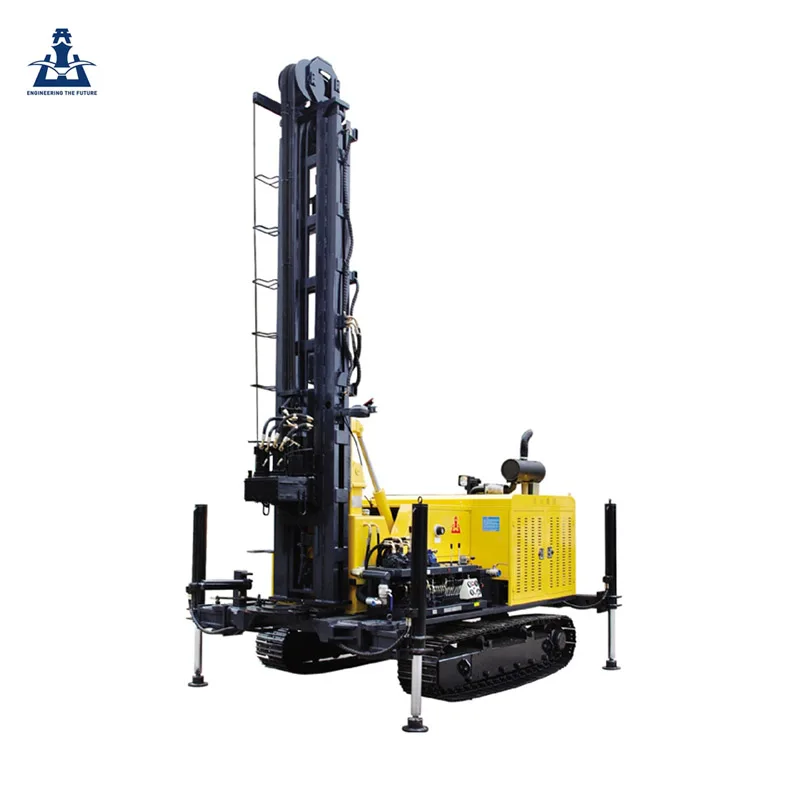

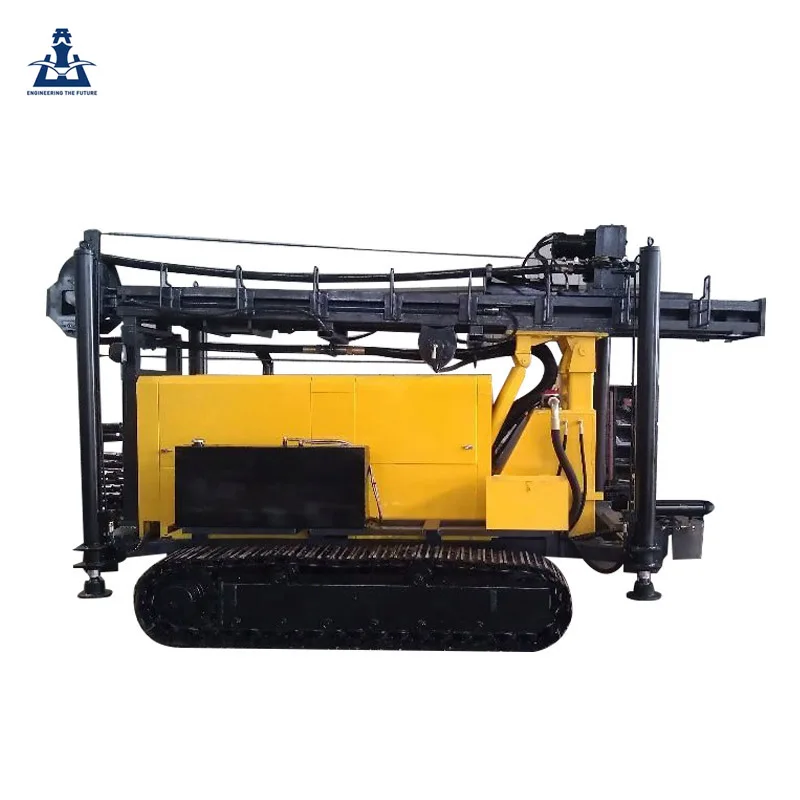

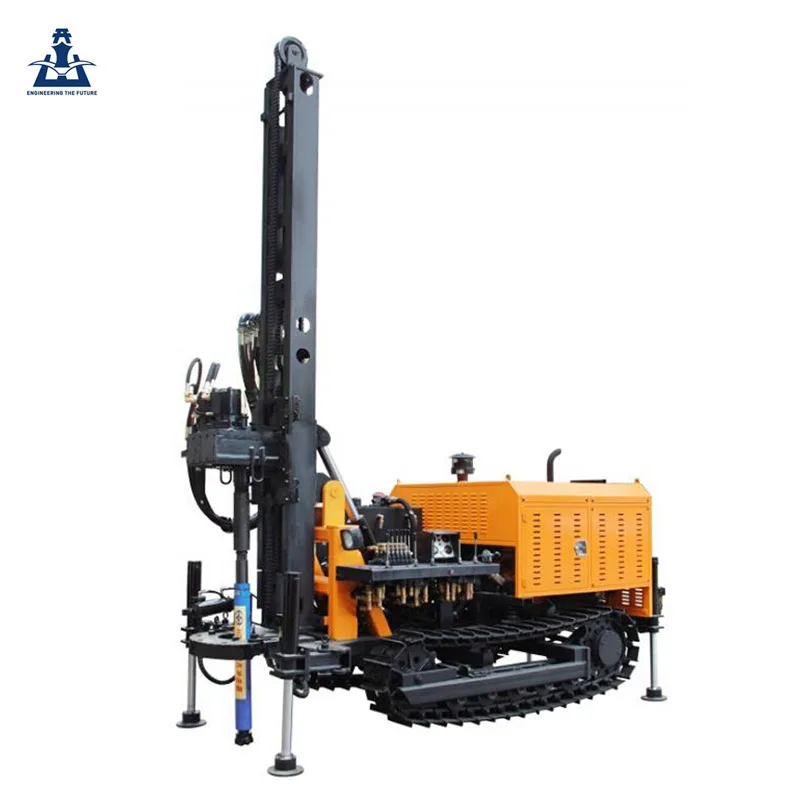

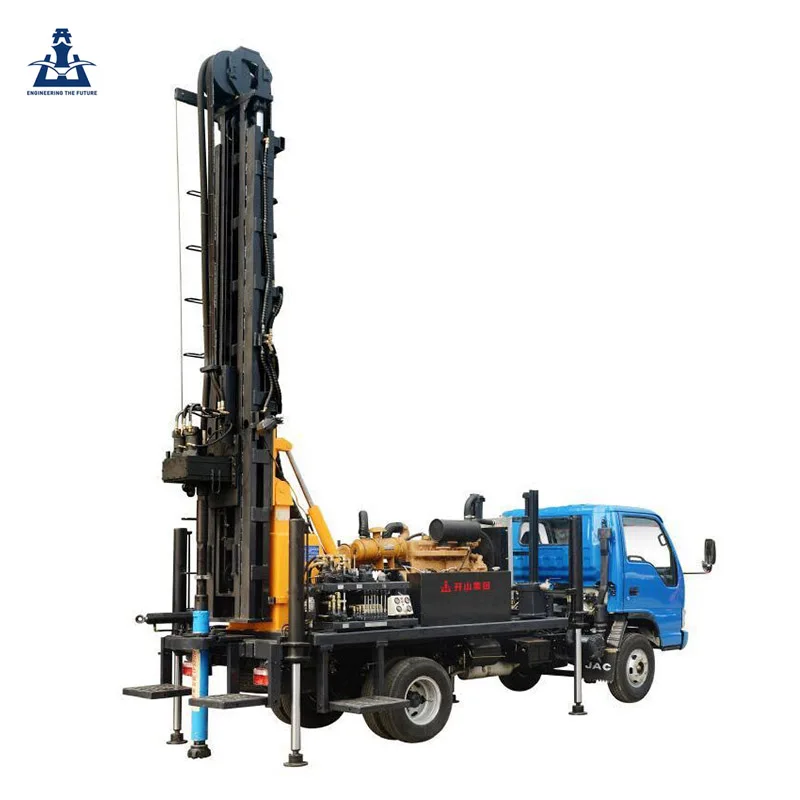

high quality water well drilling rig multifunctional drill rig of geothermal well
- Category: >>>
- Supplier: Quzhou Jugong Machinery Equipment Co. Ltd.
Share on (1600089927508):
Product Overview
Description
Product Overview
KW series‘s advantage
KW series multifunctional drill rig of geothermal well is an improved device.Equipped with the Yuchai four-cylinder engine,the drill rig meets national standards for emissions and environment.Meanwhile,the hydraulic system,supporting configuration and appearance,etc.have been optimized,thus improving the performance and working effcciency.The double rotation motor increases the rotary torque and revolving speed.
FEATURES AT A GLANCE
KW180
KW400
KW600
PRODUCT SPECIFICATIONS
Model of drill rig | KW180 | KW400 | KW600 | ||
Drilling hardness | f=6-20 | f=8-12 | |||
Drilling diameter | φ115-220mm | φ110-273mm | φ168-350mm | ||
Maximum depth of drilling | 180m | 250m | 450m | ||
Travelling speed | 0-2km/h | ||||
Advancing speed of sliding plate | 15-51m/s | 8.9-80m/s | 6.7-49m/s | ||
Lifting speed of sliding plate | 8-26m/s | 4.2-27.8m/s | 3.3-24m/s | ||
Volume of hydraulic oil tank | 200L | 400L | |||
Volume of diesel oil tank | 60L | 150L | |||
Supporting drilling rod | φ76*2m or φ89*2m | φ89*3m or 102*3m | |||
Outer dimensions | 4600*1500*2350mm | 7300*2250*2750mm | |||
Weight of complete vehicle | 4500KG | 9000KG | 9500KG | ||
SALES AND SERVICE NETWORK
product's details
FAQ
Q1：*****
A1：*****
