Compost Drum Trommel Sand Screening Aggregates Screener
- Category: Vibrating Screen >>>
- Supplier: Xinxiang Karp Machinery Equipment Co. Ltd.
Share on (1600089946129):
Product Overview
Description
Product Description
Compost Drum Trommel Sand Screening Aggregates Screener

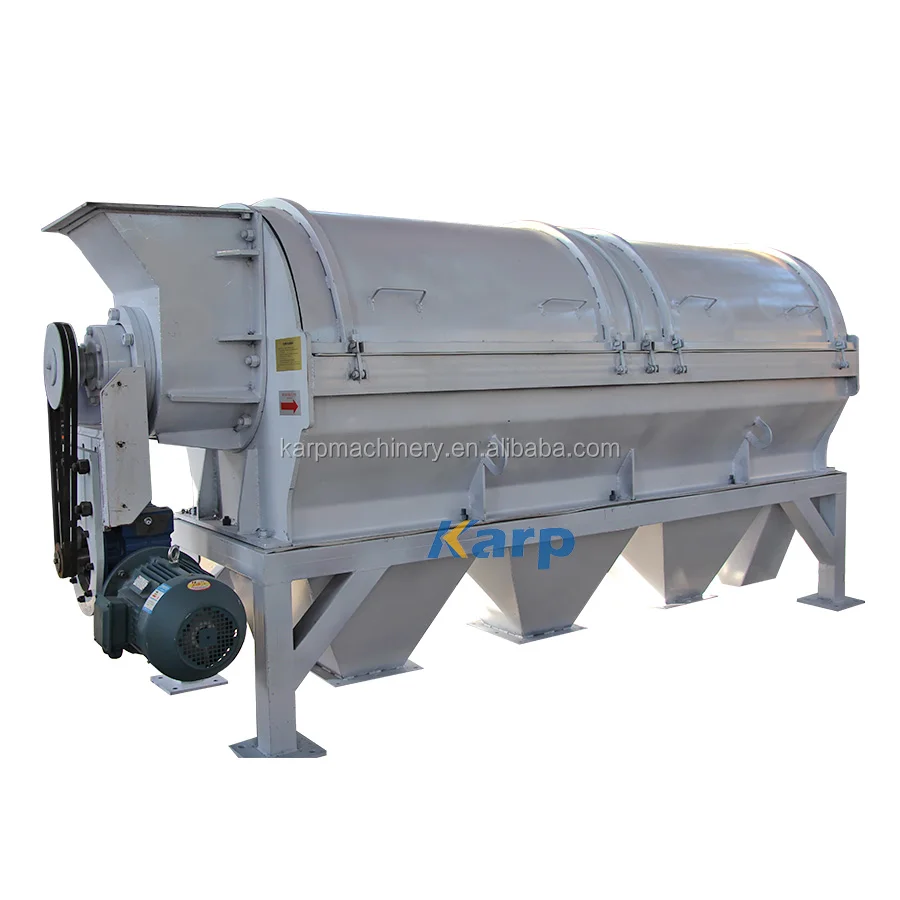

Compost Drum Trommel Sand Screening Aggregates Screener 's main structure is cylindrical drum, which is inclined and installed on the frame. The geared motor is connected to the drum device through a coupling, the driving drum will rotate around the axis direction. When the materials enters the drum device, due to the tilt and rotation of the drum device, the materials on the screen surface is overturned and rolled so that the fine material is discharged through the discharge port at the bottom of the back end of the drum of trommel screen, and the coarse material is discharged through the discharge port at the tail of the drum discharge. As the material in the drum devise flip, rolling, so the materials stuck in the sieve can be ejected to prevent the sieve blocking.
FEATURES
1.Mesh is not easy to block, automatic cleaning brush on the top of trommel screen to avoid the blockage.
2.Smooth operation, low noise.
3.High screening efficiency, Large screening capacity
4.Simple structure, easy maintenance.
5.Sieve drum can be closed, easy to close the dust collection.
6. Convenient maintenance, the upper hood is removable.
2.Smooth operation, low noise.
3.High screening efficiency, Large screening capacity
4.Simple structure, easy maintenance.
5.Sieve drum can be closed, easy to close the dust collection.
6. Convenient maintenance, the upper hood is removable.
Application | Aggregate screening |
Mesh size | 3mm |
Screening capacity | 20t/h |
Drum size | Diameter: 1000mmLength:3000mm |
Manufacturing material | carbon steel |
Every equipment will pass strict inspection before it goes out
Detailed Images

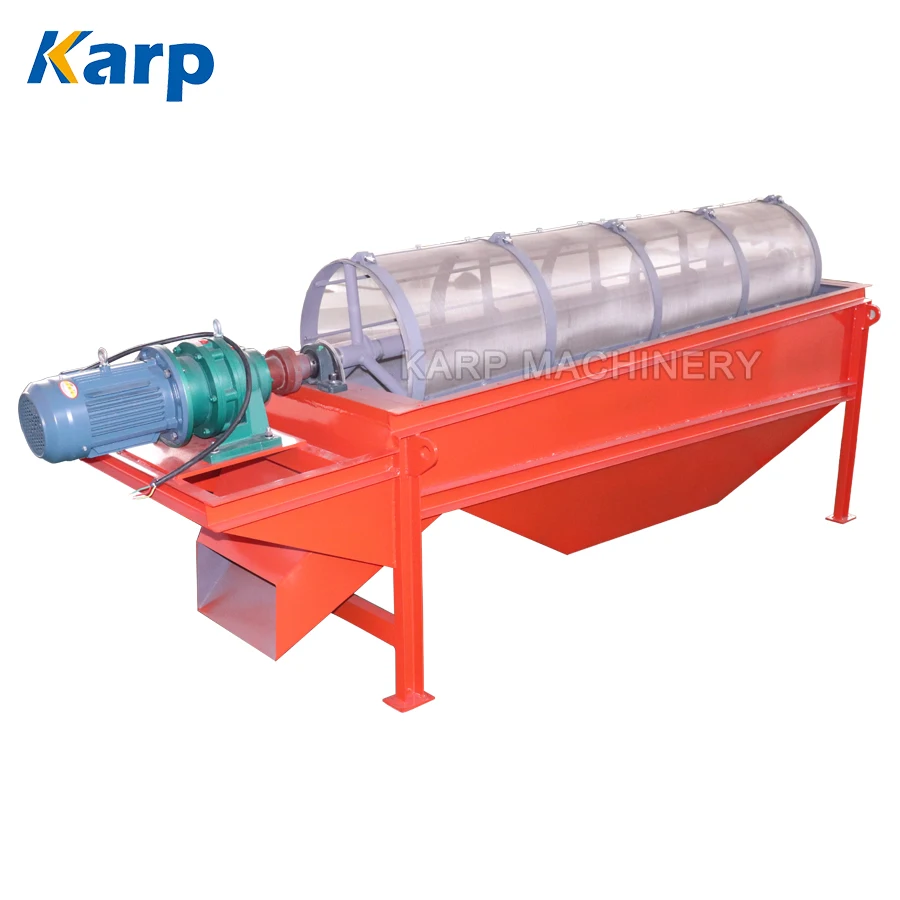

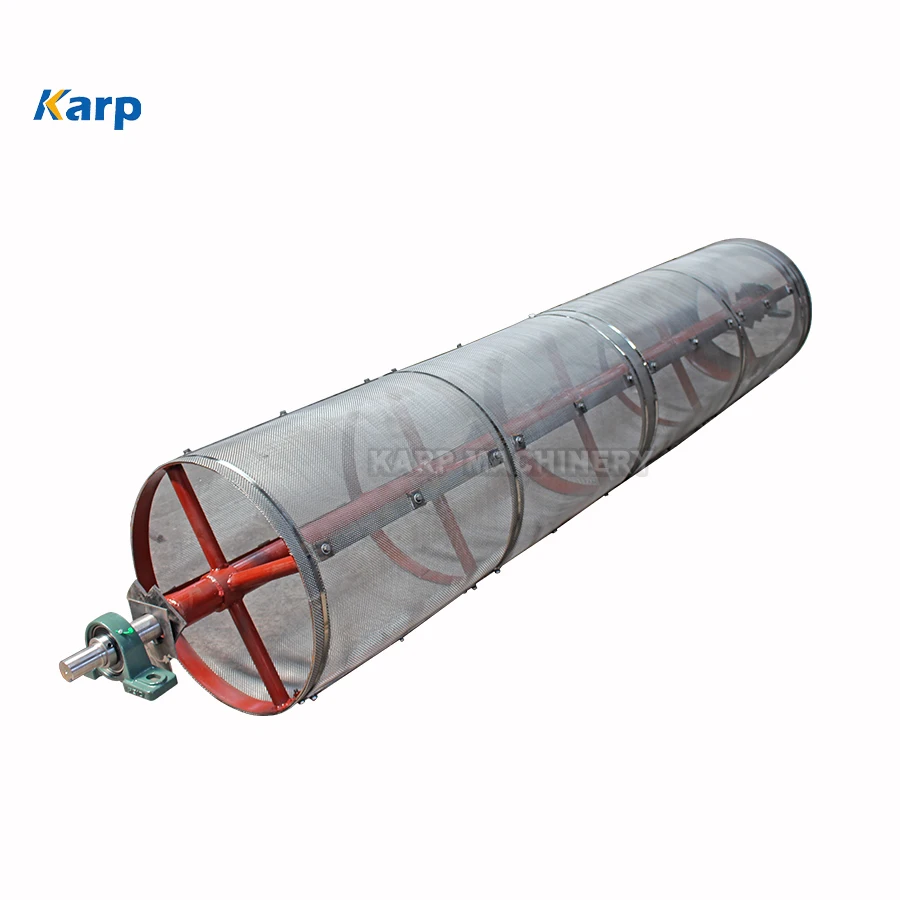

Compost Drum Trommel Sand Screening Aggregates Screener consisit of Drum, cover, frame, driving unit and inlet and discharge port, and so on.
Technical Parameters
Model | Capacity (m³/h) | Power (kw) | Drum diameter (mm) | Drum length (mm) | Discharge Size (mm) |
YT620 | 1-5 | 0.75 | 600 | 2000 | 0-100 |
YT825 | 2-10 | 1.1 | 800 | 2500 | |
YT1030 | 10-30 | 2.2 | 1000 | 3000 | |
YT1235 | 20-50 | 4 | 1200 | 3500 | |
YT1540 | 40-80 | 5.5 | 1500 | 4000 | |
YT1850 | 80-150 | 7.5 | 1800 | 5000 |
Related Products
Company Introduction
1. Your sample material can be free analysised in our laboratory.
2. 24 hours/365 days online & quick response within 12 hours.
3. Warranty period: 13month
4. Production lead time and delivery time guaranteed.
5. Help high-end customers to develop the local market
6. All packing and shipping can customized as per your requirements.
2. 24 hours/365 days online & quick response within 12 hours.
3. Warranty period: 13month
4. Production lead time and delivery time guaranteed.
5. Help high-end customers to develop the local market
6. All packing and shipping can customized as per your requirements.
Xinxiang KARP Machinery Equipment., CoLtd is one of leading manufacturer of vibrating screen sifter, conveying machines, feeding machines, elevating machines and related products with 11 years designing and manufacturing experiences.
Our main products are vibrating screen, Compost Drum Trommel Sand Screening Aggregates Screener, rectangular separator, drum screen, gyratory screen, tumbler screen, screw conveyor, belt conveyor, scraper conveyor, vibration table, standard laboratory inspection sieve, bucket elevator, vibration elevator, vibration motor, vibrating conveyor, feeding machine and related parts. All of our products are widely used in food, pharmaceutical, chemical, metallurgy, building materials, mining, environmental protection and other fields. Warmly welcome friends from all over the worlds to our company, we looks forward to sincere cooperation and mutually beneficial development with you.
We are committed to solve all screening and conveying problems of bulk materials. Depending on the quality as the life of
enterprise,we will with professional solution, high quality products, perfect service to win our customer's approval.
Our main products are vibrating screen, Compost Drum Trommel Sand Screening Aggregates Screener, rectangular separator, drum screen, gyratory screen, tumbler screen, screw conveyor, belt conveyor, scraper conveyor, vibration table, standard laboratory inspection sieve, bucket elevator, vibration elevator, vibration motor, vibrating conveyor, feeding machine and related parts. All of our products are widely used in food, pharmaceutical, chemical, metallurgy, building materials, mining, environmental protection and other fields. Warmly welcome friends from all over the worlds to our company, we looks forward to sincere cooperation and mutually beneficial development with you.
We are committed to solve all screening and conveying problems of bulk materials. Depending on the quality as the life of
enterprise,we will with professional solution, high quality products, perfect service to win our customer's approval.
FAQ
Common questions of Compost Drum Trommel Sand Screening Aggregates Screener.
Q: What information do I need to provide for getting an accurate quotation?
A: 1. the raw material information, the material name, water content (dry or wet), bulk density.
2. what's your purpose? grading, filtering or removing impurity?
3. how many layers do you need?
4. what's the mesh size___(mm/ mesh) for each layer?
5. how is the handling capacity__kgs per hour?
6. what's your local voltage_ volt, and frequency__Hz?
7. other special requirement, such as construction material.
Q: How long for the delivery time?
A: 5-10 working days for conventional products.
Q: How long for warranty time?
A: 13 months from the shipping date.
A: 1. the raw material information, the material name, water content (dry or wet), bulk density.
2. what's your purpose? grading, filtering or removing impurity?
3. how many layers do you need?
4. what's the mesh size___(mm/ mesh) for each layer?
5. how is the handling capacity__kgs per hour?
6. what's your local voltage_ volt, and frequency__Hz?
7. other special requirement, such as construction material.
Q: How long for the delivery time?
A: 5-10 working days for conventional products.
Q: How long for warranty time?
A: 13 months from the shipping date.
