YOKOGAWA OTDR Price SM OTDR Tester AQ1000 OTDR Optical Time Domain Reflectometer 32/30dB
- Category: >>>
- Supplier: Shanghai Govo Telecom Co. Ltd.
Share on (1600090134205):
Product Overview
Description

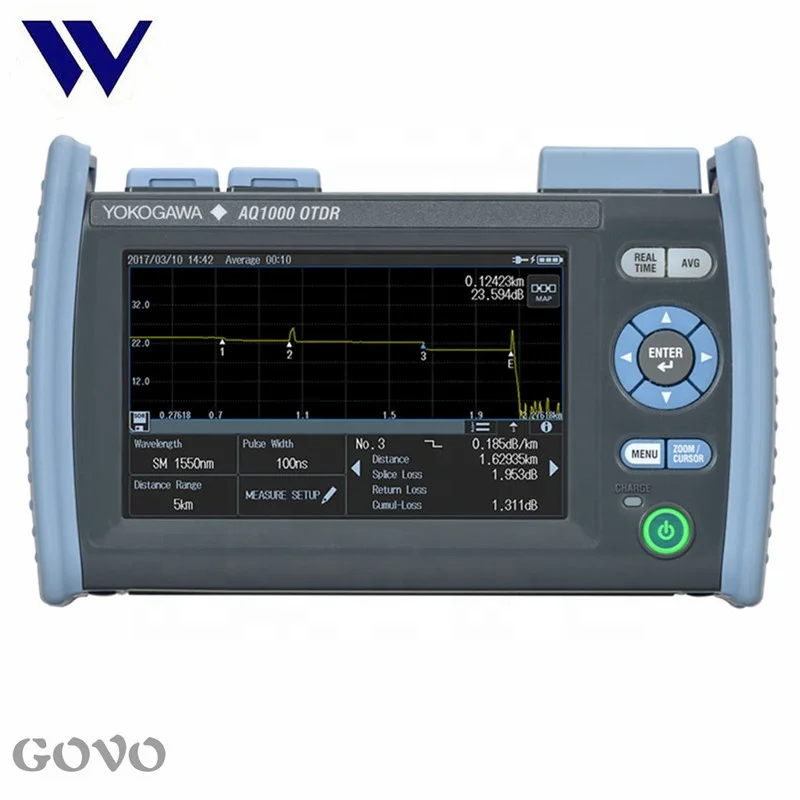

YOKOGAWA OTDR Price SM OTDR Tester AQ1000 OTDR Optical Time Domain Reflectometer 32/30dB with LS OPM
Product Description
The AQ1000 satisfies test and measurement needs in analyzing access optical networks.

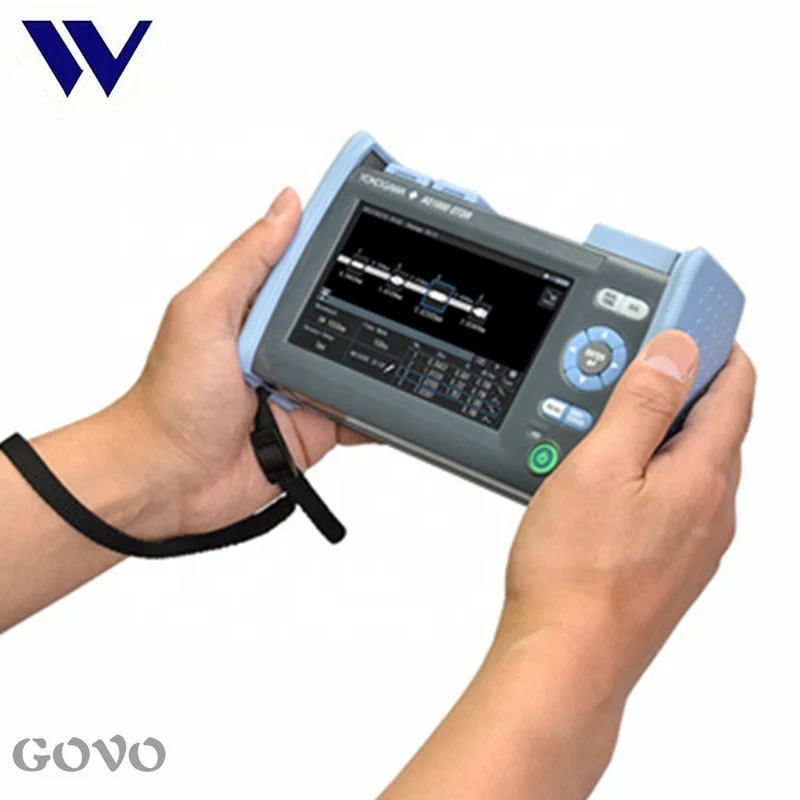

The new instrument complements the company’s mid-range AQ1200 Series and the high-end AQ7280 Series, and is specifically designed to increase the productivity of field personnel working on the installation and deployment of optical access networks such as Fiber To The Home (FTTH): the so-called “last mile” to consumers’ premises.
The new instrument complements the company’s mid-range AQ1200 Series and the high-end AQ7280 Series, and is specifically designed to increase the productivity of field personnel working on the installation and deployment of optical access networks such as Fiber To The Home (FTTH): the so-called “last mile” to consumers’ premises.
Specification
| Items | Specifications |
| Wavelength (nm)*4 | 1310 ±20/1550 ±20 |
| Applicable fiber | SM (ITU-T G.652) |
| Distance range (km) | 0.2, 0.5, 1, 2, 5, 10, 20, 30, 50, 100, 200, 256 |
| Pulse width (ns) | 3, 10, 20, 30, 50, 100, 200, 300, 500, 1000, 2000, 5000, 10000, 20000 |
| Sampling resolution | min. 5 cm |
| Number of sample points | max. 256000 |
| Distance measurement accuracy (m) | ±(1 m + Measurement distance × 2 × 10−5 ±1 sampling resolution) |
| Event dead zone (m)*1 | ≤ 0.8 |
| Attenuation dead zone (m)*2, *4 | 4/5 |
| Dynamic range (dB)*3, *4 | 32/30 |
| Loss measurement accuracy | ±0.03 dB/dB |
| Reflection accuracy | ±2 dB |
| Laser class | Class 1M |
Packaging & Shipping
Standard Original Package
OTDR&Launch Cable
Our company is able to supply the following OTDR and OTDR launch cable(1km,2km, 3km)
Single mode OTDR,dual wavelengths (1310/1550nm)
Brand | Model | Dynamic Range |
EXFO | MaxTester Max-715B-M1-OTDR MaxTesterMax-715B-M1-OTDR+iOLM | 30/28dB |
MaxTester Max-720C=SM1-OTDR MaxTester Max-720C=SM1-OTDR+iOLM | 36/35dB | |
MaxTester Max-730C-SM1-OTDR | 39/38dB | |
FTB-1 V2 platform+ FTB-720C OTDR module | 36/34dB | |
FTB-1 V2 plaform+FTB-750C-SM1-OTDR module | 46/46dB | |
VIAVI(JDSU) | SmartOTDR-e100AS | 30/30dB |
SmarOTDR-e126A | 37/35dB | |
SmartOTDR-e126B | 40/40dB | |
MTS-4000-e4216LA | 35/33dB | |
MTS-4000-e4126MA | 40/38dB | |
MTS-6000-e8126B | 41/40dB | |
MTS-6000-e8126C | 45/45dB | |
AFL Noyes | OFL 280-100 | 34/32dB |
Flexscan FlX380-300 | 41/41dB | |
Yokogawa | AQ1200A | 34/32dB |
AQ1000 | 32/30dB | |
Grandway | FHO3000-D26 | 26/24dB |
FHO3000-D35 | 35/33dB | |
FHO5000-D35 | 35/33dB | |
FHO5000-D40 | 40/38dB | |
FHO5000-D43 | 43/41dB | |
GW GovoTelecom | TR600-SV20A | 32/30dB |
TR600-SV20B | 36/34dB | |
TR600-SV20C | 38/36dB | |
TR600-SV20D | 40/38dB | |
GW6000 | 35/33dB | |
NK2230 | 28/26dB | |
DVP | DVP-323 | 34/32dB |
CETC/CeYear | 6416-2101 | 28/26dB |
6418-2101 | 42/40dB | |
6418-2103 | 37/35dB | |
6418-2108 | 45/43dB |
PON OTDR, Tri-wavelengths
Brand | Model | Dynamic Range | Wavelengths |
EXFO MaxTester | Max-715B-M2-OTDR | 30/28/28dB | 1310/1550,1625nm |
Max-720C=SM2-OTDR | 36/35/35dB | 1310/1550,1625nm | |
Max-730C-SM2-OTDR | 39/38/39dB | 1310/1550,1625nm | |
GW GovoTelecom | TR600-SV30A | 32/30/30dB | 1310/1550,1490nm |
TR600-SV30C | 36/34/34dB | 1310/1550,1490nm | |
TR600-SS24AF | 32/30/28dB | 1310/1550,1625nm | |
TR600-SS24AF | 38/36/34dB | 1310/1550,1625nm | |
Grandway | FHO5000-T40F | 40/38/38dB | 1310/1550,1625nm |
FHO5000-TP35 | 35/33/33dB | 1310/1550,1490nm | |
| FHO5000-TC35F | 35/33/31dB | 1310/1550,1650nm |
CETC/Ceyear | 6418-3103 | 39/37/37dB | 1310/1550,1625nm |
Multimode OTDR dual wavelengths: 850/1300nm
Brand | Model | Dynamic Range | Wavelengths |
GW GovoTelecom | TR600-MV10A | 20/18dB |
850/1300nm
|
Grandway | FHO5000-M21 | 19/21dB |
Singlemode& Multimode OTDR, Quad wavelengths:850/1300/1310/1550nm
Brand | Model | Dynamic Range | Wavelengths |
GW GovoTelecom | TR600-QUAD-A | 20/18/30/28 dB |
850/1300/1310/1550nm |
TR600-QUAD-B | 23/21/34/32 dB | ||
Grandway | FHO5000-MD21 | 19/21/35/33dB | |
EXFO | FTB-1 V2-720C-Q1-QUAD-XX | 26/24/36/34dB | |
AFL Noyes | M210E-25 | 26/26/30/30dB | |
| M710-20 | 19/21/40/38dB | |
VIAVI/JDSU | SmartOTDR-E4146QUAD | 26/24/37/35dB |
Others
Brand | Model | Dynamic Range | Wavelengths |
ShinewayTech | MTP-200-41VF
| 38/37/36/36dB | 1310/1490/1550/1625nm |
