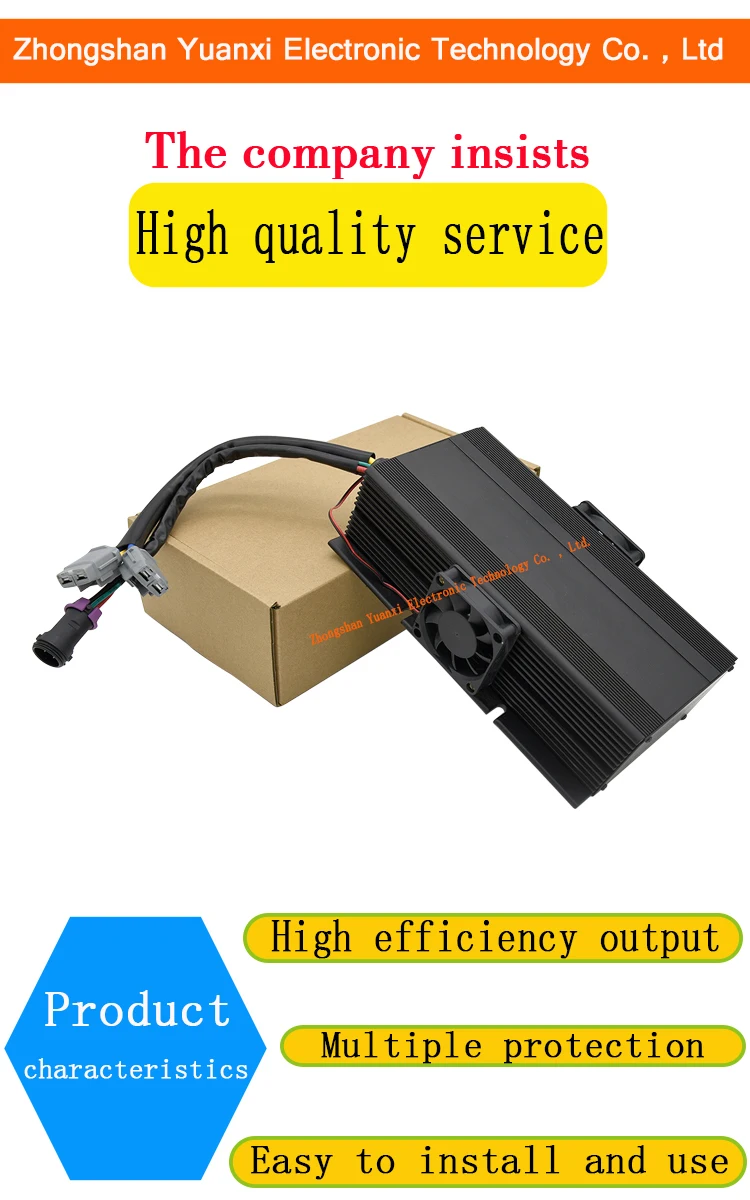

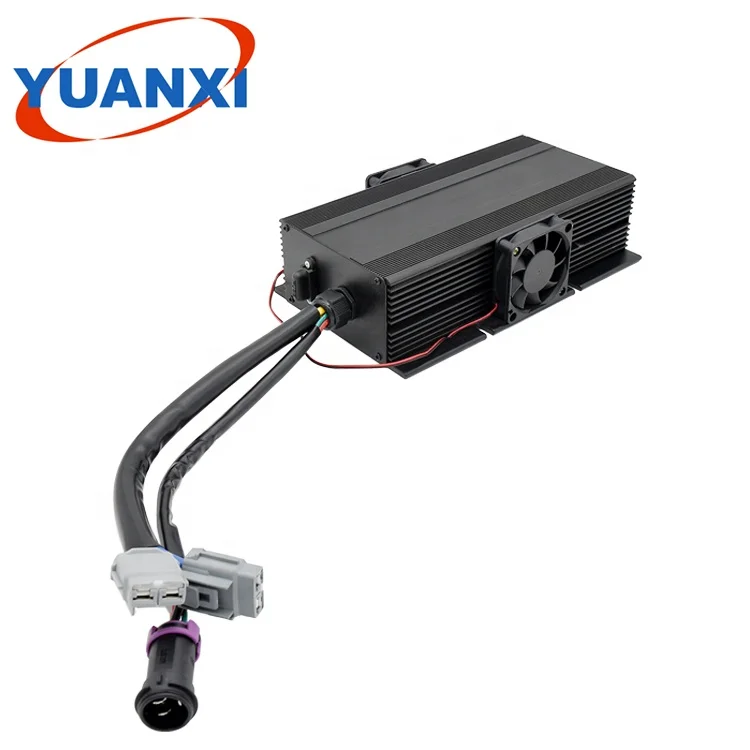

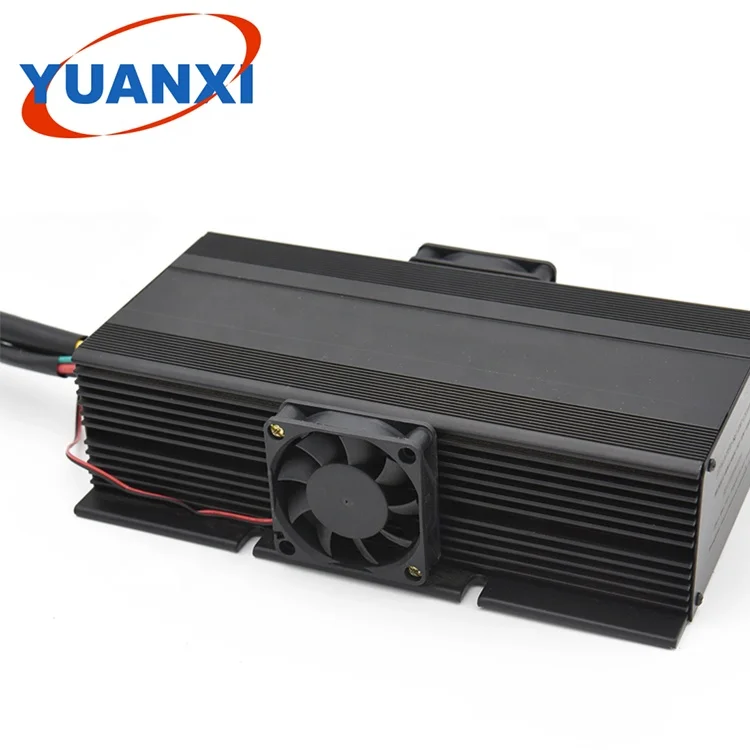

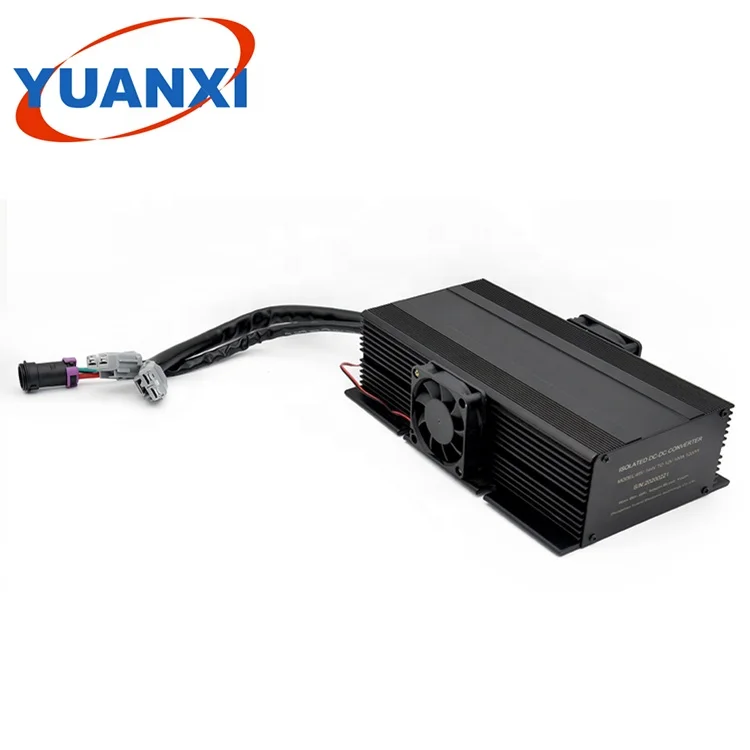

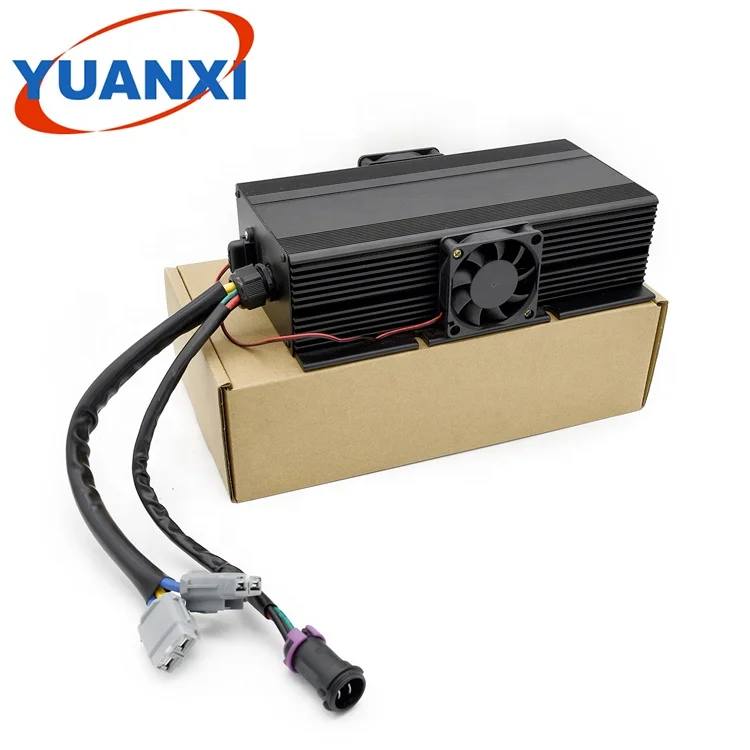

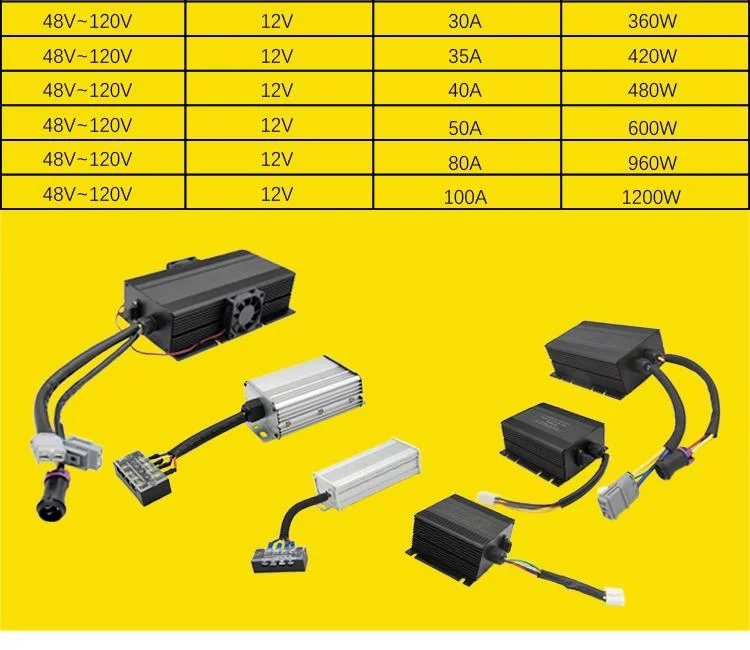

Isolated step down DC DC converter 48V60V72V84V96V120V TO 12V 13.8V 24V 80A 100A 960W 1200W Charger converter
- Category: >>>
- Supplier: Zhongshan Yuanxi Electronic Technology Co. Ltd.
Share on (1600090137243):
Product Overview
Description

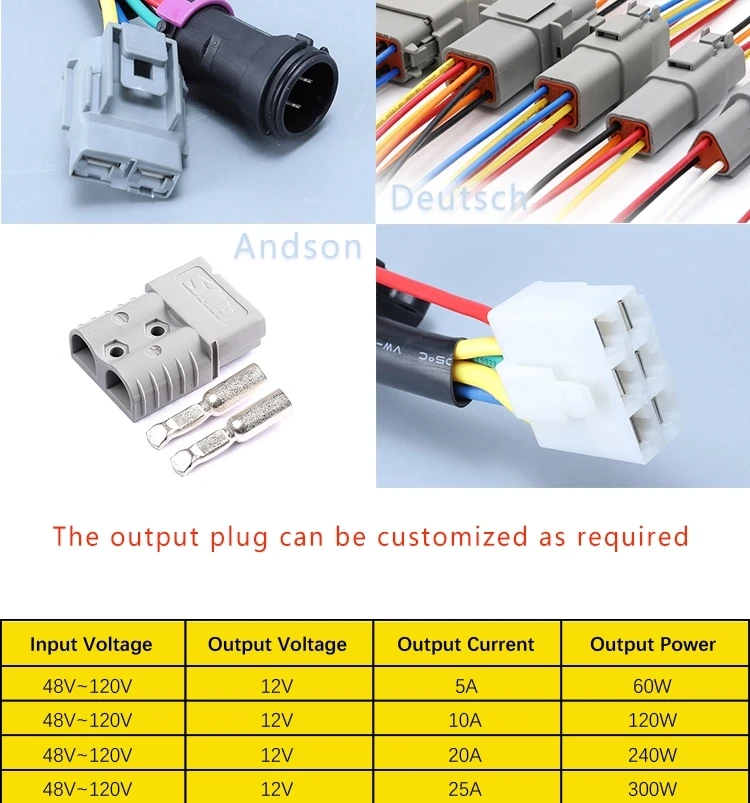

| Input parameter | |
| Input voltage | 48V-120V |
| Weight | 3.75KG |
| Output patameter | |
| Output Current | 100AMax |
| Output Voltage | 12V |
| Efficiency | 90% |
| Power | 1200WMax |

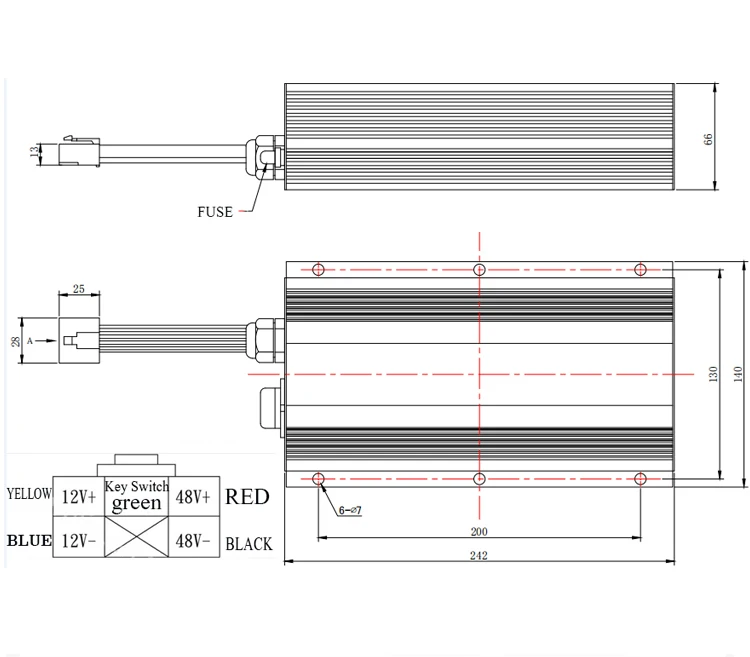

| Size | 242*145*66MM |
| voltage | <1% |
| Load | <1% |
| Insulation resistance | Between output and input >50MΩ |
| Between input and casing >50MΩ | |
| Between output and casing >50MΩ | |
| protect funtion | |

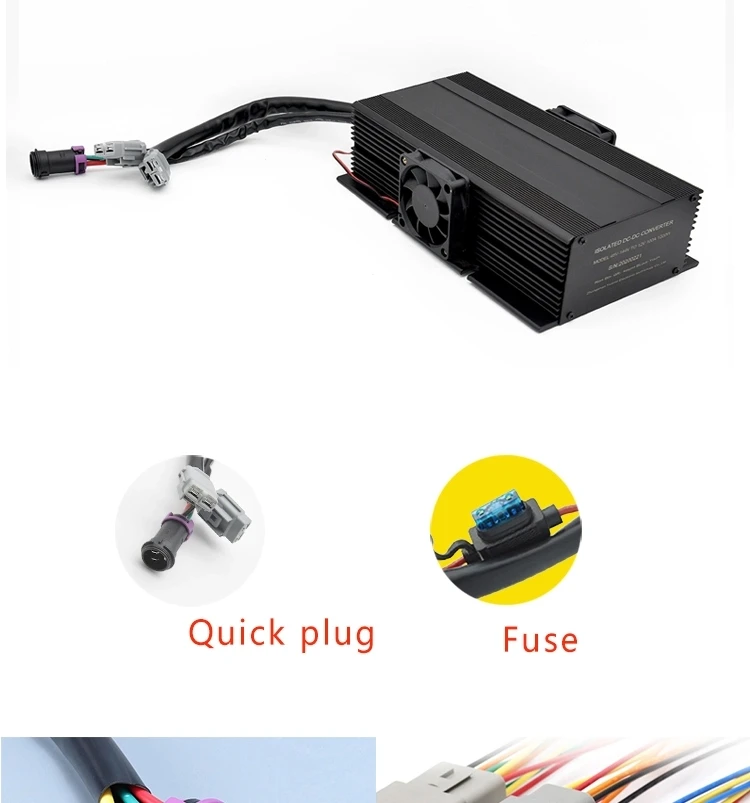

| Input reserse connection protection (replacing fuse) | |
| Output protection | Temperature protection 95% |
| OverCurrent Protection | |
| Short-Current Protection | |
| Overvolatage protection | |

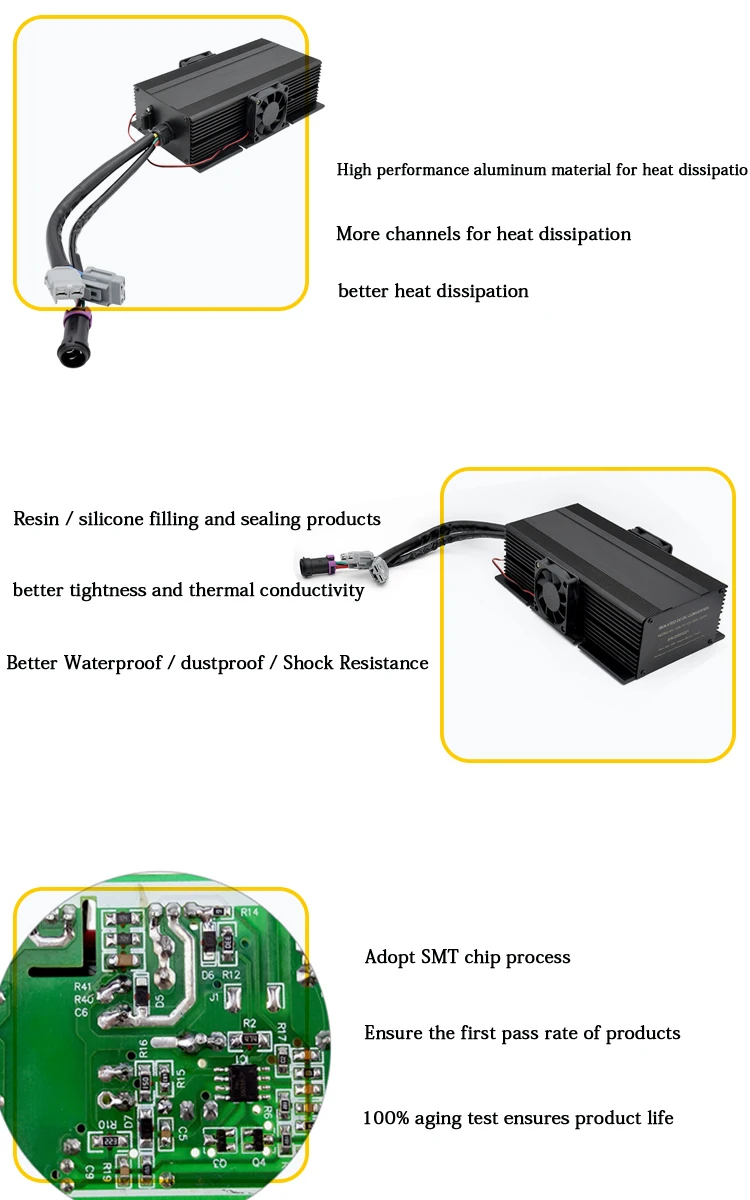

| product Feature | |
| 1.Waterproof | IP65 |
| 2.Storage temperature | -40℃-60℃ |
| 3.Working temperature | -25℃-55℃ |
| 4.with waterproof glue increases the vibration level | |
