Dual 22kW OCPP 2.0 level 2 fast ev charging station support dynamic load balancing
- Category: >>>
- Supplier: Xiamen Galaxy Camphol Technology Co. Ltd.
Share on (1600090173629):
Product Overview
Description
Products Description
Company Profile
About us -------------
iocharger, a registered brand of Xiamen Galaxy Camphol Technology CO., Ltd., is a state level High-tech company operating at the core of the renewable energy transition, with R&D centers and production bases in Xiamen, Suzhou and Luoyang.
We're providing premium, smart end-2-end energy solutions, including CE&UL certified AC/DC EV Charging Stations, CSMS(Charging Station Management System), ESS(Energy Storage System) and EMS(Energy Management System), with reliable hardware & software design.
As a member of OCA(OCPP) & OCPI, our OCPP 1.6J & 2.0.1 EV Chargers have been approved by top charging operators, gas stations and utilities all over the world.
iocharger is committed to providing customers with satisfactory products and solutions through continuous innovation and unremitting pursuit of high quality to make our world greener and more sustainable.
We're providing premium, smart end-2-end energy solutions, including CE&UL certified AC/DC EV Charging Stations, CSMS(Charging Station Management System), ESS(Energy Storage System) and EMS(Energy Management System), with reliable hardware & software design.
As a member of OCA(OCPP) & OCPI, our OCPP 1.6J & 2.0.1 EV Chargers have been approved by top charging operators, gas stations and utilities all over the world.
iocharger is committed to providing customers with satisfactory products and solutions through continuous innovation and unremitting pursuit of high quality to make our world greener and more sustainable.
We have assisted many customers in solving project difficulties. Pls Contact Us>>

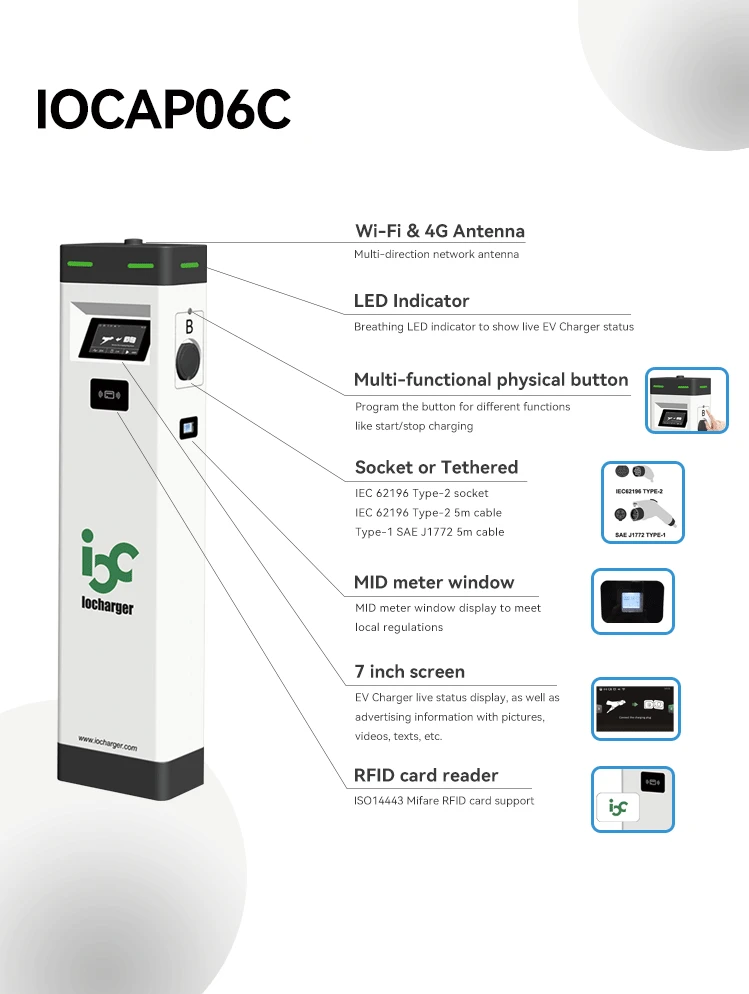

Product Advantages
Specification
Model | IOCAP06C-7S / IOCAP06C-7T | IOCAP06C-22S / IOCAP06C-22T | |
Applicaton | Residental / Commercial | ||
Voltage and Wiring | Single Phase 230V | Three Phase 400V | |
Frequency (Hz) | 50/60Hz | ||
Current Output | Single Phase 32A Max | Three Phase 32A Max | |
Charging Connector | SAE J1772 & Type-2 cable/ Type-2 socket | ||
RCD | 30mA AC & 6mA DC | ||
Electrical Protecton | Over current, Under voltage, Over voltage, Over temperature, Surge protecton, Short circuit, Ground fault | ||
Butons | 1 x Physical Buton | ||
Indicatons | Standby(Blue), Charging(Flashing Green), Fault(Red), Waring(Flash Red) | ||
Network Connectvity | Ethernet/ WiFi/ 4G | ||
Data Protocol | OCPP1.6J, OCPP2.0.1 | ||

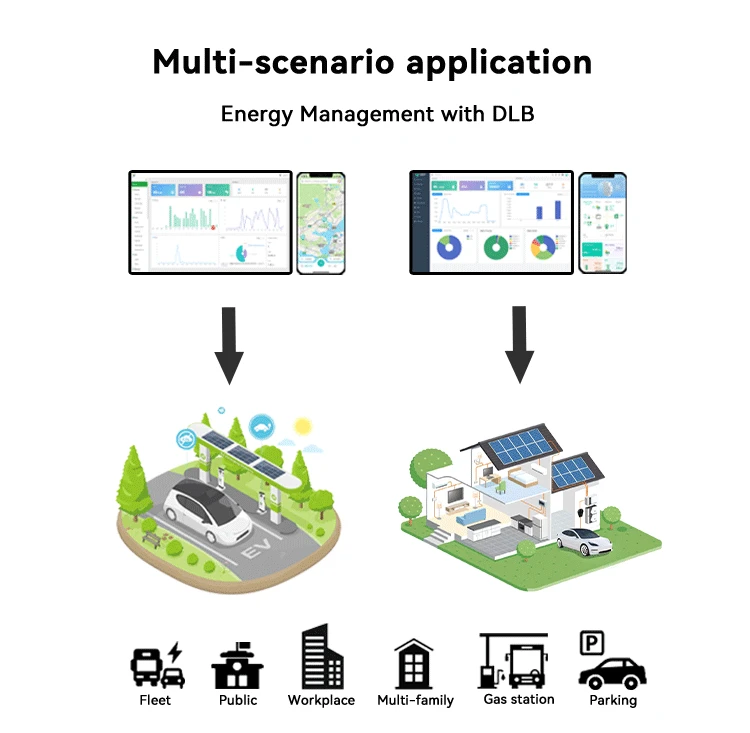

DLB | Dynamic Load Balancing | ||
Operaton Temp. | -30 °C ~ 50 °C / -22 °F ~ 122 °F | ||
Storage Temp. | -40 °C ~ 70 °C / -40 °F ~ 158 °F | ||
Working Humidity | 5%~95% without condensaton | ||
Mountng Type | Wall Mount (default) / Floor post (optonal accessory) | ||
Ingress Protecton | IP55 | ||
Mobile App | iOS/Android | ||
Certficaton | CE, IEC 61851-1, IEC 62196-2 | ||
FAQ
Here are some customer’s common questions about our products :
Q1: What is the slogan of IoCharger?
A: Internet Of Charger and Sustainable Energy..
Q2:The main difference between AC Charger and DC Charger?
A:The difference between AC charging and DC charging is the location where the AC power gets converted; inside or outside the car.Unlike AC chargers, a DC charger has the converter inside the charger itself. That means it can feed power directly to the car's battery and doesn't need the on-board charger to convert it.
Q3: Charging Modes?
A:Mode 2: Slow AC charging using a standard 3 pin socket with an EV specific protection device in the cable.
Mode 3: Slow or fast AC charging using a dedicated and fixed circuit with specific EV multi-pin connection with control and protection functions.
Mode 4: Rapid or Ultra Rapid DC charging using direct current with a connection technology such as CHAdeMO or CCS.
Q4:The differences of global DC fast charging standards?
A: CCS-1: DC fast charging standard for North America.
CCS-2: DC fast charging standard for Europe.
CHAdeMO: DC fast charging standard for Japan.
GB/T: DC fast charging standard for China.
Q5: Does the higher the charging station output power mean the faster the charging speed?
A: No, it doesn't. Due to the limited power of the car battery at this stage, when the output power of the DC charger reaches a certain upper limit, the larger power does not bring a faster charging speed.
However, the significance of high-power DC charger is that it can support dual connectors and simultaneously output high power to charge two electric vehicles at the same time, and in the future, when the electric vehicle battery is improved to support higher power charging, it is not necessary to invest money again to upgrade the charging station.
Q6: How fast can a vehicle be charged?
A: The speed of loading depends on many different factors
1. Charger Type: The charging speed is expressed in 'kW' and depends, among other things, on the capacity of the type of charger and the available connection to the power grid.
2. Vehicle: The charging speed is also determined by the vehicle and depends on several factors. With regular charging, the capacity of the inverter or “on board charger” is of influence. In addition, the charging speed depends on how full the battery is. This is because a battery charges more slowly when it gets full. Fast charging often does not make much sense above 80 to 90% of the battery capacity because charging is progressively slower.
Q1: What is the slogan of IoCharger?
A: Internet Of Charger and Sustainable Energy..
Q2:The main difference between AC Charger and DC Charger?
A:The difference between AC charging and DC charging is the location where the AC power gets converted; inside or outside the car.Unlike AC chargers, a DC charger has the converter inside the charger itself. That means it can feed power directly to the car's battery and doesn't need the on-board charger to convert it.
Q3: Charging Modes?
A:Mode 2: Slow AC charging using a standard 3 pin socket with an EV specific protection device in the cable.
Mode 3: Slow or fast AC charging using a dedicated and fixed circuit with specific EV multi-pin connection with control and protection functions.
Mode 4: Rapid or Ultra Rapid DC charging using direct current with a connection technology such as CHAdeMO or CCS.
Q4:The differences of global DC fast charging standards?
A: CCS-1: DC fast charging standard for North America.
CCS-2: DC fast charging standard for Europe.
CHAdeMO: DC fast charging standard for Japan.
GB/T: DC fast charging standard for China.
Q5: Does the higher the charging station output power mean the faster the charging speed?
A: No, it doesn't. Due to the limited power of the car battery at this stage, when the output power of the DC charger reaches a certain upper limit, the larger power does not bring a faster charging speed.
However, the significance of high-power DC charger is that it can support dual connectors and simultaneously output high power to charge two electric vehicles at the same time, and in the future, when the electric vehicle battery is improved to support higher power charging, it is not necessary to invest money again to upgrade the charging station.
Q6: How fast can a vehicle be charged?
A: The speed of loading depends on many different factors
1. Charger Type: The charging speed is expressed in 'kW' and depends, among other things, on the capacity of the type of charger and the available connection to the power grid.
2. Vehicle: The charging speed is also determined by the vehicle and depends on several factors. With regular charging, the capacity of the inverter or “on board charger” is of influence. In addition, the charging speed depends on how full the battery is. This is because a battery charges more slowly when it gets full. Fast charging often does not make much sense above 80 to 90% of the battery capacity because charging is progressively slower.
3. Conditions: Other conditions, such as the temperature of the battery, can also affect the charging speed. A battery works optimally when the temperature is neither too high nor too low. In practice this is often between 20 and 30 degrees. In winter, a battery can get very cold. As a result, charging may slow down considerably. Conversely, a battery can become very hot on a summer day and charging can then also be slower.
Q7: Can we customize the CCMS & App?
A: Yes, our software is fully developed in-house, and we provide station hosts the opportunity to customize their network management features to meet the unique needs of different business models, parking characteristics or customer interaction objectives.Examples include fleet management, app development, custom integration, anti-loitering features, or specialized billing needs.
Q8: What is the warranty time?
A: Hardware warranty is two years. Lifetime software support depends on the terms.
Q7: Can we customize the CCMS & App?
A: Yes, our software is fully developed in-house, and we provide station hosts the opportunity to customize their network management features to meet the unique needs of different business models, parking characteristics or customer interaction objectives.Examples include fleet management, app development, custom integration, anti-loitering features, or specialized billing needs.
Q8: What is the warranty time?
A: Hardware warranty is two years. Lifetime software support depends on the terms.
