2021 New Design 3D Laser Cutting Machine with Robot Arm

Product Overview

Description

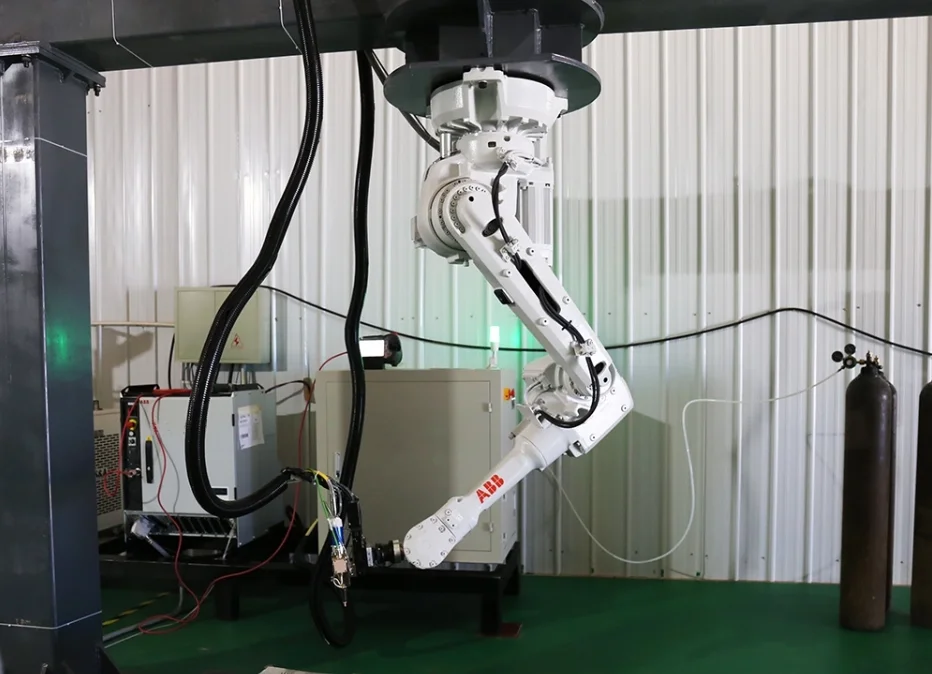

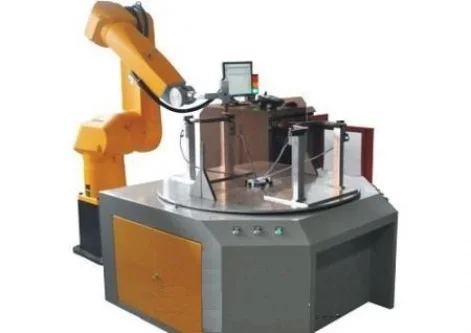

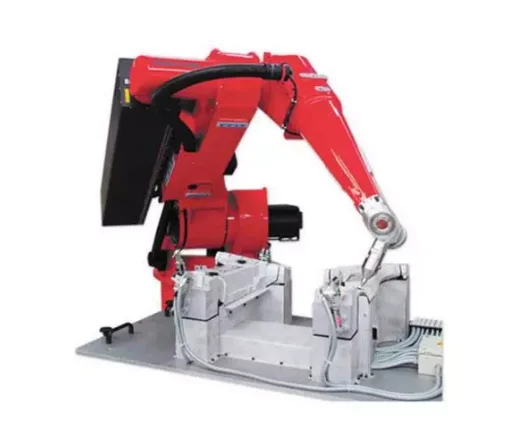

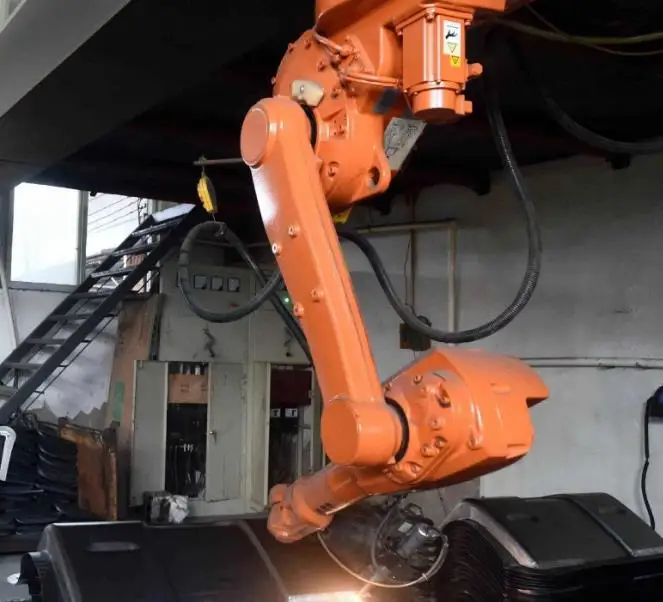

2021 New Design 3D  Laser Cutting Machine with Robot Arm



China Acme 3D Robot laser cutting machine is specially applicable to all kinds of uneven metal pipe and sheet metal cutting, suitable for the automotive industry, mold manufacturing, kitchen utensils, metal products, such as automatic cutting,can achieve multi-angle cutting.Applicable materials: Stainless steel, carbon steel, aluminum, brass, copper, galvanized steel, copper etc.

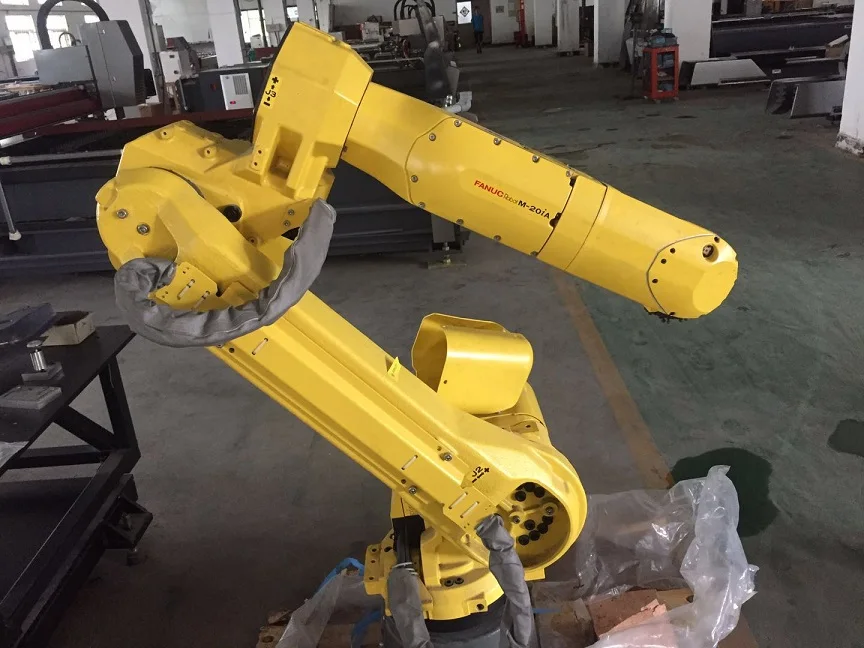

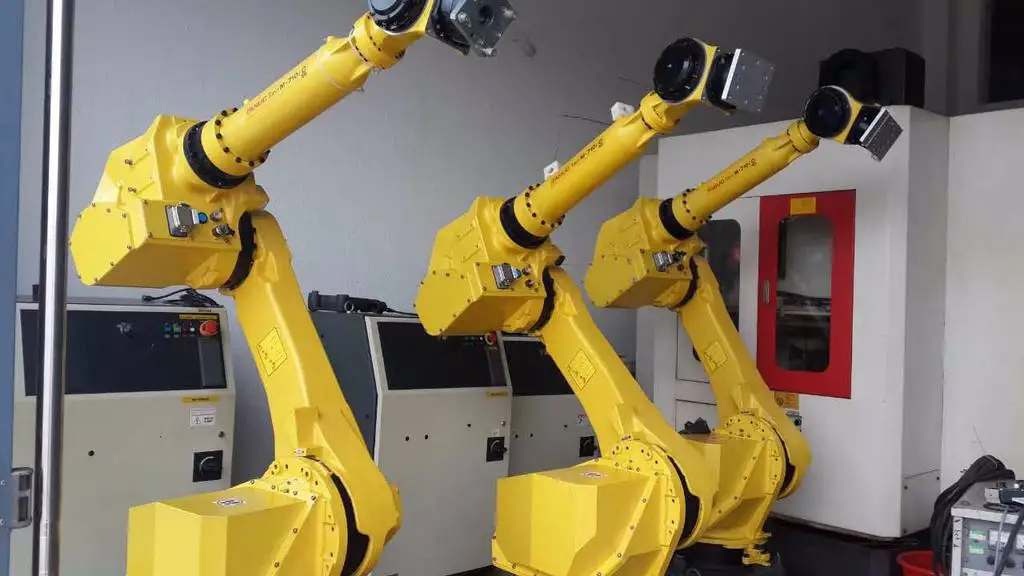

1.It is perfectly integrated the world famous abb ad staubi robot and fiber cutting tech that represents the most advanced level of laser cutting and can realize automated production maximum.

2.6-axis cooperation makes a large working area and can reach long distance,furthermore having a great load-bearing capacity so as to perform cutting process along 3D track within the working space

3.Due to the compact structure and slim robot wrist,it still realizes high performance operation even if a place with lots of restriction

4.Process speed an position can be adjusted to achieve the best manufacturing precision with high yield.

5.Low noise,long routine maintenance intervals,long lifespan

6.The robot arm can be cntrolled by handheld terminal

7.Welding,packaging,handling and other fuctions can be achieved by modifying the program and changing hardware.













Configurations and Parameters



3D Robot fiber laser cutting machine technical parameters
The overall parameters of the equipment
Floor space(mxm)	about 3 * 4.2 (including chillers and high pressure air drying system)
Worktable height	350mm	Noise		<65 Db(not including exhaust fan)
Power supply requirements	AC220V±5%   50HZ (Simplex)	Total power		4.5KW  (Without ventilation)
Environmental requirements	Temperature range: 10-35 ℃ Humidity range: 40-85% 1000 meters below sea level, the use of the environment without flammable, explosive, strong magnetic, strong earthquake
The main parameters of the laser source
Laser type	fiber laser
Lasers work	Continuous / modulation		Laser power		500 W (1000w 2000w 3000w option)
Spot mode	Multi-mode		Laser wavelength		1070nm
Auxiliary system
Cooling system	Dual-temperature dual-pump pump with purification system chiller (unique configuration)
Laser source cooling system	350W horizontal air conditioning (unique configuration)
Auxiliary gas system	Three gas source dual-pressure gas (unique configuration)
Laser cutting head	Capacitive follow-up focus







 Applications



Application Industries: Widely used in manufacturing Billboard, Advertising, Signs, Signage, Metal Letters, LED Letters, Kitchen Ware, Advertising Letters, Sheet Metal Processing, Metals Components and Parts, Ironware, Racks & Cabinets Processing, Metal Crafts, Metal Art Ware, Elevator Panel Cutting, Hardware, Auto Parts, Glasses Frame, Electronic Parts, Nameplates, etc.

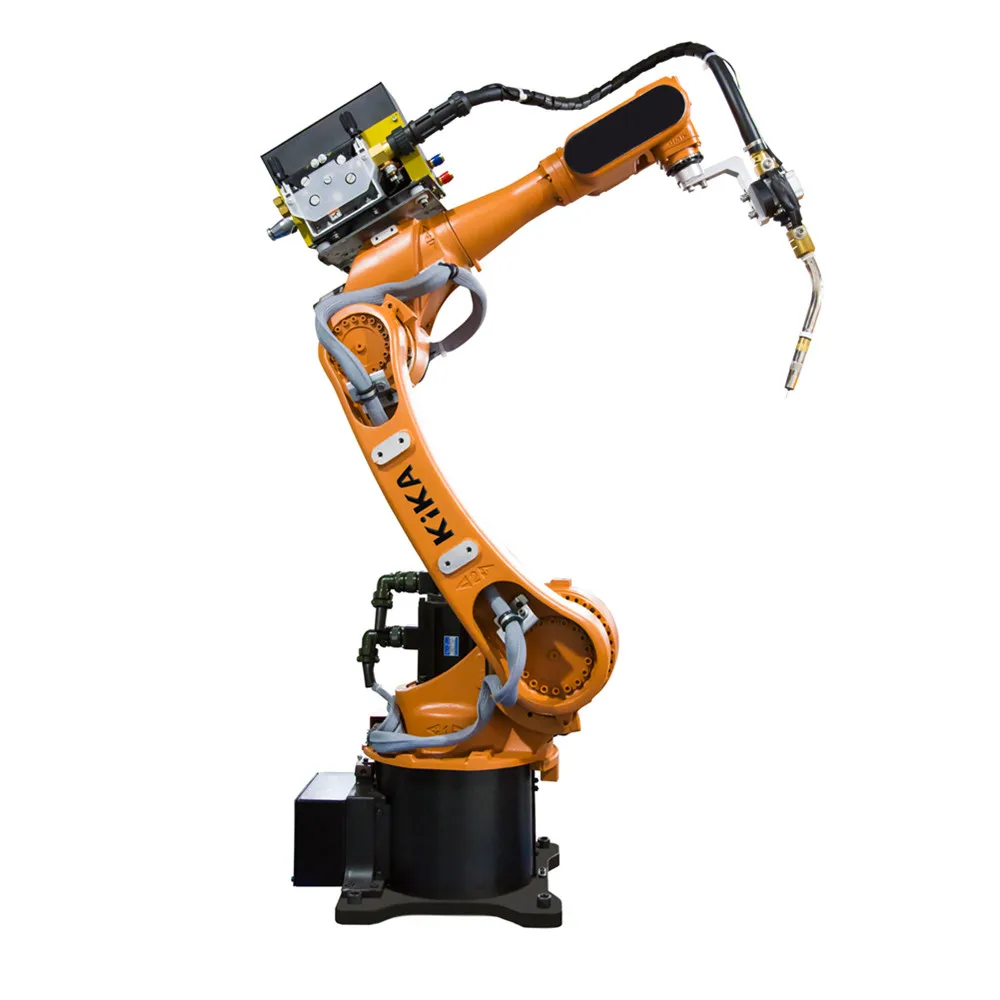

utomatic welding robot robotic cutting welding arm with 6 axis

CUTTING SAMPLES






 CERTIFICATION & PATENTS



ABOUT OUR FACTORY



North China Largest Fiber Laser Machine Manufacturer,With industry-leading technology and continuous R&D capability, China Acme Laser provide customers with the top quality machine and higher cost-effective laser equipment.
Our main products : 1.CNC laser cutting machine 2.CNC laser welding machine 3.CNC laser cutting&turret punch combined machine 4.CNC laser cleaning machine 5.CNC laser marking machine 6.CNC laser engraving machine

With the confidence given from 15 years of experience in machine manufacturing sector, we have exported the machines to all around the world with a perfect understanding of customer satisfaction and giving a continuous contribution to the national economy.
So far, our  machines have sold to 50 countries all over the world like USA,UK,Mexico, Netherlands, Italy,Germany,Australia,Hungary,Russia,Poland,Vietnam,India etc,which have won the recognition of the market with very stable and good performance. All our machines are in line wih European CE certification , TUV certification and SGS certification.


 ABOUT AFTER-SALES SERVICE




 MAIN AFTER-SALES SERVICE:

OEM&ODM services.
2 or 3 years guarantee time.
24h Life-long free technical support.
Consumable parts continuous supply.
English Speaking Engineers available to overseas services.
Free Training on machine installation, commissioning, operation, maintenance, etc.





CONSUMERS SHOW



FAQ

Why should We choose ACME Laser ?

• We have been laser manufacturer for 15 years.


• We offer maintenance-free and technology support.


• Most of our products have CE,SGS,TUV,ISO 9001 certifications.


• Our products have longer quality warranty.


• We have own research room ,workshop and design team.


• ACME LASER has been exporting to more than 50 countries around the world.

 This is first time buying this machine,how to use it?

• We have free training for 7 days.It is easy to learn.


• The best way is that we offer prefessional engineer to taech you face to face.


• If you couldn't come to our company, we will give you menu and video, our engineer teach you online.

How to maintain the machine?

• The environment needs be clear.


• The temperture can not be high.


• Our guide needs lubricating oil for 2-3 drops about.

If I have some problems ,what should I do ?

• You can contact our salesman directly ,our engineer will check the problem.


• During the warranty, maintainance is free.


• Although over the warranty,we also offer life-long technology support in free.
