Product Overview

Description



Key Features

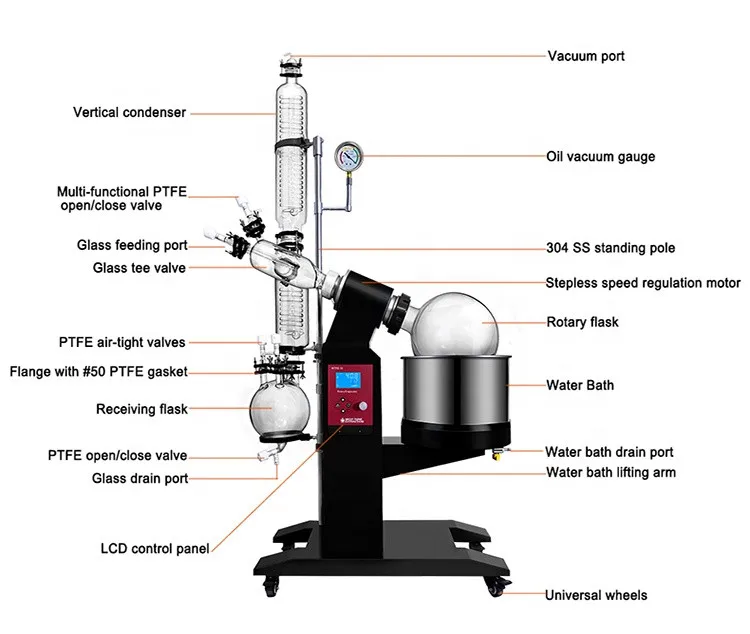

A Rotary Evaporator is a device used in extraction laboratories for efficient and gentle distillation of solvents from samples by evaporation. Rotary evaporation is most often and conveniently applied to separate “low boiling” solvents such a butane or ethyl alcohol from compounds which are solid at room temperature and pressure.

1.All PTFE valves for improved sealing and chemical resistance
2.Anti-dry heating function
3.Large LCD display
4.PID temperature and rotation speed controls
5.Direct injection capability for continous feeding of your material
6.Compact wheels design for improved workspace allocation
7.Receiving flask drain port for easy draining
8.Mobility with locking casters
9.Motorized water bath lifting for precise control.
10.Specialized motor for no classless adjustable speed


Specification


Model
WTRE-20 Rotary Evaporator
Operating Ambient Temperature
5~35C / 41~95F
Glass Material
GG-17 High Borosilicate
Power (V/Hz)
220V 60Hz Single Phase
Speed Regulation
Digital Step-less Regulation
Rotation Speed
10-130RPM
Set Temperature
0-99C / 0-210F
Temperature Control
Digital Temperature Control
Maximum Vacuum Pressure
< 3 torrs
Evaporating Flask Capacity
20L / 5.28 gallon
Receiving Flask Capacity
10L / 2.64-Gallon
Condenser Style
Main + Auxiliary Vertical Double Helix
Evaporation Capacity
Alcohol ≥ 8 L/H
Heater Max Current Draw (Amps)
25
Water Bath Material
304 Stainless Steel
Water Bath Size
17.7 x 9.8''
Lifting Function
Electric
Lifting Stroke
190mm / 7.5''
Total Power Consumption (kW)
4.8 kW
Dimensions
(L) 49'' x (W) 24'' x (H) 83''
Weight
155 lbs.
Vacuum Connection
0.55” Barb
Condenser Connection
0.70” Barb
