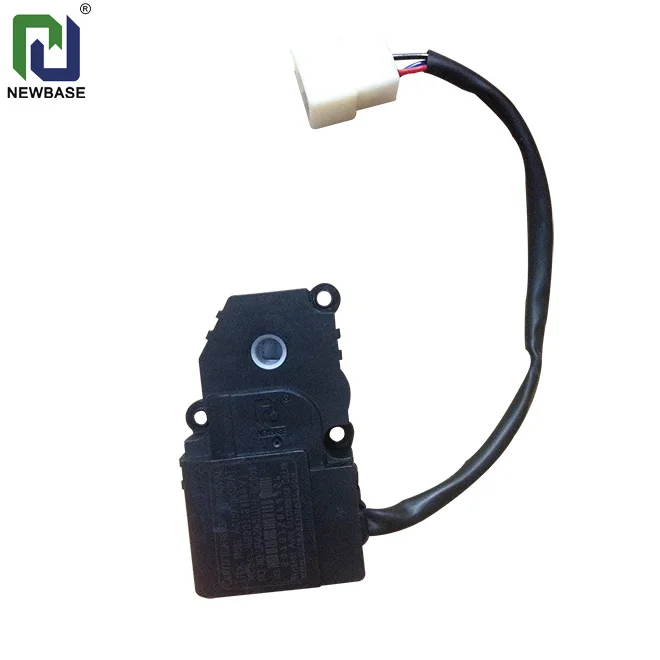

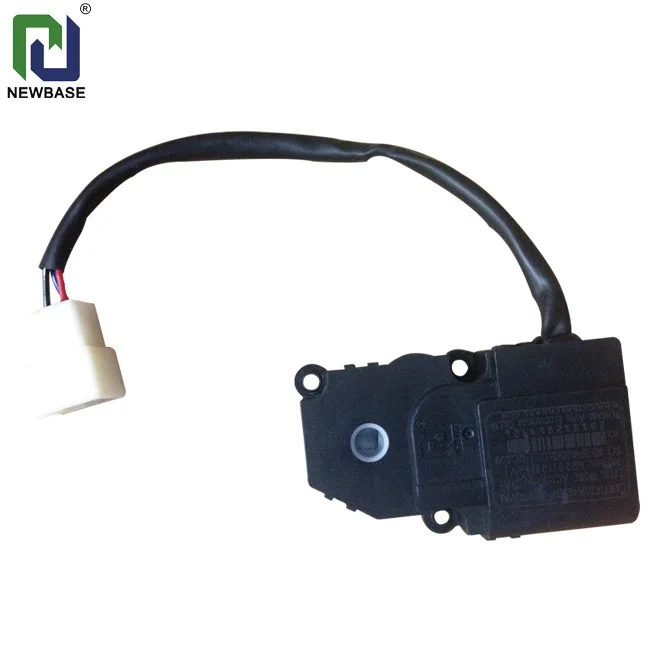

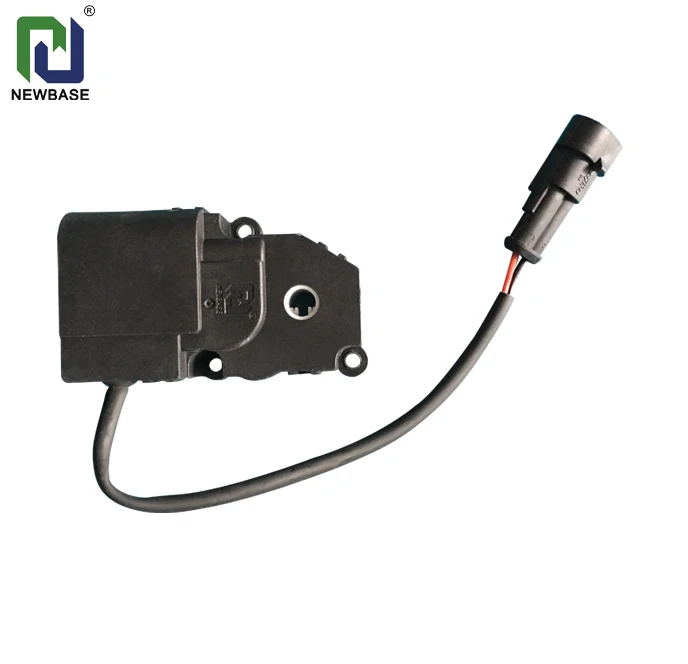

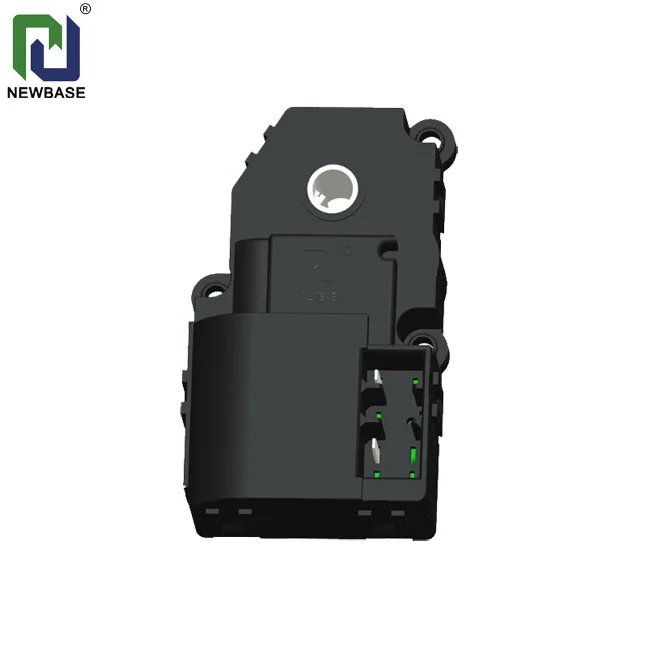

24V bus door actuator, ratary damper acutor for air conditioning system, hvac damper actuator
- Category: >>>
- Supplier: Zhengzhou Newbase Auto Electronics Co. Ltd.
Share on (1600090548314):
Product Overview
Description
Product Description
Application:
applies to control the ventilation door in the bus,car and special vehicle AC system .
Control the ventilation door to stop at any mode through the work of the pulse voltage.
Control the ventilation door to stop at any mode through the work of the pulse voltage.
WINIA MANDO,HYUNDAI bus,DAIHAN, SSMC,DENSO,BMW,VOLVO
Accessories:
1.Bracket:plentiful selects, or customization;
2.Lever:plentiful selects,or customization;
3.Connector:customization.
2.Lever:plentiful selects,or customization;
3.Connector:customization.
Technical Data | ||
Code | 15.QK.009 | |
Power supply | DC12V(DC8V-DC16V)/DV24V(DC20V-DC30V) | |
Power consumption | 3W | |
Current | Max.70mA | |
Electrical connection | Max.1m X 0.5mm² | |
Direction of rotation | CW/CCW | |
Angle of rotation | 360° PULSE CONTROL | |
Torque | 4kgf.cm | |
Running time | 3.5+0.5rpm | |
Locked torque | 12kgf.cm | |
Locked current | Max.250mA | |
Noise level | Max.42dB(A) | |
Ambient temperature | -30°c—80°c | |
Storage temperature | -40°c—85°c | |
Life | Max.500,000 cycle | |
Dimensions | 90X70X30(mm) | |
Weight | 85g | |
Quality certification | ISO9001 | |
