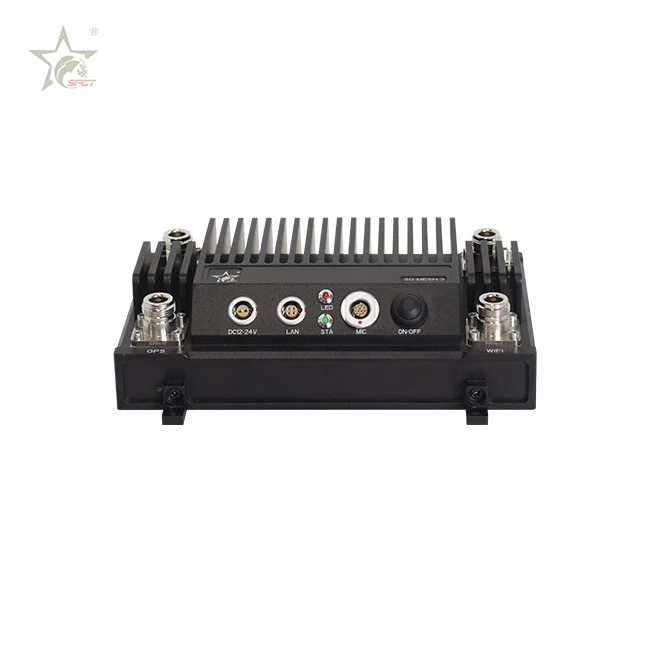

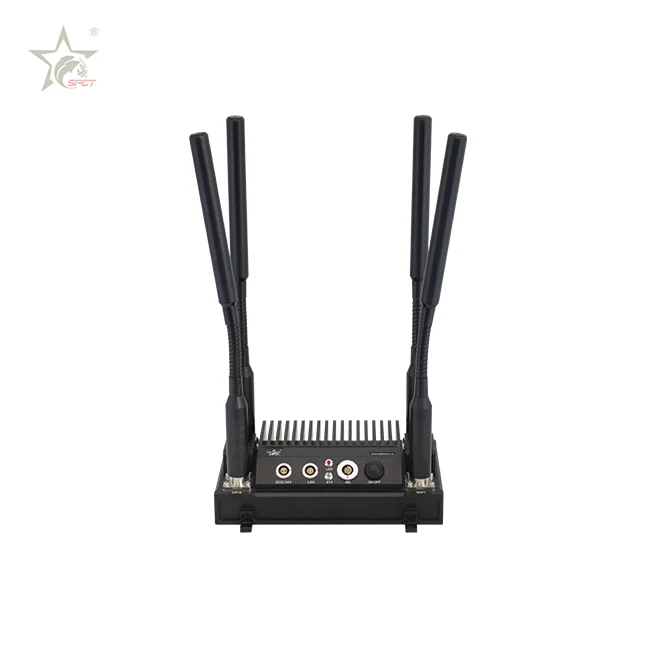

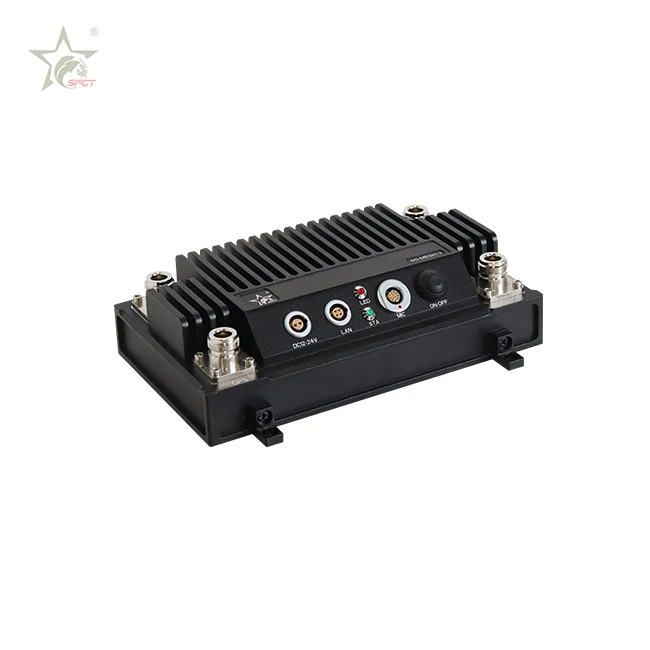

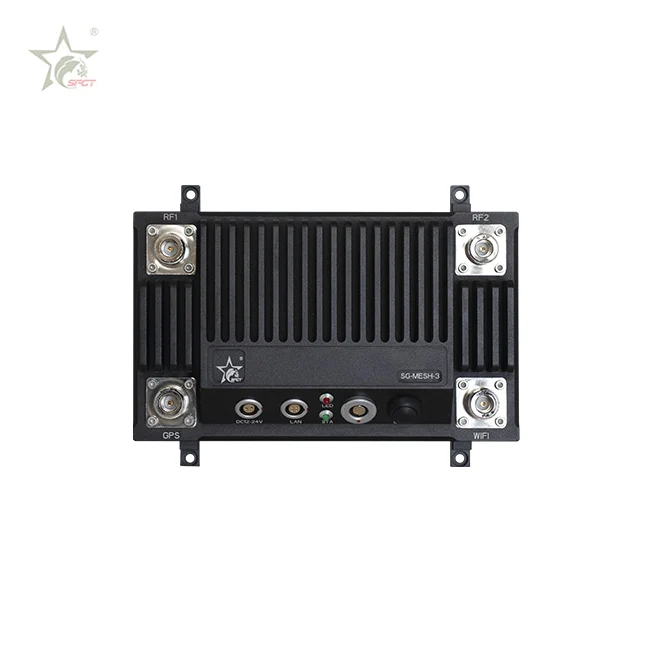

IP Mesh MANET node relay system

Product Overview

Description







Product Features:

1.Adopt our independently developed technologies COFDM waveform, efficient channel code and multi-hop ad hoc network protocol.
2. Do not rely on base stations. Able to form a centerless wireless broadband network efficiently and quickly.
3. Provide IP interface to realize interconnection and interworking with other IP devices.
4. Built-in a lithium battery to ensure that the device is powered for 4-5 hours.
5. Able to automatically select the best route. Self-organizing, Self-healing, and it can automatically implement network topology such as chain and star.





Product Specification:



RF Features
Frequency Range	225MHz~1.5GHz(Customizable)
RF Power	2W
Modulation	COFDM
Constellation modulation	BPSK/QPSK/16QAM/64QAM(Adaptive)
FEC	1/2,2/3,3/4,5/6(Optional)
Sensitivity	-93dBm@5MHz
Transmission Rate	Peak 11MBPS@10MHZ
Transmission Distance	8KM(100MW/LOS)
Networking Capacity	16 Nodes
Electric Features
Working Voltage	DC12V
Working Current	1A(Typical Value)
Power Consumption	≤15W@1W Tx Power
Data Features
Video Input Format	Support IP Video Input
Audio Input Format	MIC/PTT
Encryption	AES128 or User Defined
Built-in Module	Wi-Fi//GPS/Beidou
Physical Features
Protection Grade	IP66
Working Temperature	-20℃ ~ +55℃
Storage Temperature	-50℃ ~ +70℃
Size	196*116*52mm
Weight	1.8kg
