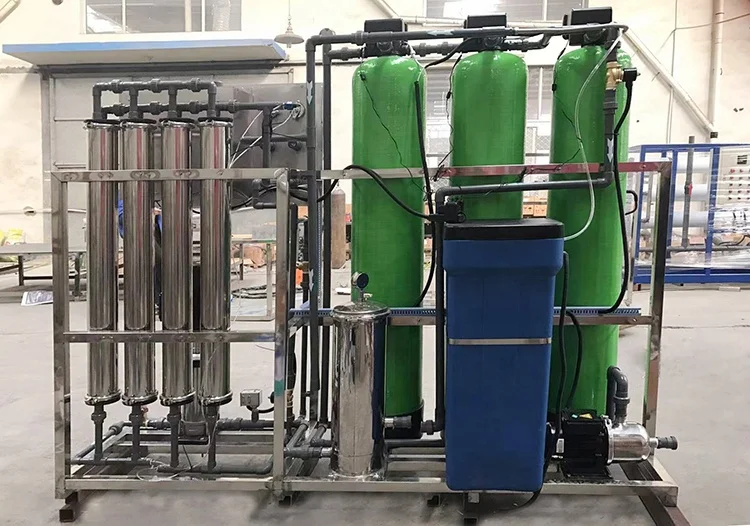

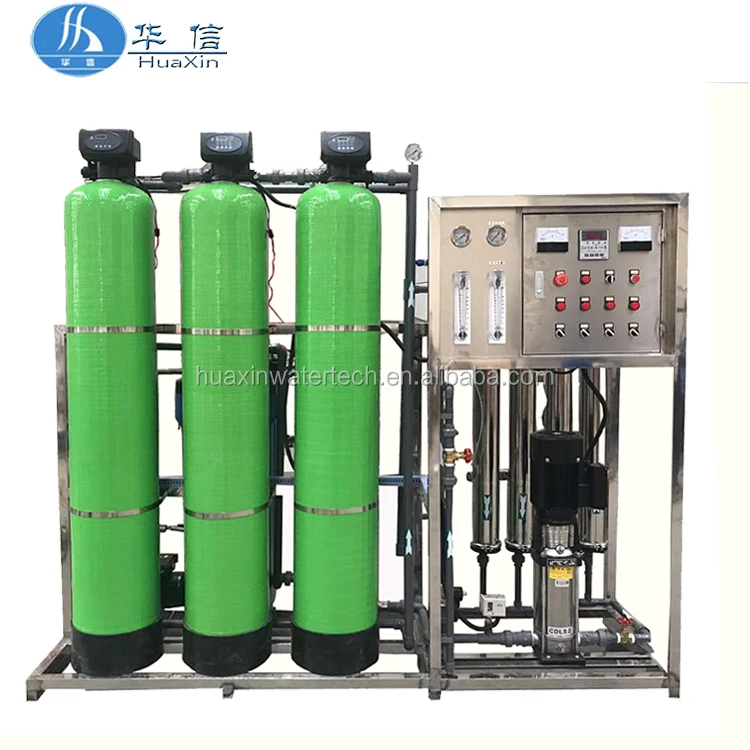

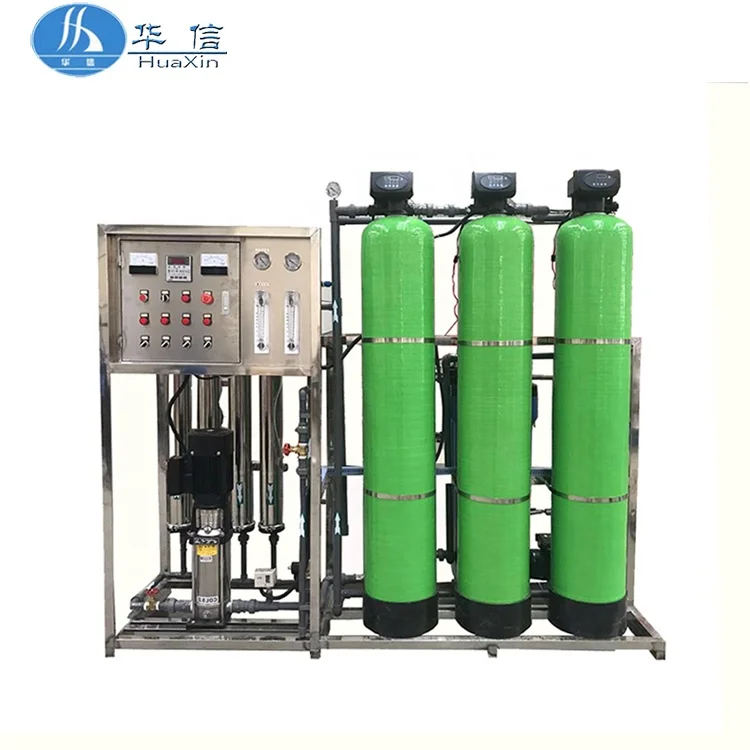

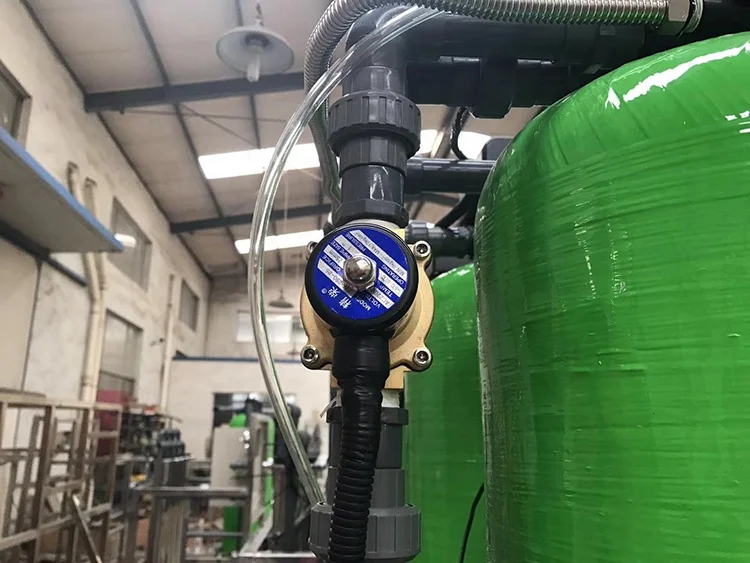

Trending hot products 2019 salt water treatment machine system
- Category: >>>
- Supplier: Qingzhou City Huaxin Water Treatment Equipment Co. Ltd.
Share on (1600090961948):
Product Overview
Description
Product Description
Key part: reverse osmosis
RO system is the key to the whole system .RO membrane filtration precision is 0.0001micron, desalination rate is 98-99%, all the salts and germs are removed. Output water conductivity can be 10μS/cm. It also need to clean after running a while. We design a Cleaning In Place system for RO unit, clients donot need to remove all membranes to clean.we just use international brand,efficient economy.such as DOW ,Hyde ,GE etc.Stable service life of up to 3 years.
How Do I Know What Size Unit to Buy?
R/O units are rated according to the amount of treated water produced per day. For example, one type of unit produces 5000 liters of treated water per day under its design conditions.You should examine water conditions and buy a larger rated unit than needed.
|
S/N |
Items |
Function |
Remark |
|
1 |
Raw water tank |
Store water, buffering pressure, overcome instability of supplying water by pipe |
Customer provide for themselves |
|
2 |

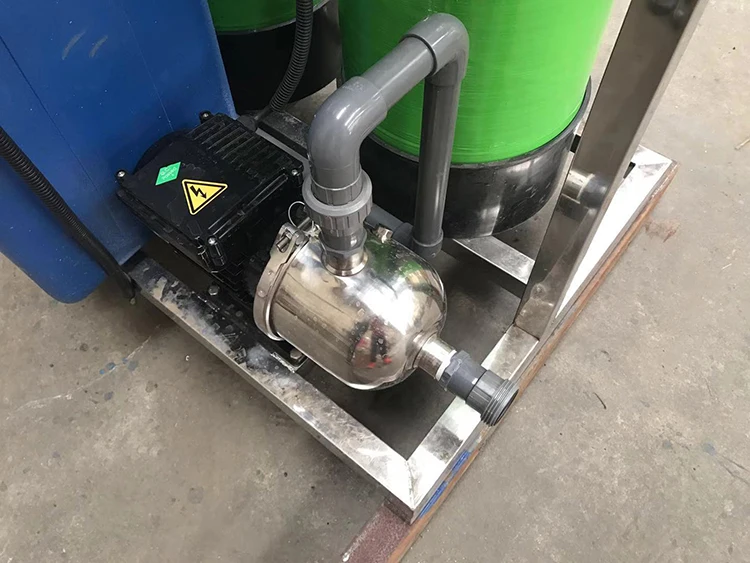

Raw water pump /booster pump |
Provide needed pressure for every pretreatment filter |
CNP pumps or Grundfos pumps |
|
3 |

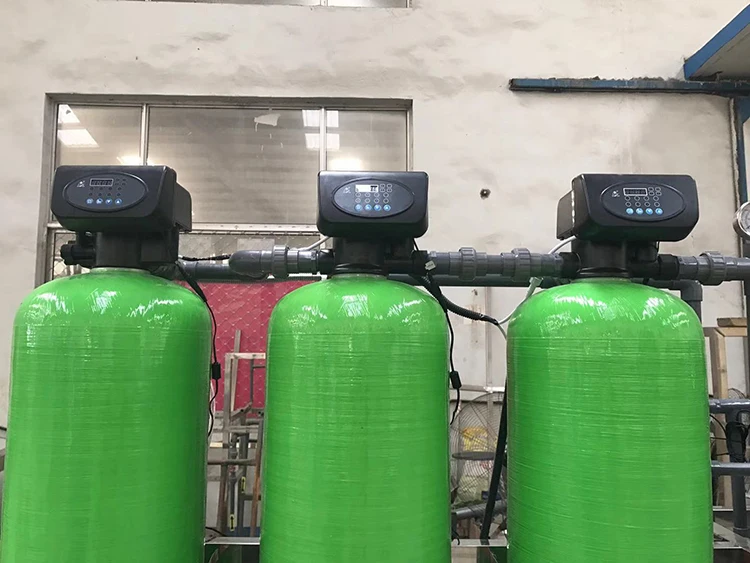

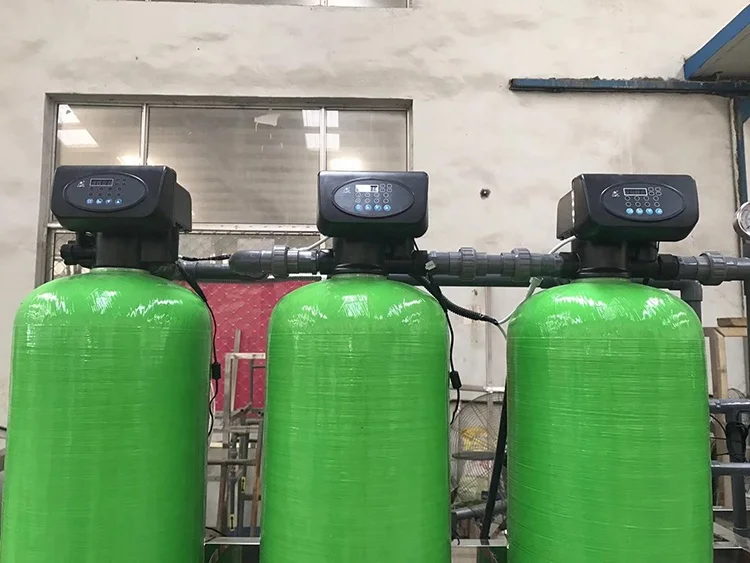

Mechanical filter /quartz sand filter / sand filter |
get rid of turbidity, suspended mater, organic matter, colloid ect. |
fiber glass /stainless steel vessel |
|
4 |
Activated carbon filter |
remove color, free chloride, organic matter, harmful matter and so on. |
fiber glass /stainless steel vessel |
|
5 |
Water softener/ demineralizer / Na+ exchanger |
reduce hardness of raw water |
automatic regeneration |
|
6 |
Security filter/ pp filter/ PP sediment filter |
prevent large particles, bacteria, viruses into RO membrane |
|
|
7 |
High pressure pump |
provide high pressure to RO membrane(at least 2.0Mpa) |
CNP pumps or Grundfos pumps |
|
8 |
RO(reverse osmosis) system |
remove particles, colloids, organic impurities, heavy metal ions, bacteria, virus, heat source etc. harmful substances and 99% dissolved salts. |
USA Filmtec Dow |
|
9 |
UV sterilizer |
kill bacteria in pure water |
9000 hours |
Application:
1). Electronic industry: Pre-filter for ultra pure water, chemical products and pure water
2). Food and beverage industry: filter for mineral water, wines and fruit juice
3). Medicine industry: filter for drug liquid, gases
4). Chemical industry: filter for organic solvent
5). Petroleum industry: filter for oil-field flooding
6). Power system
7). Metallurgical industry
8). Medical and pharmaceutical industry
9). Brackish water desalination etc
