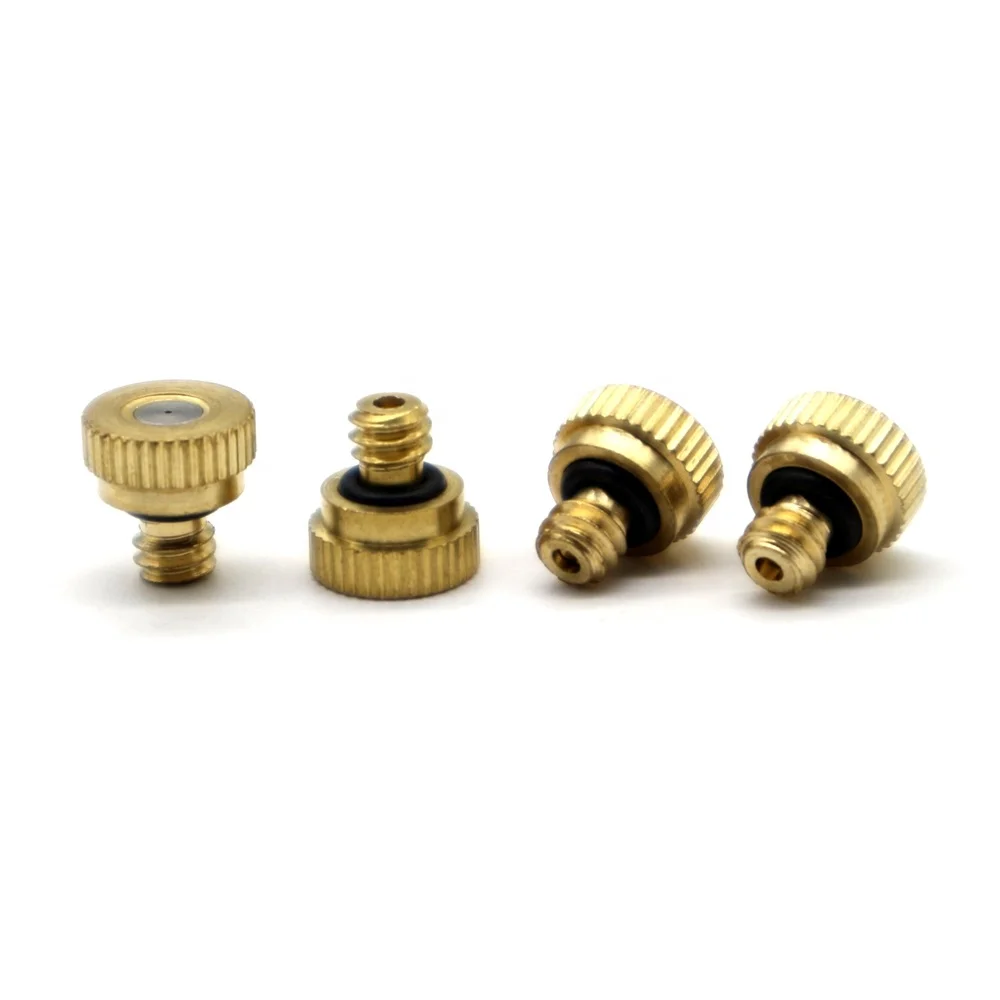

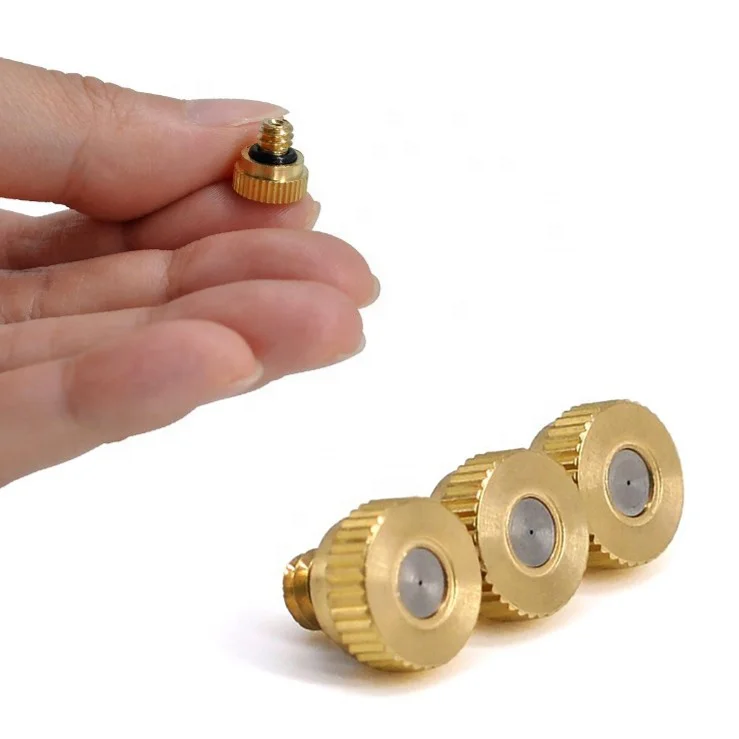

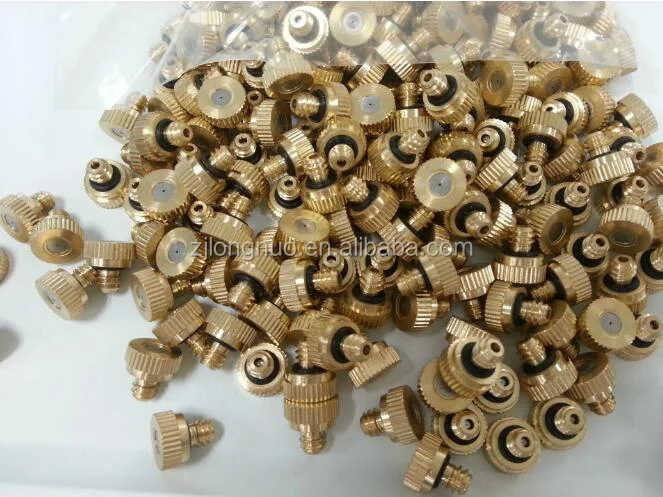

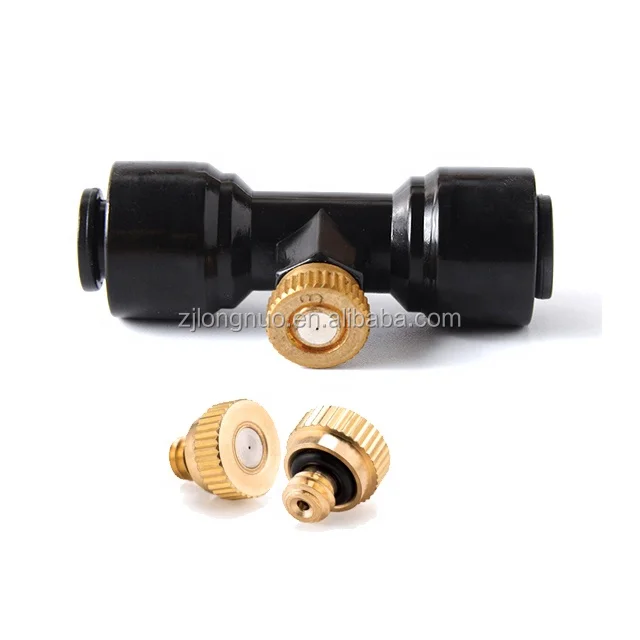

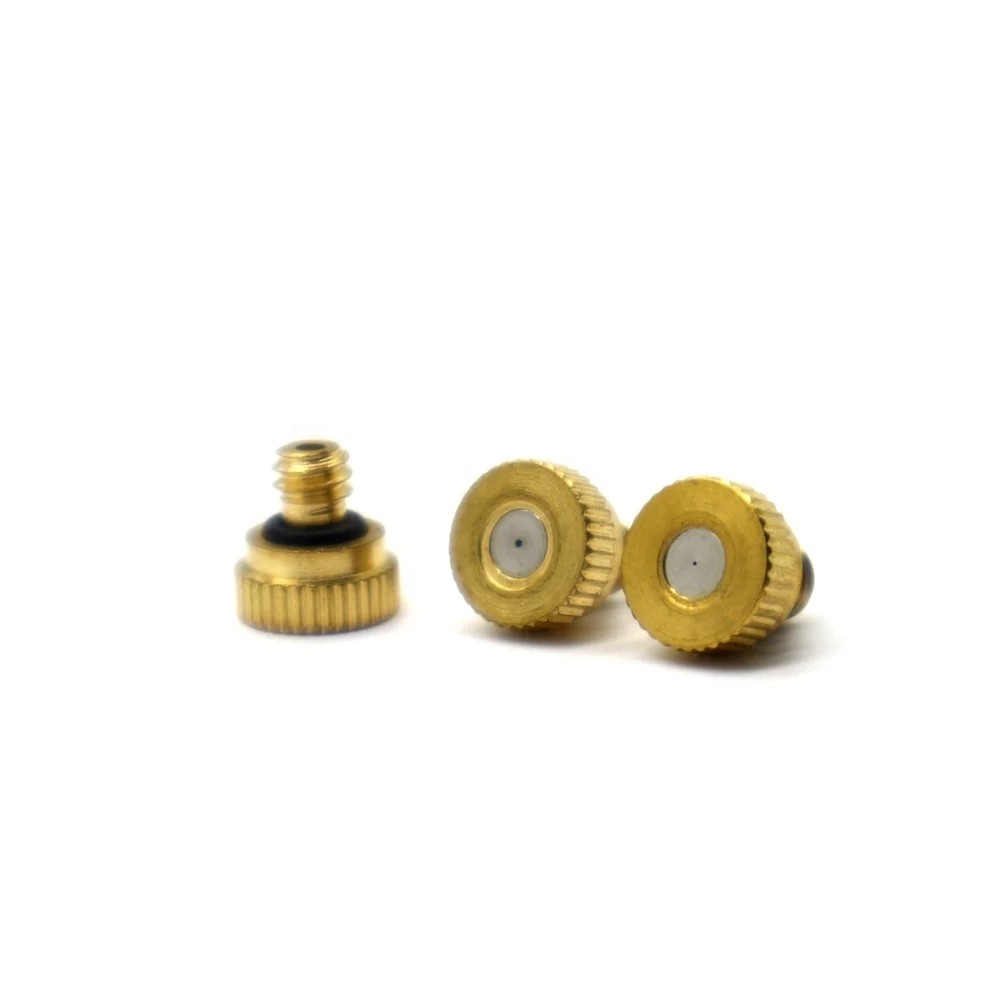

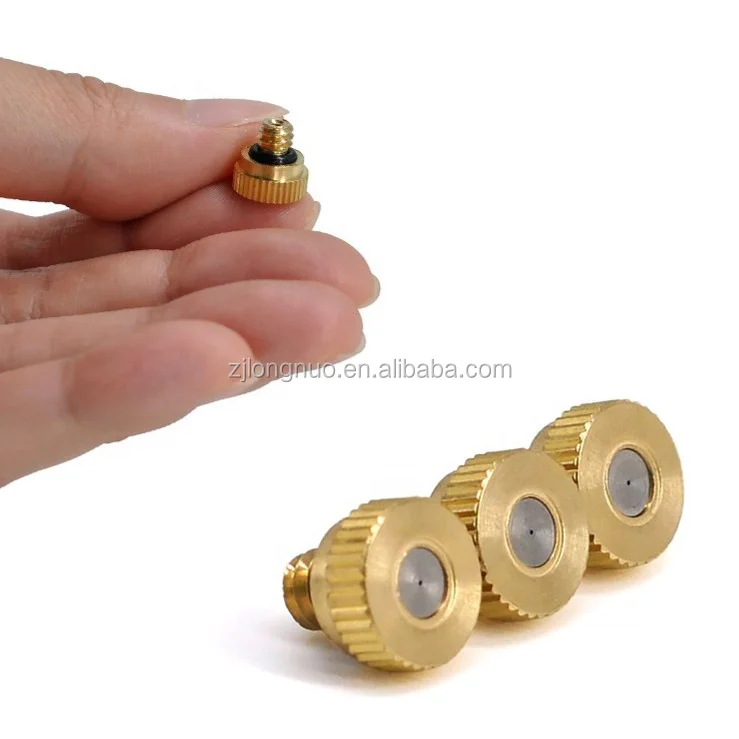

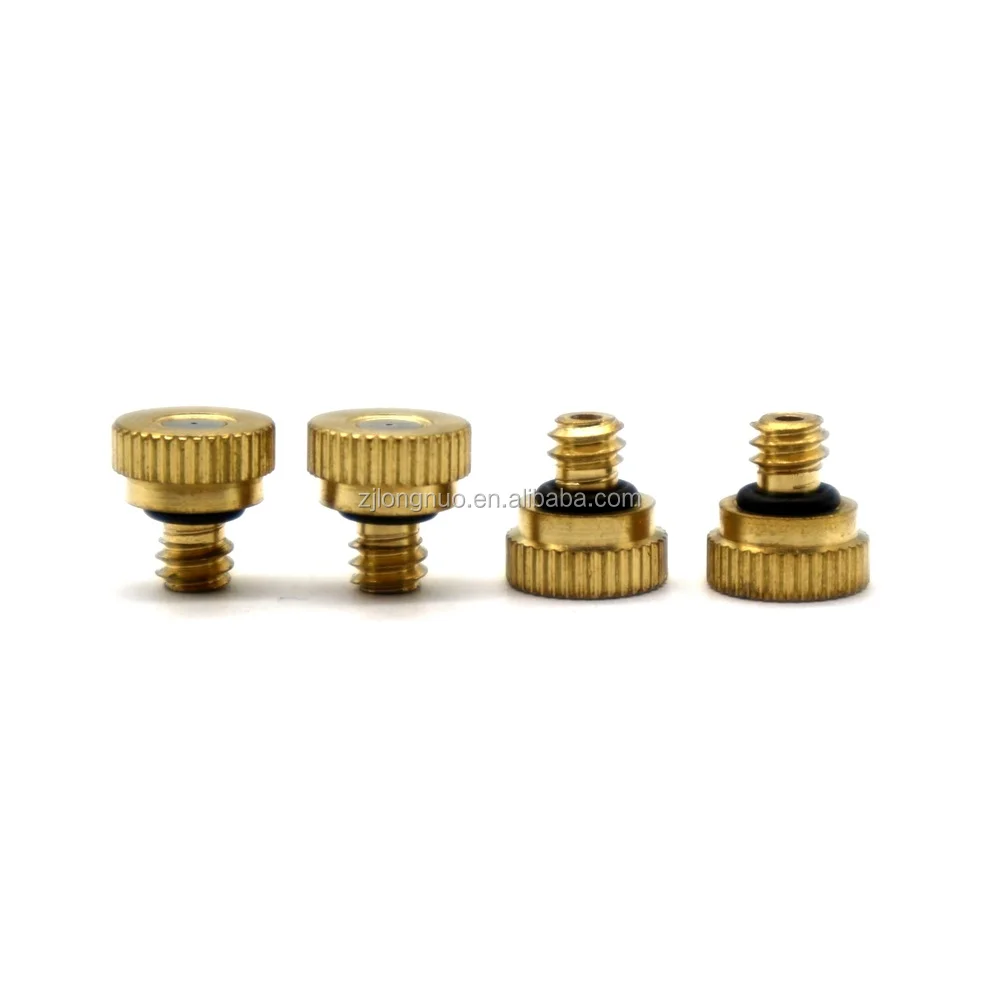

1. Mist spray nozzle
Spray painting, desulfurization and denitrification, cooling humidification, odor removal, garden irrigation, farm spray, cleaning and disinfection

2. Components
SS orifice, low pressure spring, without anti-drip

3. Thread Size
10-24UNC(3/16 Inch Size)

4.Orifice Diameter
0.1mm-0.5mm

5. Material

Copper(brass) and stainless steel material are all available

6. Working Pressure

**Low pressure atomizing nozzle, working pressure 2-3kgf/cm2 (tap water supply pressure).

   > 0.1mm humidifying atomizing nozzle aperture, Operating pressure 10~70kg/cm, Spray volume 10~25cc/min.
   > 0.15mm humidifying atomizing nozzle aperture, Operating pressure 10~70kg/cm, Spray volume 0.05cc/min.
   > 0.20mm humidifying atomizing nozzle aperture, Operating pressure 10~70kg/cm, Spray volume 0.075cc/min.
   > 0.30mm humidification atomizing nozzle aperture, Operating pressure 10 ~ 70kg/cm, Spray volume 0.105cc/min.
   > 0.40mm humidification atomizing nozzle aperture, Operating pressure 10~70kg/cm, Spray volume 0.15cc/min.
   > 0.5mm humidification atomizing nozzle aperture, Operating pressure 10 ~ 70kg/cm, Spray volume 0.20cc/min.

7. Features

Low pressure atomizing nozzle with fine laser drilling technology,used for Low pressure spray system.

Product's applications:

1. Cooling - outdoor restaurants,entertainment venues, stadiums, arenas, airports, bus stations, large gatherings, cooling animal farm pig, horse and sheep.


2. dust removal - clear the air of dust particles, mainly used to control pollution of farm and Mine.


3. Agriculture - for the family farm, cultivated field mushrooms, circus arena, aviary kennel and feeding farm, make the environment suitable for the growth of all kinds of poultry.


4. Industrial - metal shop, machine shop, textile workshop, garment workshop, dyeing footwear, plastic injection molding, die casting heat treatment, glass, spray plating, electronic chemicals, metallurgy, leather, toy manufacturing, electronics manufacturing, for cooling dust removal.


5. Special Use spaces - gardens, zoos, shopping centers, exhibitions, flowers farming, animal husbandry, and so on, humidification cooling, it can also be used to irrigate plants.

FAQ

1: Are you factory?

Yes. We are a professional  producer and we have our own factory in Zhejiang.

2 :What's your MOQ?

Our MOQ is 1carton. Mixing order is acceptable.

3: Can you send sample before order?

 Yes, we can send free sample but the freight fee should be paid by your side.

4: What about the packing?

The packing  can do as request.

5: What's your delivery time?

a) For small or stock orders, we can deliver the goods within a week after received the payment.

b) For large order, 30 days around to deliver after advanced payment.
