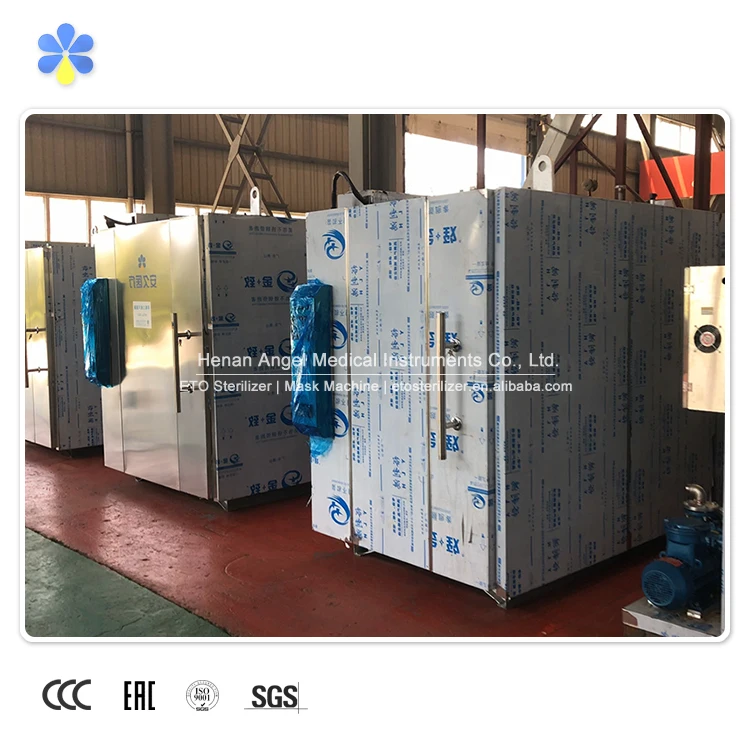

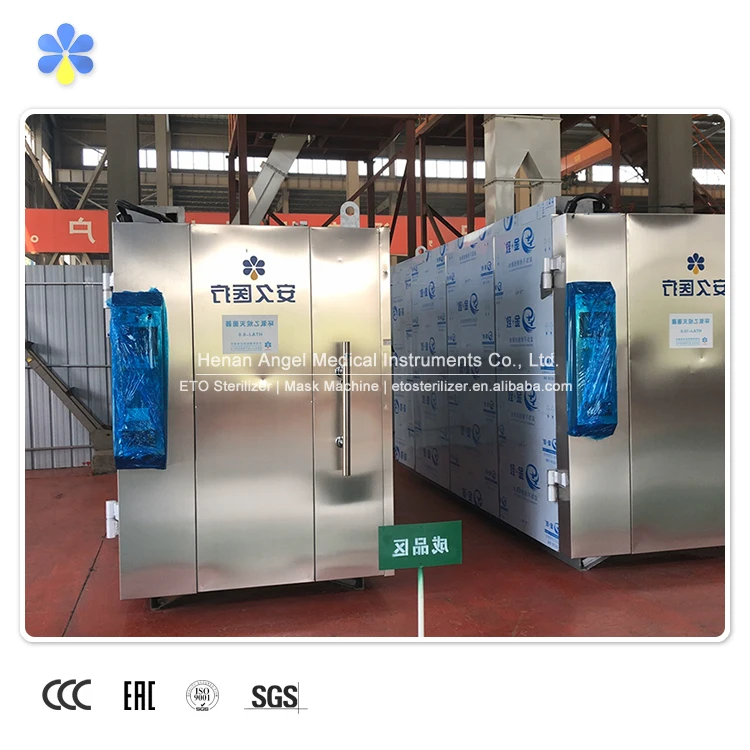

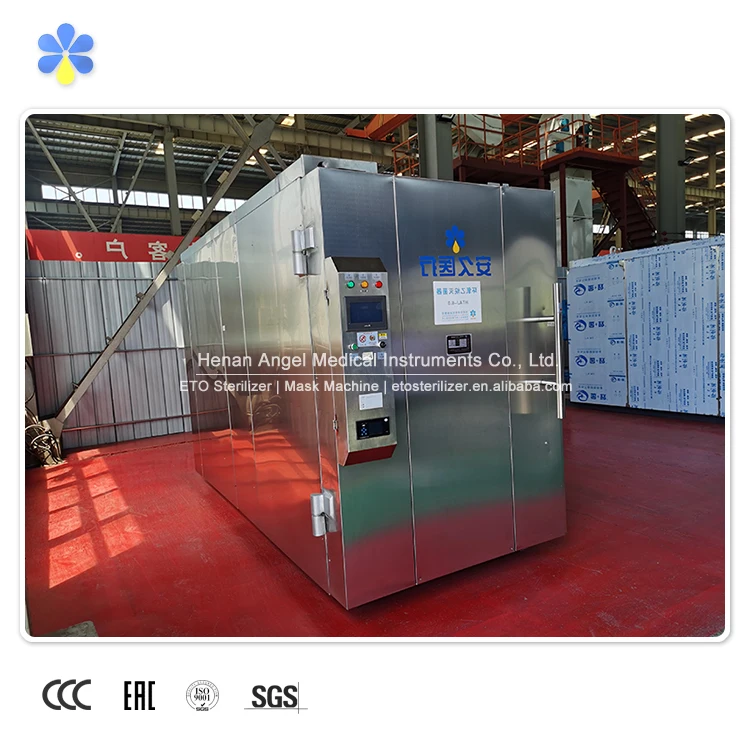

Structural composition of ethylene oxide sterilizer:
It consists of sterilization cabinet, heating system, vacuum system, dosing and gasification device, residual gas treatment system, monitoring and control system.
The sterilization box is mainly composed of the inner tank, the outer shell, and the pipeline; the heating system is mainly composed of the heating belt and the temperature controller; the vacuum system is mainly composed of the vacuum pump, the control valve, the filter, and the evacuation pipeline; the dosing and gasification device mainly consists of manual ball valve, temperature detection, gasification heating system and gasification chamber; the residual gas treatment system consists of residual gas treatment water tank and valve; the detection system consists of temperature sensor, humidity sensor and pressure sensor; the control system consists of microcomputer controller, industrial control touch screen, buttons and other control electrical components.
Working condition
a) Ambient temperature: 10 ~ 40 ~ C; b) Relative humidity: not more than 85%;
c) Sterilization pressure: 0kPa ~ 50kPao d) Power supply: AC380V + 38V; 50Hz ± 1Hz

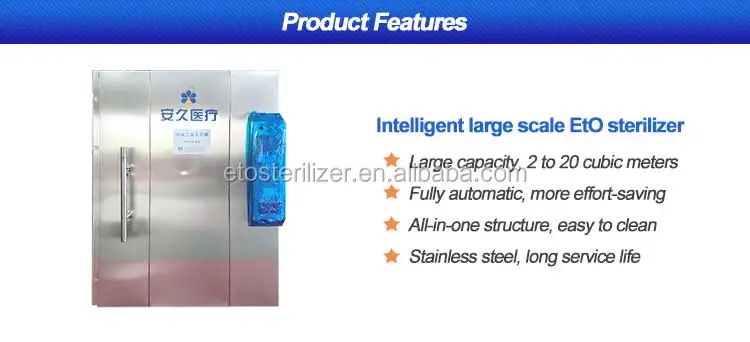

(5) Inspection report (6) Comprehensive manual (7) Operation process 1 copy (8) Installation report (9) Certificate of conformity (10) Warranty card (11) 1 copy of qualification Angel's ethylene oxide sterilizer is an intelligent all-in-one machine with intelligent one-button operation, which is mainly divided into three stages
1.Pre-treatment stage (to reach the optimal environment before sterilization)
2.Sterilization stage (time can be adjusted freely)
3.Compulsory elimination of ethylene oxide gas residual stage (freely adjustable times)

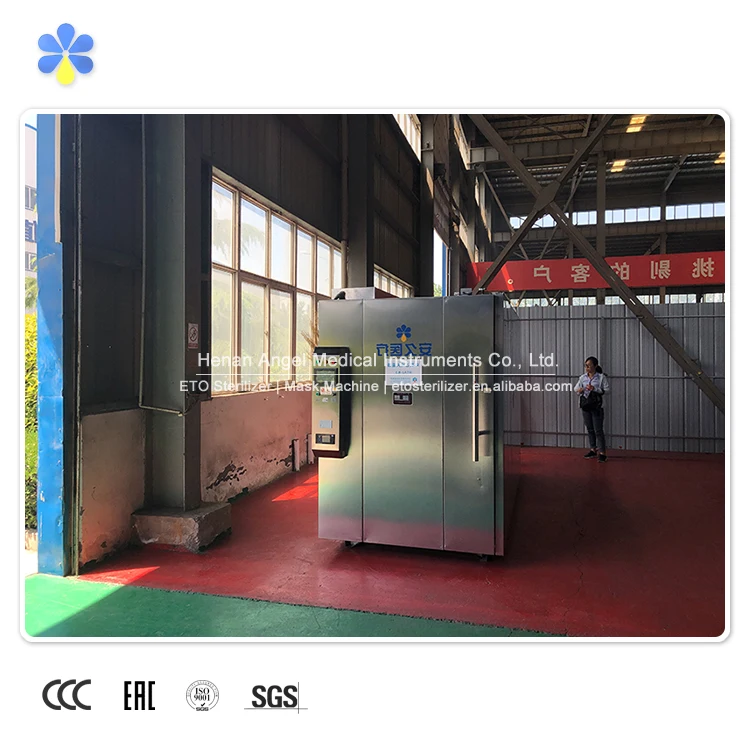

The device takes up little space and is easy to install:
Each device only needs to provide an independent space larger than twice the size of the device, installation only needs to be connected to water, drainage, power supply and air compressor to operate.
Consumables for ethylene oxide sterilizer: Special consumables for ethylene oxide sterilizer: ethylene oxide indication wild card, ethylene oxide gas, ethylene oxide packaging bag, ethylene oxide biological indicator, biological incubator, etc.
Ethylene oxide chemical indicator card: This product is a comprehensive indicator card for detecting the sterilization effect and operating conditions of ethylene oxide. When the card reaches the sterilization conditions, the card will change from red to blue, which means that the sterilization is successful.
Ethylene oxide gas: Ethylene oxide is the key equipment raw material for disposable medical device manufacturers. Avoid high temperatures, high pressures, and violent collisions. Keep away from items 30-50 meters away.
Ethylene oxide biological indicator: This product is used as a biological indicator for ethylene oxide sterilization. The survival time of Bacillus subtilis black variant spore resistance is greater than or equal to 15 minutes, and the killing time is less than or equal to 60 minutes.
Device sterilization packaging bag: Put the medical device into the packaging bag, seal it for sterilization and disinfection, use the packaging bag to pass through the sterilization factor, and not to pass through the semi-dialysis property of bacteria, to sterilize the device in the bag
Angel's ethylene oxide sterilizer is an intelligent all-in-one machine with intelligent one-button operation, which is mainly divided into three stages
