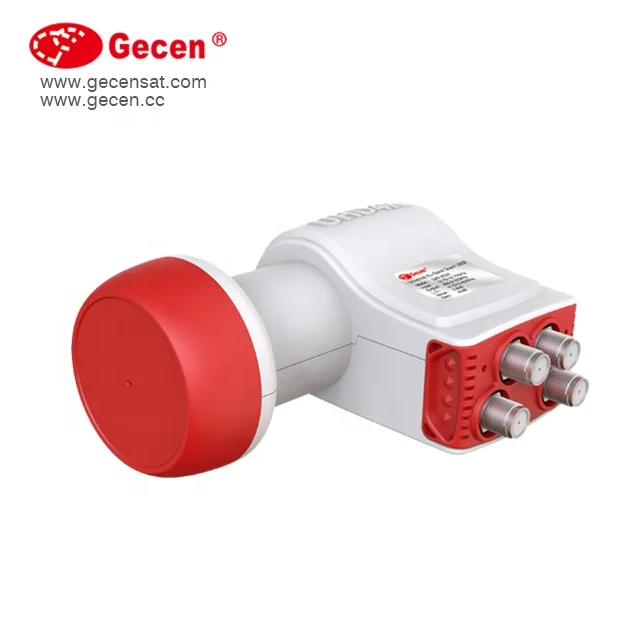

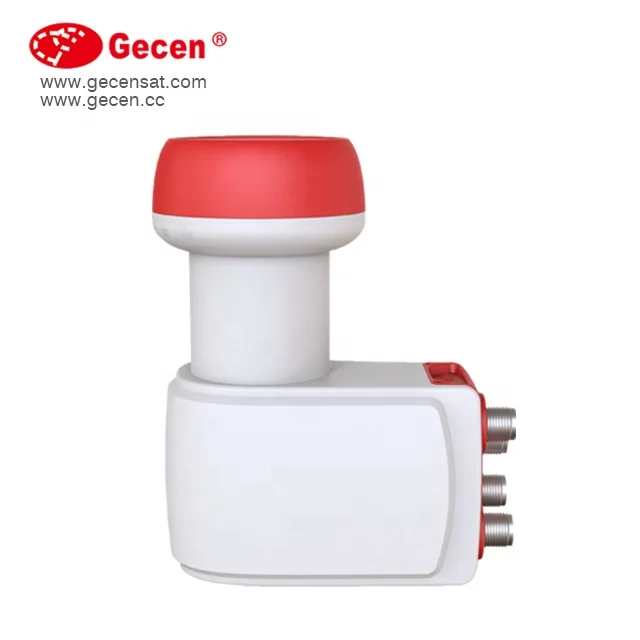

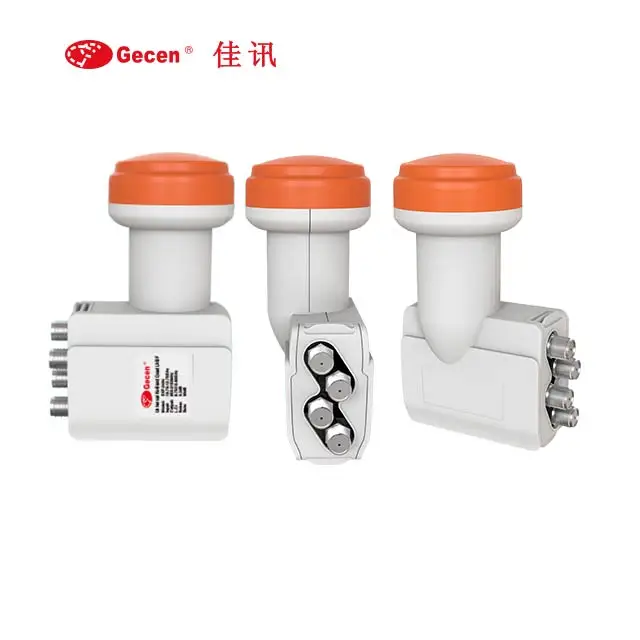

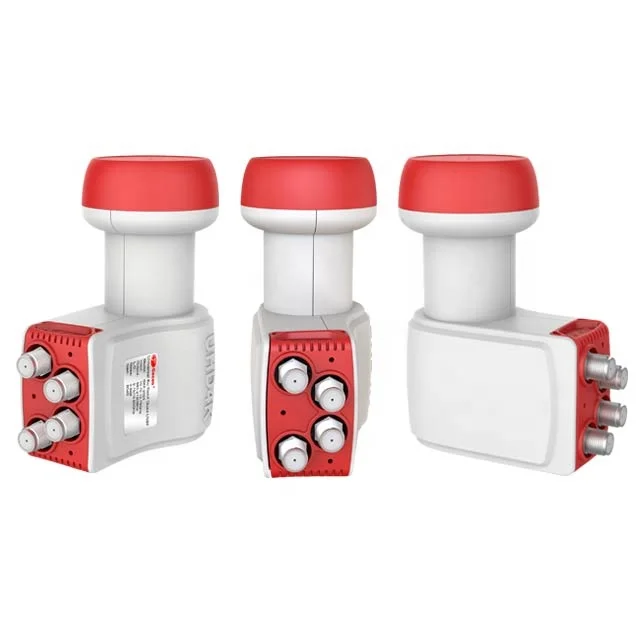

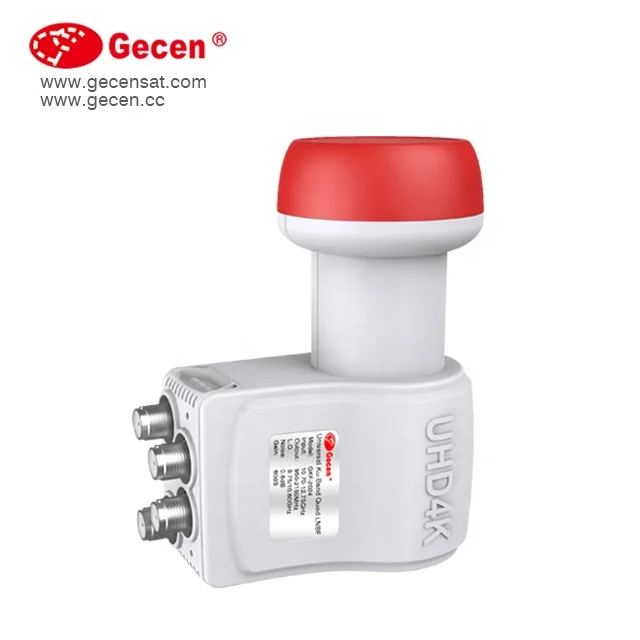

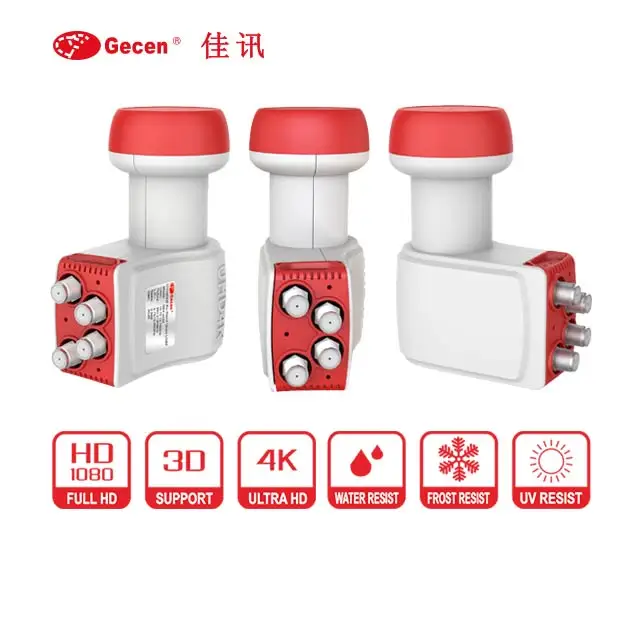

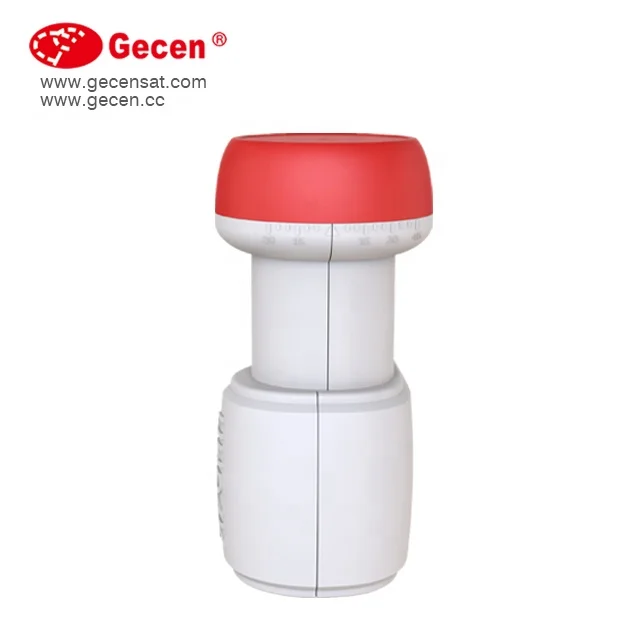

Gecen LNB Satellite TV 1080P Ku Band universal ku band quad lnb GKF 2024
- Category: >>>
- Supplier: Zhuhai Gecen Electronic Co. Ltd.
Share on (1600091038410):
Product Overview
Description
Product Description

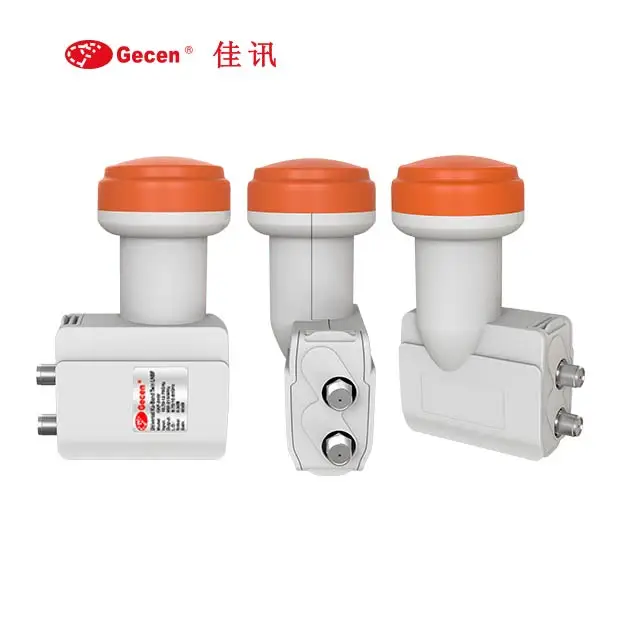

Product Name： Universal Ku-Band Twin LNBF
Model：GKF-2024
Features： Low noise figure
Digital ready
Low power consumption
Easy installation
High quality weather protection
Model：GKF-2024
Features： Low noise figure
Digital ready
Low power consumption
Easy installation
High quality weather protection
Item | Specification | Item | Specification |
Input Frequency Range | Low Band:10.70~11.70GHz | Gain Flatness | ±0.5dB/26MHz |
High Band:11.70~12.75GHz | Cross POL. Isolation | 25dB(Typ.) | |
Output Frequency Range | Low Band:950~1950MHz | Image Rejection | 40dB(Min.) |
High Band:1100~2150MHz | Output VSWR | 2.0:1(Max.) | |
L.O. Frequency | Low Band:9.75GHz | P1dB | 0dBm (Min.) |
High Band:10.60GHz | DC Current Consumption | 80mA(Typ.) | |
L.O. Frequency Stability | ±1.0MHz (Max.)@+25℃ | Low/High Band Switching | Low Band:0Hz |
±2.0 MHz (Max.)@-30℃~+70℃ | High Band:22KHz±4KHz | ||
L.O. Phase Noise | -60dBc/Hz@1KHz | POL. Switching Voltage | 10.5~14.0V @Vertical |
-80dBc/Hz@10KHz | 16.0~20.0V @Horizontal | ||
-100dBc/Hz@100KHz | Relative Humidity | 0%~95% | |
Conversion Gain | 60dB(Typ.) | Operating Temperature | -30℃~+70℃ |
Noise Figure | 0.1dB(Typ.) | Connector Type | 75Ω Female Connector |
FAQ
Q1:How to get a sample? | A1: Sample order is acceptable. Please contact us and make sure what sample do you need. |
Q2: The sample delivery cost can be waived? | A2: When meet our moq requirement, we will return the sample fee and delivery cost. |
Q3: How about the OEM/ODM service? | A3: All kinds of OEM/ODM service are available. |
Q4: How about the payment clause? | A4: Normally, We accept 30%T/T in advance, balance before shippment. But, anything can be discussed. |
Q5: How about warranty and procedure? | A5: Warranty time is 12 months |
Q6: What is warranty procedure | 1) If the cargo has any problem, please contact us on time, we will help you to result in the problem. |
2) If the problems still cannot be solved after checking within warranty time, the user can return the defective unit, we will repair and send it back to you. | |
Attention: Customers need to be responsible for the shipping costs. |
New product recommend

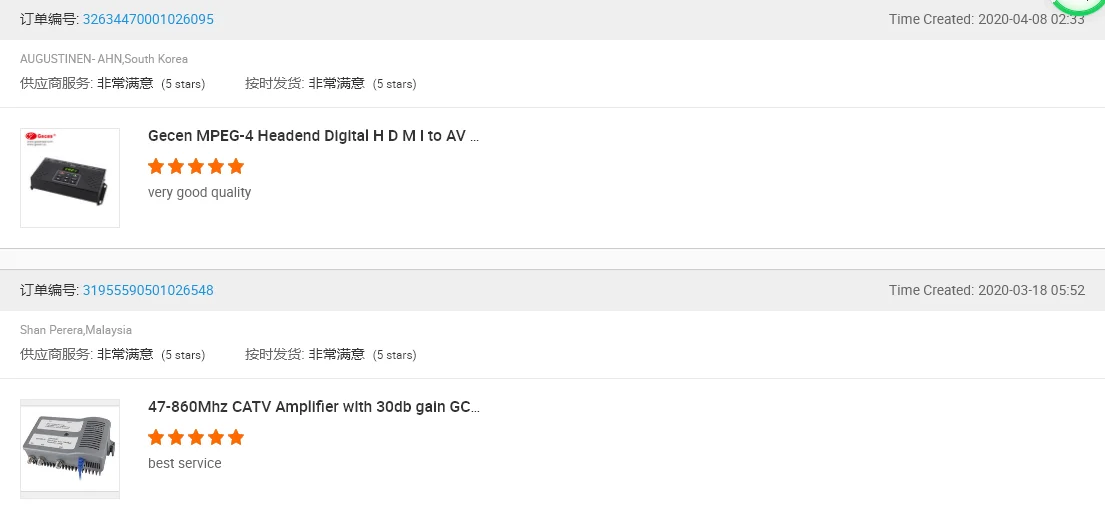

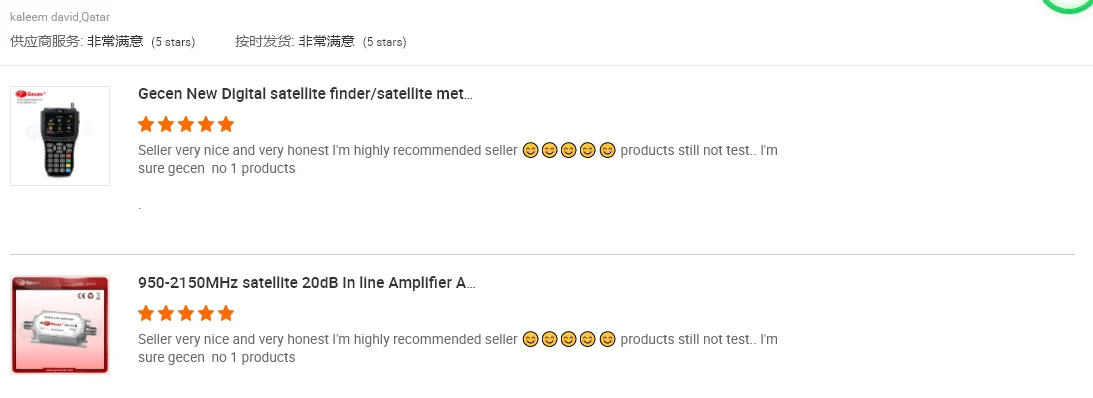

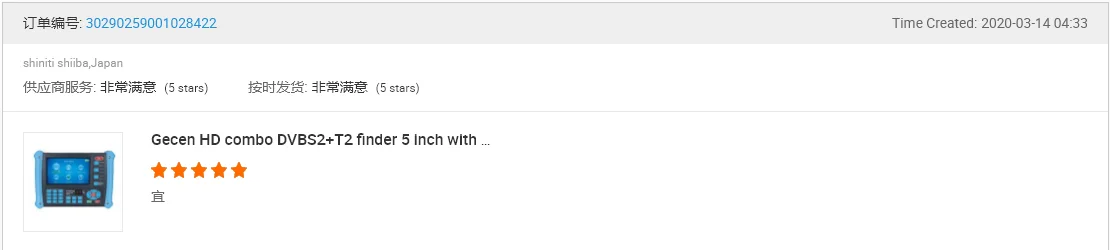

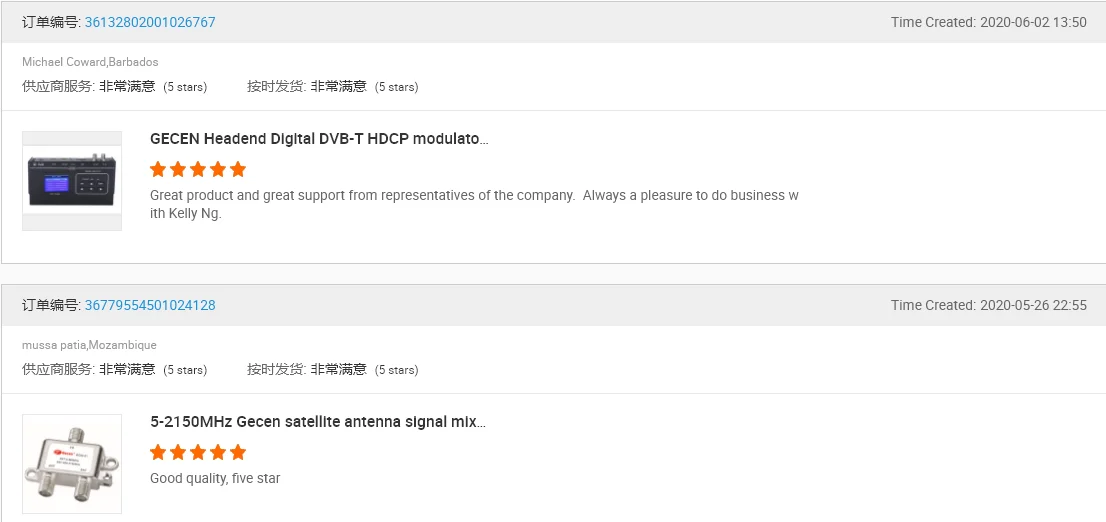

Customer Feedback
Company Introduction
Hello friend, welcome to visit gecen factory.
It is the most important that our products are very popular with our users at home and abroad for their refined craft and high quality.We had these achievements thanks to our customers' trust and support. We wish that our customers to co-operate and grow together with us.

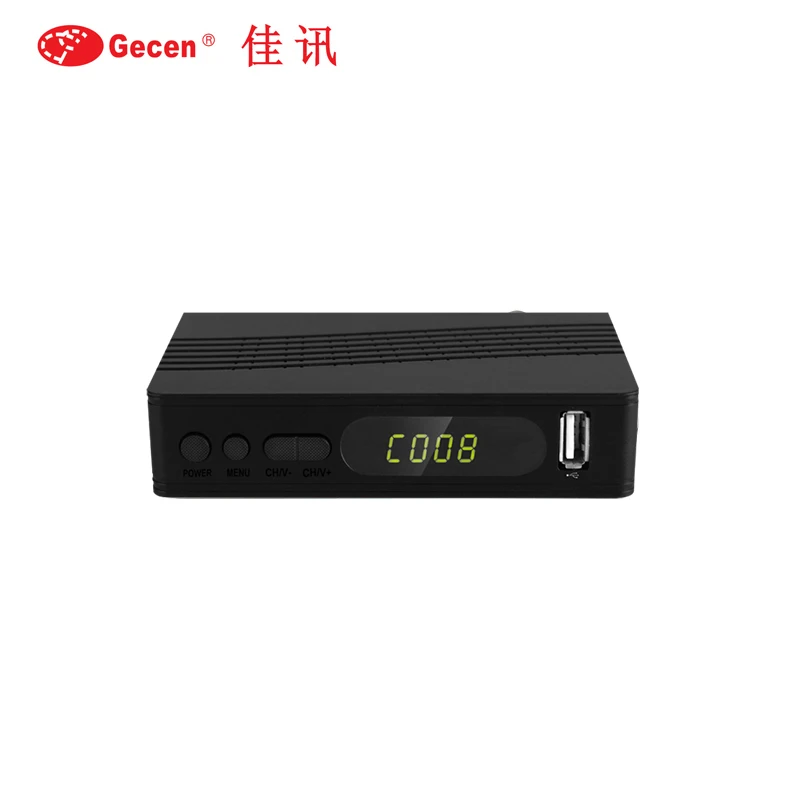

Our main products are set top box, satellite tv receiver, LNBF, Satellite finder, Multi-switch and CATV products.
