K200262 / K238866 type diaphragm membrane for 1inch dust collector pulse jet valves
K200262 / K238866 type diaphragm membrane for 1inch dust collector pulse jet valves
K200262 / K238866 type diaphragm membrane for 1inch dust collector pulse jet valves

K200262 / K238866 type diaphragm membrane for 1inch dust collector pulse jet valves

Share on (1600091345100):


Price:$1.80-3.00

Quantity:


Product Overview

Description



Products Description


Diaphragm kits --The main raw material TPE & FKM imported from Japan

K200262 / K238866 type diaphragm membrane repair kits for 1inch dust collector pulse jet valves

Material: TPE or FKM
TPE is for -10~80°C working temperature.
FKM is for -10~200°C high working temperature.

Advantage:
For all diaphragm, the main raw material TPE & FKM import from Japan, the glue import from USA. & Using fabric-reinforced in rubber diaphragms , & CNC machining all metal parts & metal plate is stainless steel material. & will do 100% test for each part before shipment.

We produced series rubber diaphragm membrane kits for SCG353 series pulse jet valve.

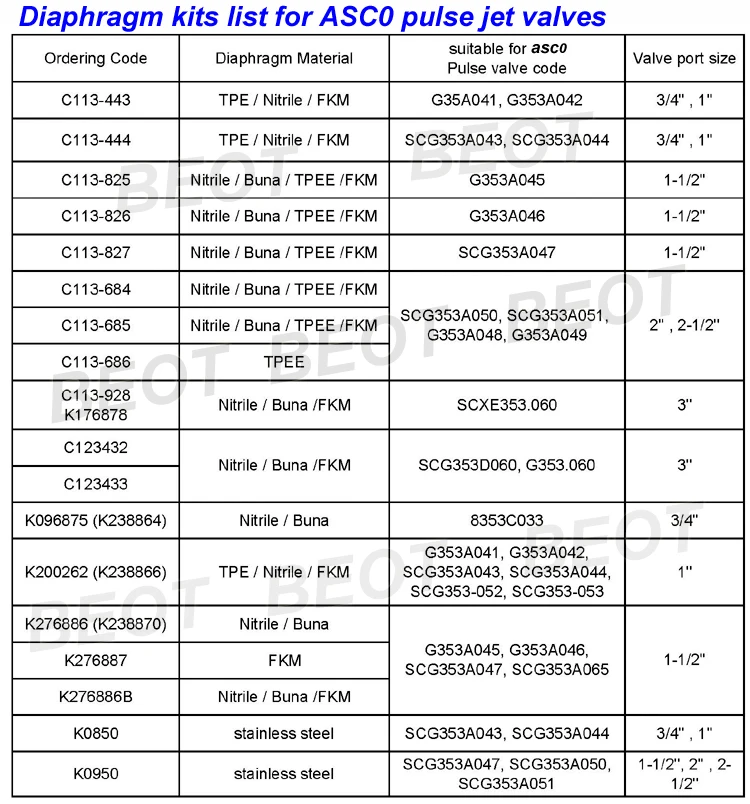

Diaphragm Ordering Code: C113443, C113444, C113825, C113826, C113827, C113684, C113685, C113686, C113928, C113968, K096875, K200262, K276886, K276887, K276886B, K0850, K0950



Technical Data
Working pressure
0.2~0.8Mpa
Relatively humidity
<85%
Working medium
Clear Air
Ambient Temperature
for -5~50°C
Diaphragm material
TPE or NBR(Nitrile) or FKM
( TPE for -10~80°C;  NBR for -10~80°C; FKM for -10~200°C)
Diaphragm life cycles
can work more than 1 million times

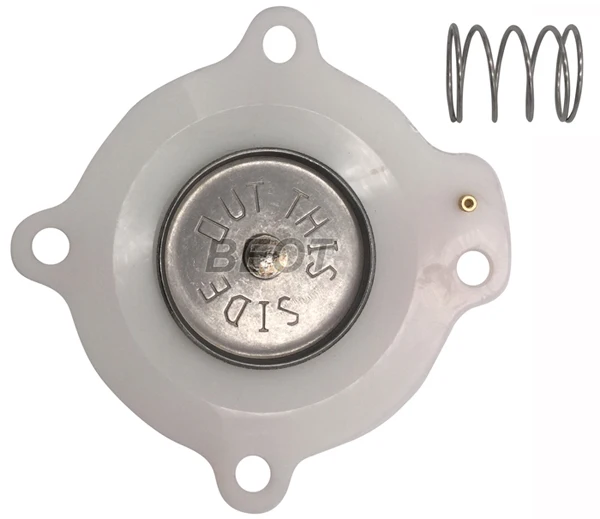

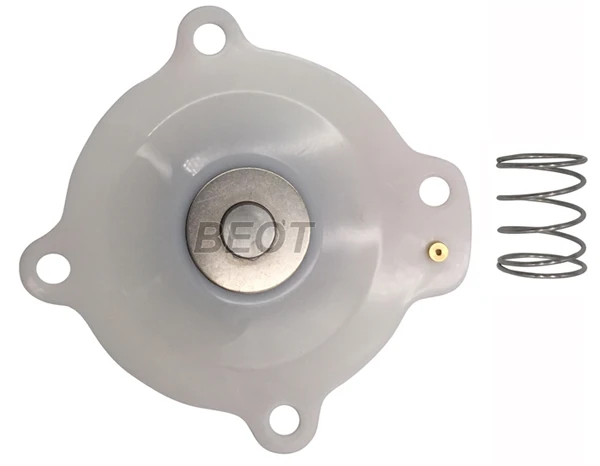

K200262 / K238866 type diaphragm photo -
the main raw material TPE import from Japan, the glue import from USA
