Brand New Label Weaving Machine label loom in weaving machines

Share on:

Price:$49,000.00 - $65,000.00
Price in USD:Details


Product Overview


Products Description

Refurbished label loom
place of production
 made in china
one year
high quality

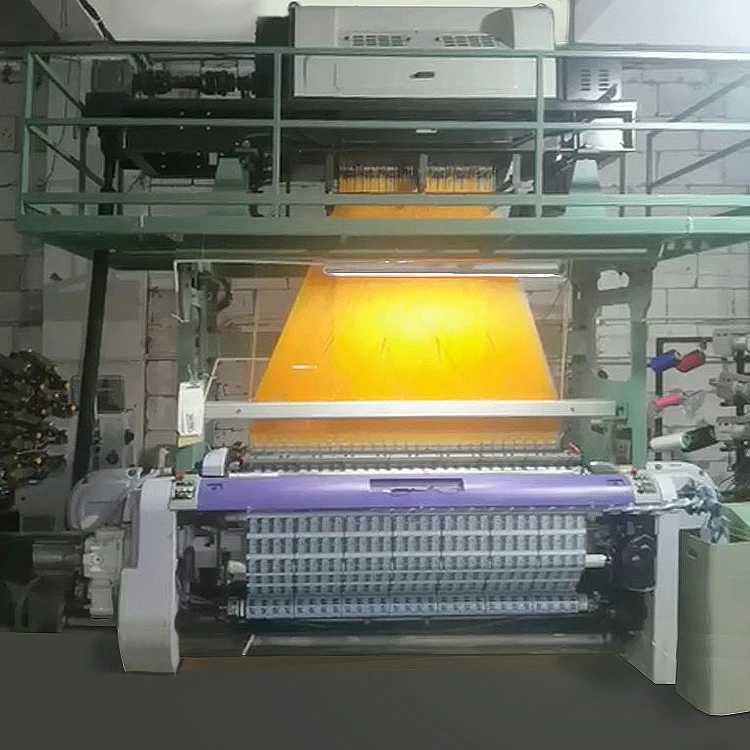

label loom  (K88/R880/silver501)

1.New harness set
4.New control box (Made in China)
3.New cutting system (Made in China)
4.loom width:190cm
5.RPM:450 to 480
More and more label factory boss likes this kind loom as it's capacity highy and price cheaper.
We suggest you to visit our factory to have some knowledge when you come to Canton fair this time.
Our company can provide customers with customized refurbished trademark machines with various needs

Base loom
--Loom : label loom (K88/R880/silver501)
--Speed: 450rpm~ 480rpm
--Loom Width:1900mm
--Cycel numbers:8 repeats for taffeta (1 repeats=20cm)
--Weft density adjustment:adjust in the range between 5 to 200picks/cm
--Take-up:electronic take-up
--Let-off:Microprocessor control electronic let-off device with tension device
--Drive:Direct drive by one main super motor(Hi drive systerm)
--Weft tension:Double-twist electronic weft storage device adjustment
--Weft searching system:Electronic automatic detecting weft finder
--Weft selector:8 color electronic controlled color selector
--Beam diameter:800 mm
--Cloth roller diameter:600mm (Max)
--Main motor Power: 8kw (approx)

--Model:Chinese jacquard
--Hooks:1408 hooks
--Control System:chinese control system
--Jacquard support frame:Using double high tensile steel plate superstructure design,easy access with jacquard and high stability
with anti-vibration character.

Harness kit
--Harness cord:New made in china
--Harness Board:Ooriginal imported Germany Harness board
--Heald:Italy Imported Heald

Thermal Cutting System
--Contains: cutting support device, tool holder assembly (including cutter)
--Contains: ironing fixture and ironing board, air compressor purchased by customers

Thermoforming/Ironing System
--Upper forming:Tailor-made full-width temple,automatically adjust the temperature
--Lower ironing board:Specialized ironing board with excellent finishing effect,reduce the possibility of fabric over shinning

Technical Specification
--Electricity: 380V three phase
--Dimension: Above 440cm W, 250cm L,390cm H
--Weight:About 6500kg(total)

Product packaging


Trade shows

Company Profile

Goodfore Tex Machinery Co., Ltd. is a rising high-and-new technology enterprise. We are engaged in studying and producing spare
parts of imported jacquard,label and carpet machines.
Our main products are as harness set,slolenoid,jacquard module, pulley, steel hook, kinds breadboards,display,gripper,slitter and
They are widely applied in jacquard /rapier  /label /air-jet machines.Our complete harness set
is applicated for different brands jacquard machine.
We are devoted to absolute sincerity cooperation and determined to make progress

our service

1. Reply your inquiry in 24 working hours.

2. Experienced staffs answer all your questions in fluent English.

3. Exclusive and unique solution can be provided to our customer by our well-trained and professional engineers and staff.

4 Sample: We can send out sample for test in one week if the order quantity is big enough.
