1.Adopt advanced CPU control system to realize microprocessor control of rotate speed, temperature and RCF.
2.Maintenance-free frequency conversion motor can prevent over-speed operation.
3.With imported freon-free refrigeration system operating, for the purpose of environment protection.
4.With protection from over speed, over temperature, imbalance and protection of automatic electronic or mechanical lock, to ensure the safety of operators and machines.
Technical parameters

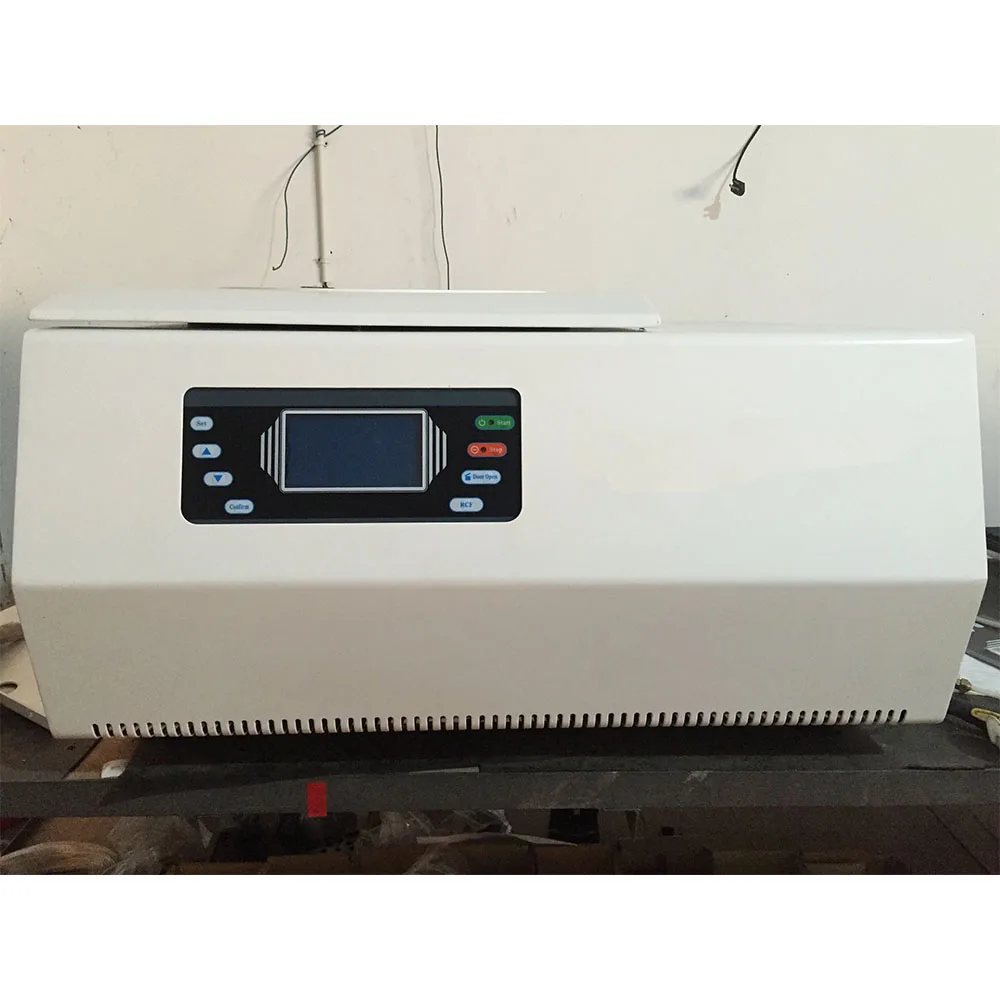

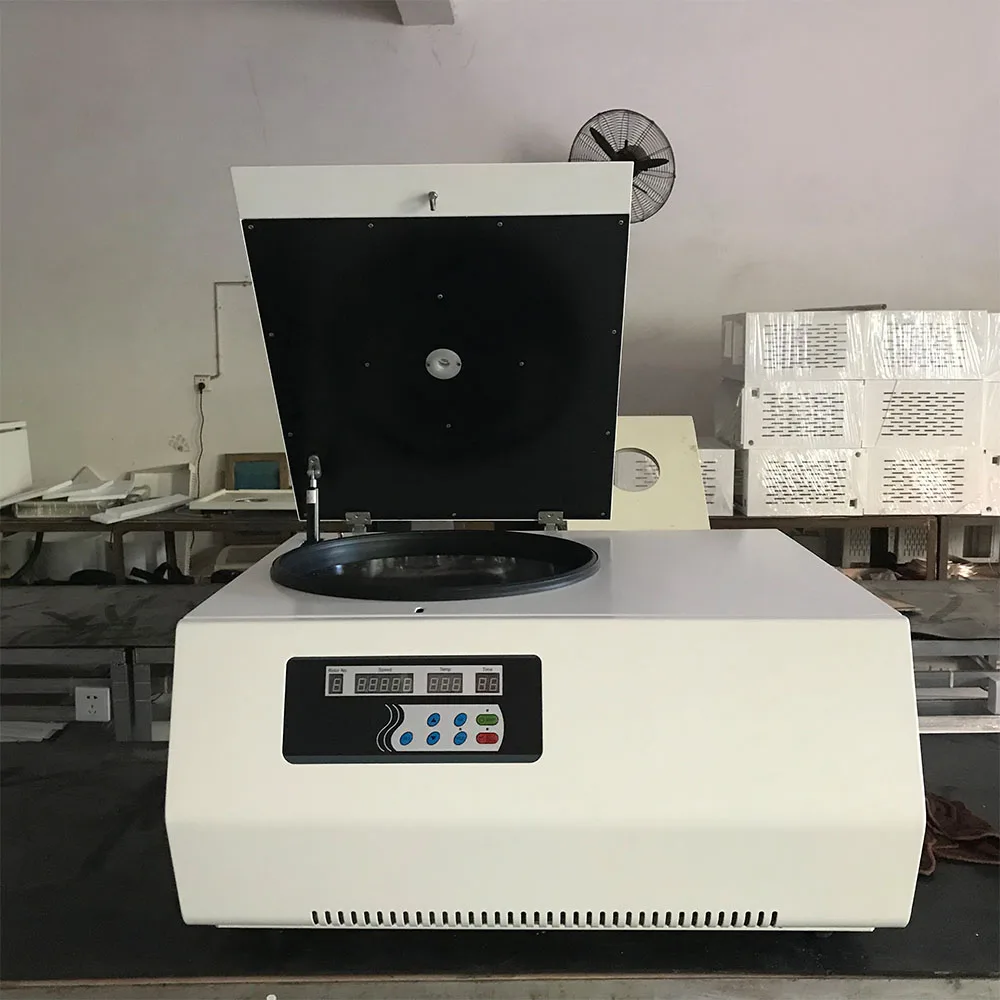

Model
TDL-5MC
TDL-5M
Display
LCD display
Digital display
Max Speed
5000r/min
Max RCF
4390xg
Max Capacity
6x500ml
Temp range
-20°C~+40°C
Temp Accuracy
±1°C
Timer Range
0-99min
Motor
Microprocessor control, Frequency conversion motor
Noise
≤ 60dB (A)
Power Supply
AC220V&110V 50HZ 10A
Dimension
830*750*480mm(LxWxH)
Net Weight
150kg
Rotor
No.1
Max Speed:5000r/min
Max Capacity:12×15/10ml
Max RCF:4390xg
No.2
Max Speed:4000r/min
Max Capacity:6×500ml
Max RCF:4390xg
No.3
Max Speed:4000r/min
Max Capacity:6×250ml
Max RCF:3600xg
No.4
Max Speed:4000r/min
Max Capacity:32×10ml
Max RCF:2810xg
No.5
Max Speed:4000r/min
Max Capacity:148×7ml
Max RCF:4100xg
No.6
Max Speed:4000r/min
Max Capacity:4×500ml
Max RCF:3600xg
No.7
Max Speed:4000r/min
Max Capacity:32×15ml
Max RCF:2810xg
No.8
Max Speed:4000r/min
Max Capacity:4×100ml
Max RCF:2810xg
No.9
Max Speed:4000r/min
Max Capacity:8×50ml
Max RCF:2810xg
No.10
Max Speed:4000r/min
Max Capacity:72×5ml
Max RCF:2800xg
No.11
Max Speed:4000r/min
Max Capacity:48×7ml
Max RCF:2800xg
No.12
Max Speed:3000r/min
Max Capacity:2x2x96holes micro-plates
Max RCF:2300xg
No.6
Max Speed:4000r/min
Max Capacity:4×750ml
Max RCF:3600xg

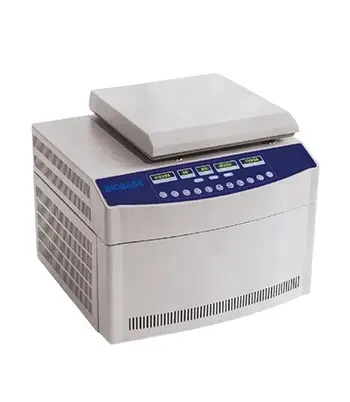

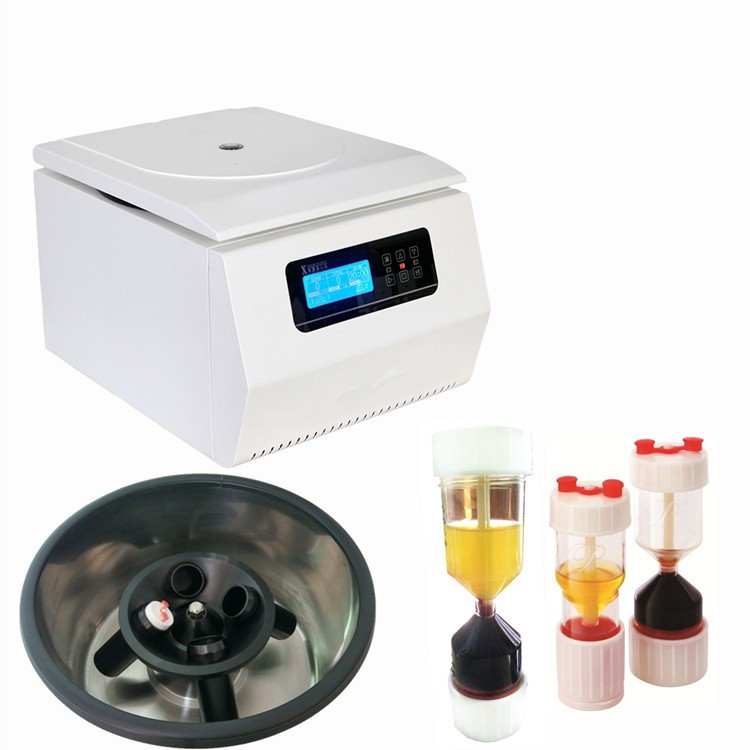

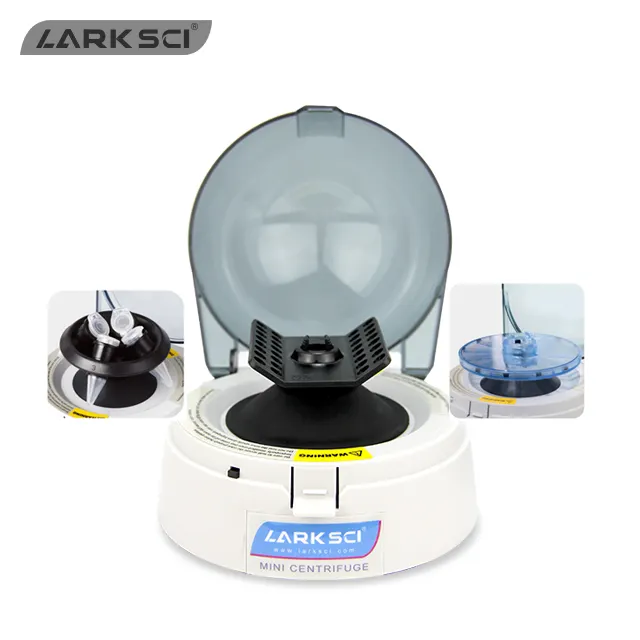

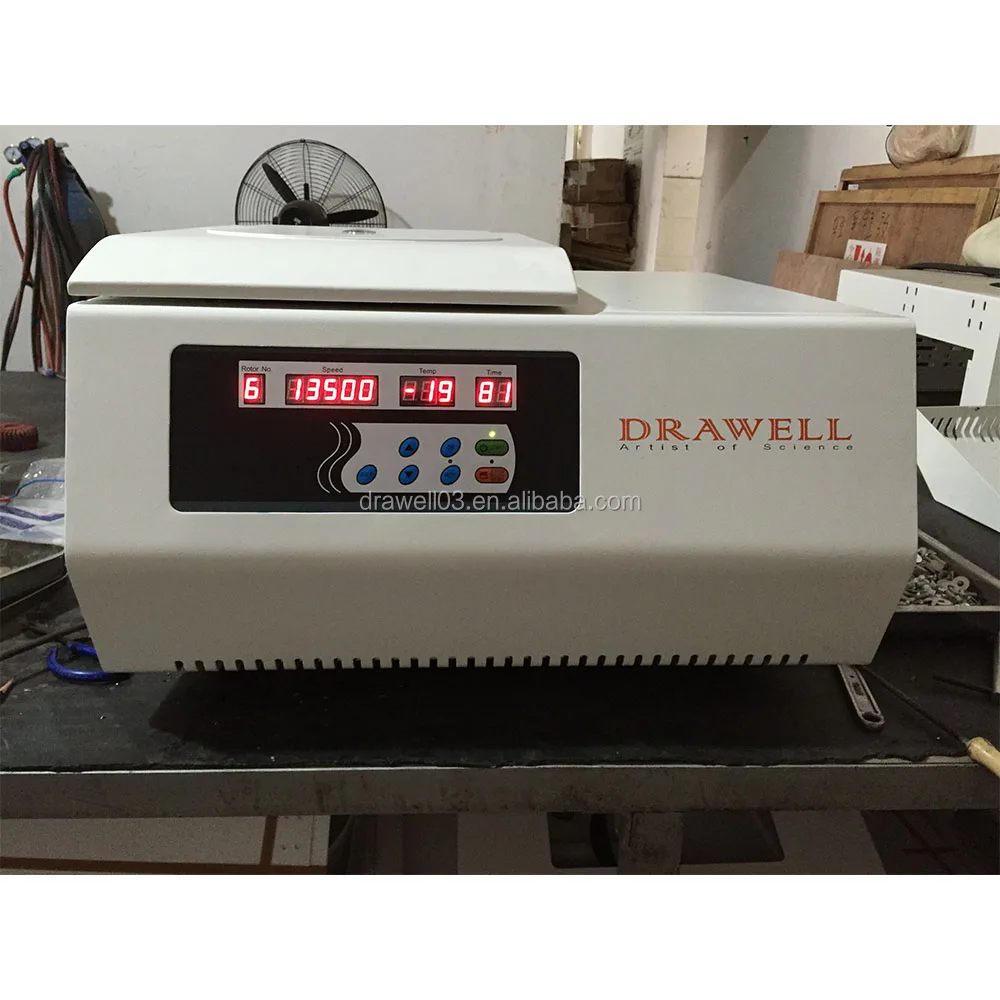

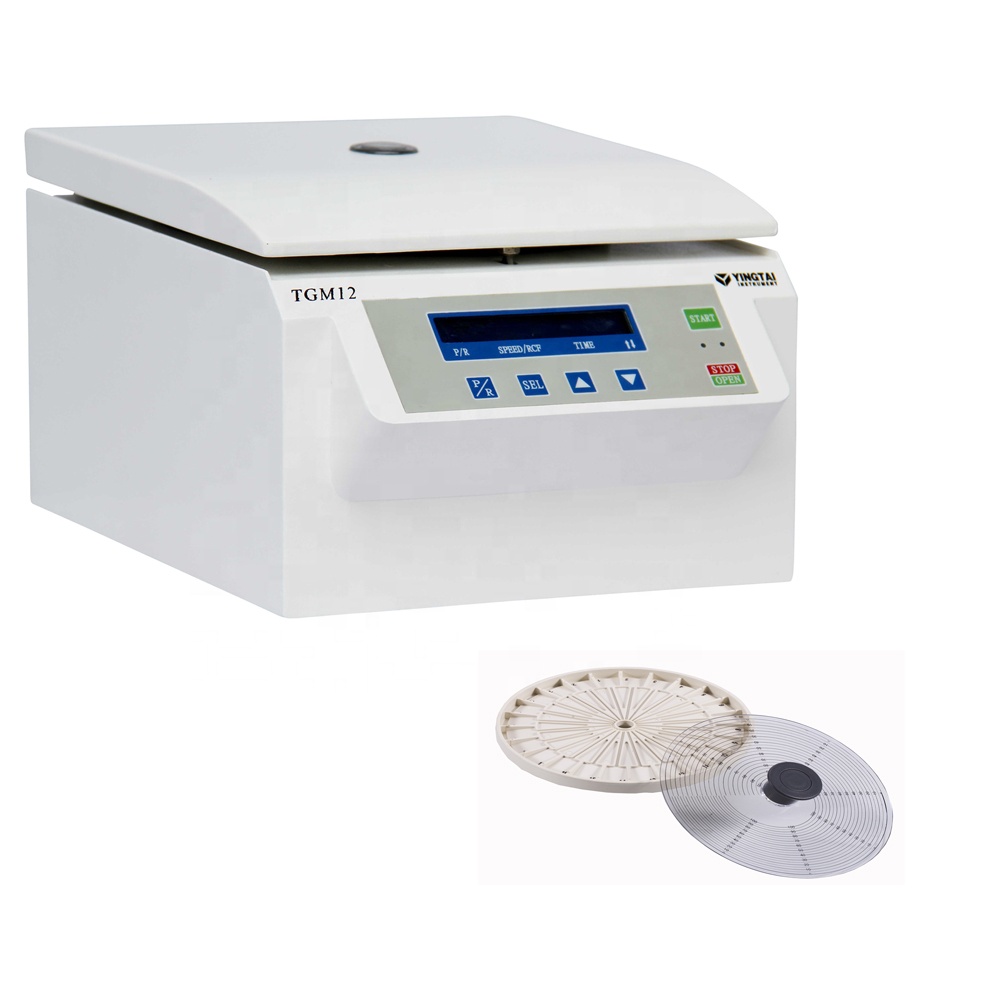

Hot products
Company Information
Why choose us

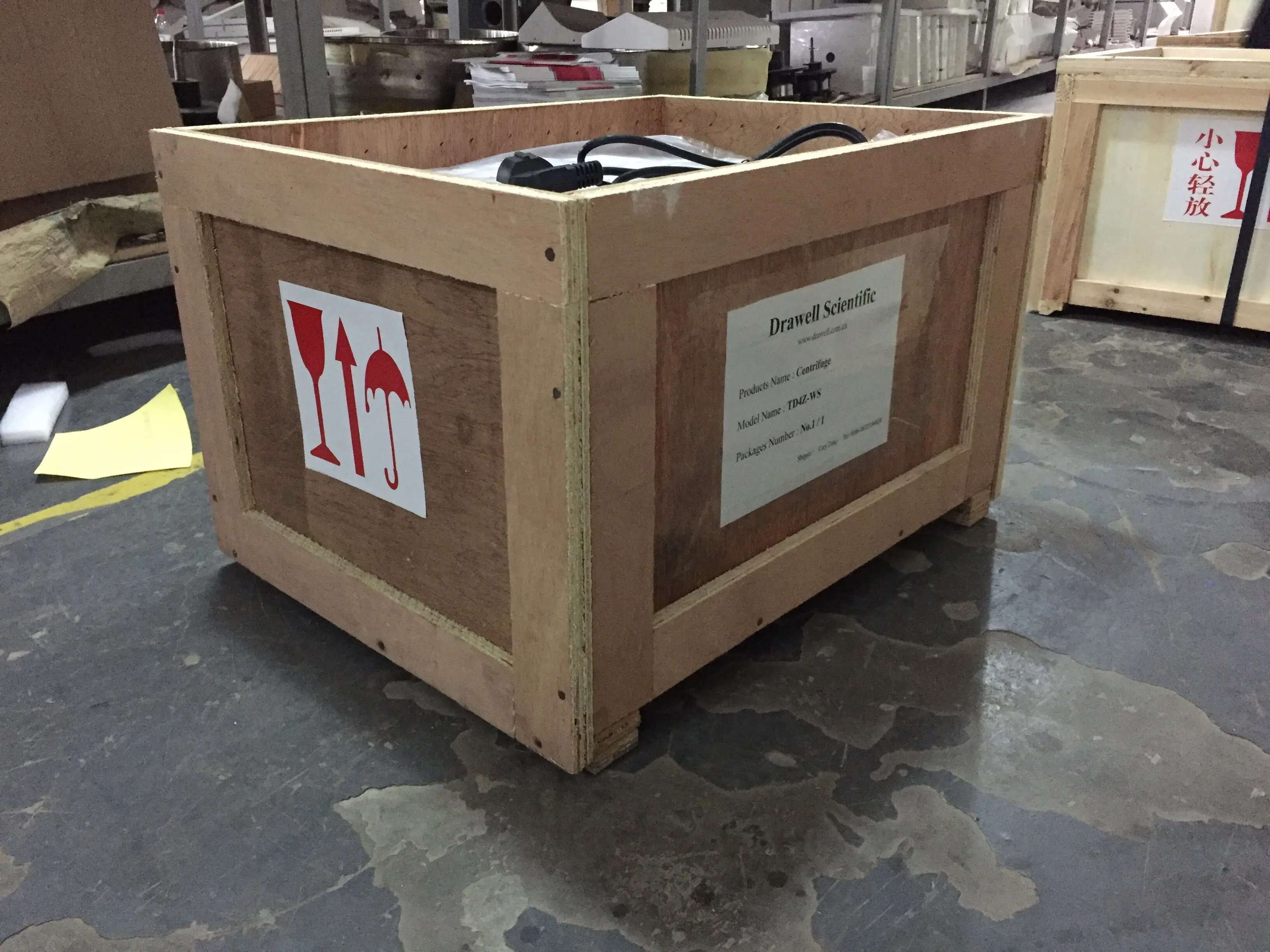

Packaging & Shipping
