Vibratory Deburring Bowls Finishing Machine
US $750.00-$800.00
Вибрационная полировальная машина для удаления заусенцев и полировки
- Category: Metal Polishing Machine >>>
- Supplier: Huzhou,Xingxing,Abrasive,Co.,Ltd.
Share on:
Product Overview
Description
Product Description
It is mainly used for deburring, removing rust, rounding and polishing all sorts of metals, non-ferrous metals and non-metals parts. The workparts after surface finishing, not only remain the shape accuracy of the original state, but also improve the precision of surface roughness of parts. deburring machine
SPECIFICATIONS FOR VIBRATORY FINISHING MACHINE XXZP-A600 | ||||||
Vibratory Finishing Machine | Machine Type | XXZP-A600 | SET | |||
Motor | 5.5 | KW | ||||
Motor Speed | 1440 | RPM | ||||
Main parameters | Machine Size | 1900*1700*1400 | MM | |||
Process Vessel Volume (L) | 600 | L | ||||
Process Vessel Width & Depth | 280X500 | MM | ||||
Other information | Lining | PU lining | PU | |||
Lining thickness | 20 | MM | ||||
Voltage | 220V-440V | 3 Phase | ||||
Detailed Images
Product Application & Features
1. Adoption of vibratory motor to produce vibratory force, it makes workparts and medias move in one direction and mass finished interactively in the processing vessel to accomplish the surface improvement.
2. Applicable to process small and medium size workparts in large amount load, with good finish effect and short time needs for processing.
3. No damage to the original shape and size of the workpart.
4, The processing vessel interior surface is lined with PU (polyurethane), avoiding direct damage to the workparts and machine metal, and working life for the machine is extended.
5. Random checking the workparts in the finishing process, easy operation. Option to choose the independent electrical box with converter.
6. A type and AB type machine has the function of separating the workparts and emdias automatically after finishing process. Vibratory polishing machine

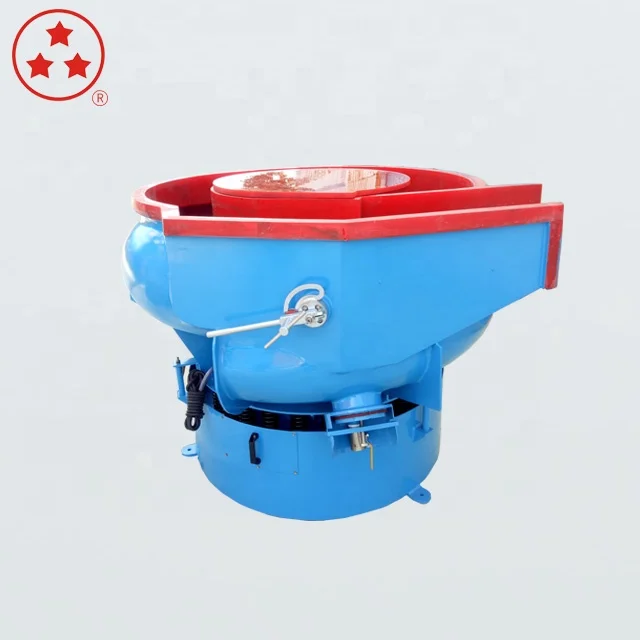

Vibratory Finishing Machine
Name: Vibratory Finishing Machine
Code: XXZP-B300X
Brand: Xingxing
Original: Zhejiang, China
1. CE certified vibratory finishing machine.
2. Stress relief welding required, heavy duty structure design.
3. Adoption of vibratory motor to produce vibratory force, it makes workparts and medias move in one direction and mass finished interactively in the processing vessel to accomplish the surface improvement.
4. With independent control panel available.

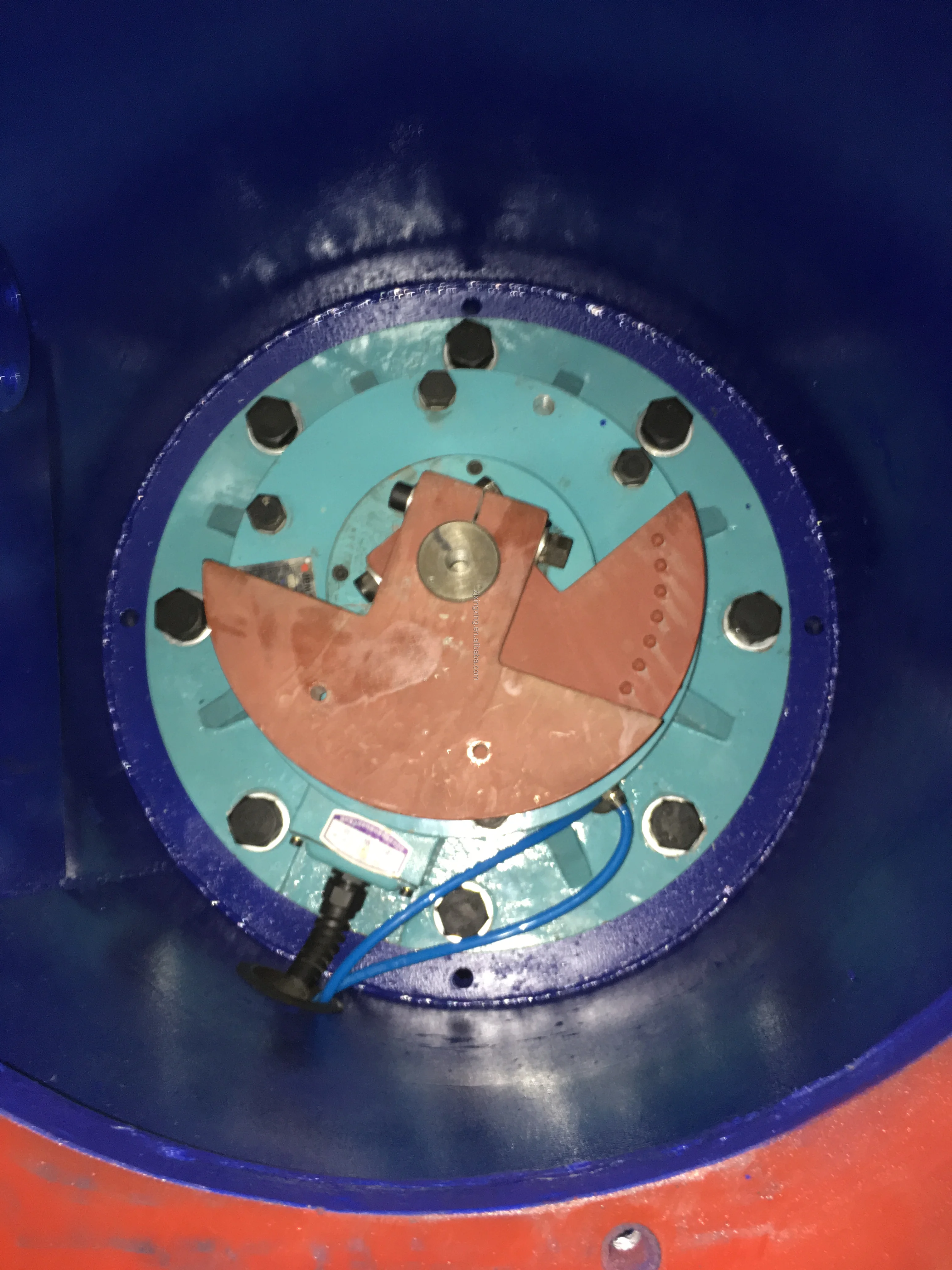

Name: Vibratory Motor
Brand: Xingxing
Original: Zhejiang, China
Original: Zhejiang, China
1. CE certified vibratory motor.
2. China-Germany joint venture manufacturer made quality product, with consistant reliable quality.
3. With motor fan shape shafts, the intersection angle can be adjusted with the reading of point marks on the shaft. EASY FOR MOTOR VIBRATING FORCE ADJUSTMENT.
4. Motor bearing greasing outlet pipe fixed.
Brand: Xingxing
Original: Zhejiang, China

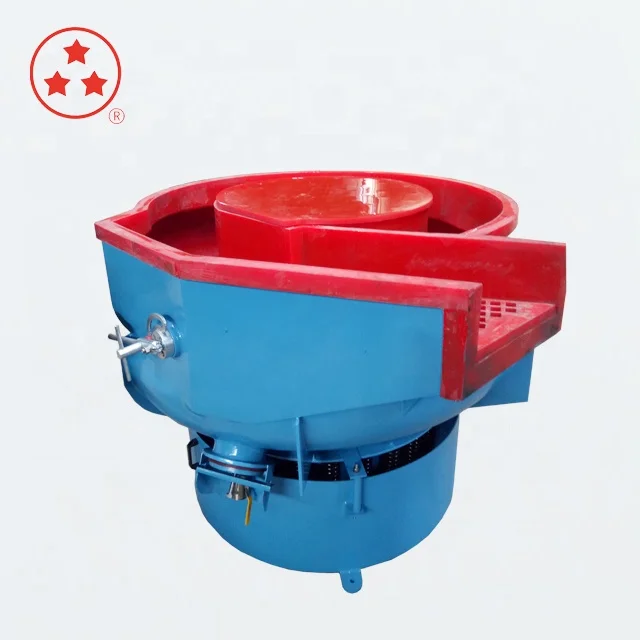

1. The main machine is consist of upper bowl and basement.
Original: Zhejiang, China
1. The main machine is consist of upper bowl and basement.
2. The upper bowl is with work channel which is with PU(polyurethane) lining.
3. The work channel with depth as 500mm and width as 280mm.
4. The PU lining thickness is average with 20mm, to ensure the PU lining wear life time, the main wear part of the work channel with thickness over 20mm.

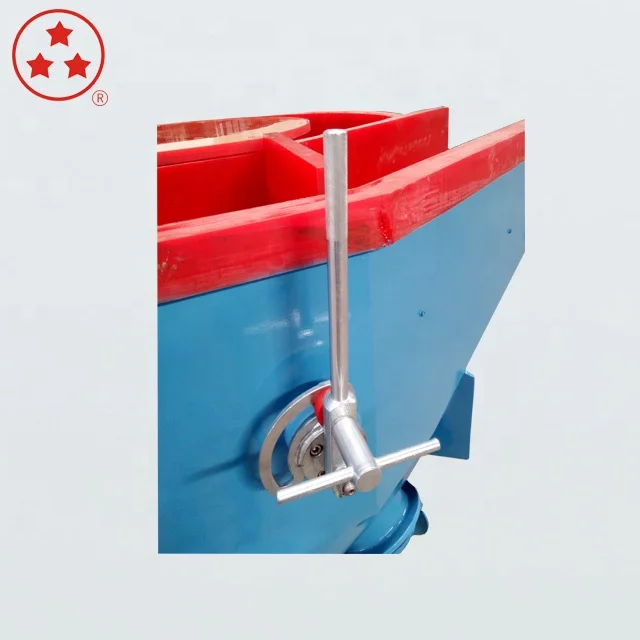

Name: flap design
Original: Zhejiang, China
1. Designed with manual screen deck flap
1. Designed with manual screen deck flap

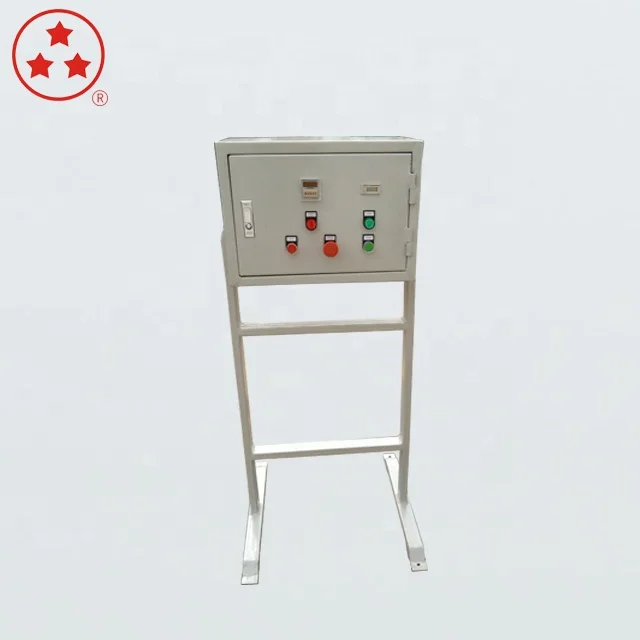

Name: Independent control panel
Original: Zhejiang, China
1. With Safe DC24V control voltage
1. With Safe DC24V control voltage
2. WITHOUT Inverter (Taiwan brand) installed inside.
3. With Emergency button installed for emergency usuage.
4. With Timer to set the running time.
5. Besides the panel with inverter, we also can supply the panel with inverter, panel with inverter and auto dosing for different options.
Name: Independent control panel
Original: Zhejiang, China
1. With Safe DC24V control voltage
1. With Safe DC24V control voltage
2. WITH Inverter (Taiwan brand) installed inside..
3. With Emergency button installed for emergency usuage.
4. With Timer to set the running time.
5. Besides the panel with inverter, we also can supply the panel without inverter, panel without inverter and auto dosing for different options.

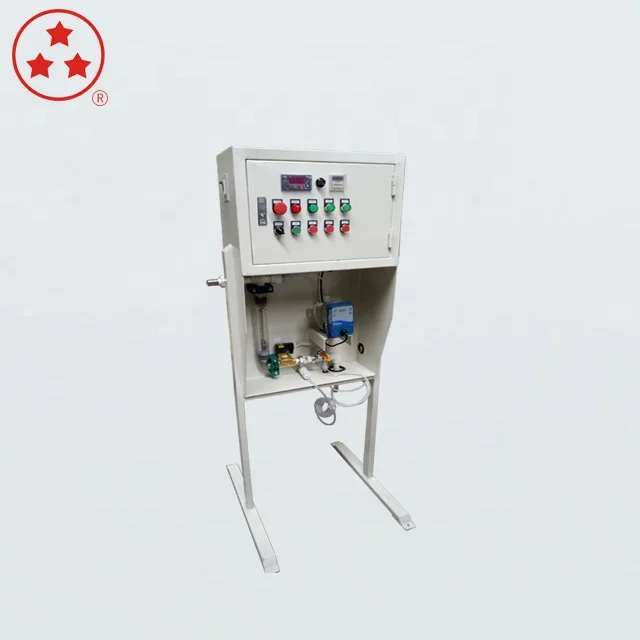

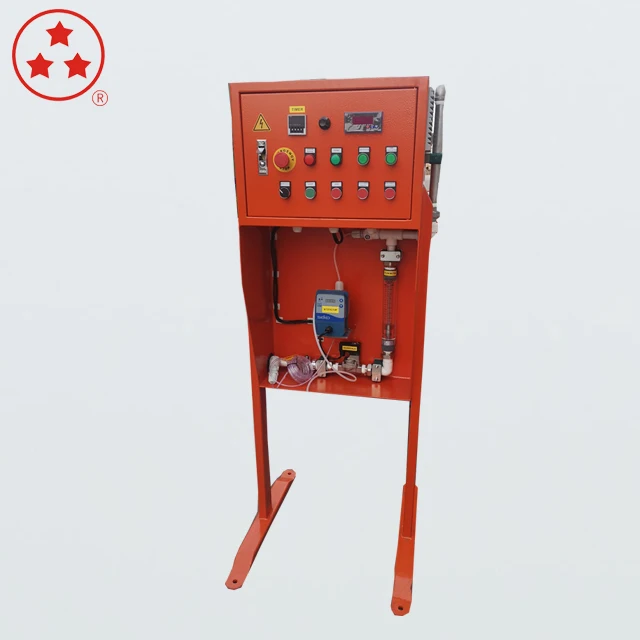

Name: Independent control panel
Original: Zhejiang, China
1. With Safe DC24V control voltage
1. With Safe DC24V control voltage
2. WITH Inverter (Taiwan brand) installed inside.
3. WITH AUTO DOSING SYSTEM installed, Italy brand dosing pump.
4. With Emergency button installed for emergency usuage.
4. With Timer to set the running time.
5. Besides the panel with inverter and auto dosing fuctions, we also can supply the panel without inverter and dosing, it depends on customers' actual applications.
Related Products
Packing&Shipping
Packing:wooden case
Suitable for sea shipping
Certifications
Xingxing service
Xingxing Abrasive will process samples parts from customers and recommend the proper equipment all at no charge
to customers.Just send us samples with an explanation of your desired finish and we will process them in our lab,then send back
samples within 3 working days.You will see the way our machines handle deburring ang polishing process!If you are satisfied with
the finishing effect,we will trial test the samples parts till your confirmation.
1. Provide user tracking service to record users' problems at any time and solve them as soon as possible. After the completion of
the order, users will be checked irregularly.
2. Regularly introduce new products and new functions and technologies to users.
Company Introduction
FAQ:
Q:How is Xingxing brand?
Xingxing Abrasive is the leading manufacturer of mass finishing machinery and consumable medias in China.
- Provincial High-Tech enterprise
- More than 24 years of expertise in this field.
- 21000 square meters of factory area size.
-7250 tons/year of consumable medias production output
-1030 sets/year of mass finishing machinery production output
Q: How far is it from Shanghai or Hangzhou?
- Close to Shanghai, 2.5-3 hours of ride.
- Close to Hangzhou, 1 hour ride.
Q: What Certifications do you have?
ISO9001, ISO140001,CE, SGS(Rohs) certifications etc.
Q: What is machinery and consumble medias warranty?
- 2 year warranty for standard machinery.
- 1 year warranty for customized equipment.
- Consumble medias warranty as standard international brand media for quality lifetime consideration.
Q: What service we can offer?
- OEM/ODM product Manufacturing service.
- Trial test service, and professional advice for specific workparts surface finishing needs.
- Inquiry replied within 8 hours.
- Aftersales service starts from delivery stage, receiving stage, standard operation guide, problem shooting & fixing, regular
maintenance guide, spare parts providing, Machine lifetime maintenance service.
- Sample available for consumable medias.
Q: How you guarantee consumable (tumbling) media quality?
- Mature consumable media formula, highly acknowledged by overseas customers for more than 15 years.
- From raw material QC check to final products check before delivery.
- Extremely test conditioned for final products of every batch, and file data kept for monitoring.
- The test method is similar to Japan and USA standards.
- If quality test result doesn’t meet customer’s standard, we will do the internal rejection and remaking step scheduled as
priority.
Q: How you guarantee the mass finishing machinery quality?
-From raw material QC check to final products check before delivery.
-Standard machinery, we do the extremely test conditioned running for 24 hours continuously.
- OEM machinery, test method instructed by customers.
- ODM machinery, test method instructed by customers.
Q: What is your international trade term?
- CIF destination port or location of customer side.
- FOB Shanghai/Ningbo
- EXW/FCA
Q: What is your Payment method?
- T/T (Bank transfer) payment，as prepayment rate discussed.
- For bulk order, we can accept L/C at sight.
Q: What is your Minimum order amount?
- MOQ for machinery is 1 set.
- MOQ for consumble media is 500kg as one wooden pallet.
Q: What is your way of packaging?
- Fumigation wooden pallets for medias, 1000kg per pallet, 25kg/plastic bag.
- Fumigation wooden case for mass finishing machinery.
Q: How long is your production time?
- Generally, it will take 5-40 days after receiving your advance payment. The specific delivery time depends
on the items and the quantity of your order.
- 5 working days for stock available machine and medias.
- 25-30 days for machinery.
- 25 days for customized medias.
- 30-40 days for ODM machine or customized machinery, not including the automatic surface finishing system.
Q: What is the nearest Port? Shipping methods?
- Sea port: Shanghai, Ningbo.
- Railway departure station: Suzhou, Shanghai, Yiwu.
- Airport departure station: Shanghai.
- Express: Fedex, or other international courier service available.
