Oton 6 channel HD Live Stream Video Switcher with encoding and decoding
- Category: Radio & TV Broadcasting Equipment >>>
- Supplier: Shenzhen Oton Technology Co. Ltd.
Share on (1600091901315):
Product Overview
Description
Product Description

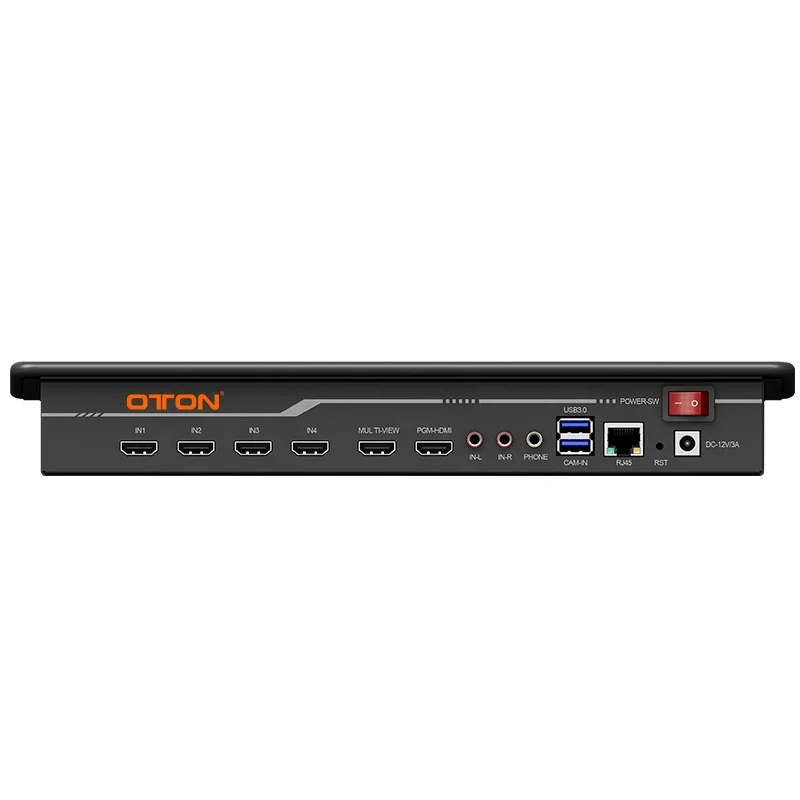

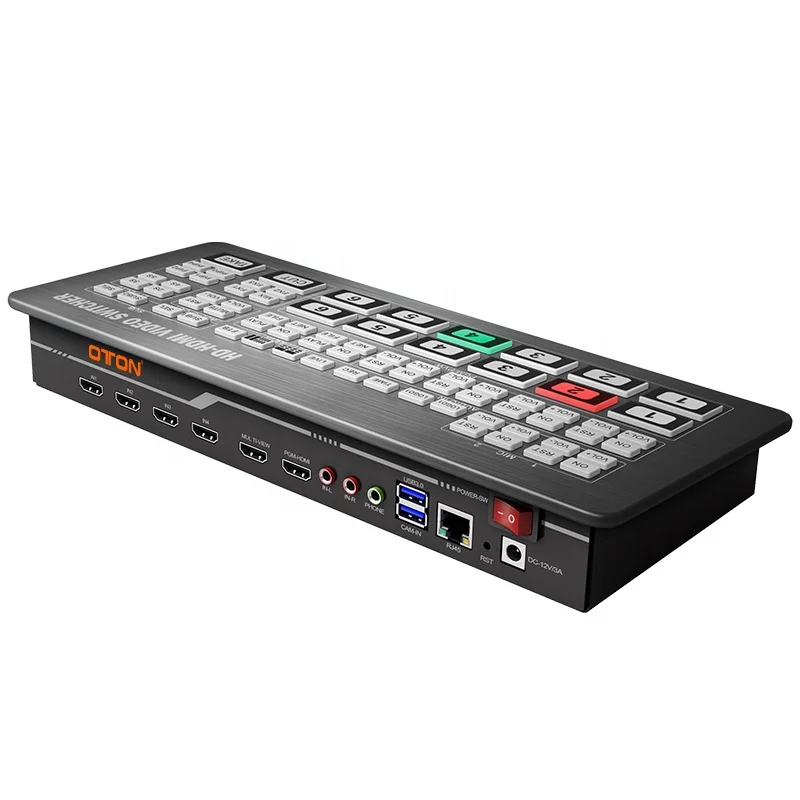

Oton Geek SW13 Pro

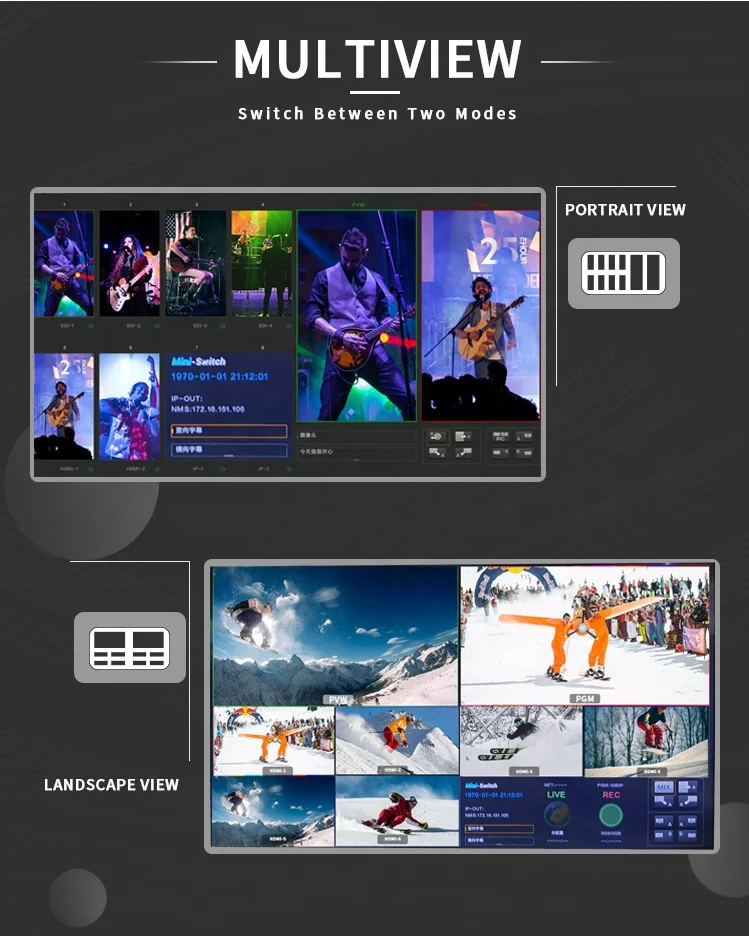

Oton Geek SW13 Pro can switch up to 6 different video inputs (4xHDMI+2xIP Stream)while recording the program feed. The multiview layout allows you to show preview, program, and input sources all on the same screen with PIP/POP functionality. Effectively, this makes the Geek SW13 Pro a portable TV studio that you can take anywhere and set up with minimal effort or extra equipment.
Technical Specification
Item | Oton Geek SW13 Pro | Blackmagic Atem Mini Pro | ||||
Control | Hardware & Web Management | Hardware & Software | ||||
Video Input | 4xHDMI V1.4+ 2x IP Stream resolution auto detected | 4xHDMI The first input plug in set the video format | ||||
Video Output | 1x HDMI PGM Out & 1x HDMI Multiview | 1x HDMI PGM Out or 1x HDMI Multiview | ||||
Audio Input | 2xMIC | 2xMIC | ||||
Audio ouput port | 1x Line Out | / | ||||
Switching | CUT/Mix/Auto Switching | CUT/Mix/Auto Switching | ||||

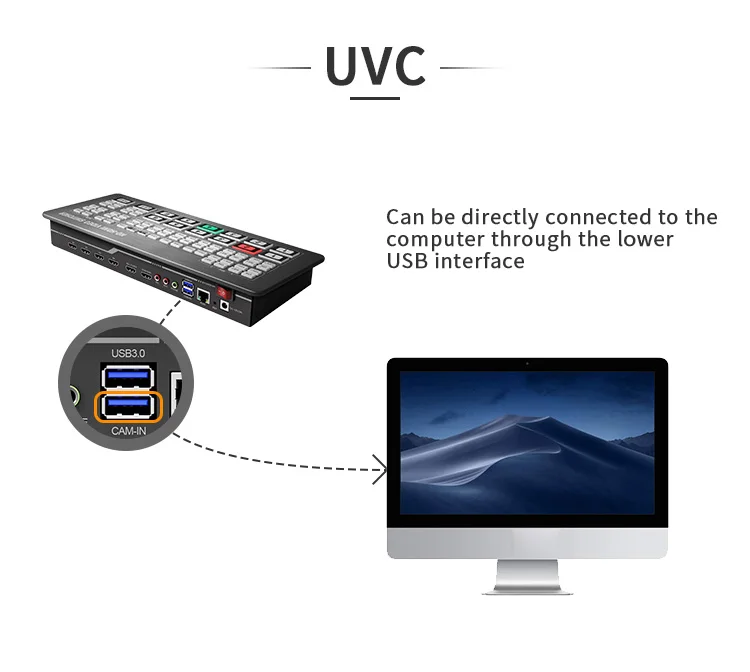

USB | 2x USB 3.0 (1 for recording/wireless network card, 1 for UVC) | 1X USB-C | ||||
Lan Port | RJ45, Support live Streaming | RJ45, Support live Streaming | ||||
Stream Distribution | 4 platforms at the same time | 2 platforms at the same time | ||||

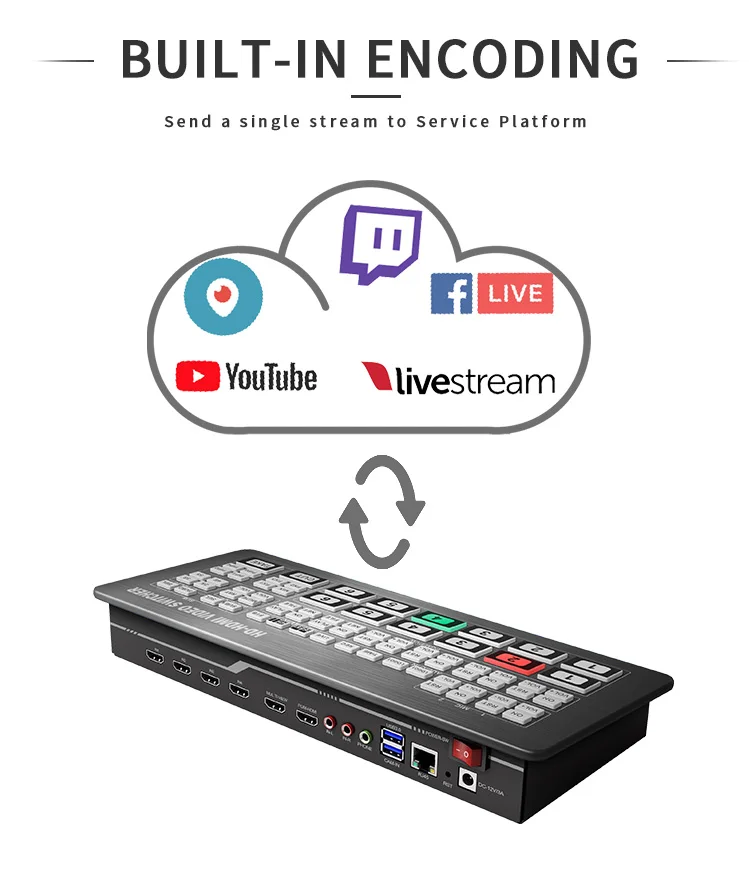

Encoding Format | H.265/H.264 | H.264 | ||||
Video Decoding | Yes | N/A | ||||
Vertical Streaming | Yes | N/A | ||||
PIP | Yes | Yes | ||||
POP | Yes | N/A | ||||
Logo Layer | 2 | 1 | ||||
Subtitle Layer | 2 | 1 | ||||
Chroma/Luma Key | N/A | Yes ( can't use with PIP) | ||||

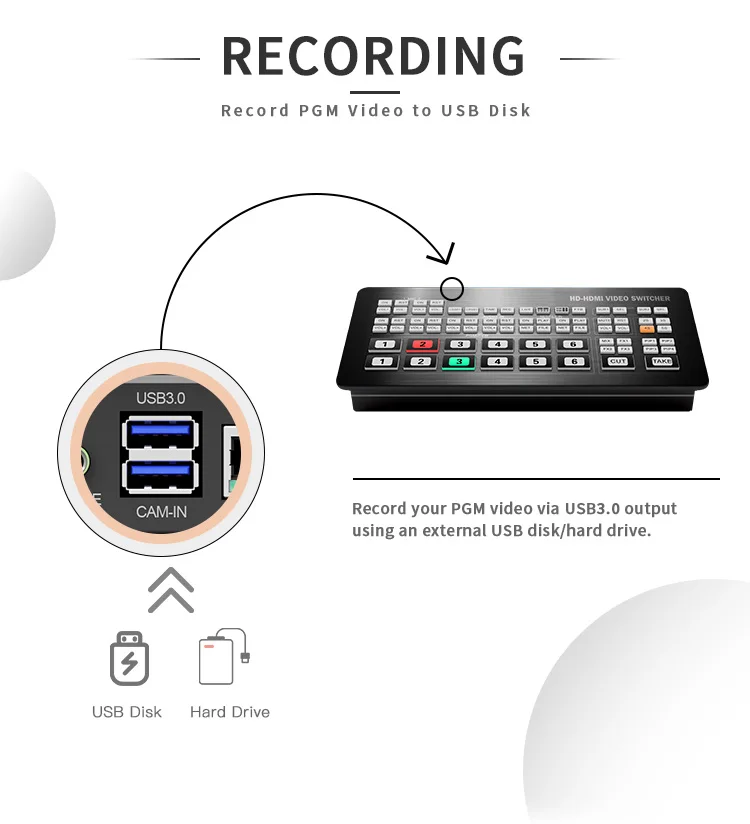

Recording | Yes | Yes | ||||
Camera Control | N/A | Yes | ||||
Marcos | N/A | Yes | ||||

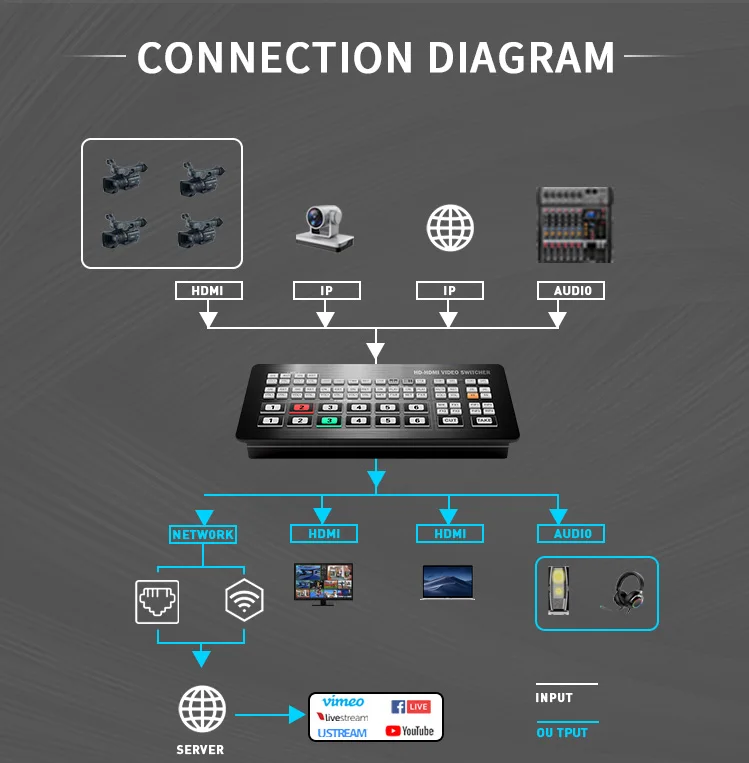

Connection Diagram
Application
Company Profile
Certifications
