Product Overview
Description
Product Description

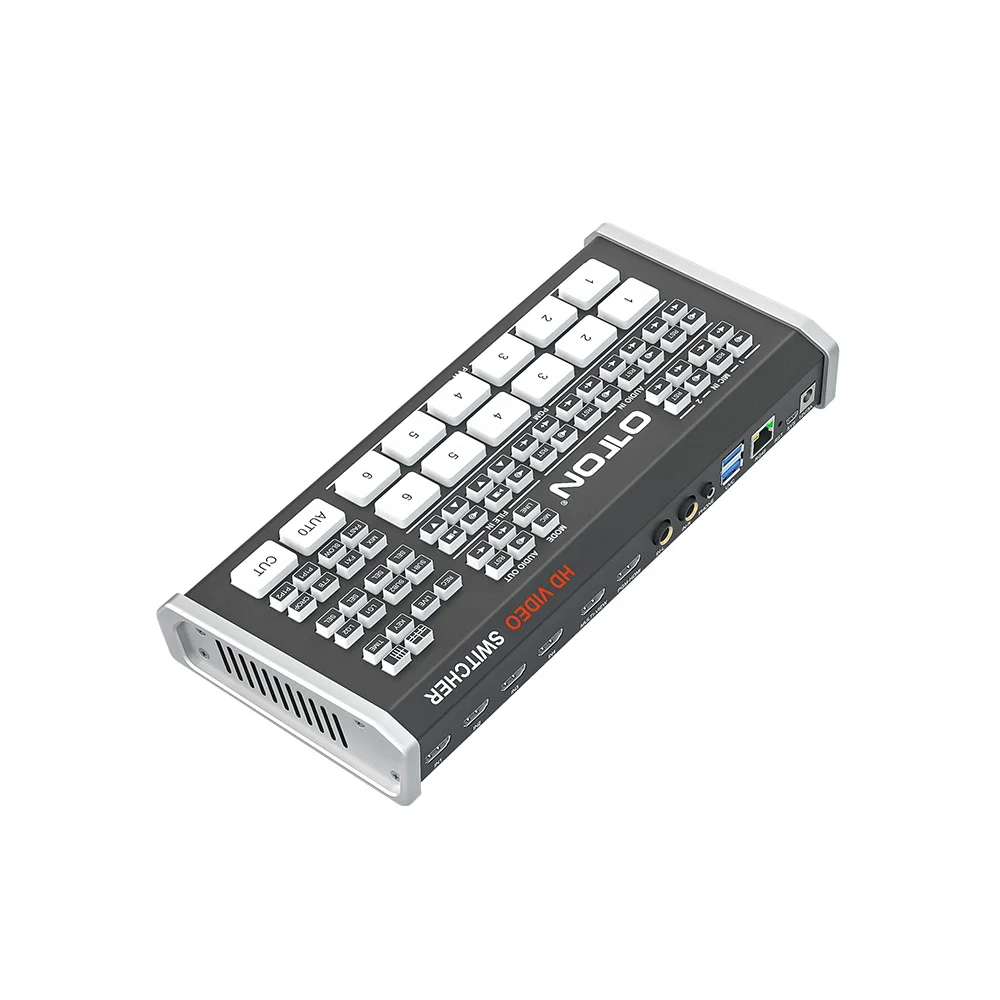

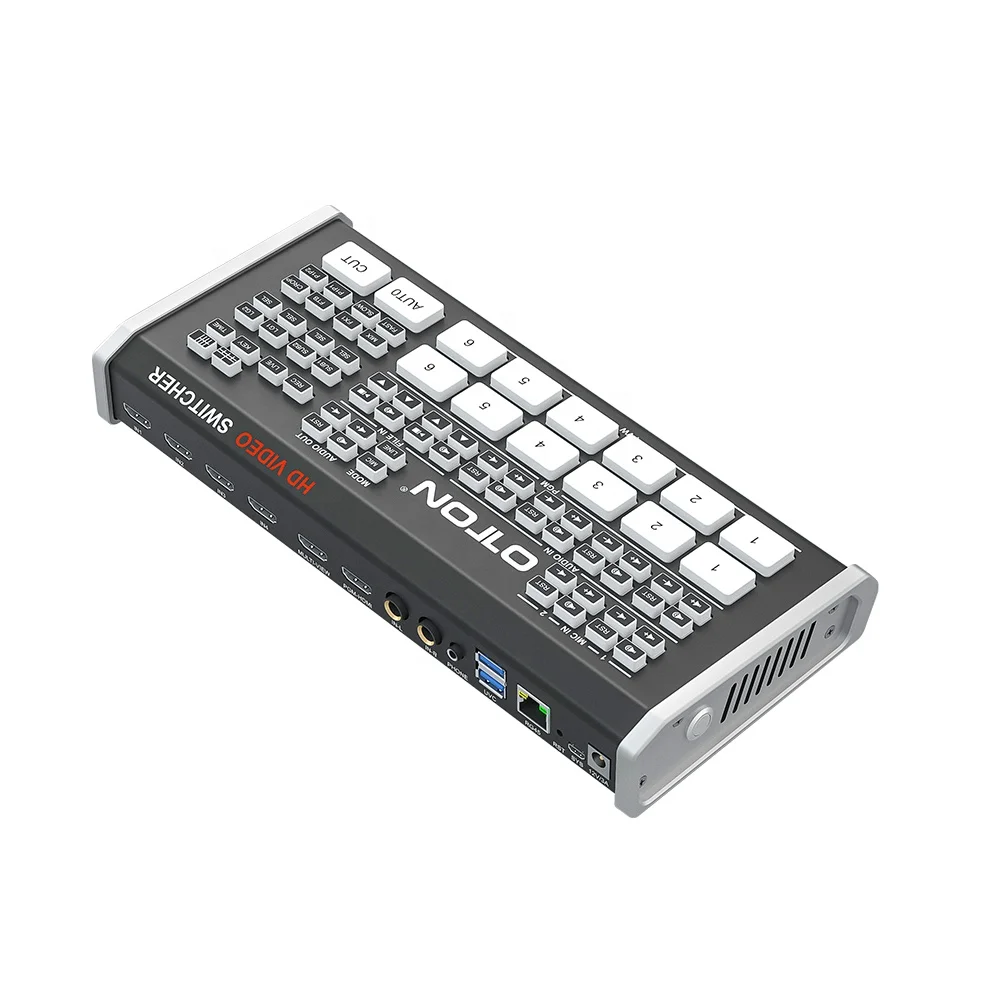

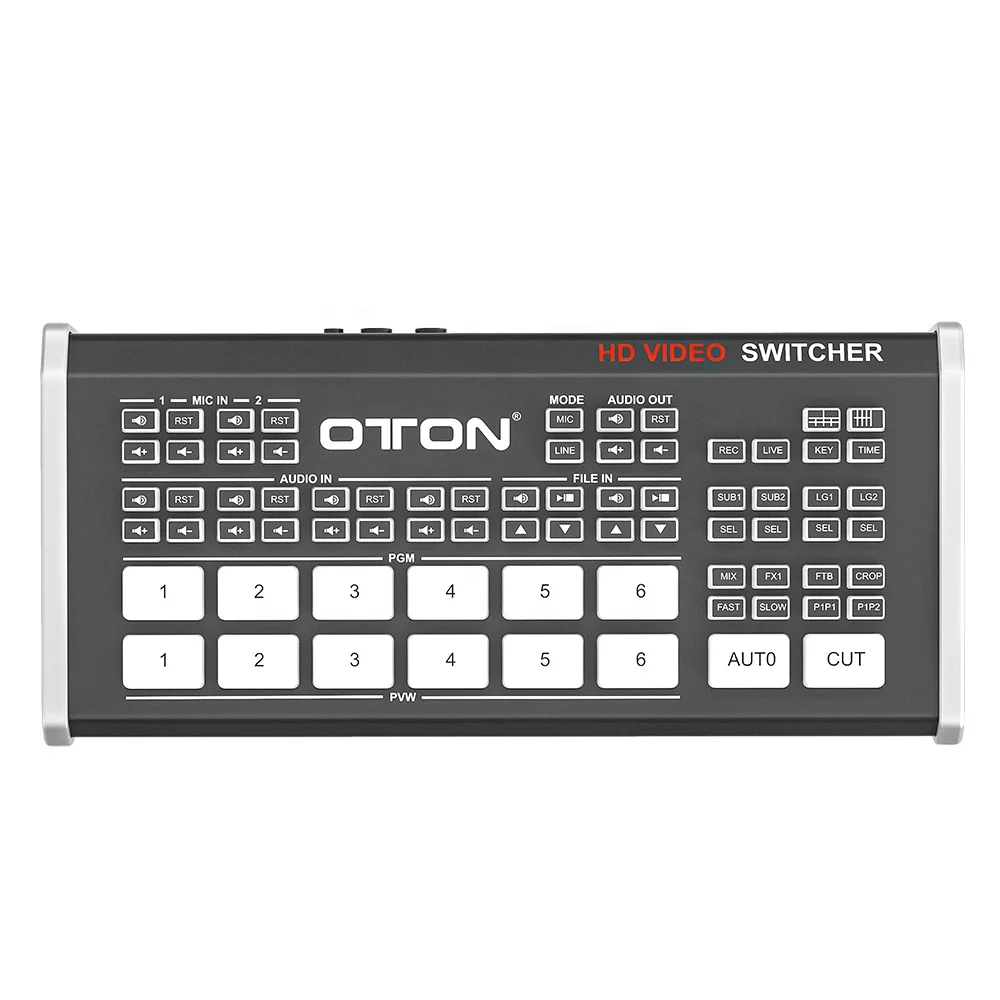

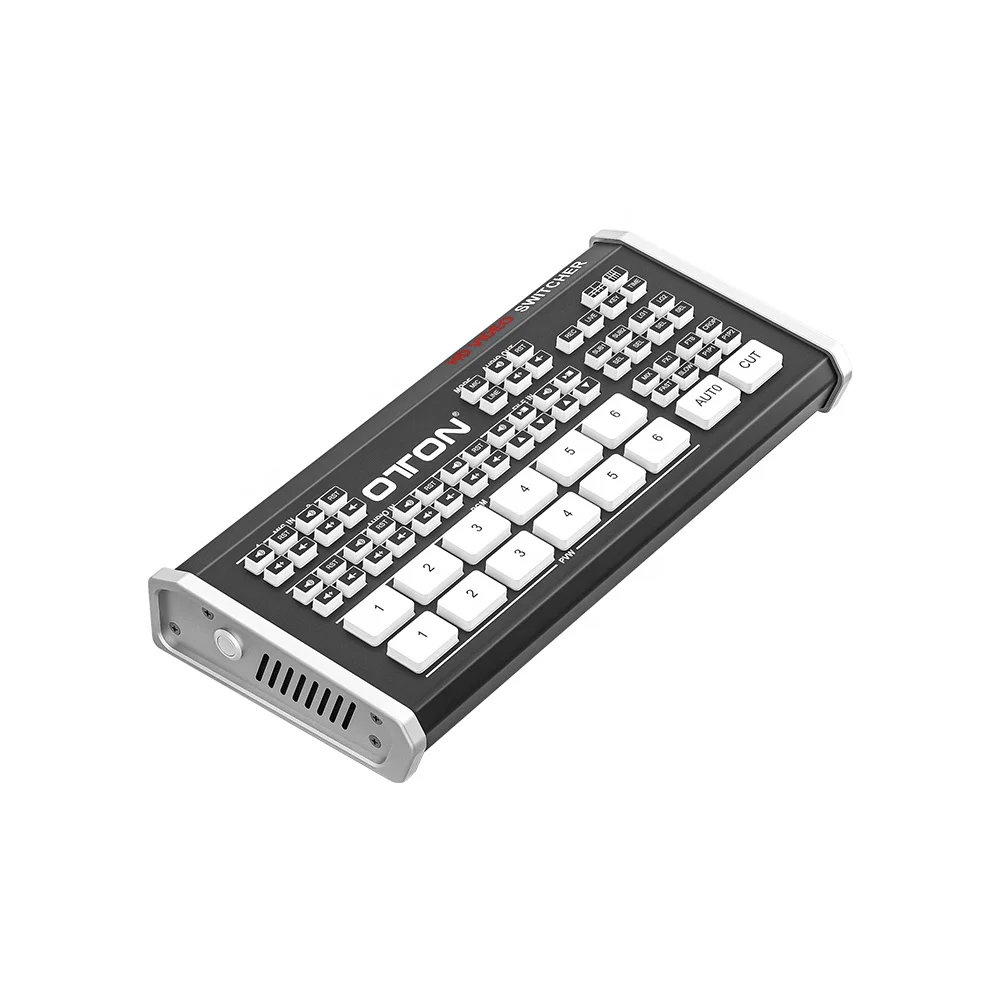

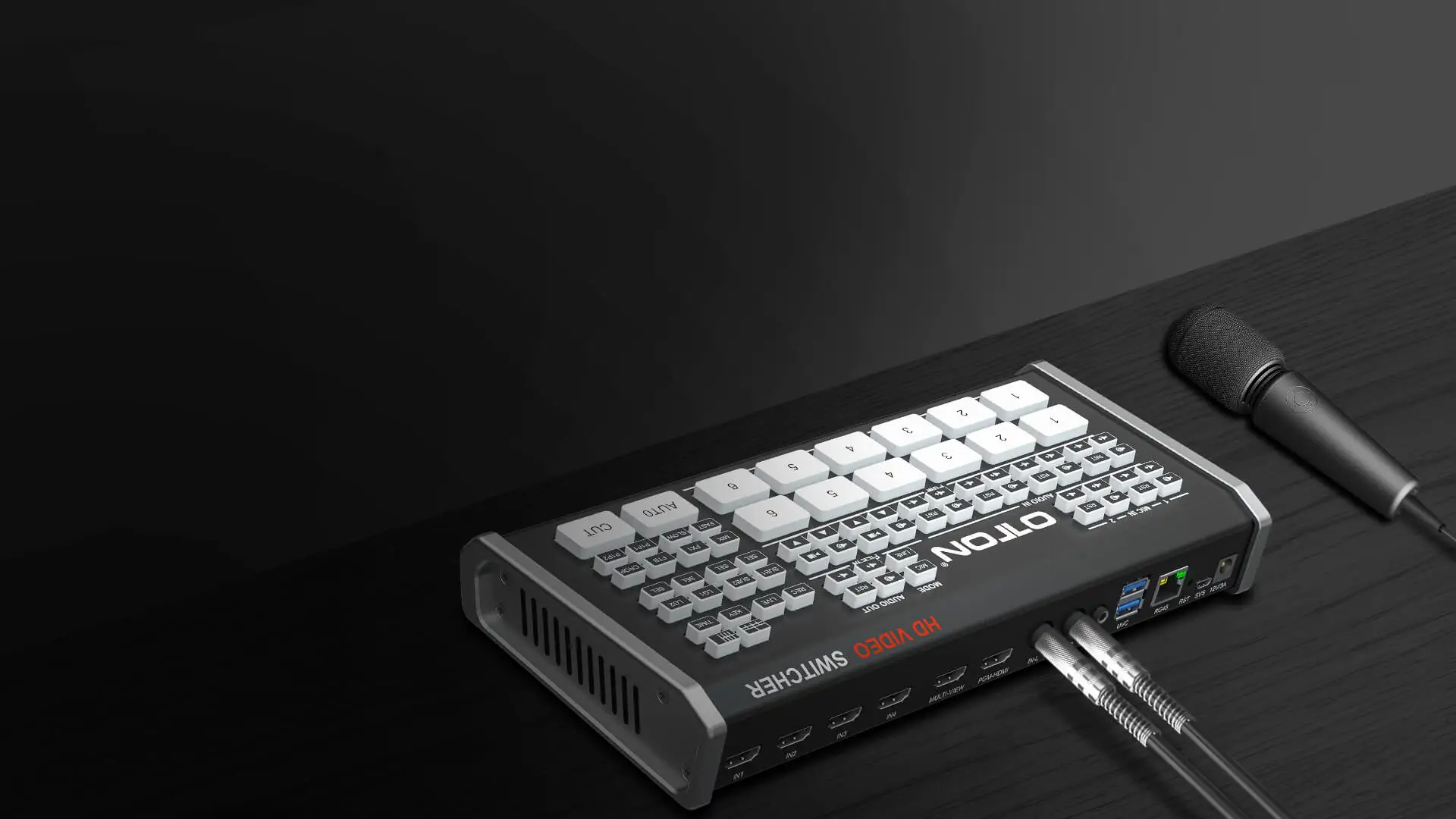

Oton Geek S06
With 4 independent HD-MI inputs, you can connect up to 4 high quality video cameras or computers to Geek S06. It also allows you to connect 2 IP cameras or decoding video streams via the Ethernet port. You can even connect a USB camera via the USB 3.0 port. All input resolution are auto detected and will be scaled to 1080i/1080p automatically for program. Geek S06 features with exciting picture in picture and picture outside of picture effects, perfect for commentary! There are loads of video effects too! The built-in encoding engine lets you directly stream your video to 4 service platforms simultaneously like Facebook and Youtube. You can also record your video to USB disk while streaming. Geek S06 makes it easy to create professional multi camera productions for live streaming to YouTube and innovative business presentations using Skype or Zoom!

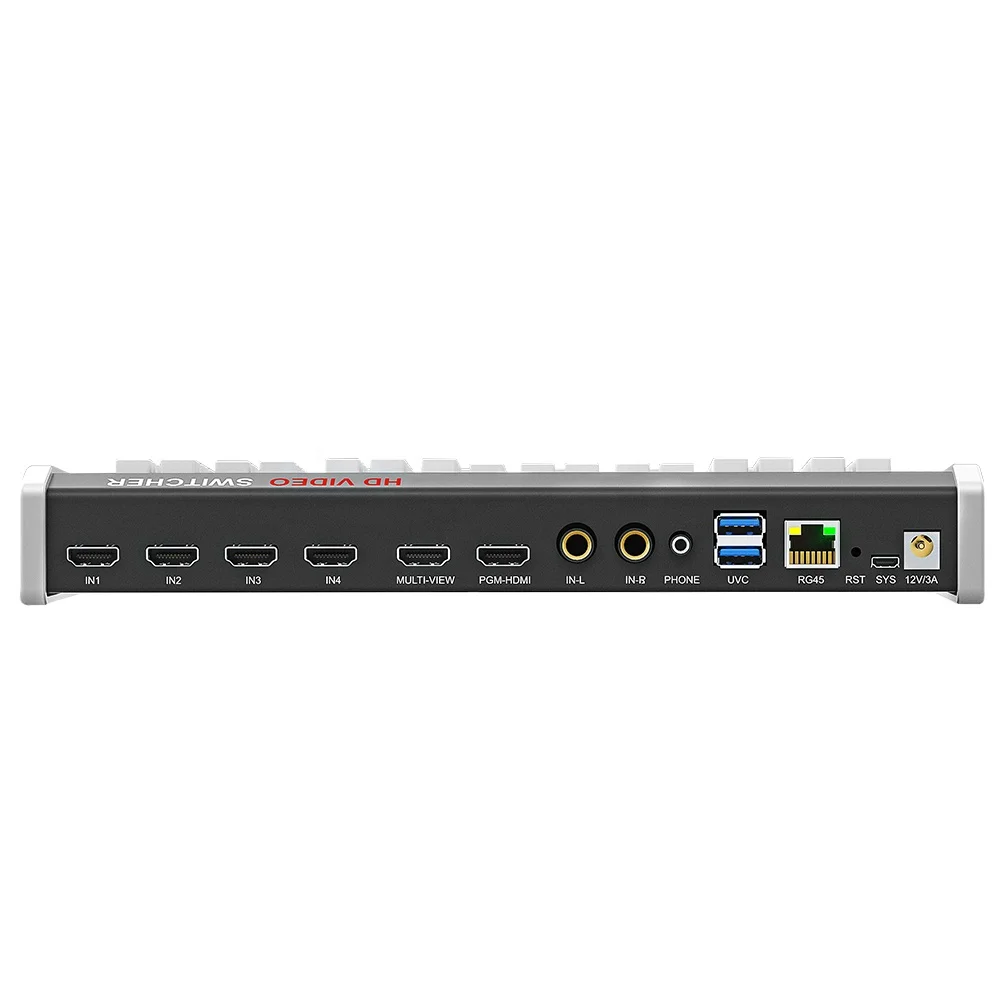

4 HD-MI Inputs
Geek S06 allows you to connect 4 HD-MI devices for video source 1-4. All inputs resolution are auto detected, you can have different formats on different inputs so you don’t worry about connecting video devices.
USB Stills or Videos Inputs
When using the Geek S06, you’ll never have to leave your audience with a blank screen when the presentation stops, the meeting goes on break, or the camera power goes down. Simply call up still images or videos in your USB media pool!
Decoding Stream Inputs
Geek S06 also enables you to load decoding video stream from your computer or the videos from your IP camera for video source 5 and 6. All inputs resolution are auto detected, you can have different formats on different inputs so you don’t worry about connecting video devices.
HD-MI Out for Program
Geek S06 features with 1 HD-MI output for Program video, it lets you connect to professional decks including big screen televisions.

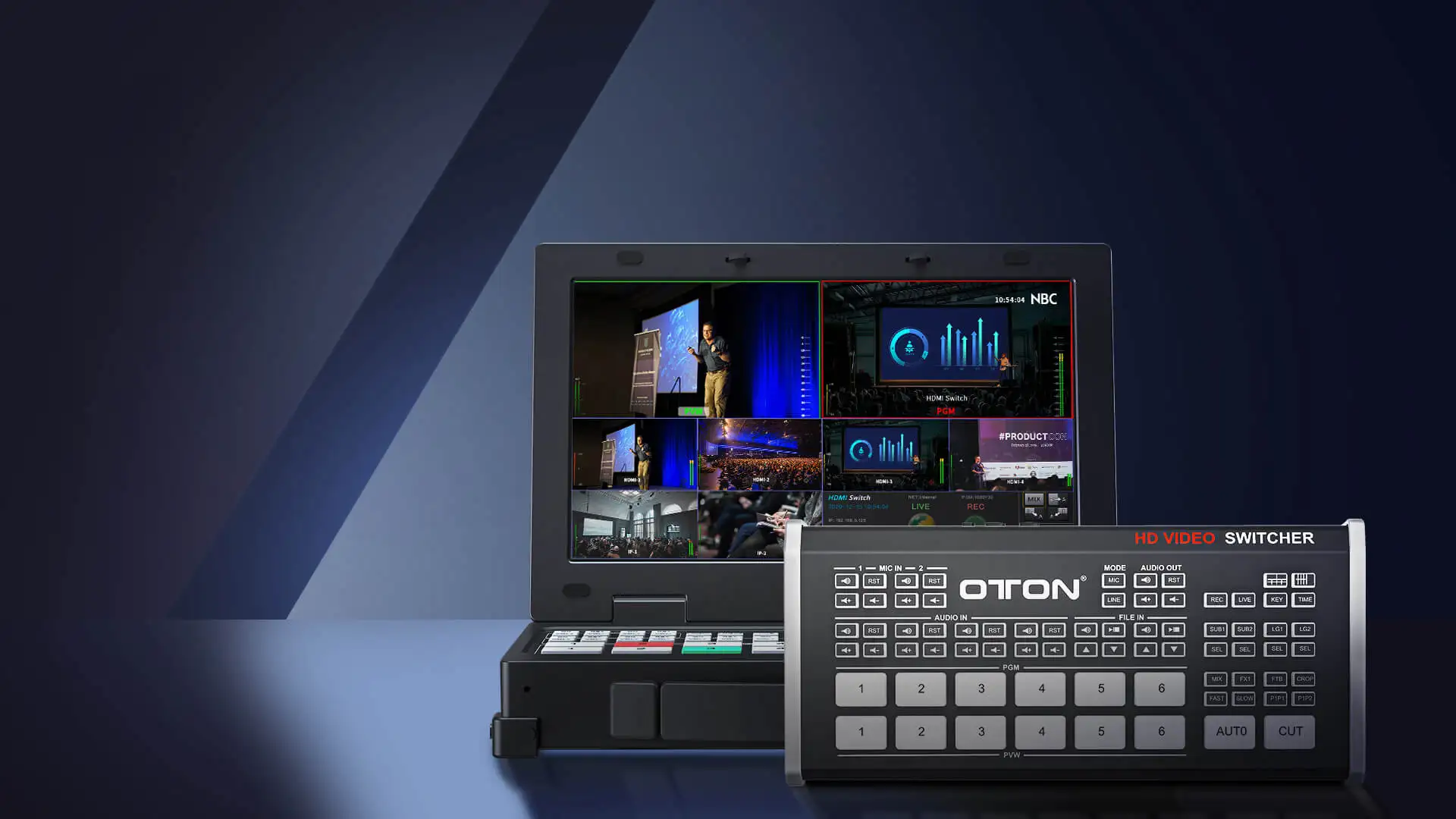

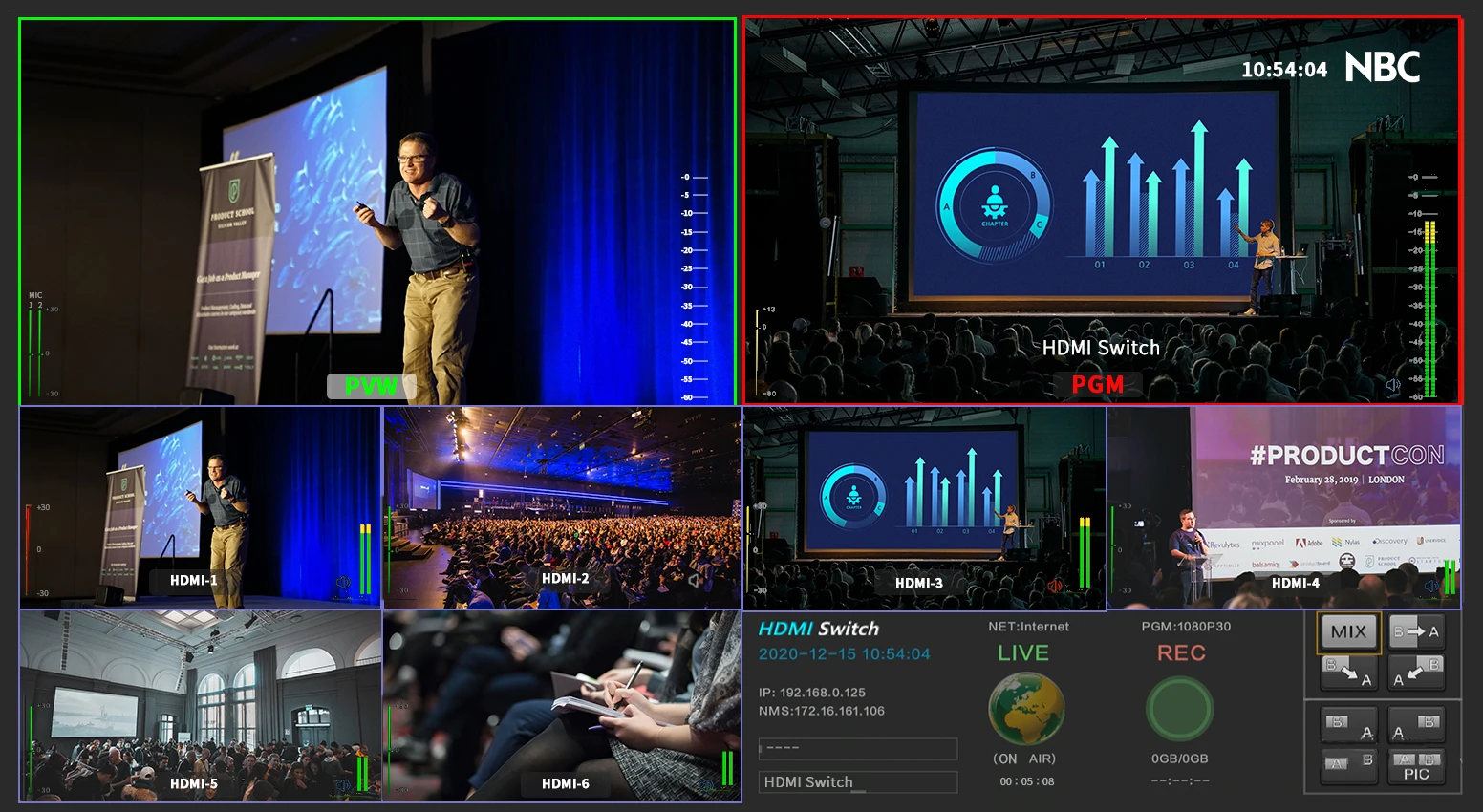

HD-MI Out for Multiview

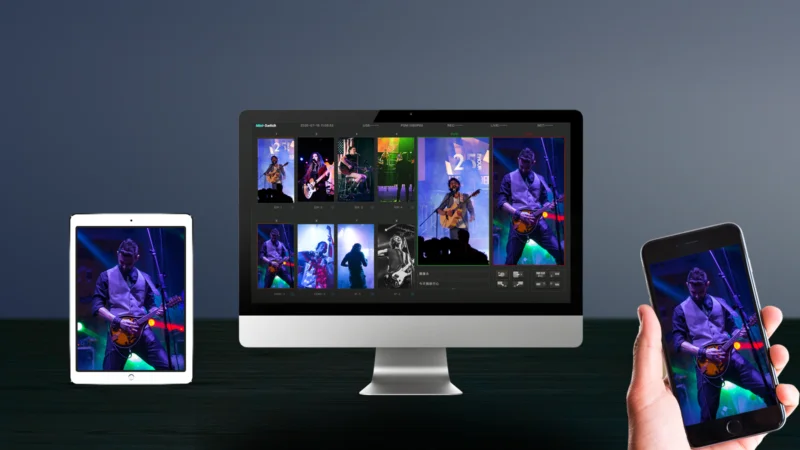

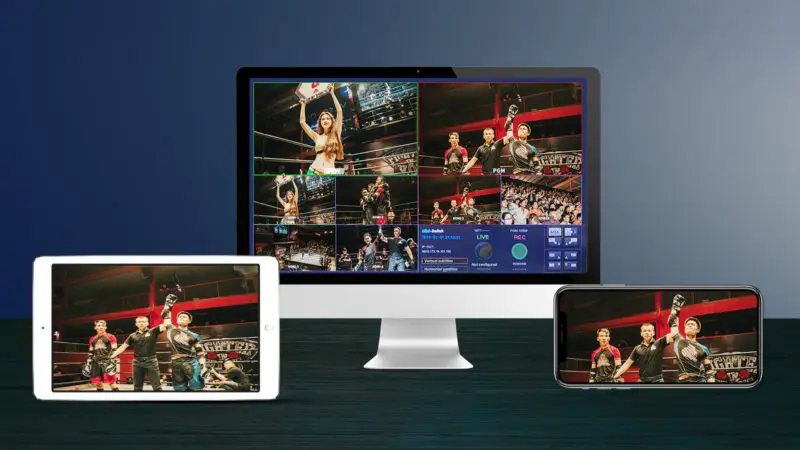

When you’re creating a live program from multiple cameras, it’s important to be able to see all of the video sources at the same time. Geek S06 features a 2nd HD-MI port for multiview. The multiview output lets you see up to 6 channels of video on a single HD-MI television. You can see all of your cameras, graphics, preview and final program output all on the same display at the same time. Customize labels, see audio meters, and more! Connect any standard TV to get perfect multi camera monitoring in any location! You can even select horizontal video mode or vertical video mode based on your needs.
Switch Between Hotizontal Video & Vertical Video
Geek S06 features with both horizontal video and vertical video, you can switch between based on your needs.

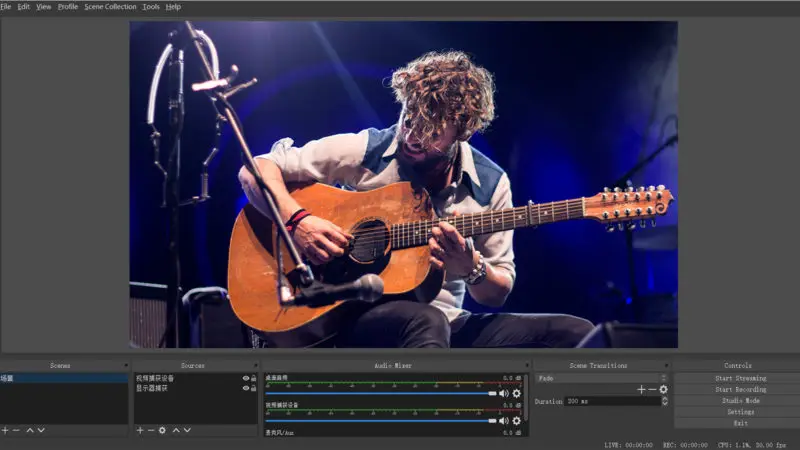

USB3.0 Out for USB Camera
To ensure maximum compatibility, Geek S06 features a USB 3.0 connection that operates as a simple webcam source. That means you can plug in and instantly get working with any video software. The software is tricked into thinking the Geek S06 is a common webcam, but it’s really a live production switcher! That guarantees full compatibility with any video software and in full resolution 1080HD quality. Choose any software you like, such as Open Broadcaster for live streaming, or Skype for Powerpoint presentations.
Live Stream via Ethernet on S06
Geek S06 has a built in hardware streaming engine for live streaming via its built in Ethernet connection. That means you can live stream to YouTube, Facebook and Twitch in better quality, without dropped frames and with much simpler settings. Just enter the streaming address and key!
Multistream Your Live Feeds
Geek S06 allows streamers and broadcasters to distribute their content to 4 platforms max at the same time, improving end users’ experience can lower abandonment rates, increase ad impressions, improve conversion rates, and strengthen customer loyalty.

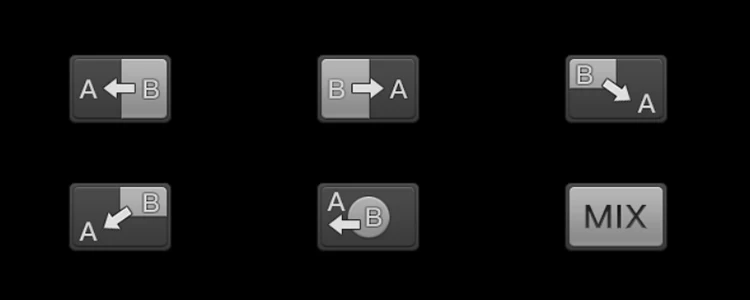

Add Exicting Transition Effects to Your Video
Cut bus switching is easy and selecting any input will directly switch to that source. However if you want to operate Geek S06 like a true professional then you can use the program/preview on the multiview screen. Select and instantly use broadcast quality transitions like mixes, wipes, fade and more when switching between sources! You can adjust the duration of transitions, along with an incredibly wide range of options including border, border color and width, position, direction and more! These customizable transitions gives your program that high end broadcast look!
Amazing PIP, POP Effects
A powerful digital video effects “DVE” processor lets you position or resize live video. That means you can create professional picture in picture(PIP) or picture outside of picture (POP) effects with customizable borders. Picture in picture enables you to superimpose a commentator when covering events such as sports, training videos, interviews and even gaming competitions. picture outside of picture let’s you display 2 images side by side when covering events such as sports, training videos, interviews and even gaming competitions.
Add Logos and Subtitles in Seconds!
Store unlimited logos and get them on air in seconds! Simply upload your logos at the web management page and store them. Add a logo to video benefits both individuals and enterprises. It is not only an effective way to make your video recognizable and personalized, and protect video copyright, but also a great way to promote your brand to achieve the business purpose.
Geek S06-A also allows to store up to 20 subtitles. Add subtitles to your videos, especially those you’re planning to post on social media, and you can significantly boost video engagement. Having your message in both audio and text can help ensure that your message can be heard (and read) by everyone, no matter what!
Geek S06-A also allows to store up to 20 subtitles. Add subtitles to your videos, especially those you’re planning to post on social media, and you can significantly boost video engagement. Having your message in both audio and text can help ensure that your message can be heard (and read) by everyone, no matter what!
Controlling Your Audio
With two independent 6.3mm stereo audio inputs, you can connect desktop and lapel microphones. You can even connect a music player to generate introduction music after the live stream commences but before the program starts. With 2 extra stereo audio inputs, you can ensure a host and guest both have lapel microphones when doing interviews. All audio inputs to Geek S06 include buttons on the panel for adjusting audio level and enabling inputs into the audio mixer.

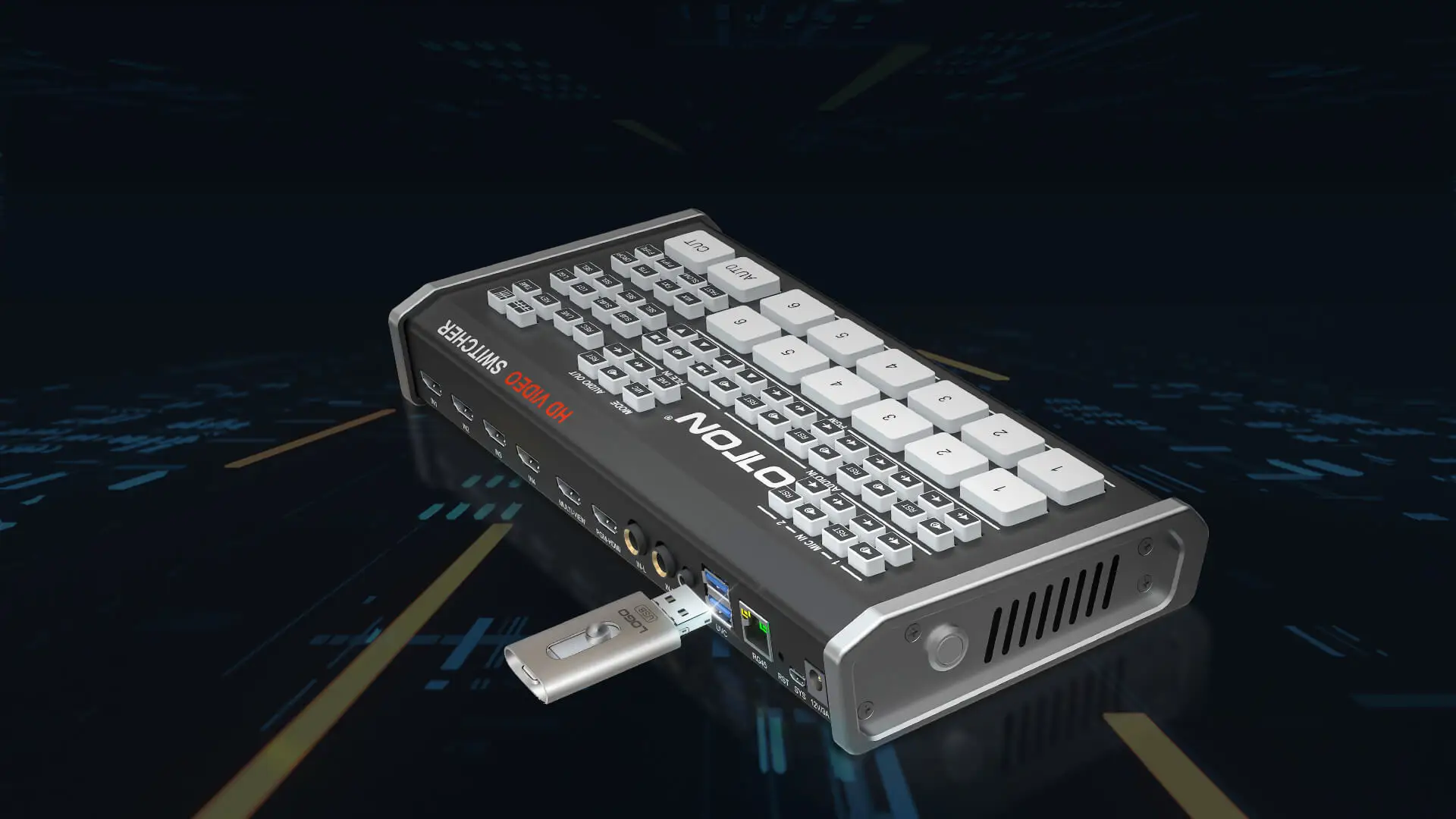

Record PGM Video to USB Drive via USB3.0
Geek S06 supports direct recording of your streaming data to USB drive! That means you get very long recordings in the same video files with stereo audio that you streamed, so you can direct upload to any online video site, such as YouTube and Vimeo..

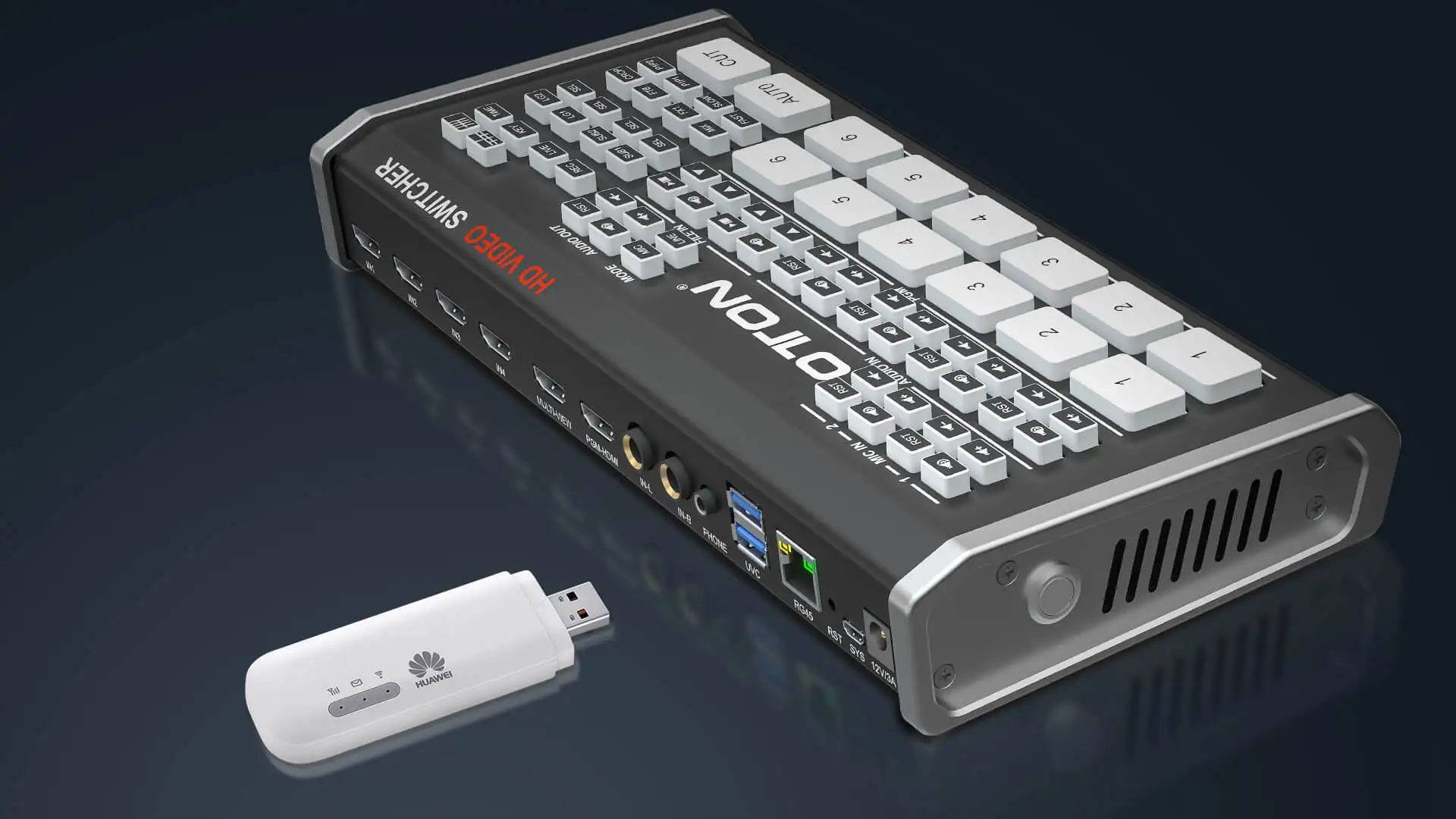

4G Wireless Dongle Connection
Geek S06 allows you to connect a 4G Wireless Dongle when you are doing live streaming outside for alternative network connection.

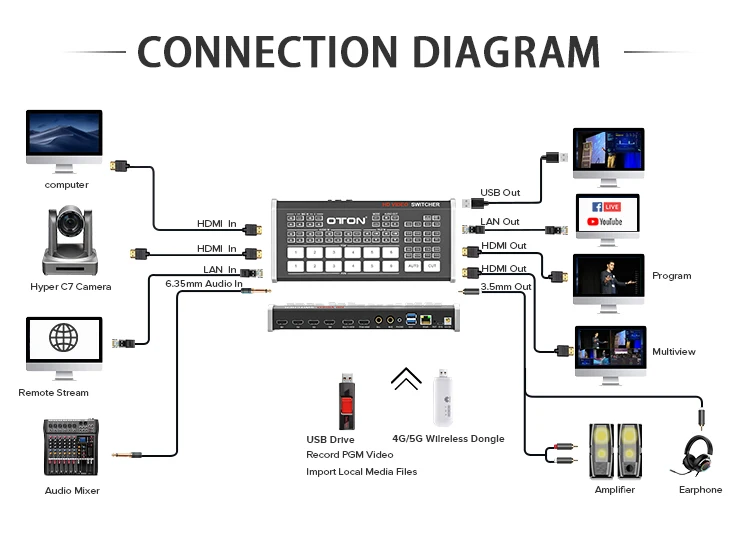

Connection Diagram
Technical Specification
Item | Oton Geek S06 | Blackmagic Atem Mini Pro |
Control | Hardware & Web management | Hardware & Software |
Total Channel | 6 | 4 |
Video Input | 4XHD-MI + 2 USB files or Decoding Video | 4xHD-MI |
Input Resolution | Auto detected | same with input 1 |
Video Output | 2 HD-MI 1 for Program, 1 for multiview | 1 HD-MI for program or multiview |
Audio Input | 2x6.3mm, line in or mic in adjustable | 2xmic in |
Audio Output | 1x3.5mm | N/A |
Work as Webcam | Yes, USB 3.0 | Yes, USB-C |
Built-in Encoding | H.264 | H.264 |
Multistream | 4 platforms | 2 platforms |
Video Decoding | Yes | NO |
Video Recording | Yes | Yes |
Vertical Streaming | Yes | NO |
PIP & POP | Yes | Yes |
Logo & Subtitle | Yes | Yes |
Keyer | Yes | Yes |
Camera Control | No | Yes |
Marco | No | Yes |
4G Wireless Dongle | Yes | No |
