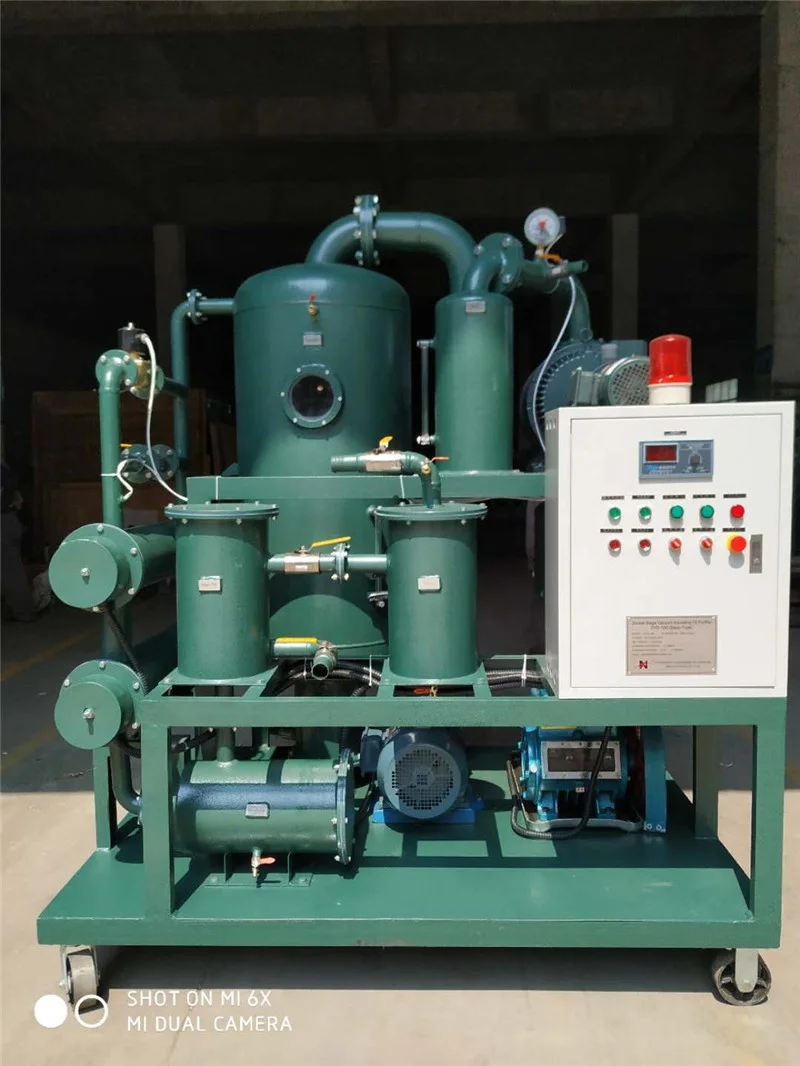

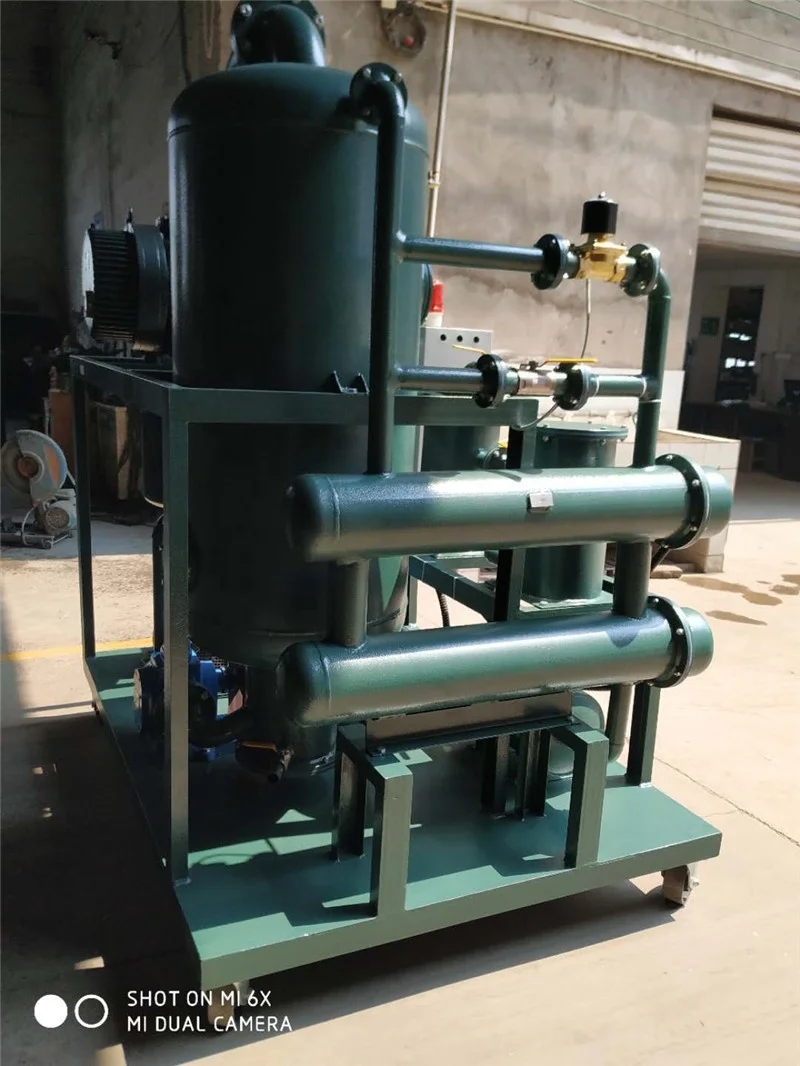

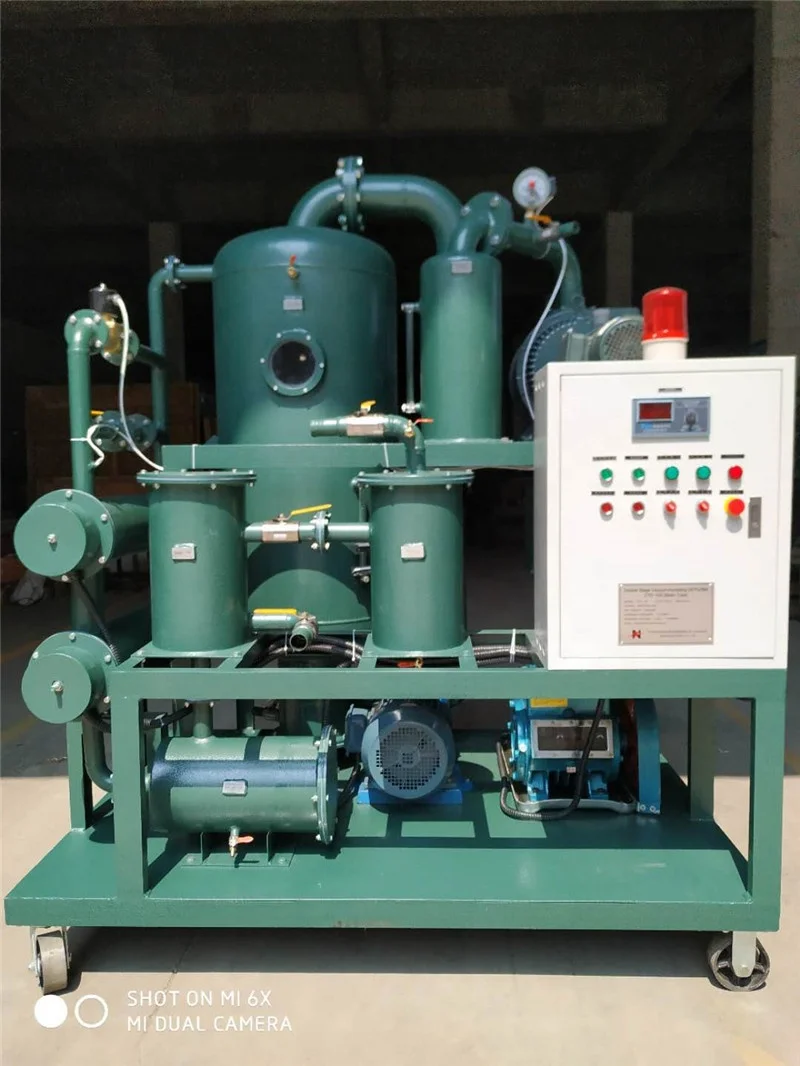

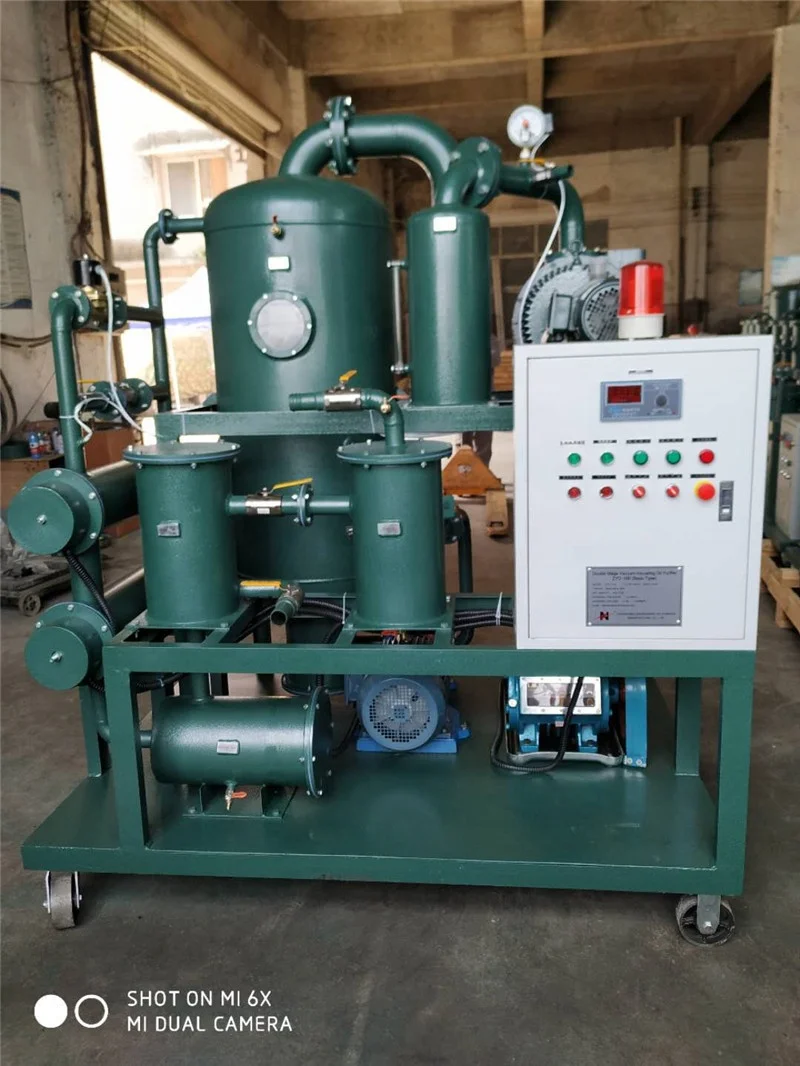

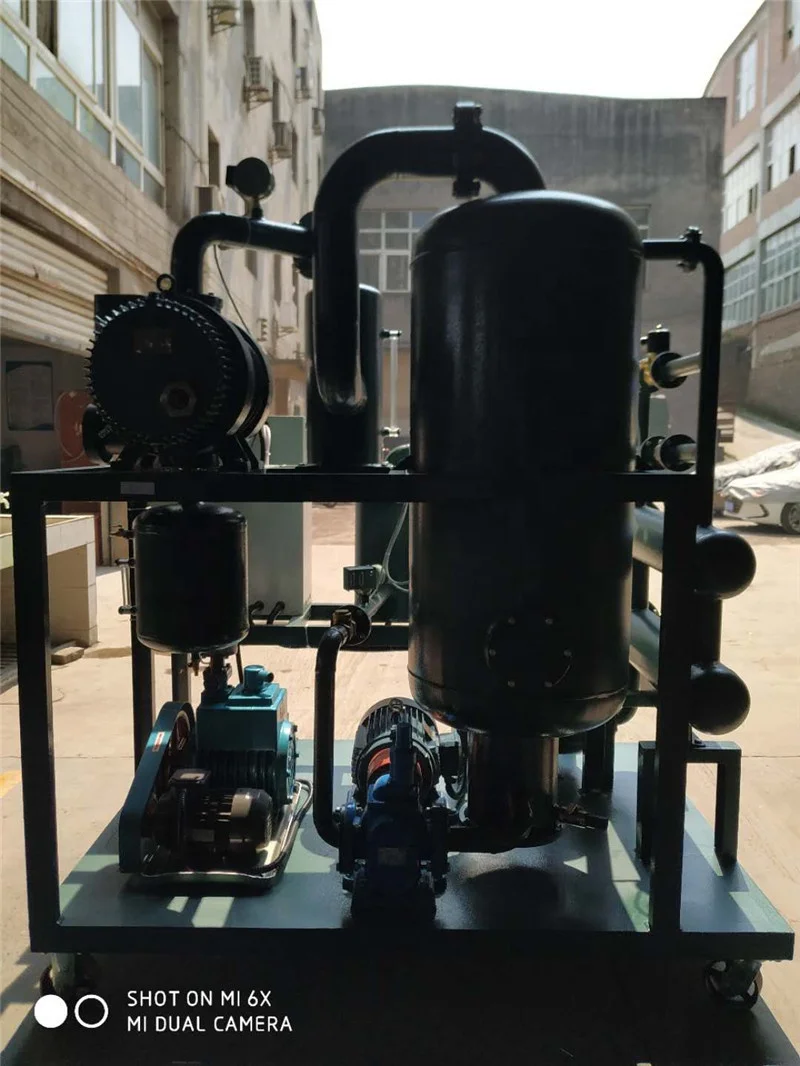

Long Lifetime Chongqing Zhongneng ZYD Series Used Insulating Oil Purifying Machine

Product Overview

Description





What ZYD can do for you?



Removes water, trace water from oil



Reduces combustible gases and oxygen



Improves oil dielectric values



Improves transformer power factor



Extends oil service life



Extends transformer service life and reliability

Models for option:



ZYD-30 ( 1800 L/Hr)

ZYD-50 (3000 L/Hr)

ZYD-100 (6000 L/Hr)

ZYD-150 (9000 L/Hr)

ZYD-200 (12000 L/Hr)

ZYD-250 (15000 L/Hr)

ZYD-300 ( 18000 L/Hr)

ZYD-400 (24000 L/Hr)

ZYD-500 (30000 L/Hr)

Or As Needed...





 Main Parameter of treated transformer oil by this machine:



1). Gas content is less than 0.1%



2). Impurity degree is less than 1μm without free carbon



3). Oil dielectric strength (breakdown voltage) is more than 75KV 4). Water content is less than 3 ppm(part per million)



5). Acidity value is less than 0.01 mgKOH/g



6). Dielectric loss factors at 90°C is less than 0.001

7). Cleanliness degree is less than NAS 1638 Grade 5



Advantages:



1. Advanced dehydrating and degassing system that uses large area three-dimensional flash distillation technique to remove harmful composition in the oil such as water, air and gas.It can be widely used for oil filling for transformers and circuit breakers under vacuum condition

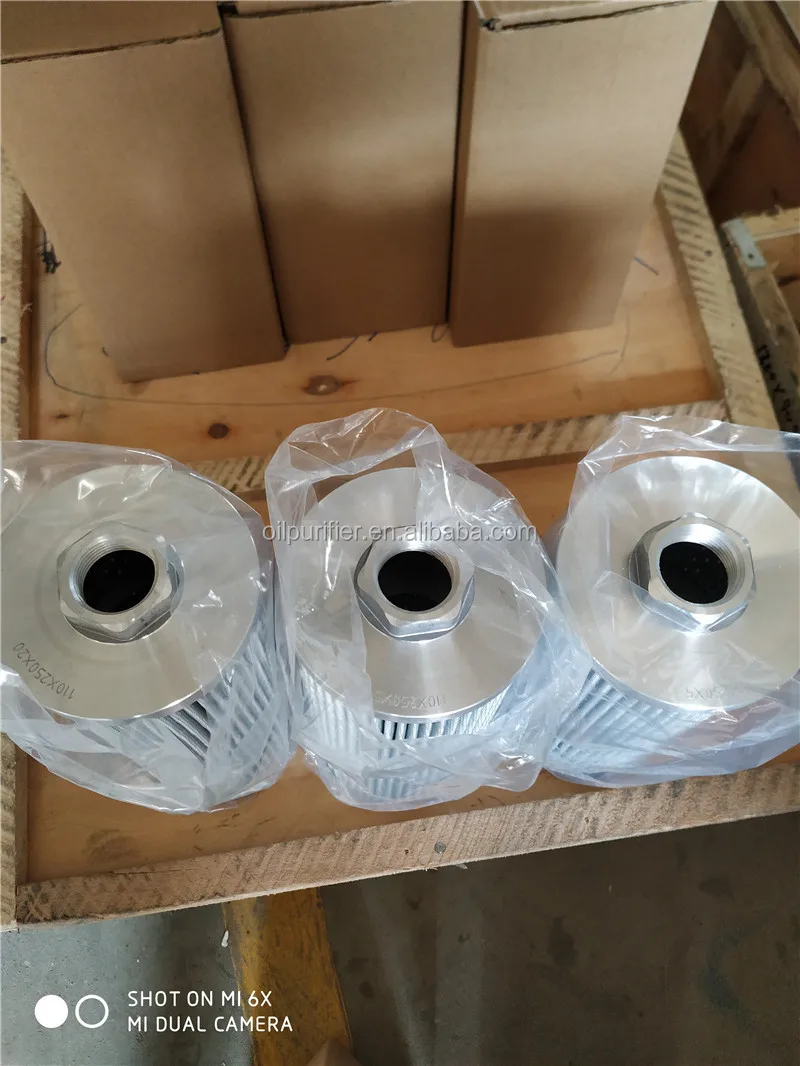

2. Precise filtration system, high-quality filter element, multi-stage filtration with gradual precision can help to remove mechanical impurities in the oil.



3. An advanced fully automatic temperature controlling system, liquid-level controlling system, defoaming controlling system, pressure protecting system and excellent equipment can ensure operation of the equipment with high performance.



4. Online work, allowing separated operation of manual operators from machine with lamps indicating the condition for operation.



5. It is humanization design with low noise, deep purification and longtime free maintenance to save cost from the running process.



6. Purifiers are equipped with a chain safety protective system, an interlocking of oil drainage system, vacuum system and heating system, which avoids any possible negative impacts caused by mal-operation.





ZHONGNENG’S Main Products/Used Oil Solutions:

For Transformer Oil Filtration and Test:

Series ZY Single-Stage Vacuum Transformer Oil Purifier
Series ZYB Multi-Function Insulating Oil Treatment Equipment
Series ZYD Double-Stage High Vacuum Transformer Oil Purifier
Series ZYD-I Double-Stage High Vacuum Transformer Oil Regeneration System

ZV series Vacuum Pumping Device

Series JY On-Load Tap-changer Insulating Oil Purifier

Series IIJ-II Oil Tester (BDV Tester)

For Lube Oil/Hydraulic Oil Purification:
Series TYA Lubricant Oil Purifier Machine

Series TYC Lubricating Oil Regeneration System

Series TYA-I Phosphate Ester Fire-Resistance Hydraulic Oil Purifier

For UCO / Used Cooking Oil Vegetable Oil Purification:

Series COP Cooking Oil Filtration Unit

For Turbine Oil Reclamation:
Series TY Turbine Oil Purification Unit

Series TY-R Turbine Oil Regeneration System

For Fuel Oil Filtering:

Series TYB Light Fuel Oil Coalescence-Separation Purifier

For Black Engine Oil Regeneration:
Series LYE Waste Engine Oil Recycling System

For Simple Used Oil Purification and Oiling
Series PL Paper Plate Pressure Oil Filter
Series JL Portable Oil Purifier

For Explosion Proof Type Oil Filtration Needed:

Series EFD Explosion Proof Type Oil Filtration System

(Can be added on any model above)
