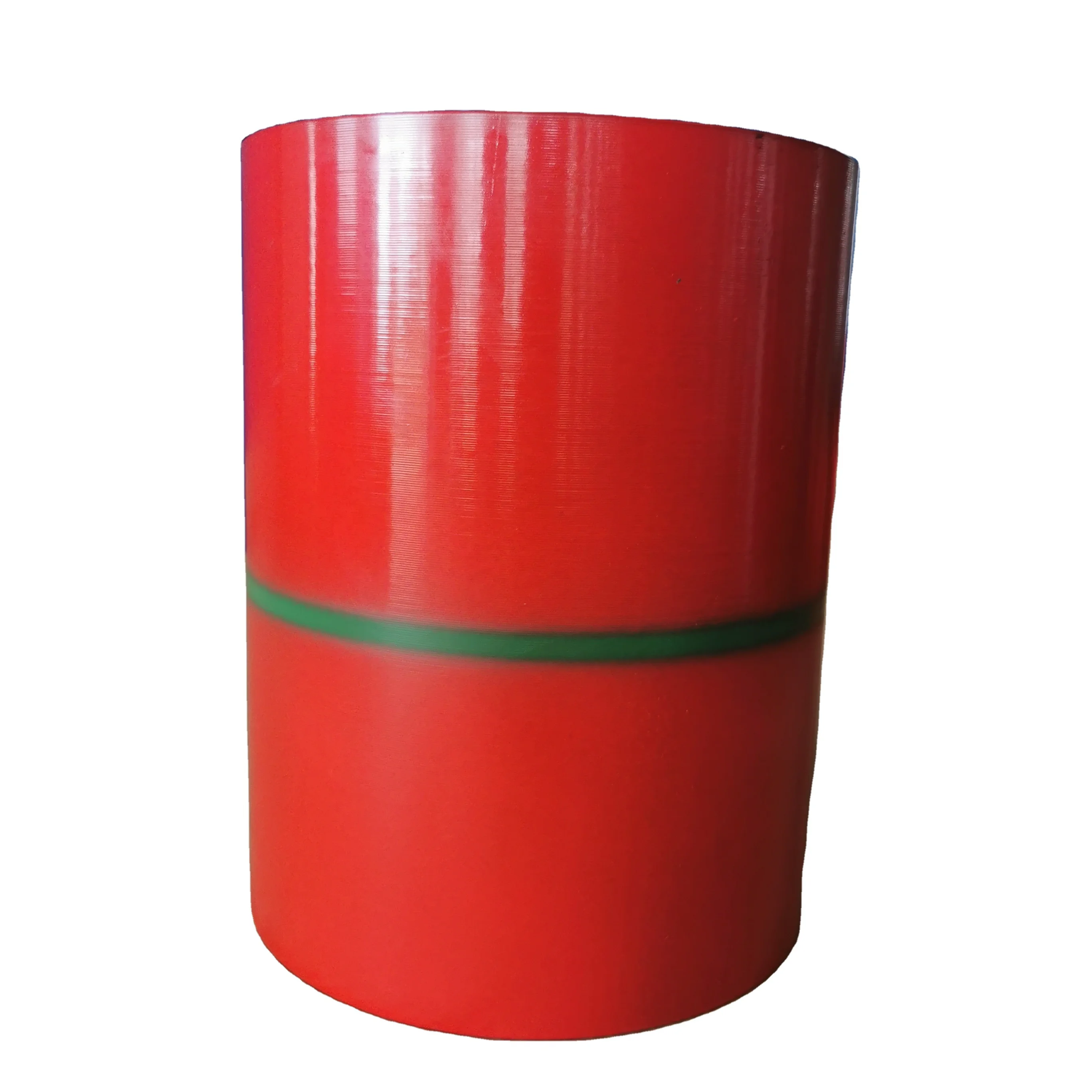

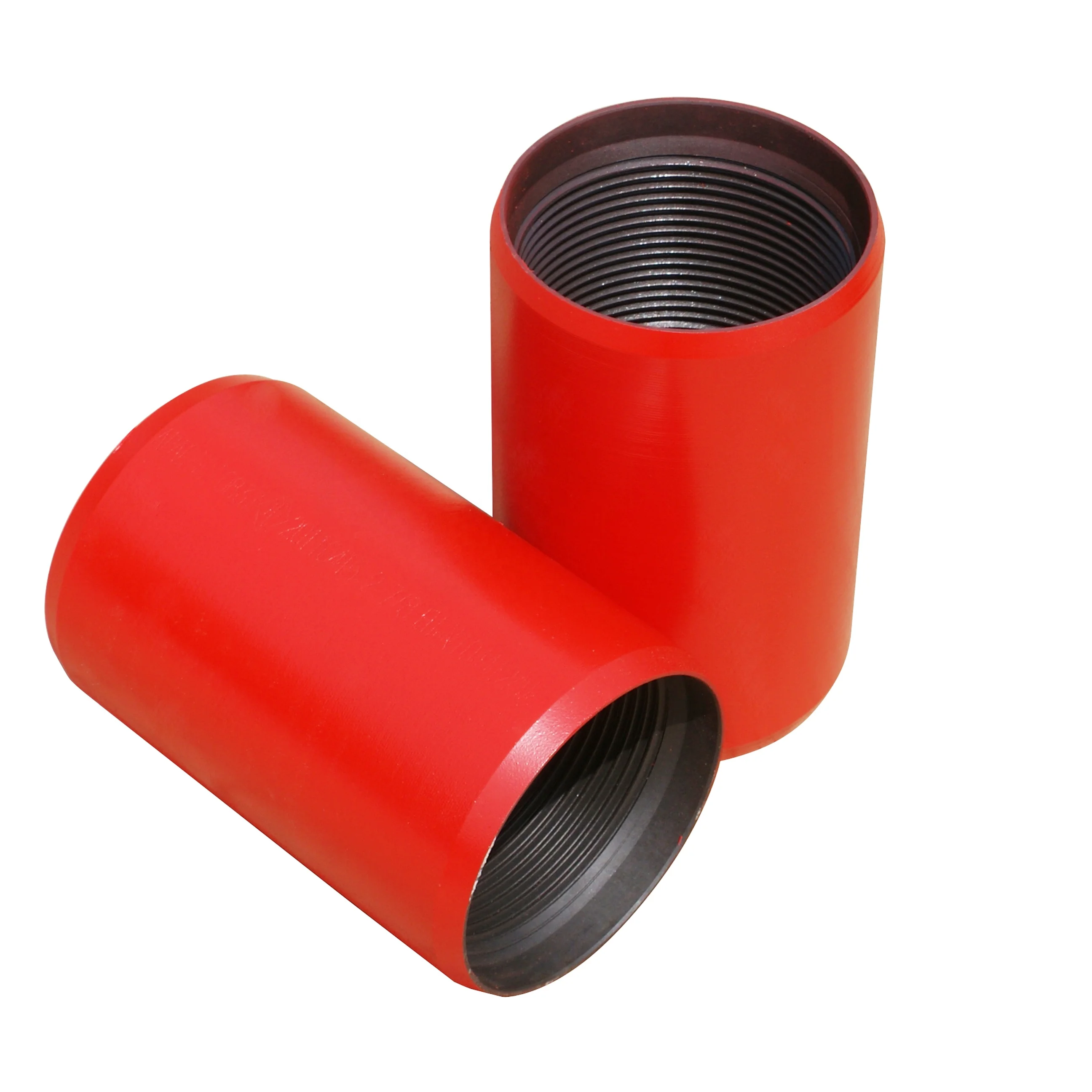

API 5CT NUE 5 1/2 Casing/Tubing Coupling with factory price
- Category: >>>
- Supplier: Henan Dongfanglong Trade Co. Ltd.Henan Ltd.
Share on (1600092264972):
Product Overview
Description
Product Description
Size Information
Tubing Coupling
Tubing coupling specifications | OD mm | Min length mm | Weight kg | ||||||
NU | EN | NU | EN | NU | EN | ||||
9 | 55.88 | 63.5 | 93.25 | 98.42 | 0.56 | 0.84 | |||
2 3/8 | 73.02 | 77.8 | 107.95 | 123.82 | 1.28 | 1.55 | |||
2 7/8 | 88.9 | 93.17 | 130.18 | 133.35 | 2.34 | 2.4 | |||
3 1/2 | 107.95 | 114.3 | 142.88 | 146.05 | 3.71 | 4.1 | |||
4 | 120.65 | 127 | 146.05 | 152.4 | 4.35 | 4.82 | |||
4 1/2 | 132.08 | 141.3 | 155.58 | 158.75 | 4.89 | 6.05 | |||
Casing Coupling
Casing coupling specifications | OD mm | Min length mm | Min length mm | ||||
short-thread | long-thread | short-thread | long-thread | ||||
4 1/2 | 127 | 158.75 | 177.8 | 3.62 | 4.15 | ||
5 | 141.3 | 165.1 | 196.85 | 4.66 | 5.75 | ||
5 1/2 | 153.67 | 171.45 | 203.2 | 5.23 | 6.42 | ||

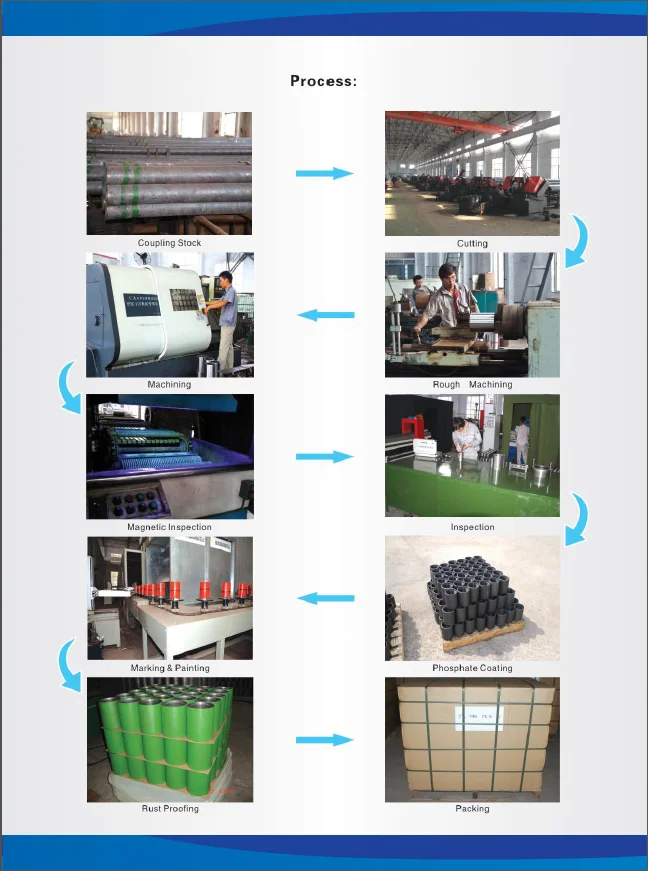

Production Process
Popular Items
Company Profile
Henan Dongfanglong Machine Manufacture Co.,Ltd was founded on 1999, with the location of the Intersection of 106 National High way and Jintian Road, East Industries Areas of Puyang, Henan, China. We have nearly 20 years of experience of producing, developing and selling tubing coupling,casing coupling,pup joints,tool joints,and so on. We have the ISO 9001 Quality Control Certificate, API - 5CT Certificate with the NO. 5CT-0837 and API - 7 certificate with the NO. 7-0649. Now we cooperate eith other company to make tricycle,we can design and produce them according to customer's detail require.
Certificate
Exhibition
