High density polyethylene 20l plastic hdpe water jerry can blow molding making machines
- Category: >>>
- Supplier: Suzhou Pekoe Import And Export Co. Ltd.
Share on (1600092397166):
Product Overview
Description
Product Overview

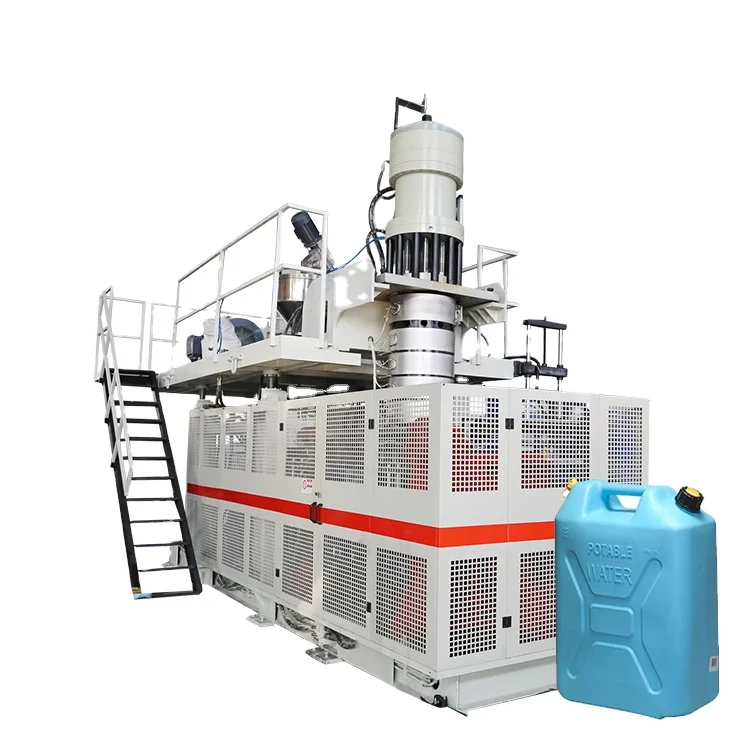

20l plastic hdpe water jerry can blow molding making machines
Extrusion blow molding machine is standard type machine with double station tie bar structure, The clamping structure is three or four tie bars direct locking structure with automatic lubrication system. The structure is simple and stable and it is convenient for plastics waste collection.
The whole machine adopts computer control, simple operation, reliable work, high degree of automation, good interchangeability of components,realize one machine multi-purpose. It can choose single and double mode-shifting models to meet different output requirements. It can be equipped with single head, double head, four head, multi-layer head, double transparent line head and servo wall thickness control head to meet the requirements of different products.
The whole machine adopts computer control, simple operation, reliable work, high degree of automation, good interchangeability of components,realize one machine multi-purpose. It can choose single and double mode-shifting models to meet different output requirements. It can be equipped with single head, double head, four head, multi-layer head, double transparent line head and servo wall thickness control head to meet the requirements of different products.
FEATURES AT A GLANCE

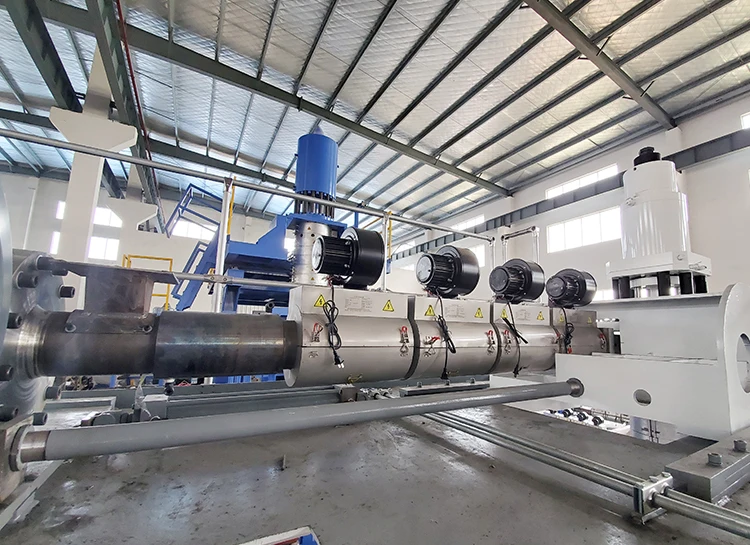

Extrusion system
Extrusion motor and gear box offer the power for screw. Meanwhile screw and barrel with strong material make sure plasticizing plastic material well, ceramic material heater with evenly and quickly heating function!

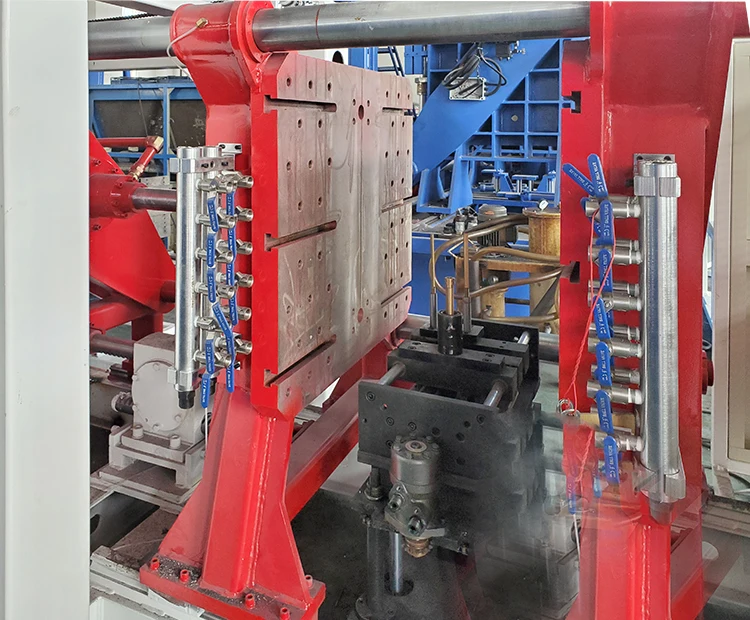

Clamp system
It has clamping plate and cylinder, linear guide, slider, transducer... Mold is fixed on the plate. All components make sure mechanical movement precision, stable and quick!
Electrical control
It has operation touch screen, PLC, contact switch, air switch, delay, voltage stabilized power, inverter. We could input, modify and monitor the parameter of heating, pressure, time, alarm... to control whole machine’s action parameter by touch screen. It has two operation languages, Chinese and English!

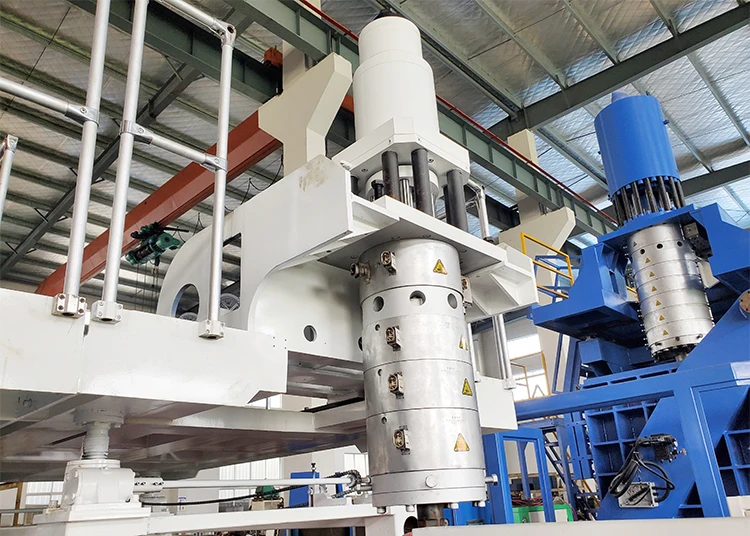

Head system
Adopt continuous type, material central coming in, eject material quickly and easy change
the head!
the head!
Hydraulic system
It has hydraulic motor, valve, pump, oil tank, oil cooler, tube... Offer power for mechanical action, meanwhile proportional valve is controlled by oil flow pressure for transfer digital signal into mechanical action, to control the action of blow pin, clamping structure, head and extrusion.
PRODUCT SPECIFICATIONS
Specification | BSM75N-20L |
Max product volume (L) | 20 |
Machine weight (T) | 10 |
Machine size(m) | 4.8X2.6X3.8 |
Screw diameter (mm) | 75 |
Length/Diameter ratio | 24/1 |
Extrusion motor power (kw) | 30 |
Plasticizing capacity (kg/h) | 105 |
Head type | accumulating |
Clamping force (KN) | 200 |
Platen size (mm) | 750*600 |
Platen opening stroke (mm) | 250-700 |
Max mould size (mm) | 500*700 |
Mould thickness (mm) | 250-350 |
Total power (kw) | 40 |
SIMILAR PRODUCTS
SALES AND SERVICE NETWORK
Whole production line
Mould for plastic machines
Auxiliary machine for plastic machines
HOW TO COOPERATE WITH US
Choosing the sulitable machine:
According to the customer's requirement, we will recommend the suitable machine for you.
Warranty time:
Our waranty ime is 12 months after the delivery. During this period, any quality problem of the machine, please contact us freely, We will invite professional engineers for both online and offline guidance.
Shipping and Training:
We will provide machine install video and run video to our customers before delivery. we should provide the training for the
buyer's employee for free in buyer's factory.Or the buyer let his employee come our factory learn with our engineer.
Installation and test:
when the machine reaches the buyer's factory,the buyer could tell us, we will dispatch an engineer to the buyer's factory to help install and test the machine until it runs normally.
According to the customer's requirement, we will recommend the suitable machine for you.
Warranty time:
Our waranty ime is 12 months after the delivery. During this period, any quality problem of the machine, please contact us freely, We will invite professional engineers for both online and offline guidance.
Shipping and Training:
We will provide machine install video and run video to our customers before delivery. we should provide the training for the
buyer's employee for free in buyer's factory.Or the buyer let his employee come our factory learn with our engineer.
Installation and test:
when the machine reaches the buyer's factory,the buyer could tell us, we will dispatch an engineer to the buyer's factory to help install and test the machine until it runs normally.
Any question,please feel free to contact us.
