Algae Tubular Separator Centrifuge
US $6800
Discharging slurry dewatering horizontal decanter centrifuge
- Category: Separation Equipment >>>
- Supplier: Jiangsu,Hanpu,Mechanical,Technology,Co.,Ltd
Share on:
Product Overview
Description
Product Description
This machine is solid-liquid separation equipment which adopts continuous operation and intermittent discharging.
It is controlled by PLC. It regulates speed by frequency convertor, braking system adopts dynamic braking and regenerativebraking.
Through such procedures as product level detection, speed, inspection, shaft temperature and vibration monitoring, the wholeseparation process is automatic circulative work (including feeding, dehydration, washing, discharging and etc.)
Also manual operation mode is available which can be changed over from full-automation mode by customer's will.
It is controlled by PLC. It regulates speed by frequency convertor, braking system adopts dynamic braking and regenerativebraking.
Through such procedures as product level detection, speed, inspection, shaft temperature and vibration monitoring, the wholeseparation process is automatic circulative work (including feeding, dehydration, washing, discharging and etc.)
Also manual operation mode is available which can be changed over from full-automation mode by customer's will.

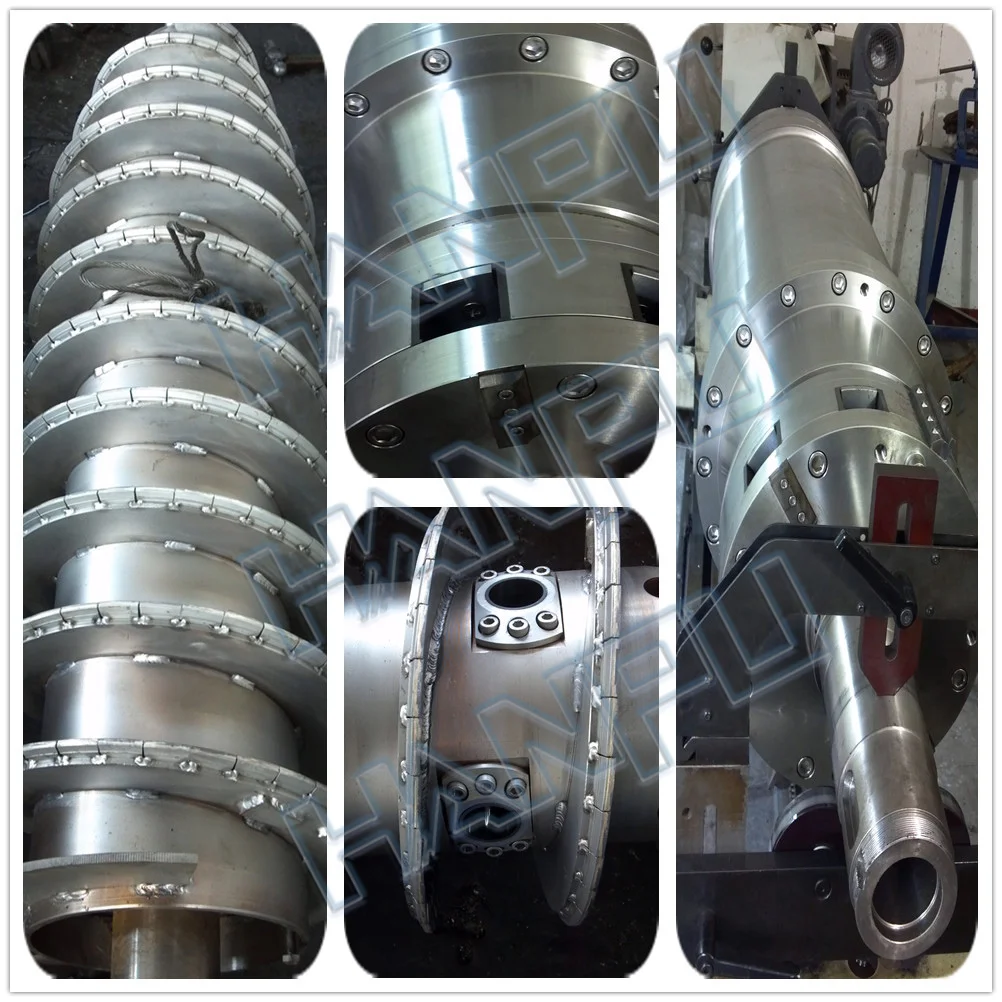

Detailed Images
PPC series centrifuge is not only used for medium and fine particle contained suspension’s separation, but also used for the solid-liquid separation of noxious, explosive and combustible product.
This centrifuge adopts indined hopper or screwed conveyor to discharge solid product.
It is mainly used in solid-liquid separation of raw materials, intermediates and end products in the fields such as pharmaceutical industry and chemical industry.
This centrifuge adopts indined hopper or screwed conveyor to discharge solid product.
It is mainly used in solid-liquid separation of raw materials, intermediates and end products in the fields such as pharmaceutical industry and chemical industry.
Size Information
Model | PPC-600 | PPC-800 | PPC-1050 | PPC-1250 | PPC-1250A | PPC-1350 | PPC-1600 | PPC-1600A | PPC-1800 |
Drum dia(mm) | 600 | 800 | 1050 | 1250 | 1250 | 1350 | 1600 | 1600 | 1800 |
Drum height (mm) | 315 | 400 | 500/ 630 | 500 | 4000 | 680 | 800 | 1000 | 1250 |
Drum volume(L) | 41 | 100 | 210/ 260 | 265 | 3600 | 500 | 700 | 840 | 1390 |
Loading cap(kg) | 53 | 130 | 230/ 280 | 350 | 2800 | 650 | 900 | 1000 | 1800 |
Max speed (rpm) | 2400 | 1500/1600 | 1400/1700 | 1200 | 2500 | 1200 | 950 | 950 | 900 |
Max G-force | 1931 | 1007/1145 | 1150/1696 | 1006 | 2000 | 1086 | 808 | 808 | 815 |
Motor powe(kw) | 18.5 | 30 | 37/55 | 55 | 1500 | 55 | 90 | 90 | 132 |
Size with shock absorber (mm) | 1745*1400*1307 | 2215*2000*2100 | 3191*2100*2140 | 2745*2200*2620 | 2745*2200*2620 | 3860*2500*2900 | 4625*3100*3430 | 4625*3100*3430 | 5640*3600*3900 |
1. This centrifuge adopts speed regulation by frequency convertor and PLC control, friendly human-computer interface and electric hydraulic (pneumatic) device. Monitoring can be executed in overall processes such as feeding, initial filtering, washing,secondary filtering and discharging etc. which embodies automatic operation without operator, so human-machine conversation can berealized with convenient use and maintenance.
2. Frequency speed regulation system is adopted to ensure stepless speed regulation, while dynamic braking(or regenerative braking)is adopted to ensure stable operation. There is also perfect protection system, product level detection, speed inspection, vibration protection, interlock protection for machines opening over heating protection for motor and scraper motion protectionallof which make it safer for operation.
3. Adopted whole sealing sex-proof structure, the centrifuge has automatic air exchange system (according to oxygen content content or protective gas pressure) or inert gas protection, so it can meet the demand of GMP Norm of pharmaceutical industry and solid-liquid separation of flammable and explosive products.
4. Welded structure is adopted on the shell to ensure a tight form and high intensity but light weight.
5. Inner surface is polished and no dead angles are left. Connection parts, welding seam, corner and edge adopt round and smooth treatment. Equipped with CIP system (product and machine cleaning) to get a optimized washing effect.
6. The automatic residual cakes removing device is optional (have owned the national patent)
2. Frequency speed regulation system is adopted to ensure stepless speed regulation, while dynamic braking(or regenerative braking)is adopted to ensure stable operation. There is also perfect protection system, product level detection, speed inspection, vibration protection, interlock protection for machines opening over heating protection for motor and scraper motion protectionallof which make it safer for operation.
3. Adopted whole sealing sex-proof structure, the centrifuge has automatic air exchange system (according to oxygen content content or protective gas pressure) or inert gas protection, so it can meet the demand of GMP Norm of pharmaceutical industry and solid-liquid separation of flammable and explosive products.
4. Welded structure is adopted on the shell to ensure a tight form and high intensity but light weight.
5. Inner surface is polished and no dead angles are left. Connection parts, welding seam, corner and edge adopt round and smooth treatment. Equipped with CIP system (product and machine cleaning) to get a optimized washing effect.
6. The automatic residual cakes removing device is optional (have owned the national patent)
