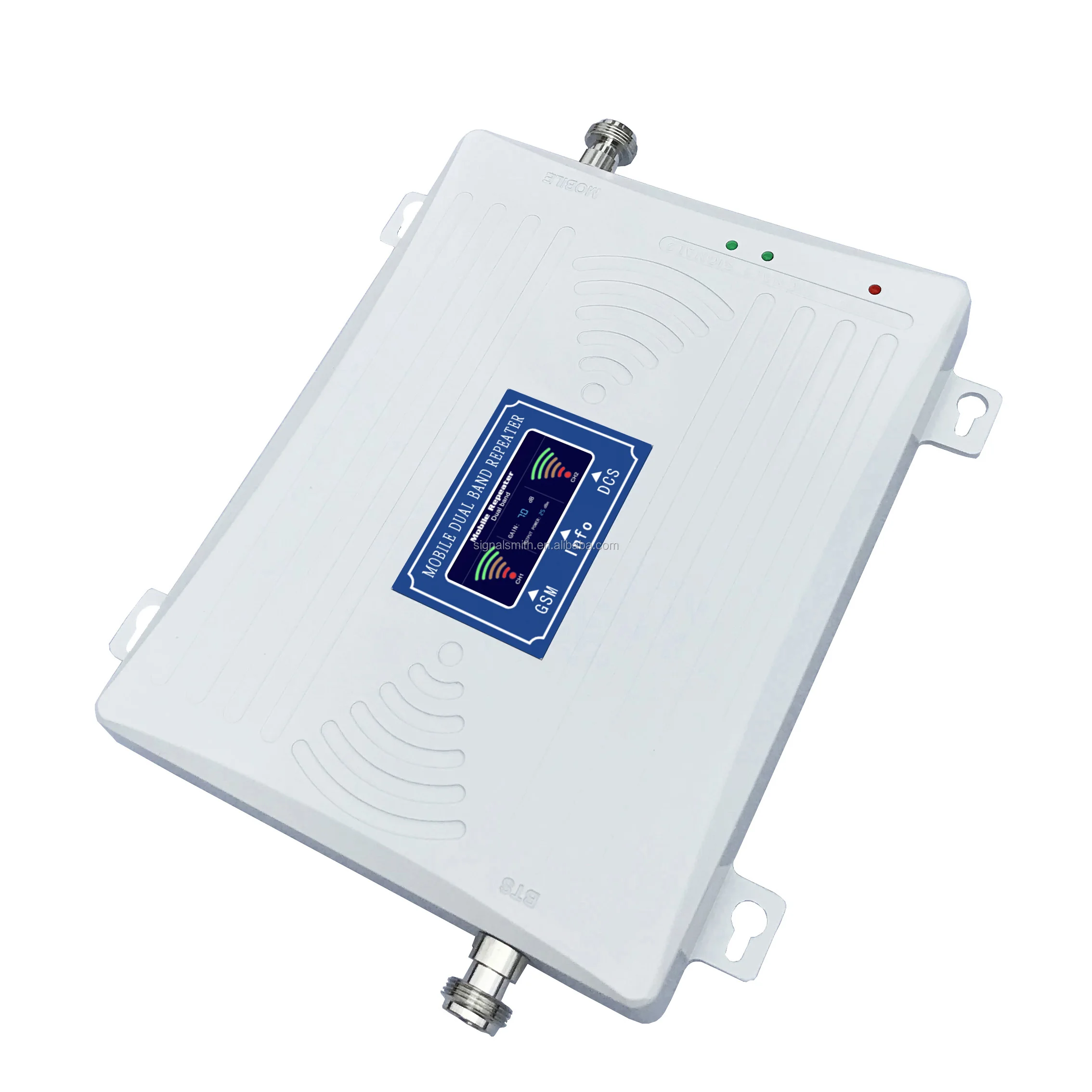

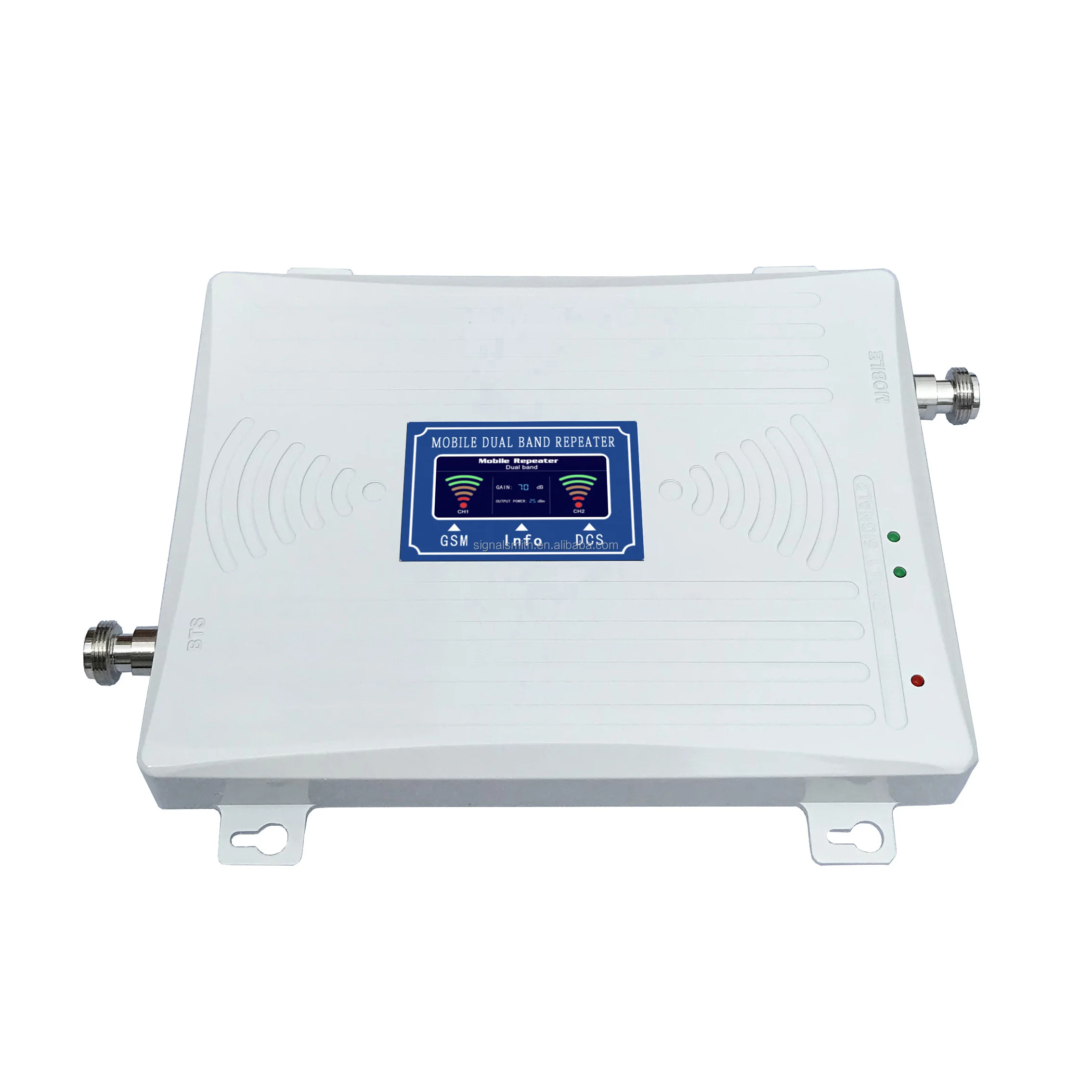

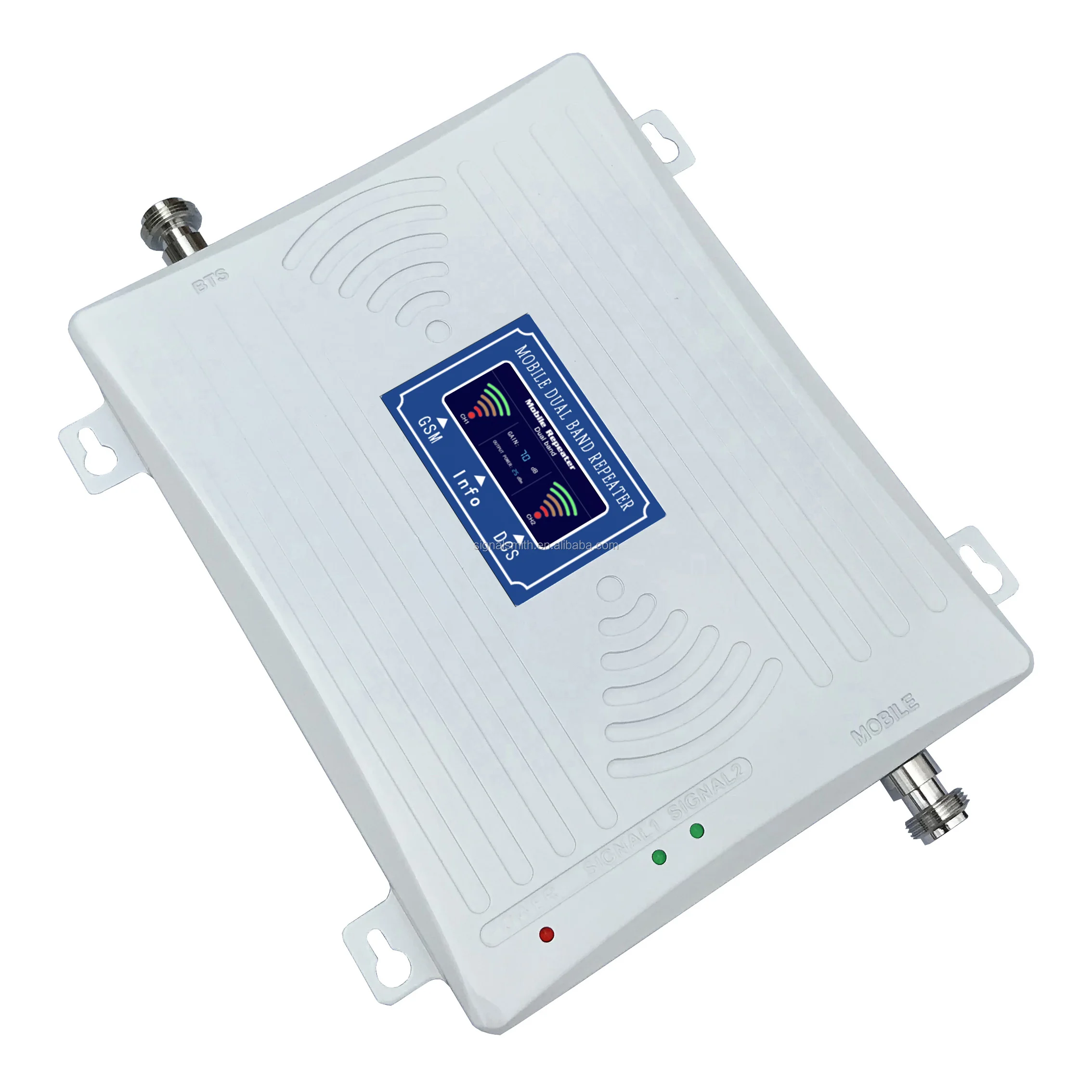

900/1800MHz GSM DCS Dual band Mobile Signal Amplifier/Signal Booster/Repeater
- Category: >>>
- Supplier: Shenzhen Jiangxin Communication Technology Co. Ltd.
Share on (1600093099889):
Product Overview
Description
Product Paramenters
Technique Specification | ||||||
Model No | SS94-GD | |||||
Parameter data | Uplink | Downlink | ||||
Frequency Range | GSM | 890~915 MHz | 935~960 MHz | |||
DCS | 1710~1785 MHz | 1805~1880 MHz | ||||
Output Power | 18 ±2dBm | 23 ±2dBm | ||||
Gain | 65±2 dB | 70±2dB | ||||
Ripple in Band | ≤3dB | |||||
Intermodulation Products | 9KHz~1GHz | ≤ -36 dBm | ||||
1GHz~12.75GHz | ≤ -30 dBm | |||||
Spurious Emission | 9KHz~1GHz | ≤ -36 dBm | ||||
1GHz~12.75GHz | ≤ -30 dBm | |||||
Noise Figure | ≤ 6 dB | |||||
VSWR | ≤2 | |||||
Power Supply | AC:100~240V, 50/ 60Hz;DC:12V 2A | |||||
Power Comsumption | < 24W | |||||
Impedance | 50 ohm | |||||
Mechanical Specification | ||||||
RF Connector | N-Female | |||||
Dimensions (D x W xH ) | 235*182*21(mm) | |||||
Weight | ≤ 1.2Kg | |||||
Operating Temperature | -10℃ ~ 55℃ | |||||
Products Description
Product Usage
Install the outdoor antenna in an open and signaled position, aiming at the direction of the base station.
Step2：
Use the outdoor antenna cable to connect the outdoor antenna to the BTS (outdoor) port of the host.
Step3：
Install the indoor antenna within the range of signals to be covered and connect it with the MS (Interior) port of the host.
Step4：
Plug in the power adapter and the host can work normally. (adjust the direction, position and height of the outdoor antenna to make the signal grid on the LCD screen display in the best state)
Attention!
The indoor and outdoor antennas and other accessories involved in the installation method are only for installation instructions and are not included in the product. The product only contains the signal repeater host and power adapter.If you need other accessories, you can contact us or enter other links in the store to purchase.
Related Products
Packing&Shipping
Packaging Details：Each signal repeater is individually packaged, using a neutral carton to fully protect the product from damage.
Delivery Detail：within 7 weekdays after all confirmed.
Shipping Method：by air,land,sea or expression courier.
Company Introduction
Shenzhen SignalSmith Technology Co., Ltd. is a high-tech enterprise specializing in R&D, manufacturing and sales of mobile phone signal amplifiers, repeaters and other products. It has a large and advanced R&D team, a complete and scientific quality management system, and a professional, complete, enthusiastic and thoughtful after-sales service process and service quality. With these, it has been awarded the honorary certificate of Guangdong Province "Contract-honoring and Credit-keeping" Enterprise.
The company was founded in 2016 and is located in Shenzhen, China. It is committed to the research and development of mobile phone signal amplification, working hard for the national and even global signal coverage, and reducing the trouble caused by signal blind areas. The company has always adhered to the "credit and people-oriented" business Philosophy, "Science and Technology Innovation, Quality First" management belief, relying on professional technology to quickly lay a solid foundation at home and abroad, and become a well-known brand in the industry.
We are sincerely willing to cooperate with you. let’s win the future together!
Our Services & Strength
We have professional R&D personnel, production technology and rich experience, enough to guarantee the quality and price of the products.
We will be your most suitable choice. Give me a chance and give you a surprise !
FAQ
Q：Are you a manufacturer？
A：Yes, we have our own factory in Shenzhen, China. We are a factory specializing in the production and sales of repeaters
Q：Can you accept customization?
A：Yes, we accept customized repeater appearance, frequency, logo pattern, etc...
Q：What payment methods do you accept？
A：We support T/T,VISA,mastercard,Boleto,Online Bank Payment and Pay Later.
Q：Can you provide samples for free?
A：We do not provide samples for free, but we can refund the cost of your first sample when you buy it for the second time
A：Yes, we have our own factory in Shenzhen, China. We are a factory specializing in the production and sales of repeaters
Q：Can you accept customization?
A：Yes, we accept customized repeater appearance, frequency, logo pattern, etc...
Q：What payment methods do you accept？
A：We support T/T,VISA,mastercard,Boleto,Online Bank Payment and Pay Later.
Q：Can you provide samples for free?
A：We do not provide samples for free, but we can refund the cost of your first sample when you buy it for the second time
