Electric Remote Control Tracked Robot chassis custom made Rubber crawler undercarriage
- Category: Construction Machinery Parts >>>
- Supplier: Shanghai,Kymoon,Rubber,Co.,Ltd.
Share on:
Product Overview
Description
We have developed various tracked undercarriage systems and the load capacity is from 0.5 ton to 20 ton. It has been widely applied in drilling machines (core drill, horizontal directional drilling rig, belt engineering drill, and engineering rig), engineering machines, mining, colliery, agricultural and gardening machines. Meanwhile, we have a lot of experience engineers who can provide you technical support and technical consultancy to meet your needs. If you are just in need to customize a rubber track chassis, please feel to consult us at any time.

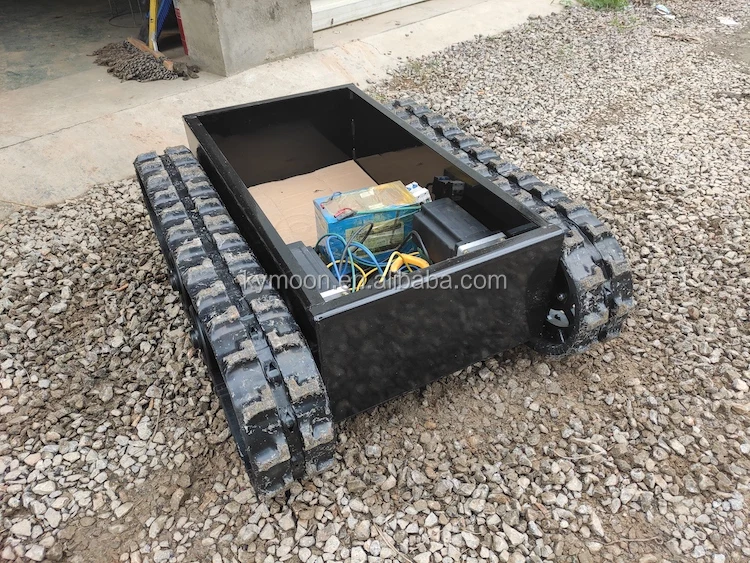

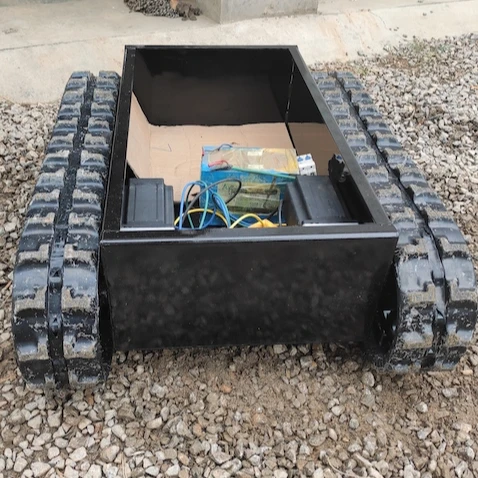

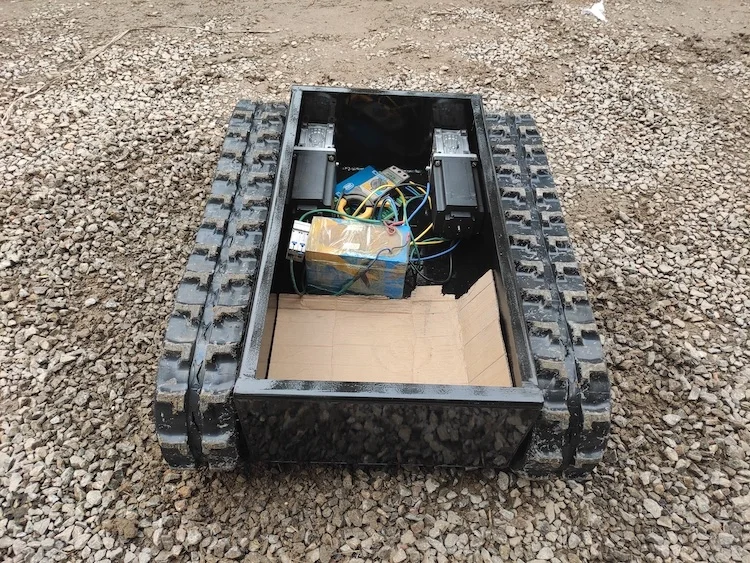

Rubber tracked chassis romote control
Products Features
1. The track uses high-strength tensile fiber, 150mm wide wear-resistant rubber track
2. The wheels are made of polymer polyethylene
3. The body of the chassis is made of steel and the overall body weight is light.
4. Equipped with a remote control system with an effective distance of 600 meters and a crawler chassis with convenient control
5, the driving speed is about 5 kilometers per hour
6. The climbing ability can up to 40 degree. It has a very good passability on unconventional roads such as snow. It is an all-terrain chassis.
Below is our small size, for big size,please kindly contact us
Small size rubber track undercarriage chassis platform | |||||||||
Model | Length | Width | Height | Sprocket Diameter | Rubber Track Model/Width | Rubber Track Link | Weight | Load-bearing Weight | frame |
KCM-40 | 540mm | 545mm | 150mm | 140mm | 40/40mm | 27 | 26.5kg | 50kg | Aluminum Alloy Bracket |
KCM-50 | 810mm | 377mm | 165mm | 99mm | KCMDG-50/50mm | 75 | 50kg | 100kg | Stainless Steel Bracket |
KCM-76 | 940mm | 550mm | 210mm | 200mm | KCM-A/76mm/KCM-B/60mm | 138/84 | 24.15kg | 150kg | Aluminum Alloy Box |
KCM-100 | 700MM | 520MM | 240MM | 197MM | KCM-A/100mm | 40 | 95kg | 100kg | Aluminum Alloy Box |
KCM-70 | 590mm | 530mm | 250mm | 172mm | KCM-70/70mm | 28 | 17.85kg | 100kg |
|
KCM-70 | 800MM | 570MM | 300MM | 195.7MM | KCM-70/70mm | 43 | 44kg | 150kg | Aluminum Alloy Box |
KCM-70 | 1010MM | 540MM | 410MM | 195.7MM | KCM-70/70mm | 54 | 106kg | 150kg | Aluminum Alloy Box |
KCM-100 | 640mm | 520mm | 260mm | 212mm | KCM-A/ 100mm | 36 | 46kg | 75kg | Square Tube Bracket |
The feature of rubber tracks:
(1). Less round damage
Rubber tracks cause less damage to roads than steel tracks, and less rutting of soft ground than either steel tracks of wheel products.
(2). Low noise
A benefit to equipment operating in congested areas, rubber track products less noise than steel tracks.
(3). High speed
Rubber track permit machines to travel at a higher speed than steel tracks.
(4). Less vibration
Rubber tracks insulate machine and operator from vibration, extending the machine's lifetime and lowering operate fatigue.
(5). Low ground pressure
The ground pressure of rubber tracks equipped machinery can be fairly low, about 0.14-2.30 kg/ CMM, a major reason for its use on the wet and soft terrain.
(6). Superior traction
The added traction of rubber, track vehicles permits them to pull twice the load of wheel vehicles of the sane weight.
