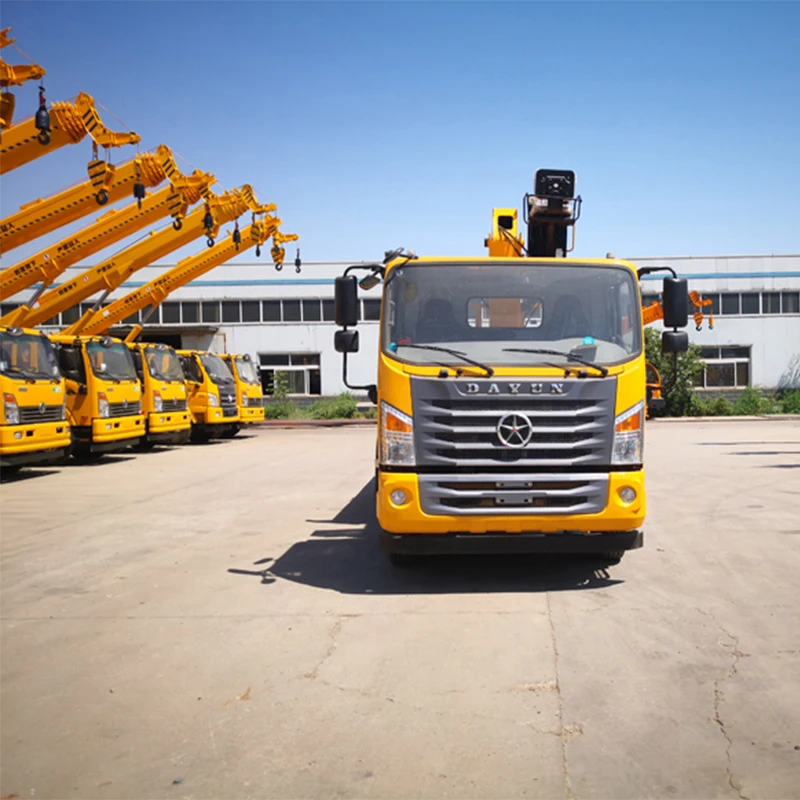

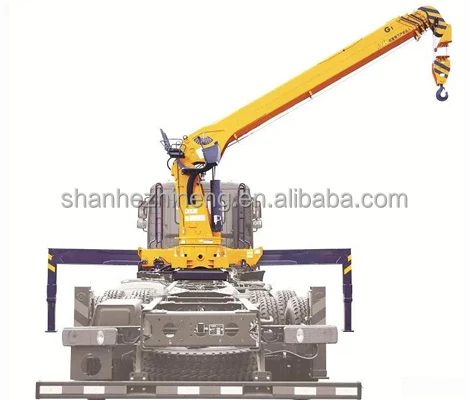

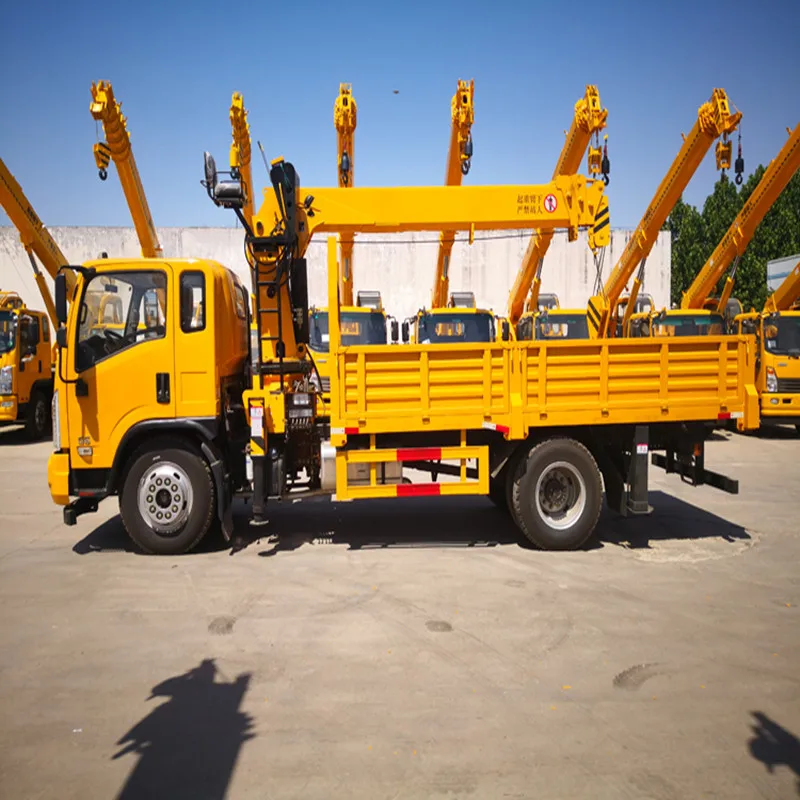

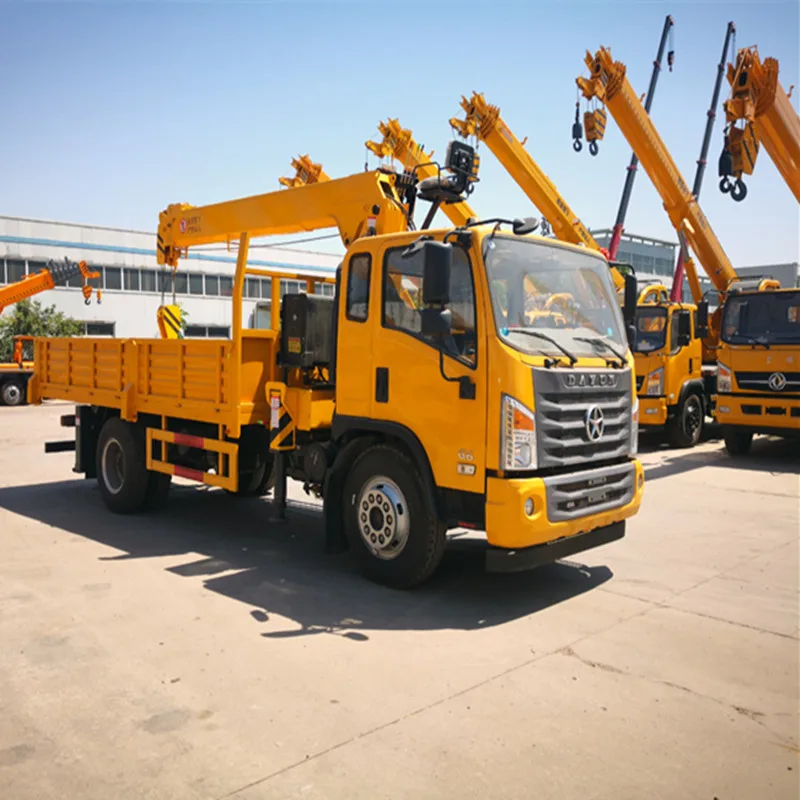

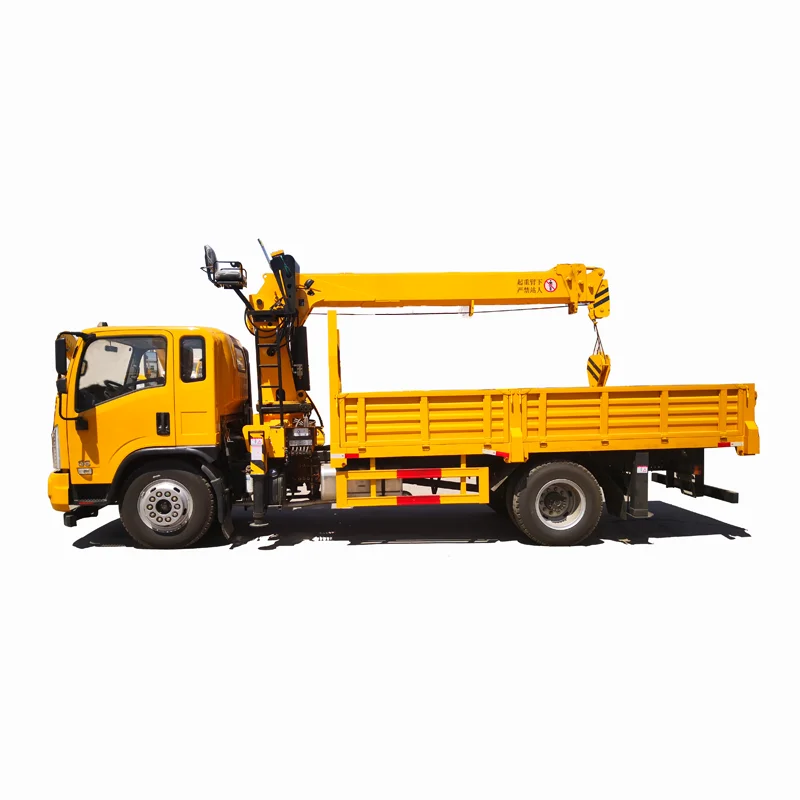

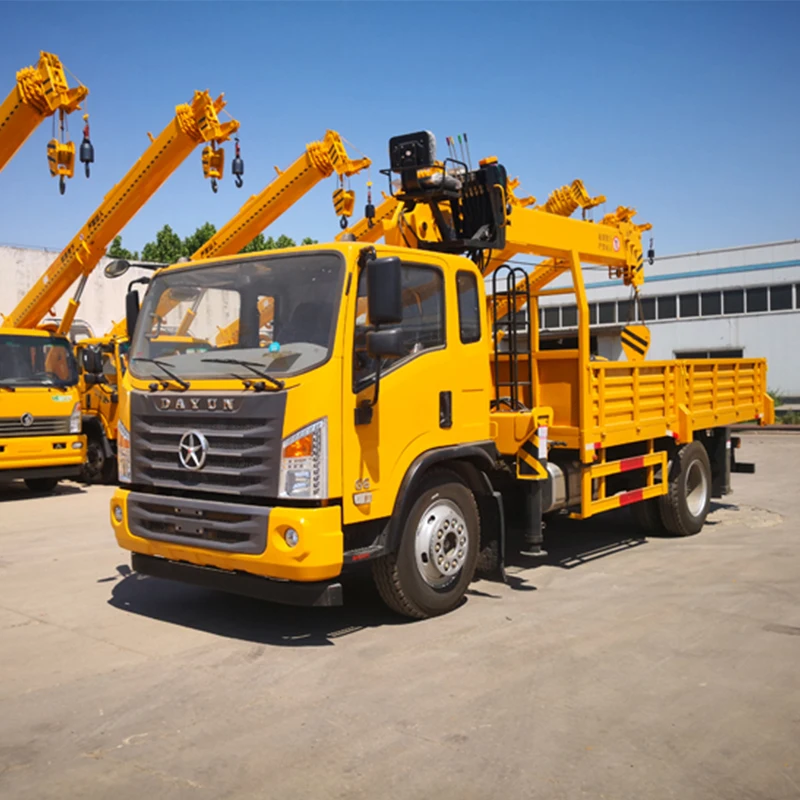

truck mounted crane 6 tons 8T 10T loading crane
- Category: >>>
- Supplier: Sunhe Intelligent Machine (Shandong) Factory
Share on (1600093249003):
Product Overview
Description
Product Description
1. Boom structure:It adopts Steel BS700 high-strength and high-toughness Mn-steel sheet, and the shape adopts 3-section U-shaped anti-folding boom.

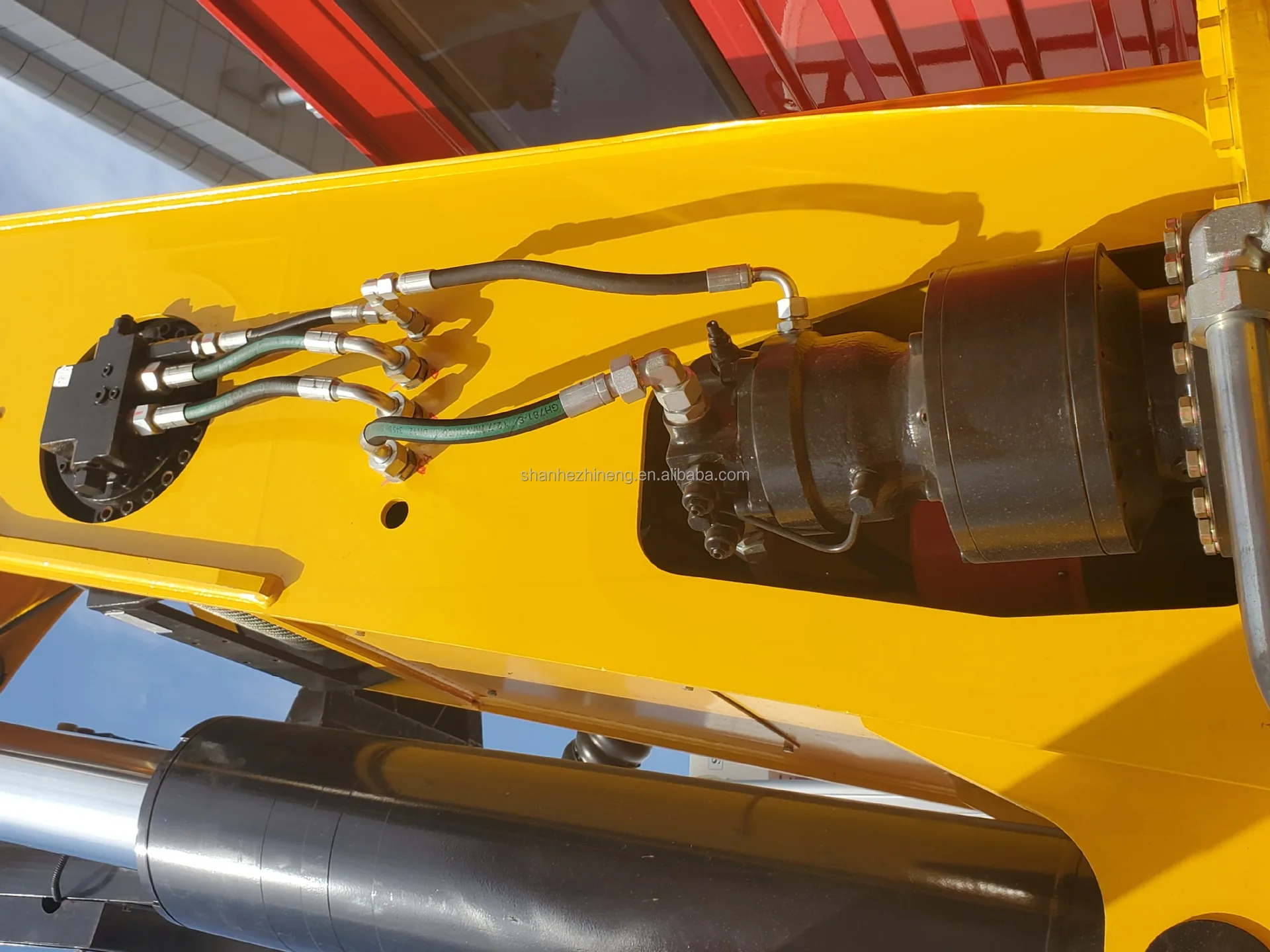

2. Slewing mechanism High-precision internal gear turntable or external gear turntable, planetary reducer, full hydraulic rotary structure.
3. Outrigger design The high-strength composite leg box steel is made of 70 Mn-steel, and the side H-shaped double-section leg shape is matched with the rear outrigger. 4 sides are attached

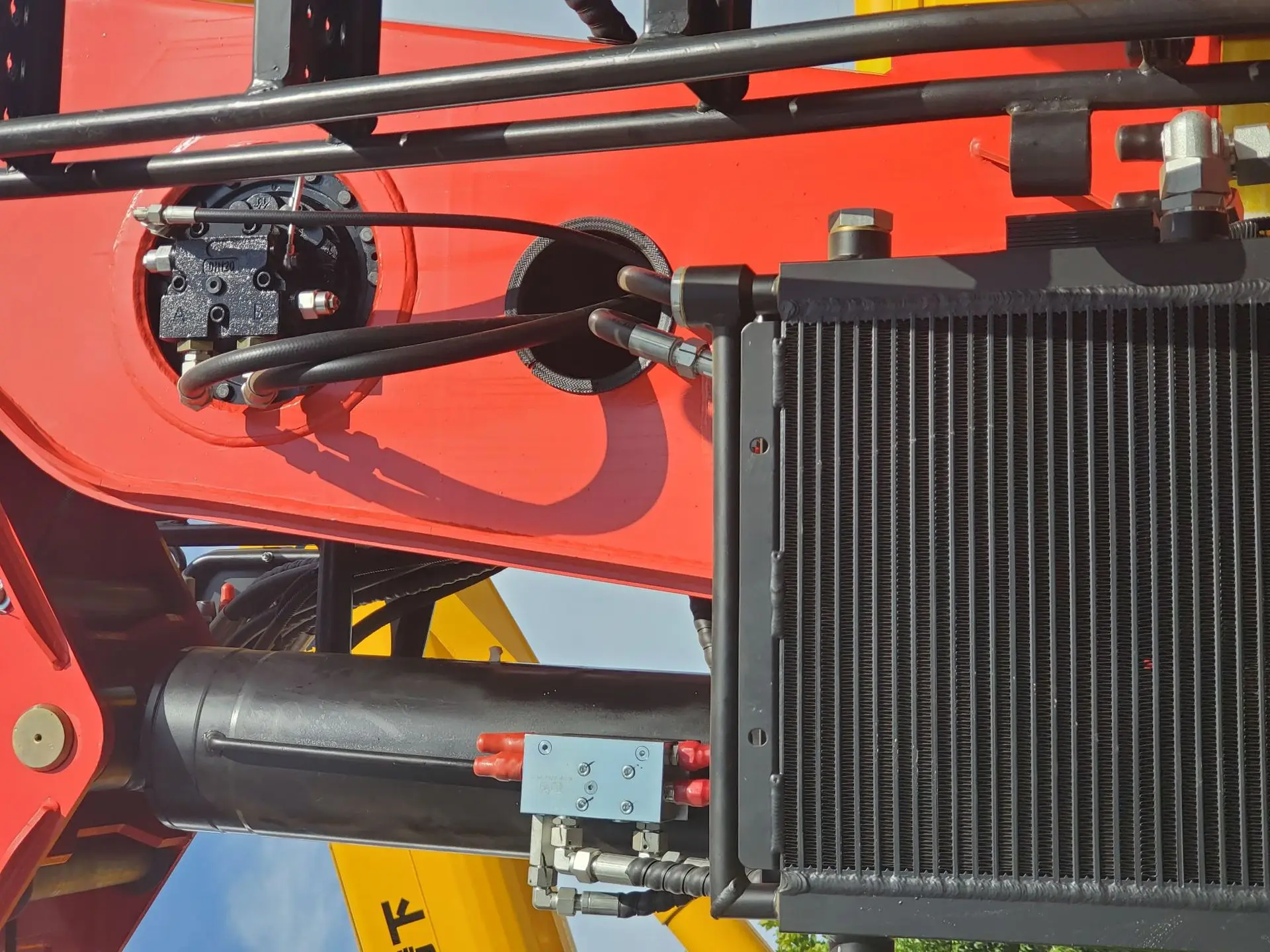

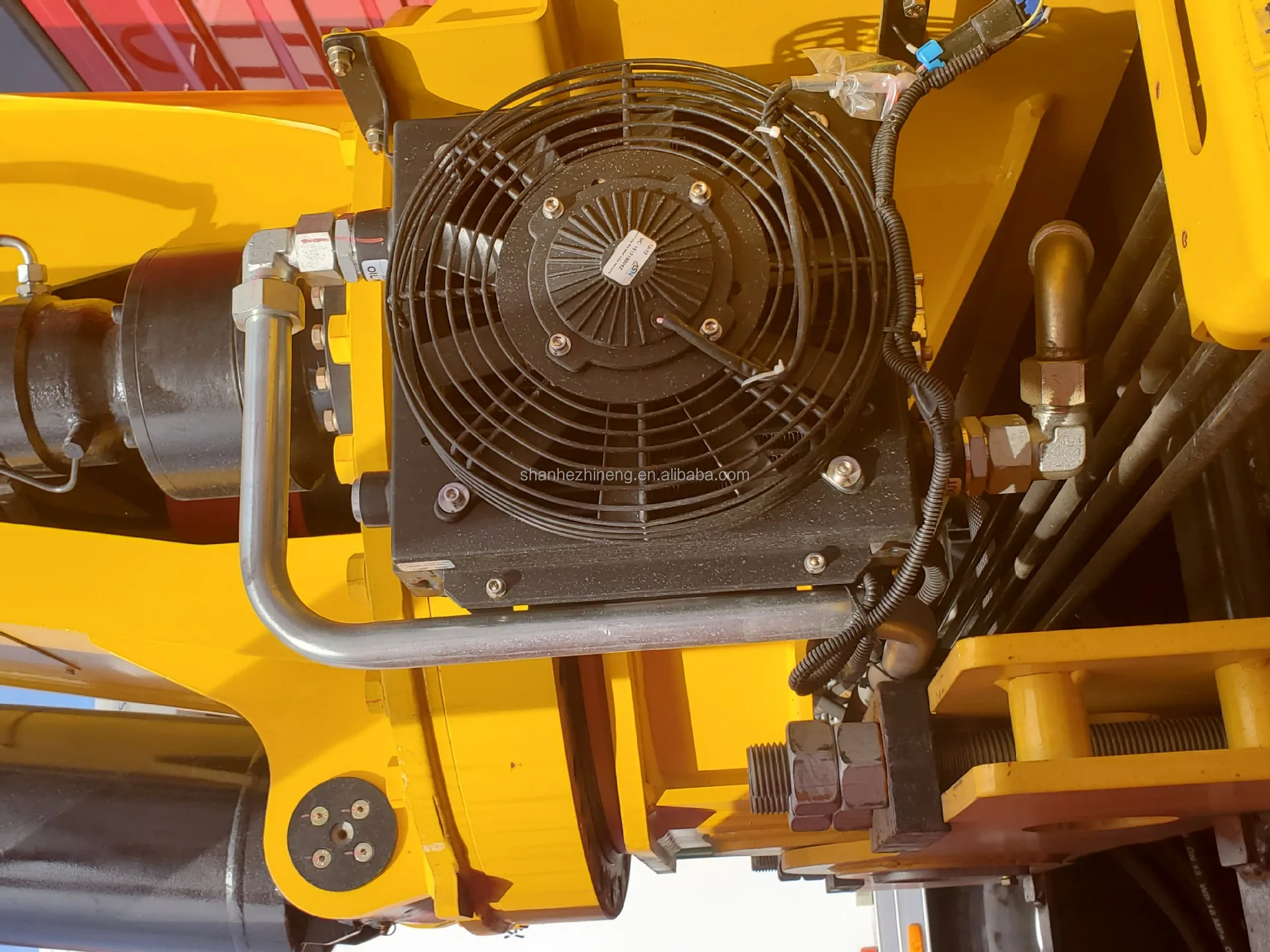

4. Hydraulic system Adopt large flow gear pump, multi-way valve single link, power take-off
2. Slewing mechanism High-precision internal gear turntable or external gear turntable, planetary reducer, full hydraulic rotary structure.
3. Outrigger design The high-strength composite leg box steel is made of 70 Mn-steel, and the side H-shaped double-section leg shape is matched with the rear outrigger. 4 sides are attached
4. Hydraulic system Adopt large flow gear pump, multi-way valve single link, power take-off
Specification
item | value |
Feature | TRUCK CRANE |
Truck Length | 9000mm |
Truck Width | 2500mm |
Truck Height | 3850mm |
Wheel base | 4400mm |
Tyre | 900R20 |
Bucket Length | 5000mm |
Bucket Width | 2500mm |
Bucket Height | 600mm |
Weight | 14000kg |
Max.drive speed | 85km/h |
Min. Curve rate | 14m |
Min.ground gap | 360mm |

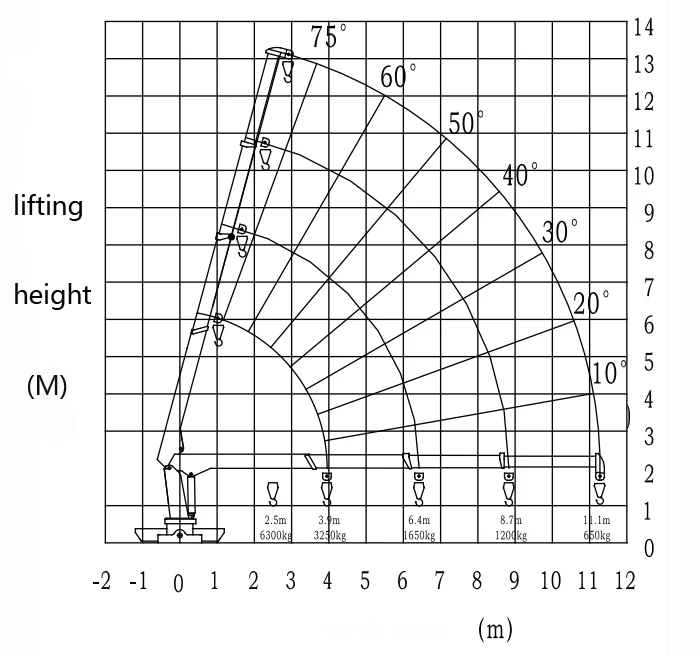

Max. Lifting capacity | 6300kg |
Min. Work span | 2500mm |
Advantages:
1. 360° Full Rotation
The SQ8 truck mounted crane which is a straight boom crane can achieve 360°full rotation since it employs a worm gear reducer.
2. Excellent Stability
This heavy engineering vehicle has a retractable front outrigger with a longer span up to 5.56m and a fixed rear outrigger to guarantee its stability when working. Hydraulic rear outrigger is optional to be equipped to our truck mounted crane to
increase its stability and make it adaptable for more complex working conditions. In addition, hexagon sections guarantee good
lateral stability of the construction crane.
3. Reliable Control System

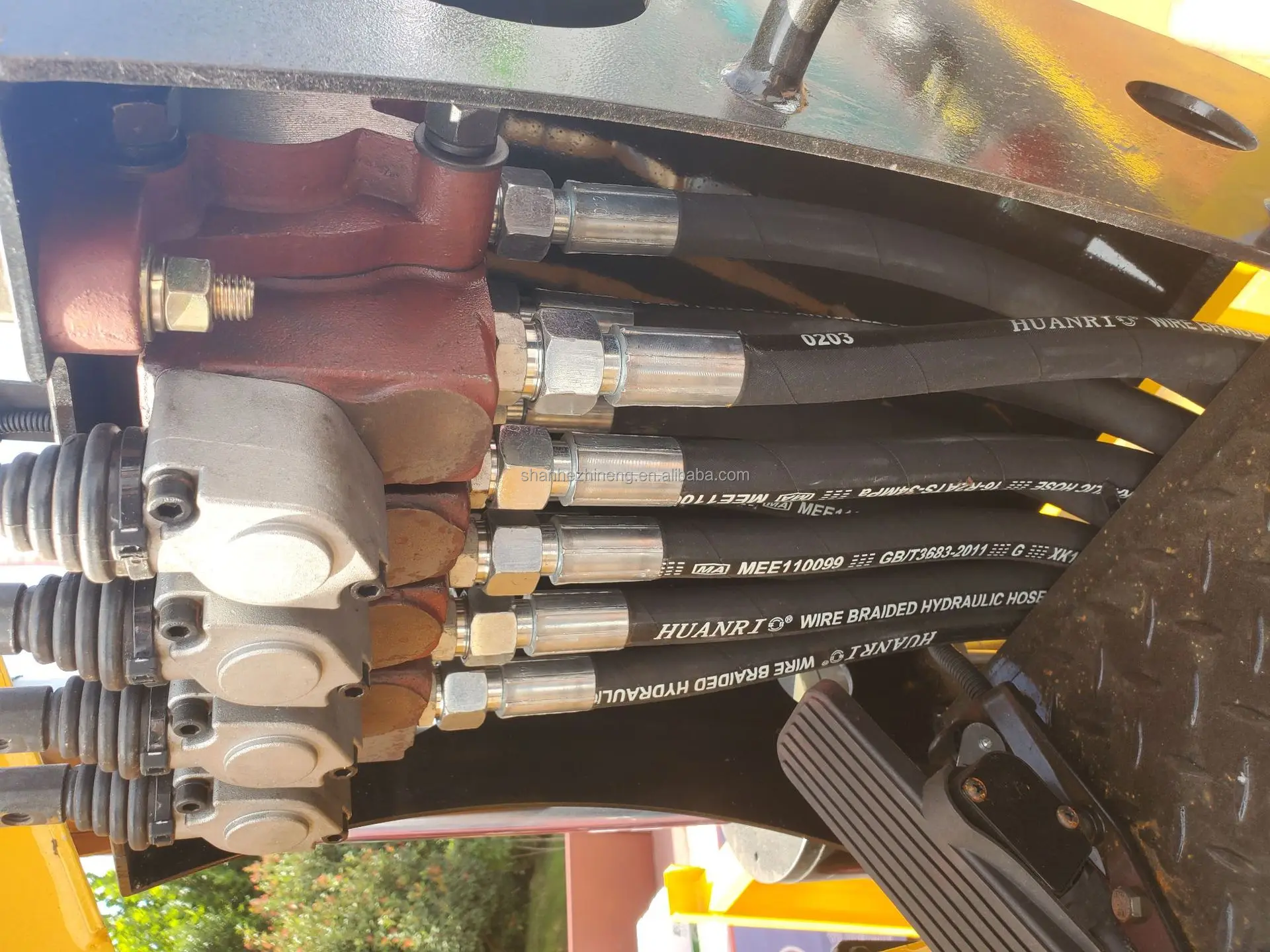

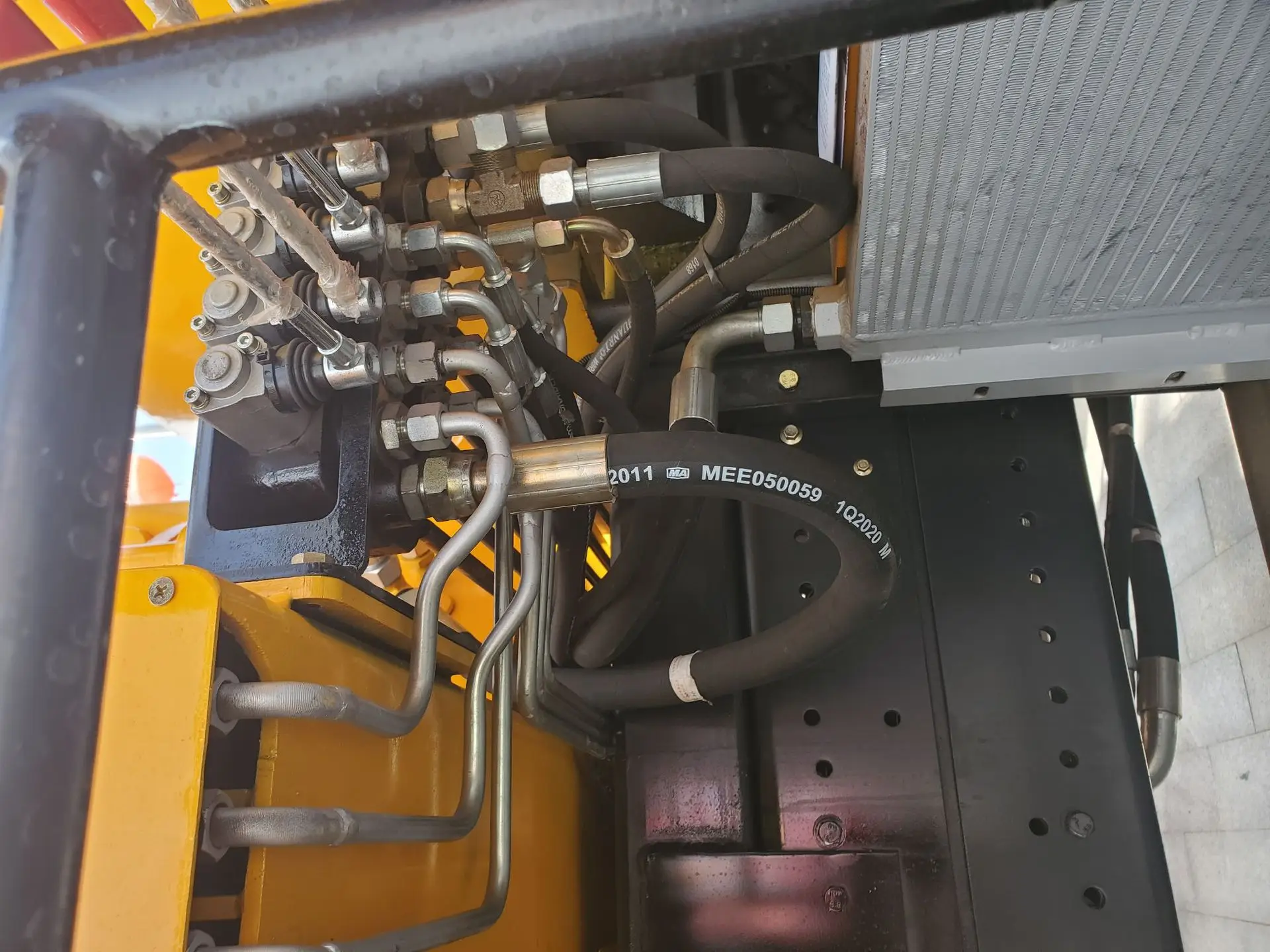

The operation of our truck mounted crane is controlled by the main control valve directly and the outriggers are controlled by separated valves. Selector valves are employed to the lifting equipment to avoid improper operation. Both the main control valves and the outrigger control valves support both-side manipulation.
4. Great Safety
Height limit switch, over winding alarm device and high power LED lights are standard configurations to guarantee the
operation safety our of our construction lifting machine. Additionally, moment limiter is optional to be installed to the
hoisting equipment for higher operation safety.
The SQ8 truck mounted crane which is a straight boom crane can achieve 360°full rotation since it employs a worm gear reducer.
2. Excellent Stability
This heavy engineering vehicle has a retractable front outrigger with a longer span up to 5.56m and a fixed rear outrigger to guarantee its stability when working. Hydraulic rear outrigger is optional to be equipped to our truck mounted crane to
increase its stability and make it adaptable for more complex working conditions. In addition, hexagon sections guarantee good
lateral stability of the construction crane.
3. Reliable Control System
The operation of our truck mounted crane is controlled by the main control valve directly and the outriggers are controlled by separated valves. Selector valves are employed to the lifting equipment to avoid improper operation. Both the main control valves and the outrigger control valves support both-side manipulation.
4. Great Safety
Height limit switch, over winding alarm device and high power LED lights are standard configurations to guarantee the
operation safety our of our construction lifting machine. Additionally, moment limiter is optional to be installed to the
hoisting equipment for higher operation safety.

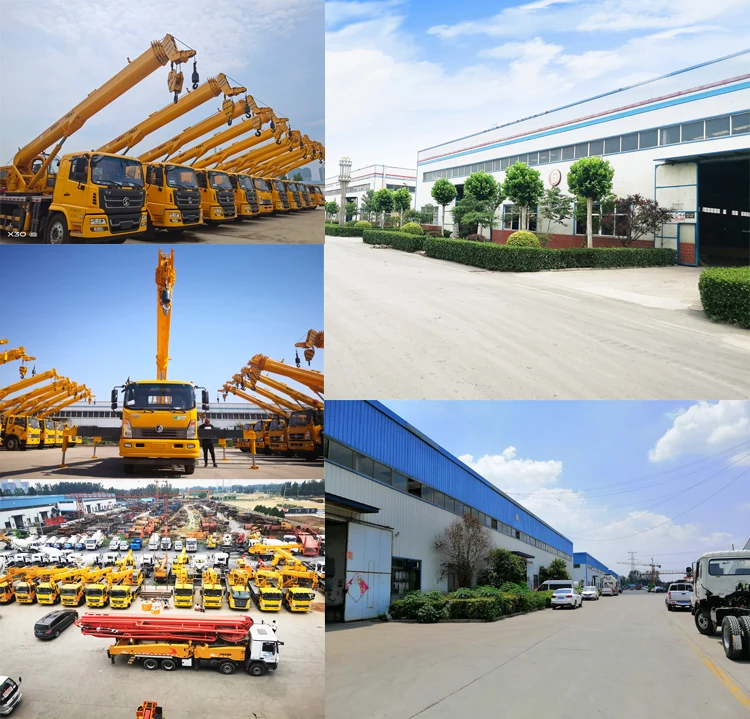

Company Profile

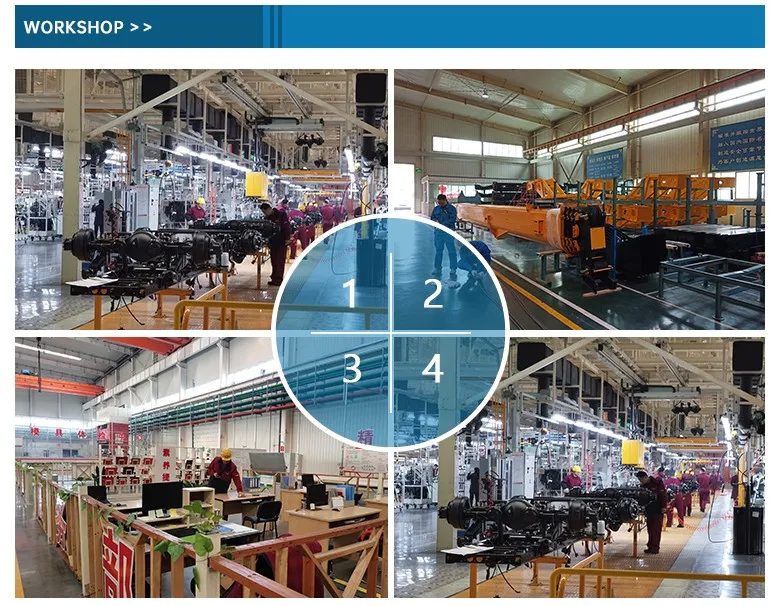

Sunhe intelligent machine (Shandong) Factory has high-level R & D, manufacturing, testing and testing capabilities,reasonable product structure, unique and exquisite manufacturing technology, complete specifications and reliable quality. It can manufacture various lifting machinery(truck mounted crane, boat crane), piling machinery(drilling rig), concrete machinery( concrete mixer,concrete pump), pavement machinery, concrete pump truck, other engineering and construction machinery according to the user's requirements. Stable quality, timely service, continuous innovation and improvement of products have won the favor of the majority of users and the unanimous praise of all sectors of the society, and enjoy the reputation of "less investment, quick results, affordable, good use; strong mobility, high efficiency". The products are in short supply year after year, stabilizing the leading position of the industry.
