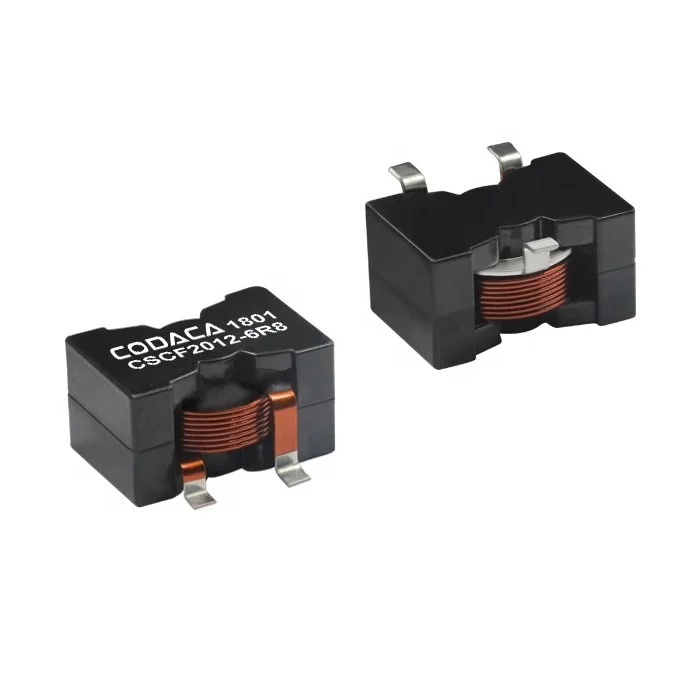

RoHS CSCF2012 4R7MC Customized high frequency Shielded high current Power Inductor
- Category: >>>
- Supplier: Shenzhen Codaca Electronic Co. Ltd.
Share on (1600093545795):
Product Overview
Description
Features
Magnetic shielding structure, excellent resistance to electro magnetic interference.
- Assemblage design, sturdy structure.
- Small volume, high current, low magnetic loss,low ESR, small parasitic capacitance.
- Temperature rise current and saturation current is less influenced by environment.
- Operating temperature : -40℃ ~ +125℃(Including coil’s temperature rise)
Product Description
1. Key Parameter
| Type | High Current Power Inductor |
| Inductance (μH) | 4.7 |
| Tolerance | 20% |
| DCR(mΩ) | 2.11(Typical) 2.4(Max) |
| Isat(A) | 24.0 |
| Irms(A) | 28.0 |
| Temp.Range(℃) | -40~+125 |
| Dimension(mm) | 20.5*14.0*12.0 |

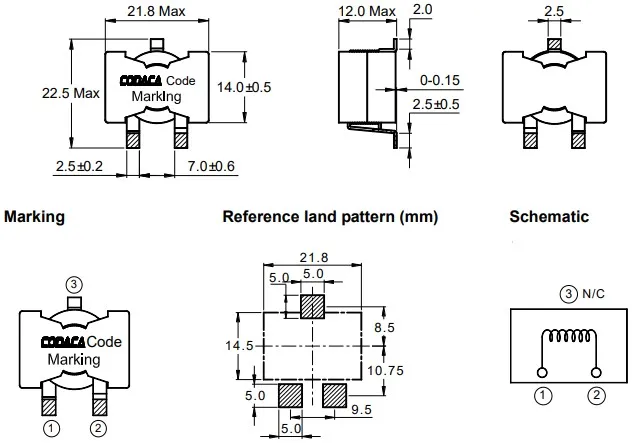

2. Product Appearance and Dimension (mm)

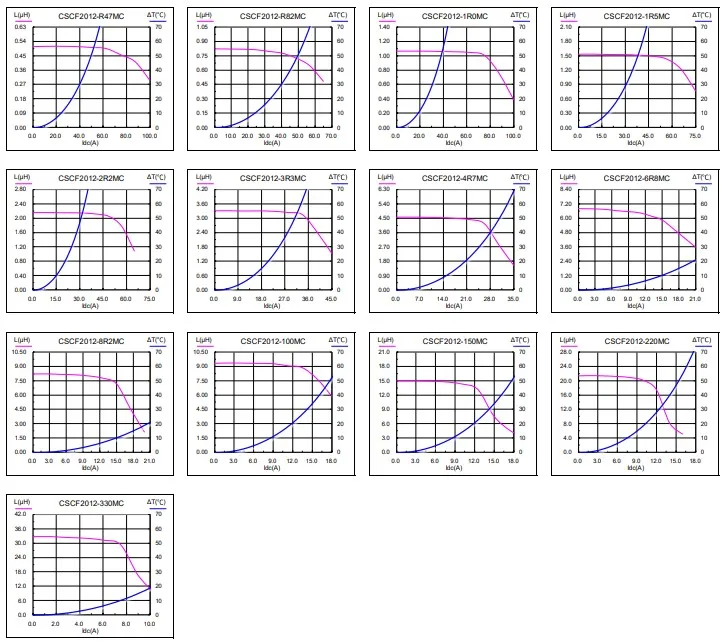

3. Saturation Current VS Temperature Rise Current Curve
4. Series Reference
| Part No. | Inductance (mH) ±20% | D.C.R. (Ω) | Saturation Current (A) | Termperature Rise Current (A) | |
| Typical | Max | Typical | Typical | ||
| CSCF2012-R47MC | 0.47 | 0.45 | 0.55 | 75 | 45 |
| CSCF2012-R82MC | 0.82 | 0.45 | 0.55 | 55 | 45 |
| CSCF2012-1R0MC | 1 | 1.38 | 1.6 | 85 | 35 |
| CSCF2012-1R5MC | 1.5 | 1.38 | 1.6 | 60 | 35 |
| CSCF2012-2R2MC | 2.2 | 2.11 | 2.4 | 50 | 28 |
| CSCF2012-3R3MC | 3.3 | 2.11 | 2.4 | 35 | 28 |
| CSCF2012-4R7MC | 4.7 | 2.11 | 2.4 | 24 | 28 |
| CSCF2012-6R8MC | 6.8 | 2.11 | 2.4 | 16 | 28 |
| CSCF2012-8R2MC | 8.2 | 2.11 | 2.4 | 13 | 28 |
| CSCF2012-100MC | 10 | 5.87 | 7 | 13 | 16 |
| CSCF2012-150MC | 15 | 5.87 | 7 | 10 | 16 |
| CSCF2012-220MC | 22 | 8.17 | 9.8 | 10 | 14 |
| CSCF2012-330MC | 33 | 8.17 | 9.8 | 7 | 14 |
