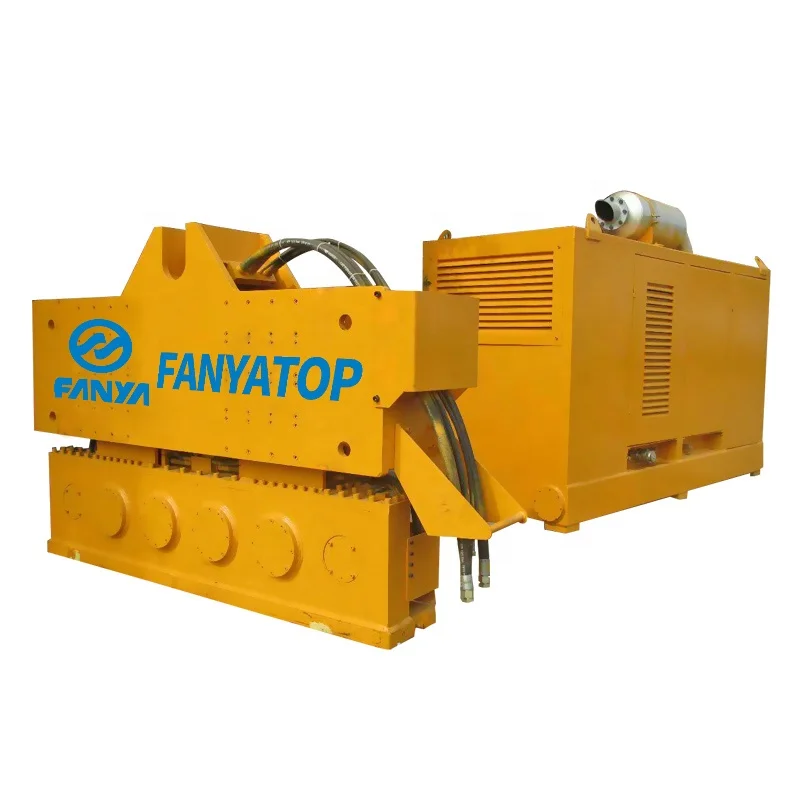

Hydraulic Sheet Pile Vibro Hammer Vibratory Pile Driver

Product Overview

Description

FANYATOP brand FYV series hydraulic sheet pile vibro hammer, currently has 6 models, suitable for piling and pulling piles in different geological conditions (except hard rock layer). For example, precast concrete piles, cast-in-place concrete piles, concrete reaming piles, etc.

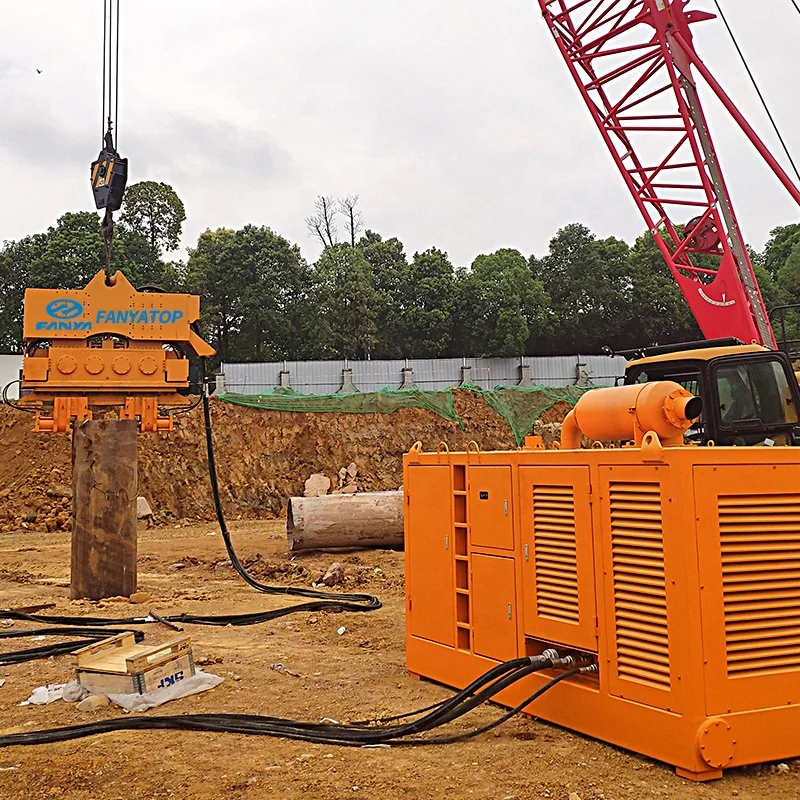

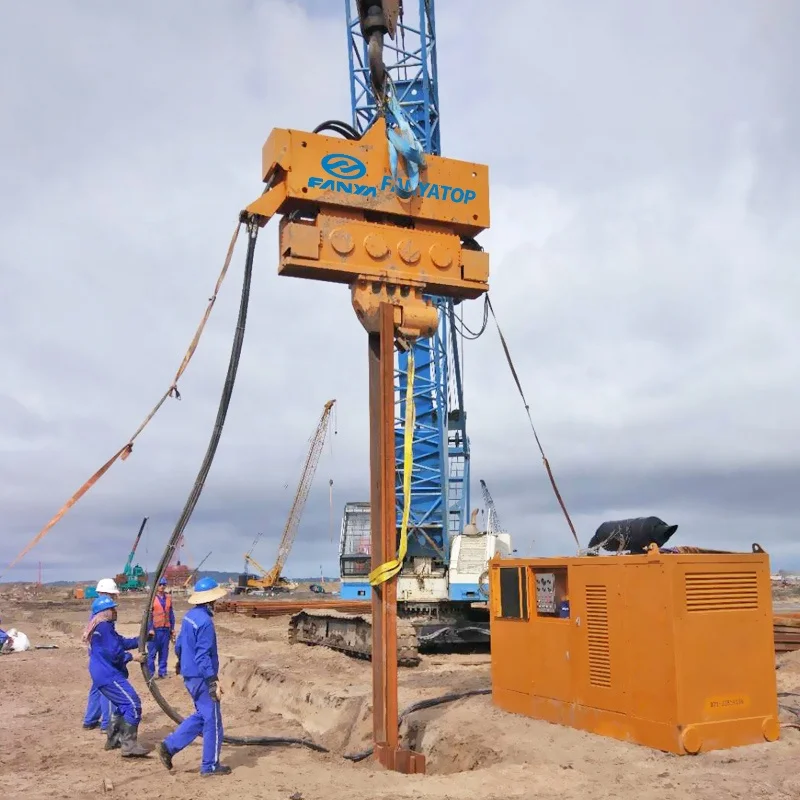

Hydraulic vibro hammer is a pile driver and extractor, widely used in various foundation projects. It liquefies the soil around the pile through periodic excitation force, so that reducing the friction between the pile and the soil. The pile sinks into the soil through its own weight and the weight of the vibro hammer. If necessary, additional downward force can be put. If put an upward force to the pile, the pile can be pulled out of the soil.hydraulic vibro hamemr is near no noise or pollution when piling. there is very big advantage that it can work underwater.



It uses Well-known brands brand hydraulic components to ensure the stability of the system.for Our hydraulic vibratory pile hammer,most components are standard and easy to replace and maintain. The superior designed hydraulic oil circuit system can generate strong and stable vibro force, an over 90% efficiency.hydraulic sheet pile vibratory hammer is samll,light in weight and easy to operate. The frequency and amplitude of vibration can be adjusted steplessly. It is easy to install on the arm of the excavator via using the driving force of the excavator's own hydraulic system.



The hydraulic vibrator hammer is an ideal pile driver in the foundation construction,which is for  houses, factories, subways, highways, docks, airports, power plants,etc.





Advantage OF FANYATOP Brand Vibratory Hammers
1. High effiency of piling and pulling pile
2. Wide Applications
3. Environment-friendly product
4. Easy operation and maintenance
5. High Quality Components
6. Long lifespan

Scope Of Application
Larsen Steel Sheet Pile, H-Pile, In Situ Pile
Steel Tube, Prestressed Slab, Diversion Hole Pressure Pile



Vibro Hammer
Model		FYV80	FYV100	FYV120	FYV180	FYV260	FYV320
Frenquency	r/min	1700	1700	1850	1680	1450	1700
Vibro Force	kN	800	1000	1200	1800	2600	3200
Max Pile-pull Force	kN	543	776	840	1260	1800	2240
Overall Weight	Kg	5200	5600	5900	7000	8900	9200
Overall Size LxWxH	mm	2995x535x2385	2995x535x2385	2995x535x2385	3030x560x2550	3230x580x2650	3230x580x2650
Power Pack
Model		HP360	HP360	HP360	HP600	HP800	HP1200
Engine	TYPE	NTA855-P360	NTA855-P360	NTA855-P360	KTTA19-C700	KTTA19-C700	KTTA38-P1050
Power	KW/HP	269/360	269/360	269/360	522/700	522/700	772/1050
Speed	rpm	2100	2100	2100	2100	2100	2100
Max Presusure	Mpa	350	350	350	350	350	350
Max Flow	L/min	400	400	400	540	756	1020
Overall Weight	kg	5500	5500	5500	9200	9200	12500
