Product Overview
Description
Outdoor Duct Aerial GYTS GYTA 4 6 8 12 24 36 48 72 96 144 288 Core G652D SM Armored Cable Optical Fiber
Product Description

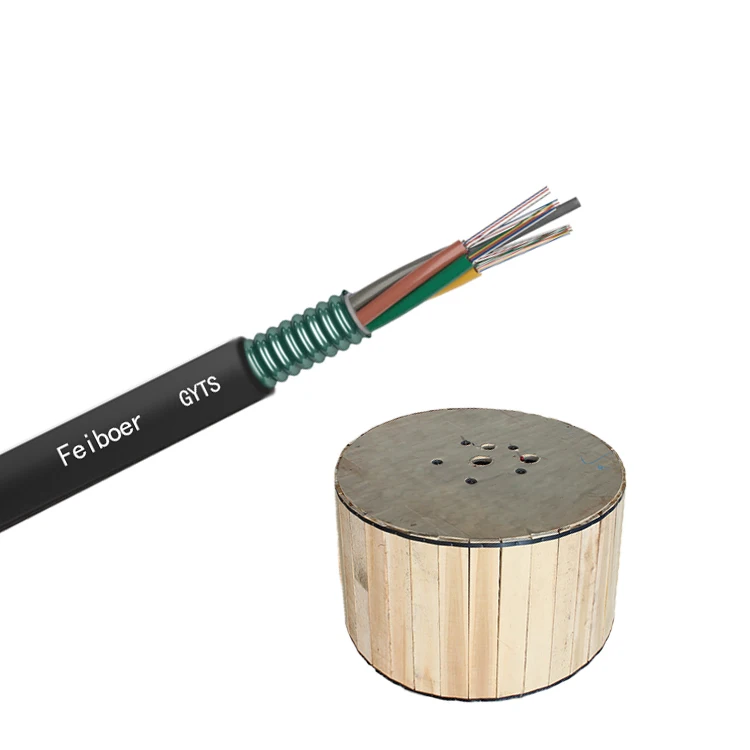

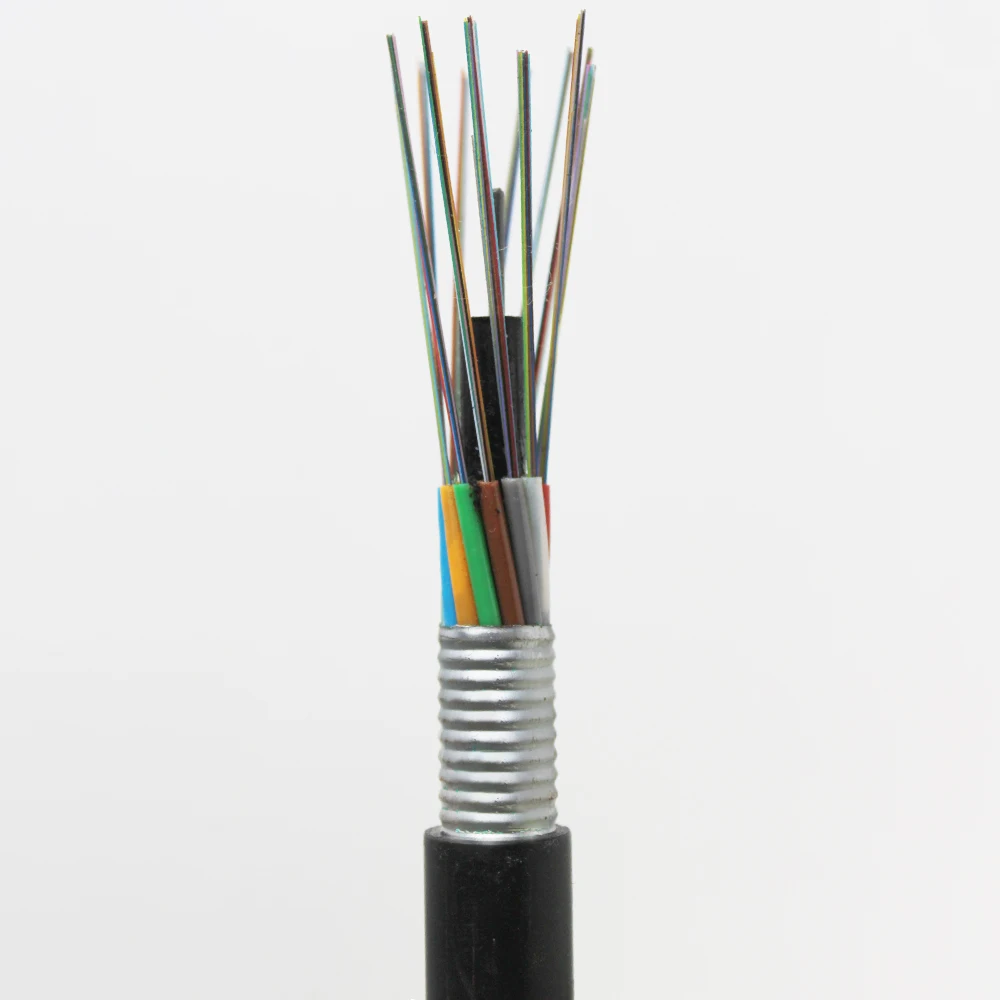

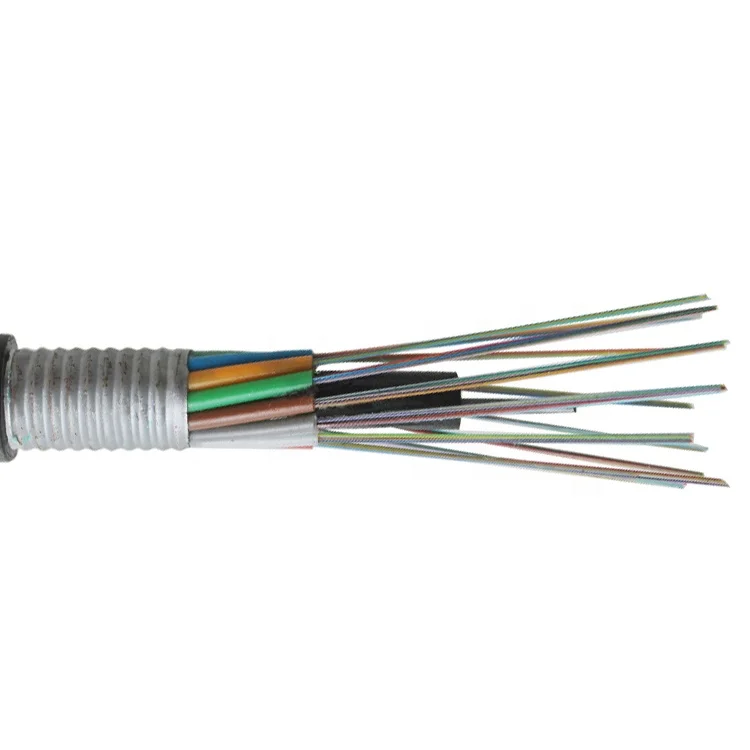

Loose tube stranded steel armored fiber optic cable (GYTS)
Product Description

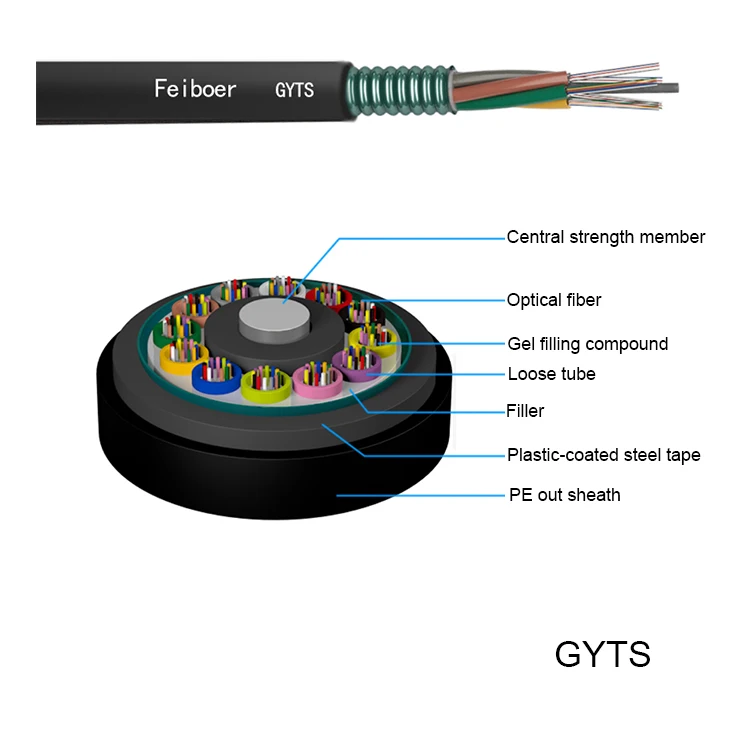

The structure of GYTS optical cable is to put 250µm optical fiber into the loose tube, which is made of high modulus material, and filled with waterproof compound. In the center of the cable core is a metallic strength member,Tubes (and fillers) are stranded around the strength member into a compact and round cable core, which is filled with the waterproofing compound to protect it from water ingress. Plastic coated steel tape (PSP) is longitudinally wrapped and extruded into a polyethylene sheath to form a cable.
Product Characteristics
• With good mechanical properties and temperature characteristics
• Material of loose tube has good hydrolysis resistance and high strength
• The loose tube is filled with special gel, which protect the optical fiber
• Specially designed compact cable structure to effectively prevent casing from retracting
• Anti-UV PE out sheath
• Take the following measures to ensure the waterproof performance of the optical cable
- Single steel wire center reinforced core
- Filled with special Water-blocking material in loose tube
- Complete cable core filling
- Moisture-proof layer of plastic
- CMoisture-proof layer of plastic-coated steel tape (PSP)
Optical Fibre Performance
Type | Attenuation(+20℃) | Bandwidth | Numerical aperture |
Cut-off wavelength | ||||
@850nm | @1300nm | @1310nm | @1550nm | @850nm | @1300nm | |||
G.652 | --- | --- | ≤0.36dB/km | ≤0.22dB/km | --- | --- | --- | ≤1260nm |
G.655 | --- | --- | ≤0.40dB/km | ≤0.23dB/km | --- | --- | --- | ≤1450nm |
50/125µm | ≤3.3dB/km | ≤1.2dB/km | --- | --- | ≥500MHz·km | ≥500MHz·km | 0.200±0.015 NA | --- |
62.5/125µm | ≤3.5dB/km | ≤1.2dB/km | --- | --- | ≥200MHz·km | ≥500MHz·km | 0.275±0.015 NA | --- |
Technical Performance
Model | Fiber count | Tube count | Filling rope count | Weight (kg/km) | Tension Long/Short term | Crush Long/Short term |
Bending Radius Static / dynamic (mm) |
GYTS-2~6Xn | 2~6 | 1 | 4 | 96 | 600/1500 | 300/1000 | 10D/20D |
GYTS-8~12Xn | 8~12 | 2 | 3 | 96 | |||
GYTS-14~18Xn | 14~18 | 3 | 2 | 96 | |||
GYTS-20~24Xn | 20~24 | 4 | 1 | 96 | |||
GYTS-26~30Xn | 26~30 | 5 | 0 | 96 | |||
GYTS-32~36Xn | 32~36 | 6 | 0 | 105 |
Environmental Characteristics
• Transport/storage temperature: -40℃ to +70℃
Application
• Duct,Aerial,Direct buried
Production Flow
Related Products
FAQ
1.Are you the real manufacturer?
Us. We are the real manufacturer with 18 year’s history.
2.What’s the MOQ?
Us. The MOQ of Fiber Optic cable is 1km.
3.What’s delivery time?
Us. The general delivery time is 7-10 days after order deposit.
If order quantity is more than 100000km, please check with us.
4.Can you supply customized products and logo?
Us.Yes. We provide OEM service.
6.What’s your payment terms?
Us. We accept T/T,L/C,Western Union, etc. 30% in advance and 70% before shipment.
7.Can you offer free samples?
Us. Yes,we provide free samples.
