Product Details
Wireless Lora Remote meter reading system of water meter（Split type）
System Introduction:
Seck intelligent automatic metering reading system (split type remote reading water meter) is mainly to solve increasingly onerous household water meter reading problem, improve efficiency and reduce costs.
Our Lora wireless AMR water meter is no need to set up the communication line.The system is all wireless between the meter and concentrator and terminal host computer server.
We use the LORA Wireless Ad Hoc Networks so that no need to charge communication flow fee between the communication from LORA meters to the concentrator.The Lora concentrator sent datas to server also through GPRS wireless network.
We also have Lorawan wireless communication or M-BUS communication interface.

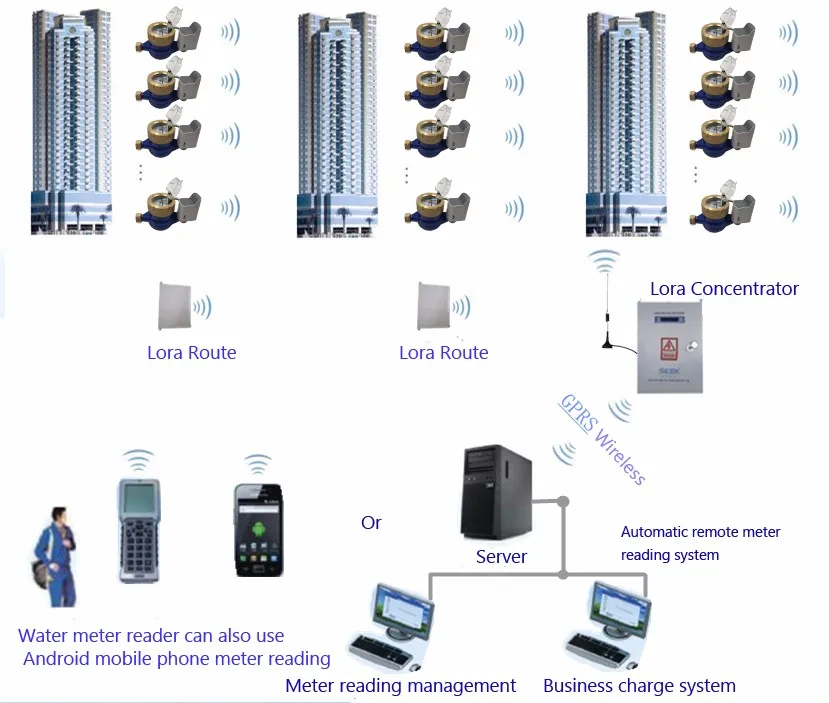

Wireless System
Technical Parameters
Power supply | 3.6V 4Ah Lithium battery |
work environment | temperature：-5~+45℃ humidity：0~95%RH |
Communication with the upper concentrator | Lora |
Communication transmission rate | 5Kbps |
Flow Parameters
Water meter model | DN(mm) | Q3/Q1 | overload flow Q4(m³/h) | common flow Q3(m³/h) | boundary flow Q2(m³/h) | minimum flow Q1(m³/h) |
LXSY-15Z | 15 | 100 | 3.125 | 2.5 | 0.040 | 0.025 |
LXSY-20Z | 20 | 100 | 5 | 4 | 0.064 | 0.040 |

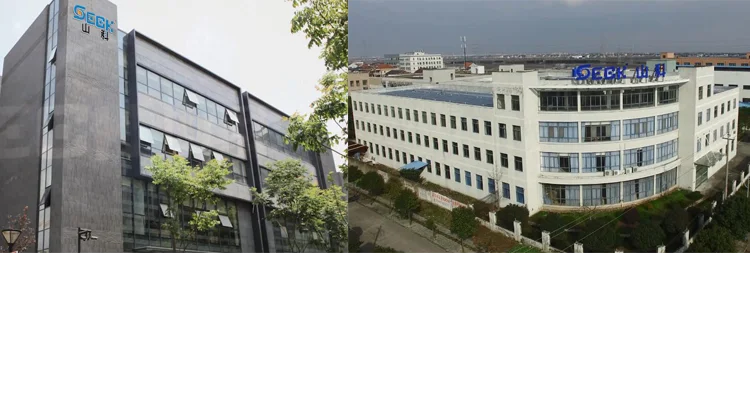

SECK Building
Why choose us
Brief Introduction
1.Established in 1999
2.Factory area over 15000 square meter
3.Our own R & D group
4.Smart water meter manufacture
5.SECK Domestic Ultrasonic Water Meter has own patent

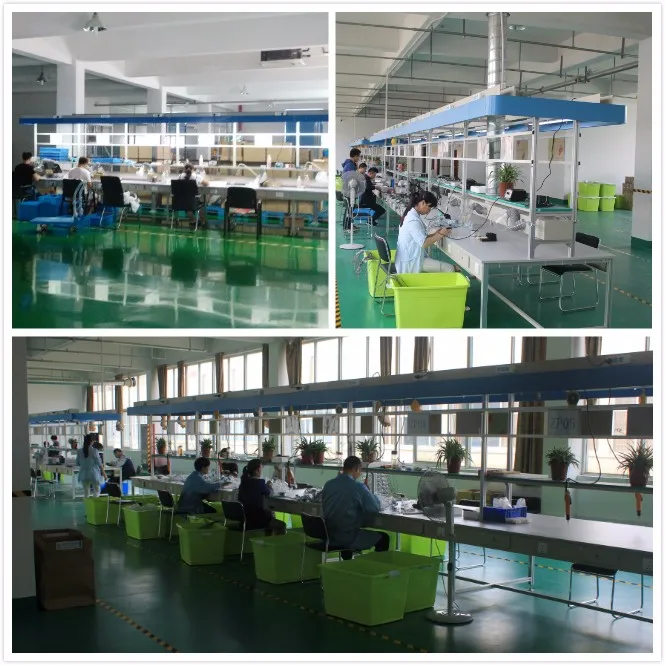

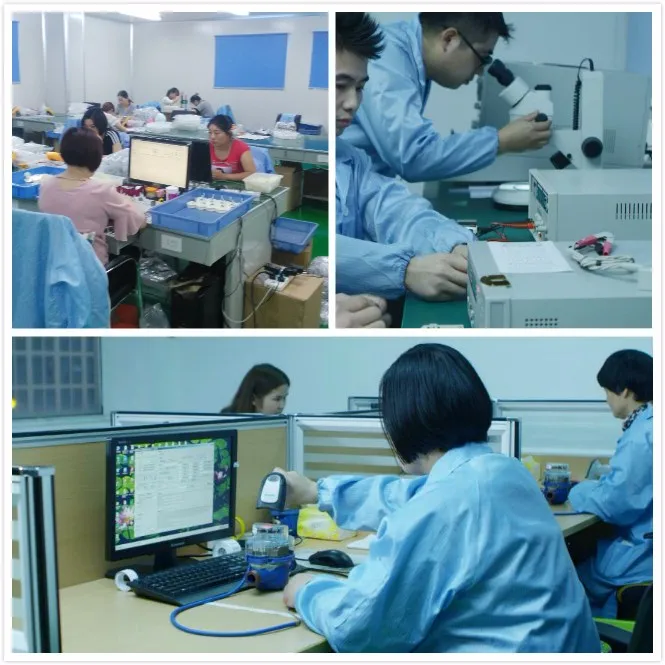

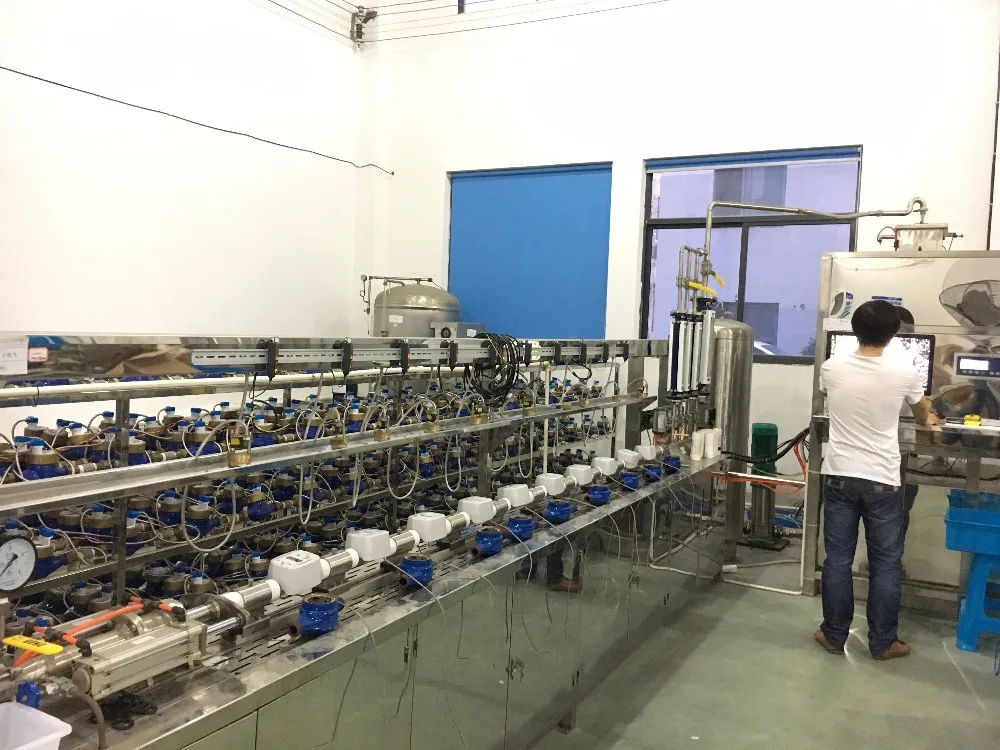

Product Processing

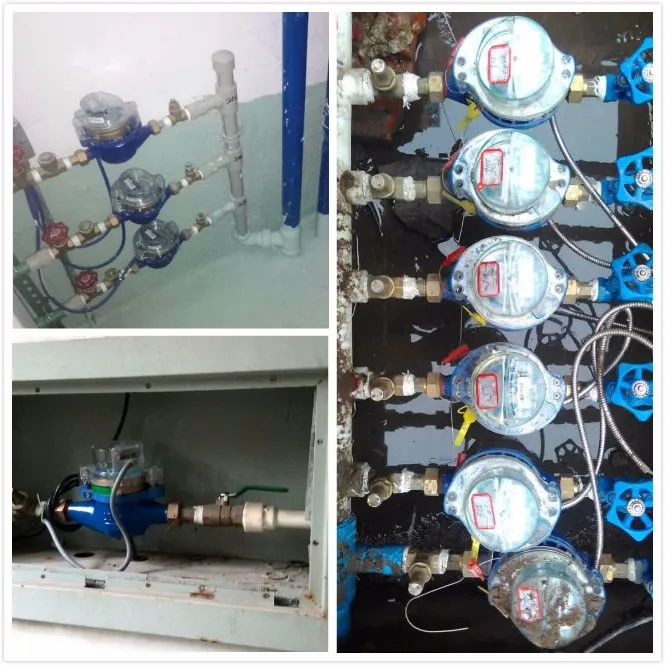

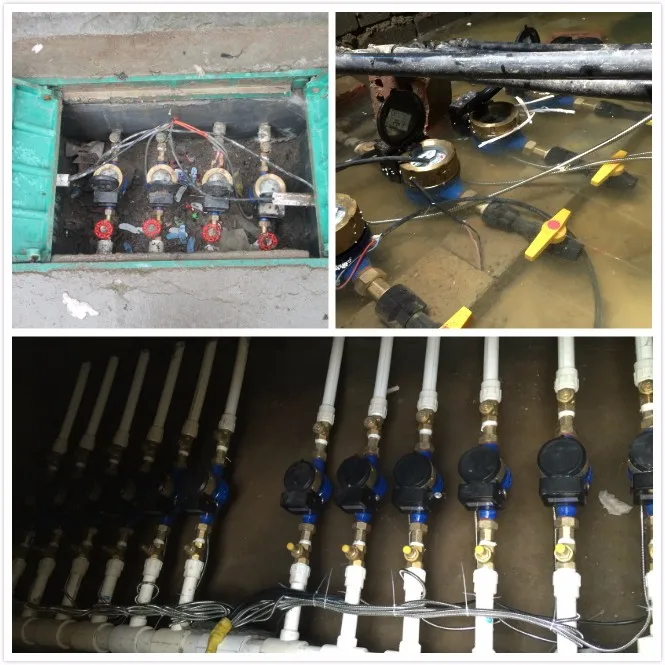

Application
