4 20ma Remote Seal Type Smart Level Transmitter with Flange Mounted
- Category: Level Measuring Instruments >>>
- Supplier: Yantai,Auto,Instrument,Making,Co.,Ltd.
Share on:
Product Overview
Description

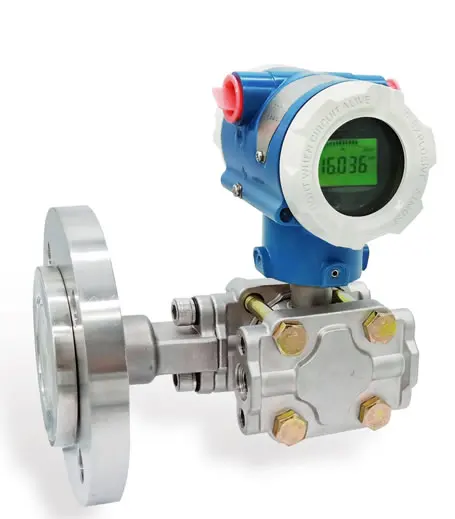

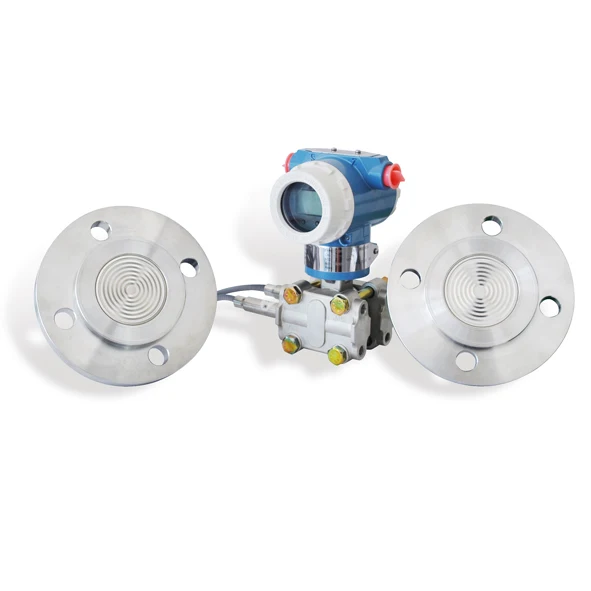

4-20ma Remote Seal Type Smart Level Transmitter with Flange-Mounted
Product Description
3051LT level transmitter used to measure liquids containing solids and sediment level and density, and then transformed into 4-20mADC signal output. 3051LT can communicate with each other with a HART Communicator, through their set, monitor and so on.
Technical Parameter
Max ref accuracy:±0.075%calibration range
Stability:6months,±0.1%URL
Static pressure:13.79Mpa
Isolation diaphragm:316Lstainlesssteel,HC,Monel,tantalum
stability:6months,±0.1%URL
- Current output:4 - 20 mA 2 wires Har t Protocol
- Power supply:24VDC
Damping time constant:time constant is adjustable, in 0.1 second increments from a minimum to 16 seconds
Order sheet
Name | Specification code | Explanation | ||
3051LT |
| Level transmitter | ||
| 4 | 635-3810 mmH2O | ||
5 | 3175-19090 mmH2O | |||
6 | 11730-70380 mmH2O | |||
Output Signal | E | 4-20mA | ||
S | 4-20mA, HART Protocol Communication | |||
Installation flange | H5 | 2” (DN50) | ||
A8 | 3”(DN80) | |||
B10 | 4”(DN100) | |||
Wetted Parts Material |
| Flange/Joint | Exhaust/Drain Valve | Diaphragm |
22 |
Stainless Steel |
Stainless Steel | 316L Stainless Steel | |
23 | Hastelloy C-276 | |||
24 | Tantalum | |||
Display Header (optional) | M2 | Linear Pointer Header (0~100% scale) | ||
M3 | Square Root Instruction Header(0~100% scale) | |||
M4 | LCD Header( linear display) | |||
Process Flange | D1 | The liquid discharge / exhaust at the side top | ||
D2 | The liquid discharge / exhaust at the side bottom | |||
