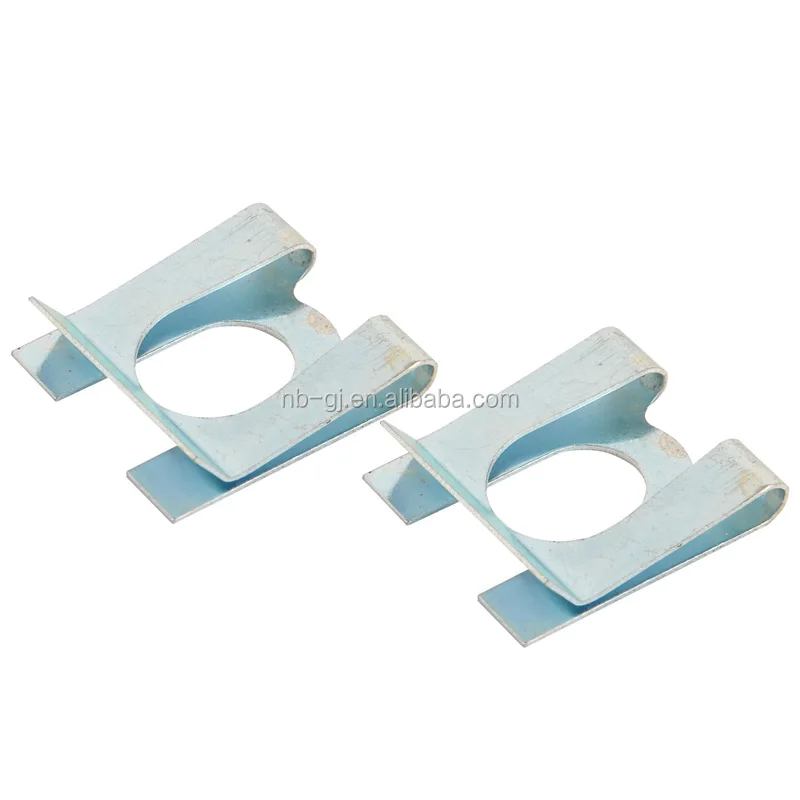

Белый цинк фиксаторы для болт CP8 защитный зажим
- Category: Other Hardware >>>
- Supplier: Ningbo Yinzhou Crown Strength Machinery Accessories Factory
Share on (1600094504367):
Product Overview
Description
Product detail

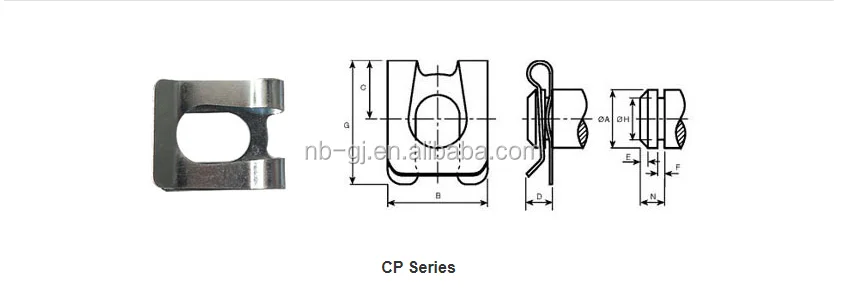

| Item | Ø A | B | C | D | E | F | G | Ø H | N | Axial force(KN) Max | Weight(KG) per 100pcs |
| CP 4 | 3.93/4 | 7 | 4 | 2.2 | 0.5 | 0.64/0.74 | 8.75 | 3.1/3.2 | 1.9/2.1 | 1 | 0.02 |
| CP 5 | 4.93/5 | 9 | 4.5 | 2.3 | 0.5 | 0.64/0.84 | 11 | 3.9/4.1 | 2.4/2.6 | 1.3 | 0.03 |
| CP 6 | 5.93/6 | 11 | 6 | 3.3 | 0.75 | 0.64/0.84 | 14.25 | 4.9/5.1 | 2.9/3.1 | 1.5 | 0.07 |
| CP 8 | 7.91/8 | 14 | 8 | 3.5 | 1 | 0.84/1.04 | 17.25 | 5.9/6.1 | 3.4/3.6 | 3.6 | 0.11 |
| CP 10 | 9.91/10 | 18 | 10.3 | 4.6 | 1 | 0.95/1.15 | 21.75 | 7.8/8.2 | 4.4/4.6 | 6.4 | 0.21 |
| CP 12 | 11.89/12 | 22 | 12 | 4.6 | 1.25 | 1.05/1.25 | 25.5 | 8.8/9.2 | 4.9/5.1 | 9.6 | 0.29 |
| CP 14 | 13.89/14 | 25 | 13.5 | 5.8 | 1.25 | 1.15/1.35 | 30.1 | 9.8/10.2 | 5.4/5.6 | 11.32 | 0.45 |
| CP 16 | 15.89/16 | 28 | 16 | 5.8 | 1.5 | 1.25/1.45 | 34 | 11.8/12.2 | 5.9/6.1 | 13.5 | 0.58 |
- Material: 65Mn Spring steel, hardened and tempered.
- Surface: Zinc/clear or zinc/yellow, de-embrittled&passivated.
- Clip can be made according to customers’ requirements.
