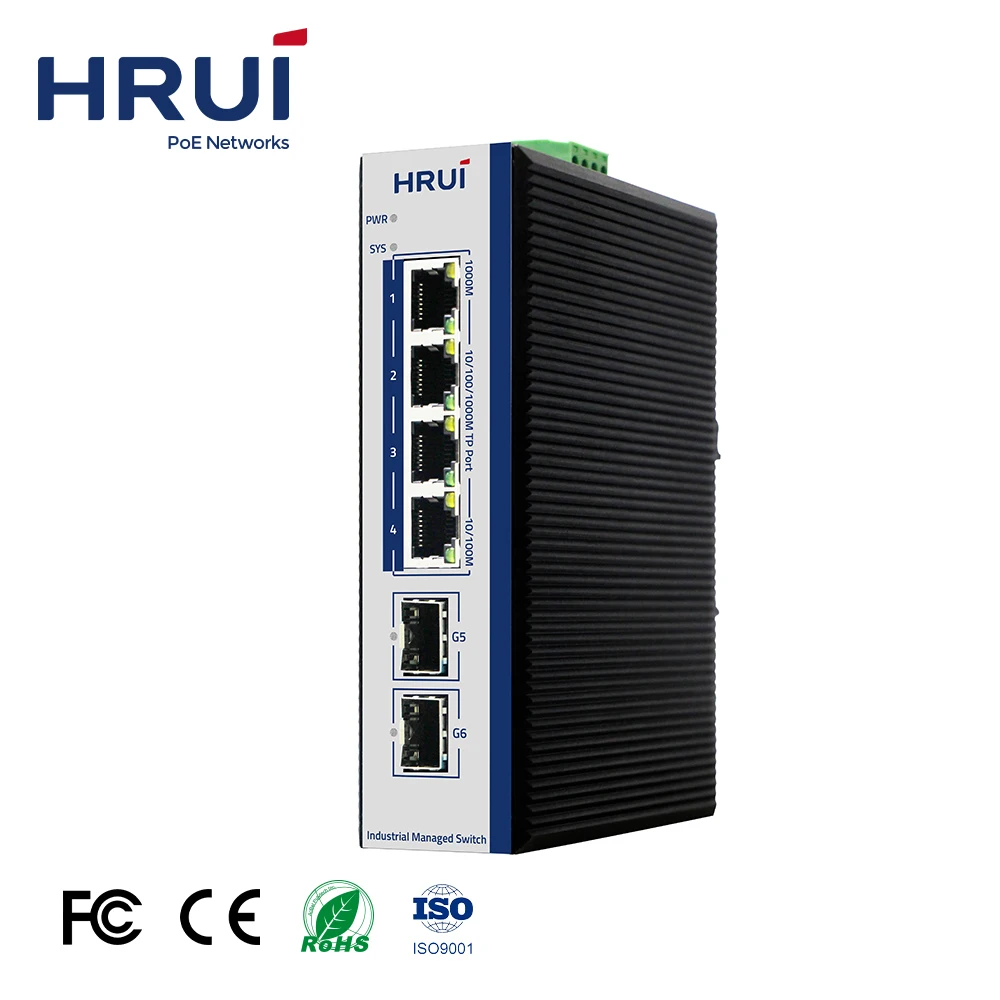

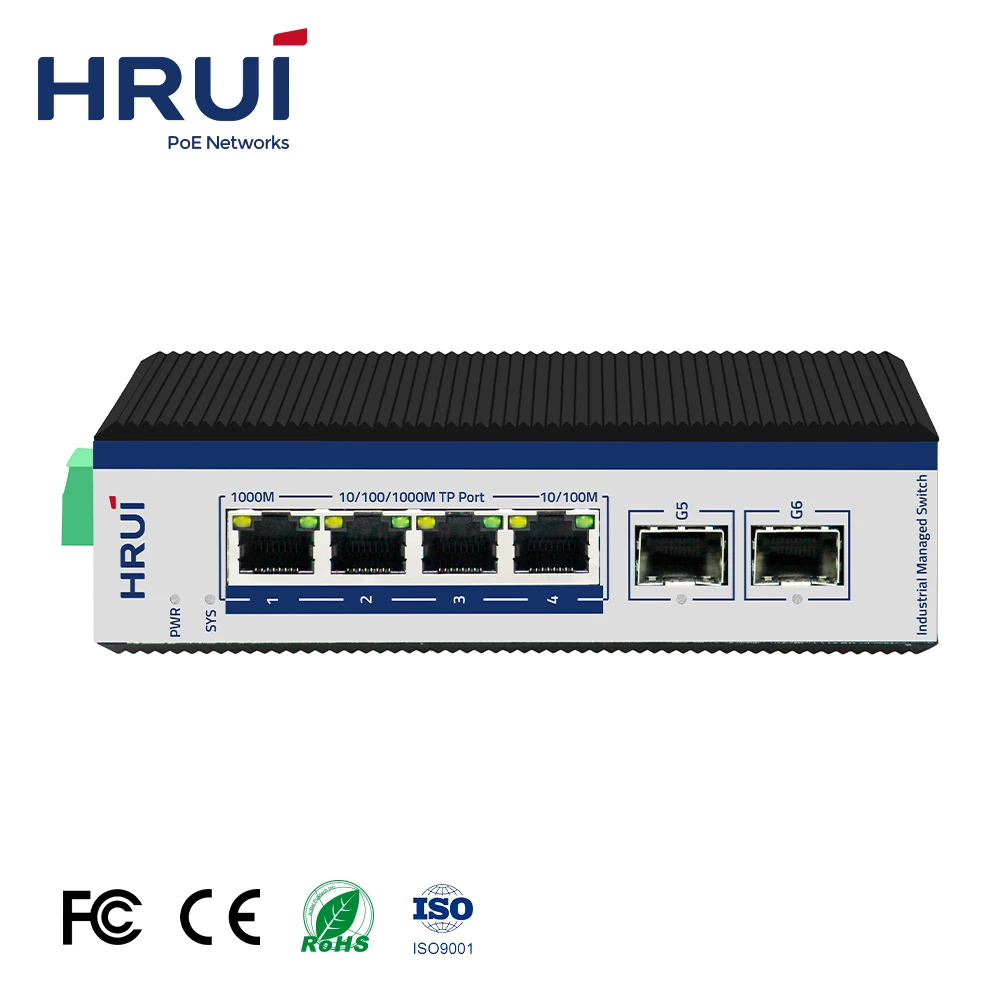

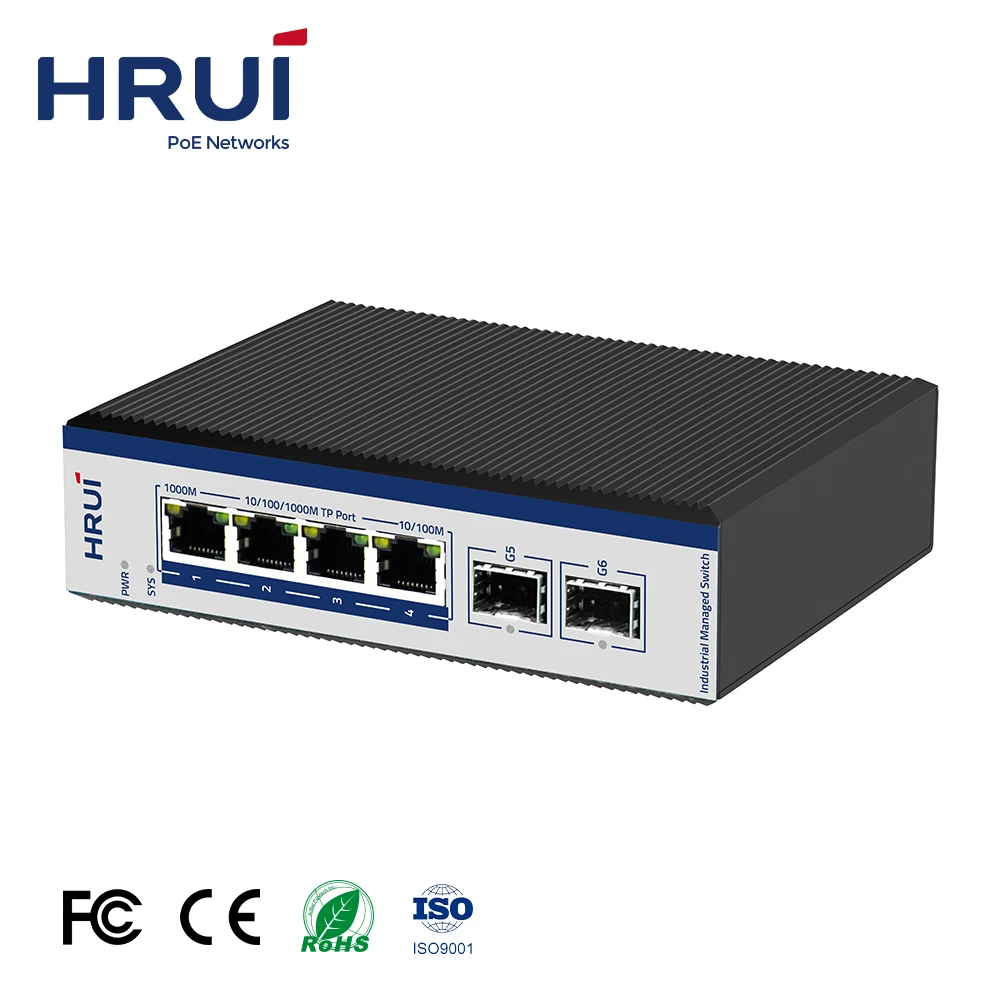

  • Shenzhen Wholesale 4 Ports Gigabit Industrial L2 Managed Ethernet Switch IP40 Protection Aluminum Shell with 2 2.5G SFP Ports
Shenzhen Wholesale 4 Ports Gigabit Industrial L2 Managed Ethernet Switch IP40 Protection Aluminum Shell with 2 2.5G SFP Ports
Shenzhen Wholesale 4 Ports Gigabit Industrial L2 Managed Ethernet Switch IP40 Protection Aluminum Shell with 2 2.5G SFP Ports
Shenzhen Wholesale 4 Ports Gigabit Industrial L2 Managed Ethernet Switch IP40 Protection Aluminum Shell with 2 2.5G SFP Ports
Shenzhen Wholesale 4 Ports Gigabit Industrial L2 Managed Ethernet Switch IP40 Protection Aluminum Shell with 2 2.5G SFP Ports
Shenzhen Wholesale 4 Ports Gigabit Industrial L2 Managed Ethernet Switch IP40 Protection Aluminum Shell with 2 2.5G SFP Ports
Shenzhen Wholesale 4 Ports Gigabit Industrial L2 Managed Ethernet Switch IP40 Protection Aluminum Shell with 2 2.5G SFP Ports

Shenzhen Wholesale 4 Ports Gigabit Industrial L2 Managed Ethernet Switch IP40 Protection Aluminum Shell with 2 2.5G SFP Ports

Share on (1600094527273):


Price:$127.23

Quantity:


Product Overview

Description



Products Description


High performance and cost-effective industrial managed ethernet switch with 4*Gigabit RJ45 Ports +2*2.5G SFP Ports(compatible with 1.25G/155M) +1 Console Port, provides advanced network management capabilities: redundant ring, loop protection, VLAN, QOS, speed control, port mirroring, IP40 protection, rugged high-strength aluminum shell, DIN35 rail mounting, supports dual power input (DC12-55V), -40 to 85℃ working temperature.




Main Features




Product Paramenters


I/O Interface
Power Supply
Input Voltage: DC12～55V
Type of input: 4 PIN Industrial Terminal（block V1+V1- V2+ V2-）
Interface
4*Gigabit RJ45 Ports
2*2.5G SFP Ports (compatible with 1.25G/155M)
1*Console Port
Performance

Switching Capacity
18Gbps
Throughput
13.39Mpps
Packet Buffer
4M
MAC Address
8K
Jumbo Frame
9.6Kbytes
VLAN
4096
Flash
16MB
RAM
128MB
Transfer Mode
Store and forward
Standard
Network Protocols
IEEE802.3
IEEE802.3u
IEEE802.3z
IEEE802.3ab
IEEE802.3x
IEEE802.1d
IEEE802.1w
Industry Standard
EMI: FCC Part 15, CISPR (EN55032) class A
EMS: EN61000-4-2 (ESD)
EN61000-4-4 (EFT)
EN61000-4-5 (Surge)
Network Medium
10BASE-T: Cat3,4,5UTP(≤100 M)
100BASE-TX: Cat5 or above UTP(≤100 M)
1000BASE-TX: Cat5 or above UTP(≤100 M)
Fiber Media
Multi-mode: 850nm, 1310nm Transmission Distance: 550m/2Km
Single-mode: 1310nm, 1550nm Transmission Distance: 20/40/60/80/100/120Km
Protection
Certificate
CE, FCC, RoHS
Environment
Environment
Operating temperature: -40～85℃
Storage temperature: -40～85℃
Humidity: 5%~95 % ( No condensation)
Physical Features
Dimension
Product Dimension(L*W*H): 145mm×125mm×40 mm
Package Dimension(L*W*H): 245mm×190mm×60mm
N.W: 0.6kg
G.W: 0.8kg
Packing Info
Carton MEAS: 505mm× 320 mm× 400mm
Packing Qty: 20units
Packing Weight: 17KG
Package List
Industrial grade switch: 1 Set
Instruction manual: 1 PCS
Certificate, warranty card: 1 PCS
Serial cable: 1PCS
Indication
LED Indicator
PWR
Lighting: Powered
Un-Light: No Power
SYS
Lighting: System is operating normally
Un-Light: System is not running
Yellow light
Lighting: 1000M Link
Un-Light: Link disconnect
Flashing: Link data transmission
Green light
Lighting: 10/100M Link
Un-Light: Link disconnect
Flashing: Link data transmission
G5-G6
Lighting: Fiber Connection is Normal
Un-Light: Disconnect
Flashing: Link data transmission
