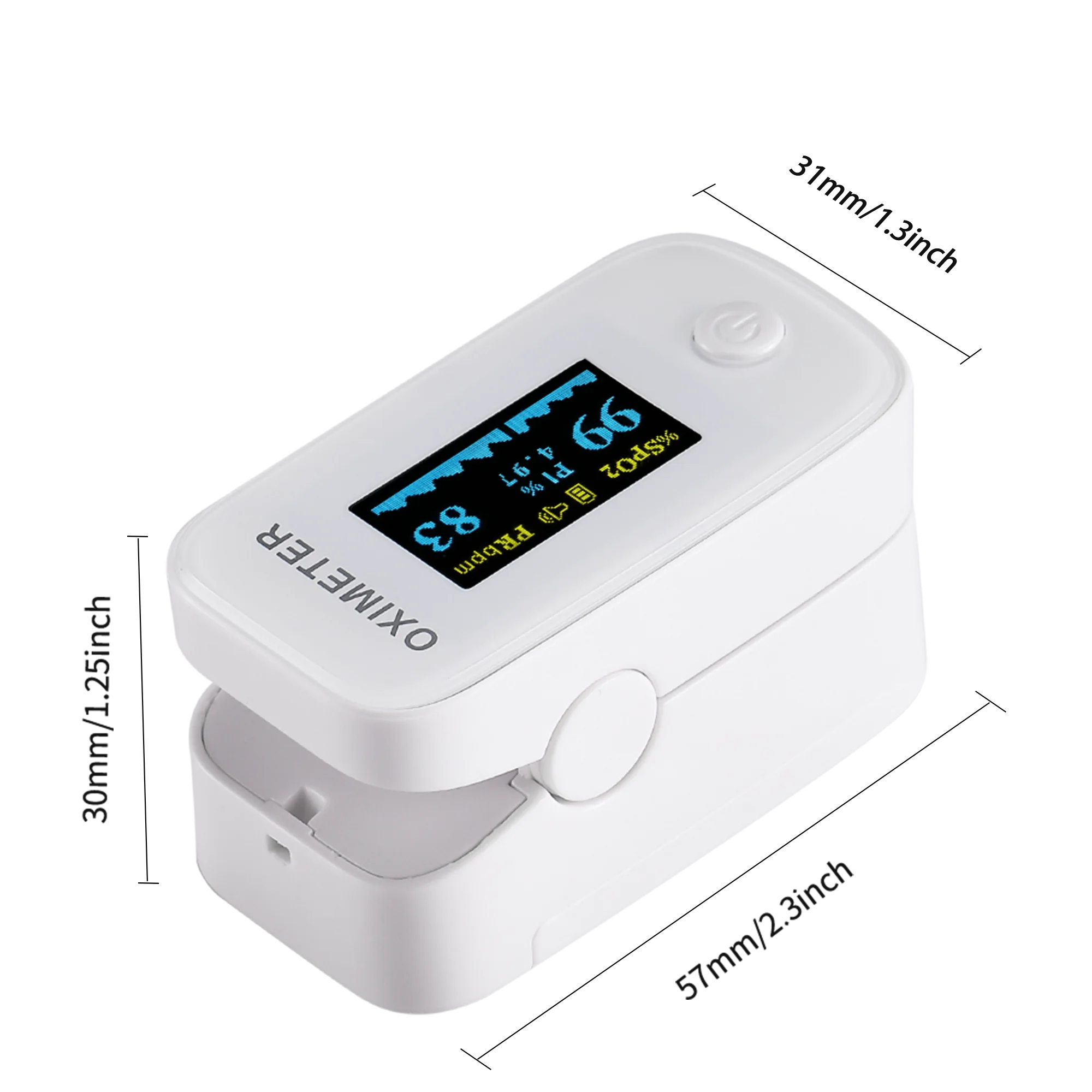

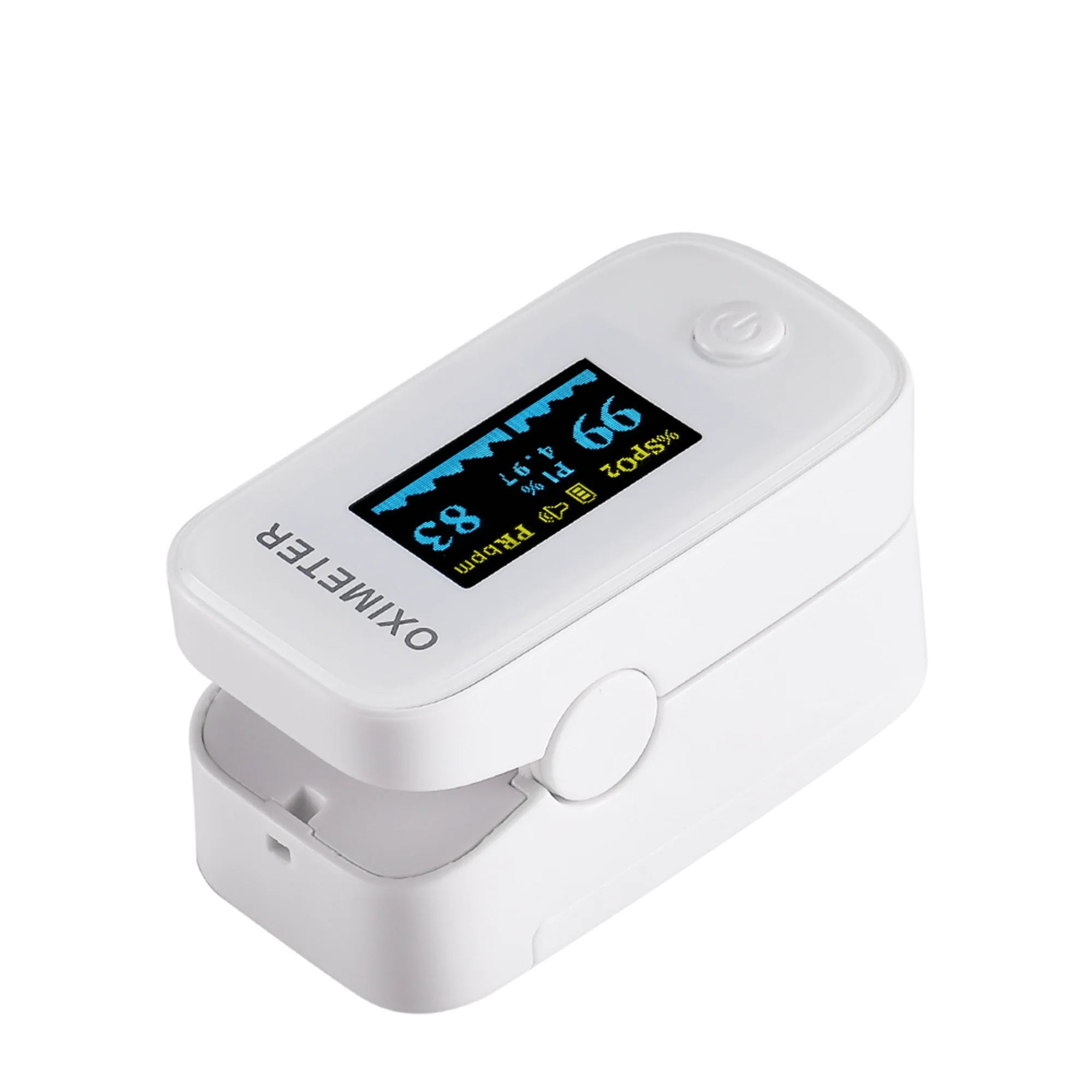

CE ISO13485 approved Yimi life Blood Oxygen Pulse Fingertip pulzny Oximete YM201 OLED
- Category: Other Consumer Electronics >>>
- Supplier: Shenzhen Yimi Life Technology Co. Ltd.
Share on (1600094635472):
Product Overview
Description
Product Description
1) 0.96 inch OLED Display.
2) With SpO2,PR and PI parameters.
3) With Buzzer, Sound and Visual Alarm Function
4) Five grades brightness adjustment
5) With Menu,can setup brightness and alarm limits ,switch Buzzer on/off
6) Standard Accessories: 1 lanyard, 1 manual.
Product’s detailed technical specifications:
| |
Model No. | YM201 (0.96"OLED Display screen, blue&yellow light) |
Type of protection against electric shock | Ⅱ (Internally powered equipment) |
Degree of protection against electric shock | Type BF-Applied part (non-defibrillation proof) |
Operating mode | Spot checking |
Degree of protection against electric hazards of explosion | IP22 |

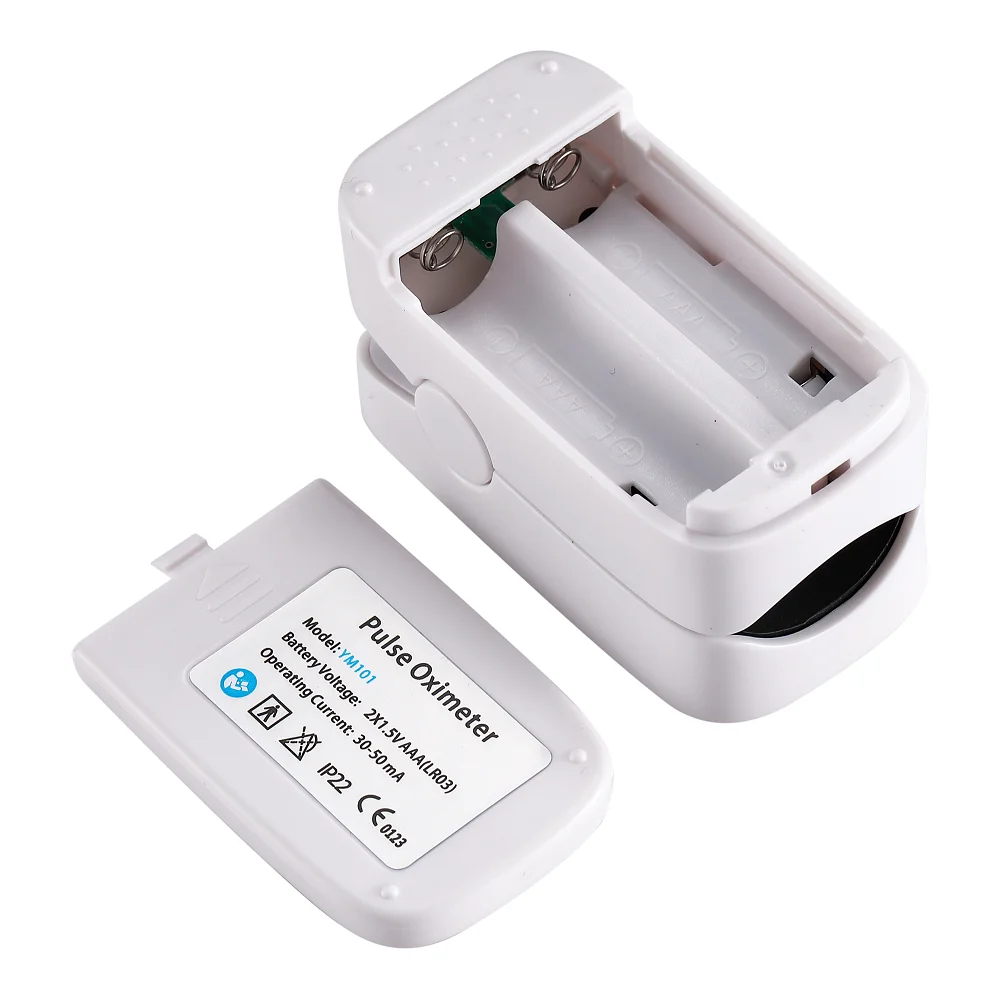

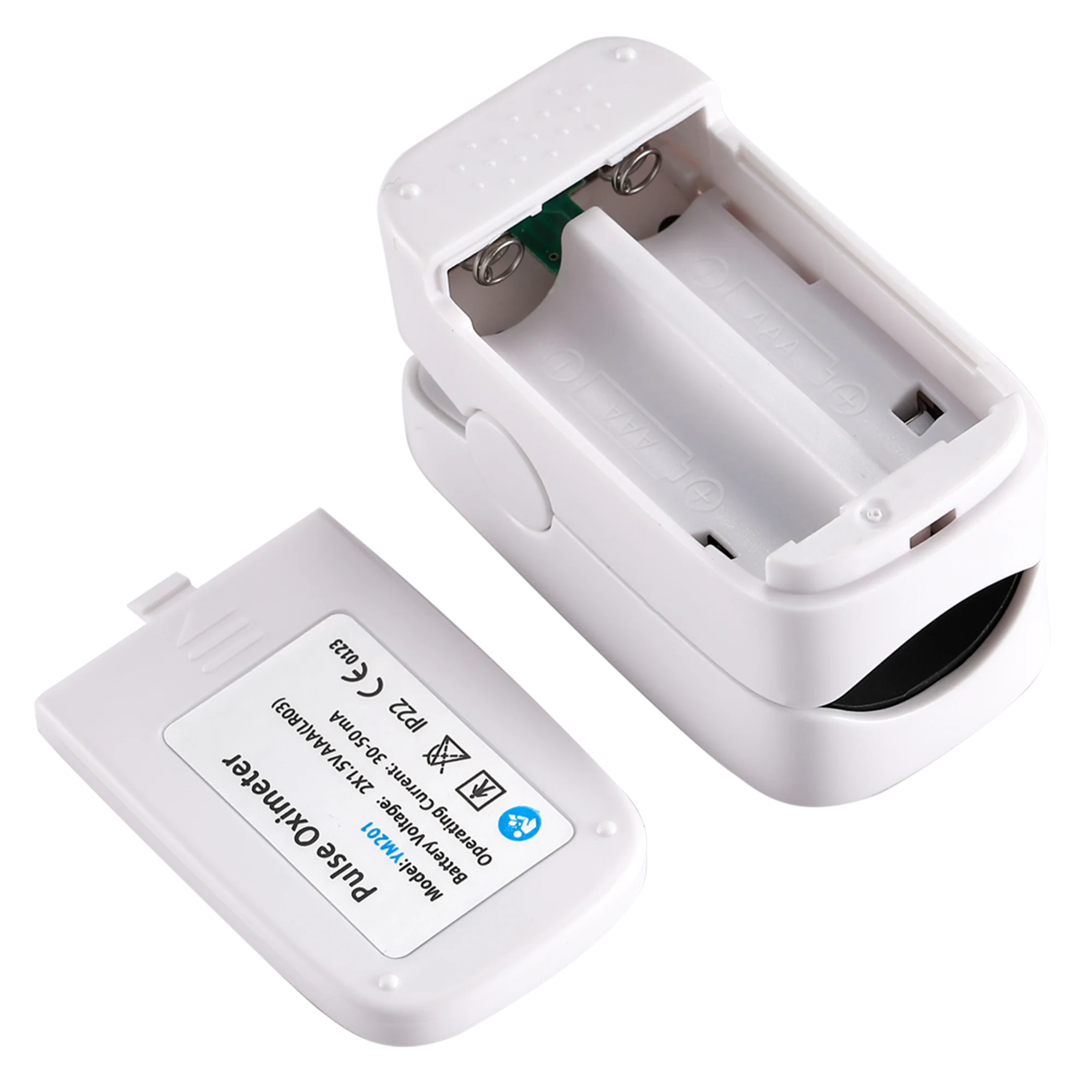

Specification of alkaline batteries | Two AAA (LR03) |
Operating current | 25-50mA |
Width *Height*depth | 57×30×31mm |
Weight | 28g (Bare machine) |
Spo2 declared accuracy |
|
-range | 70%~100%: ± 2digits 0% ~ 69%: unspecified |
-resolution | 1%. |
Spo2 display range | 30%~99% |
PR declared accuracy |
|
--Range(σ*) | 25~250 : ± 3digits |
--Resolution | 1 bpm |
Temperature |
|
-- Operating | +41°~ +104°F / +5°~ +40°C |
-- Storage/Transportation | -40° ~ +140°F / -40° ~ +60°C |
Humidity |
|
-- Operating | 10~95%, noncondensing |
--Storage/Transportation | 10~95%, noncondensing |
Atmosphere Pressure |
|
--Operating | 70~106kpa |
--Storage/Transportation... | 50~107.4kpa |
Warranty | 1 year |
Packaging & Shipping
Device size 5.7*3.1*3.0 cm
box size 8.9*6.0*4.0 cm
Gross weight with box (no battery) 54g
Carton size 47.5*31*19.5 cm
Carton 5.5KG+2.5KG(BATTERY)/100pcs/carton
Company Information
Yimi life technology co.,ltd, which is a professional manufacturer of pulse oximeter from Shenzhen China.
Yimi life technology Co., Ltd has a young vigorous team,
the core technology members have excellent education background and good working over 10 years experiences.
