Product Overview

Description

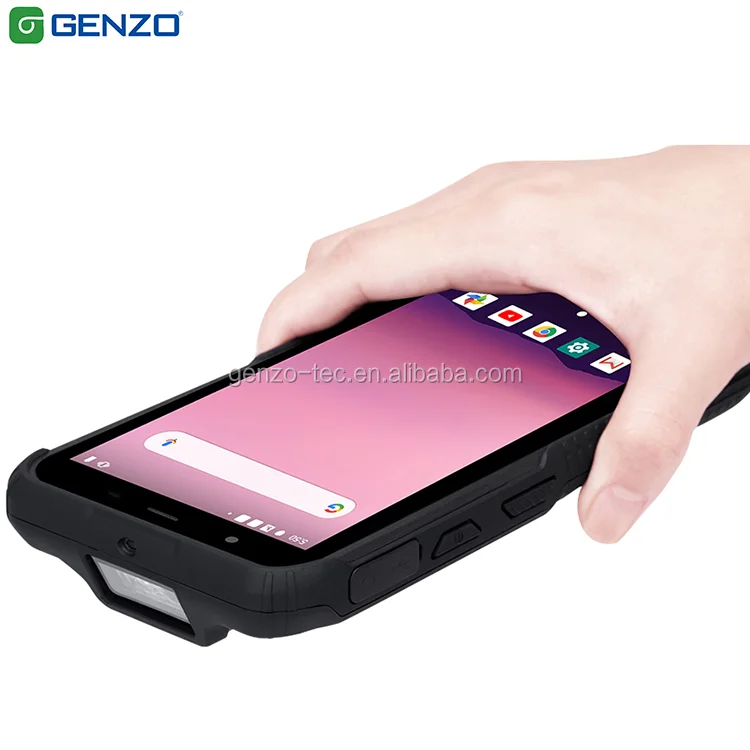

GENZO A603 Android 9 Industrial PDAS With handheld 2D Barcode Scanner PDA Android




Product Description



R&D,MANUFACTURE,INDUSTRY RUGGED TABLET & TERMINAL PRODUCTS SOLUTIONS PROVIDER


1.Support android 9.0 system;
2.Support standard USB2.0 OTG connector;
3.Support NFC(13.56M);
4.Support GPS navigation;
5.Rugged IP65 protection level;
6.Support high strength Glass Touch Panel;
7.Support Sling,Docking Station Charging;


8.Support 1D/2D barcode scanner(Optional).





































































































Specification
Dimension185*93*20.7mm ,unit weight:380g
CPUQualcomm MSM8953(8 cores octa-core)2.0 GHz
OSAndroid 9.0
LCD5.98 inch   16:9  720*1280 IPS 430Nit
TP5points Capacitive,(TP and Glass use full lamination technolog ) Rigidity: 7H up, anti-scratch,TP thickness:1.1mm,COF,support glove and wet hand touch
RAM4GB DDR3L
Flash64GB        Support SDHC/SDXC   x1    Max:128G
Wi-FiWIFI 802.11(a/b/g/n)   Frequency 2.4G+5.8G  dual band WIFI
CameraFront 2.0MP,Rear 13.0MP,with flash and auto-focus
BTBT4.2 (BLE) class1transmission distance:10m
Battery3.7V/5000mAH   Removeable Battery ,  7hrs(default50%volumn,default 200lumens brightness,play720PHD video)
Speakerbuilt in8Ω/0.8W waterproof speaker x 1
SensorG-sensor,Evironmental light sensor,Distance sensor,E-compass sensor
4GCMCC 5M:LTE 1/3/7/20/38/39/40/41
WCDMA 1/2/5/8
TD-SCDMA 34/39
GSM 2/3/5/8
StrapsExtensible belt on the back case, convenient to hold
GPSSupport
1D/2D barcode scanner Optional1D: Honeywell N4313,2D: Honeywell3680 Optional
NFCBuilt-in NFC   Support 13.56mHz
Button KeyPower on/off,Volumn up/down, Scan(left and right) x2, System HOME key*1,BACK*1,POGO PIN  Docking Charger
PortType-C x1,charge and OTG  x1,3.5mm standard earphone  x1,SIM card connector  x1,(12pin back panel upside)extend back dock function x1,(4pin downside of unit)charging function  x1
Product ReliabilityDrop Height:1.2m composite wood floors, in operation status ,Operate Temperature:-10 °C to 50 °C (-20 °C to 60 °C  optional),Store Temperature:-30 °C to 70 °C ,Humidity: 95% Non-Condensing
Certificate System

IP65 Report: Water resistance:IP-X5,Dust resistance:IP-6X
a.Inner Nozzle diameter:6.3mm;


b. water speed:12.5±0.625L/min;
c. Water Pressure:adjust according to water volumn;
d.Central part of water volumn:diameter of 40mm, distance from nozzle: 2.5M
e.Spray time in surface of panel:about 1min


f.test time:at least 3min;
g.distance between nozzle and panel surface:2.5~3m.
After test,there is no water leakage in sample.


OptionalScan Trigger, Charging Docking,1D/2D Scanner





Product Pictures


 12RHJWEWRESDSFHG191111 Other Modles3M-3M






Packaging Shipping





 Android Rugged industrial Handheld PDA






Company Pntroduction





Mobile PDA With Barcode Scanner






Factory Pictures





Android Handheld PDA






Certificate





 Android Rugged industrial Handheld PDA



Our Service


OEM&ODM:


We accept OEM&ODM for customer's request. It includes:
1. Burn customer's logo name as Boot Animation name.
2. Print customer's logo on shell or do customer's logo sticker.
3. Do customer's giftbox, we can offer beautiful giftbox for customer's reference.or provide AI/CDR  file for customer's own design.
4. Usuer Manual,customer can choice different languages and put them together.
5. Customer's Master Carton design are acceptable.


6.Develop products for customers,including appearance and internal structure design,motherboard development and mold design and production.


Warranty:
For all our products,we offer 14 months warranty.After the warranty period, we will also provide necessary replacement parts and technical support.

Usual,our Production line and QC department will test all the goods one by one for more than 3 times before send out.

So,there are almost no defective.if really have,you can send back us for repair or replacement.

You send back to us, you pay the shipping cost.

We send back to you,we pay the shipping cost.

But, all this warranty does not include accident, human fault or improper use.





Why choose us?



1. We are China leading Rugged Tablet & PDA  manufacturer.



2. Alibaba Gold Supplier.



3. Inspected by the inspection of Bureau Veritas Certification.



4. 100% QC inspection before shippment.



5. Best quality & service with competitive price.






FAQ





1.Q: Are you a factory or trading company?
    A: We are factory.we are manufacturing of Rugged PDA (4"/5"/6"), Rugged tablet    (7"/8"/10"),    Rugged and Semi-Rugged Notebook (11.6"/12.2"/14").



2.Q: Where is your factory located? How can I wisit there?
   A: Our factory is located in Shenzhen City, China. You can fly to Shenzhen airport directly, and    we will pick you up. Welcome to visit our factory.



3.Q: How can I get some samples?
   A: We are honored to offer you samples.



4.Q: How does your factory do regarding quality control?
   A: Quality is priority. We always attach great importance to quality controlling from to the end. Our factory has gained CE, FCC, ROHS,IP65,IP67 certifications and so on.
