Air Cooled Industrial Chiller for CNC or Laser engraving cutting machine cooler designed by Factory Direct Supplier
- Category: >>>
- Supplier: Applied Process Tech (Foshan)
Share on (1600095021187):
Product Overview
Description
Foshan Applied Process Tech Co.,Ltd- Refrigeration equipment business unit
APT，Your Premier Industrial Chiller Manufacturer and Supplier in China.
APT has accumulated rich experience in long-term cooperation with industrial equipment users, such as injection mold cooling, electroplating bath cooling, chemical medicine cooling, printing equipment cooling, laser equipment cooling, food preservation, medical appliance cooling, ultrasonic cleaning fluid cooling, electronic industry, hardware industry, food industry, bleaching and dyeing industry, fish industry, sauna cold bath, central air-conditioning Solution technology and services.
APT also designs and manufactures heat exchangers for refrigeration and heating equipment to supply chiller equipment manufacturers and users to replace refrigeration accessories.
APT also designs and manufactures heat exchangers for refrigeration and heating equipment to supply chiller equipment manufacturers and users to replace refrigeration accessories.
Product Overview

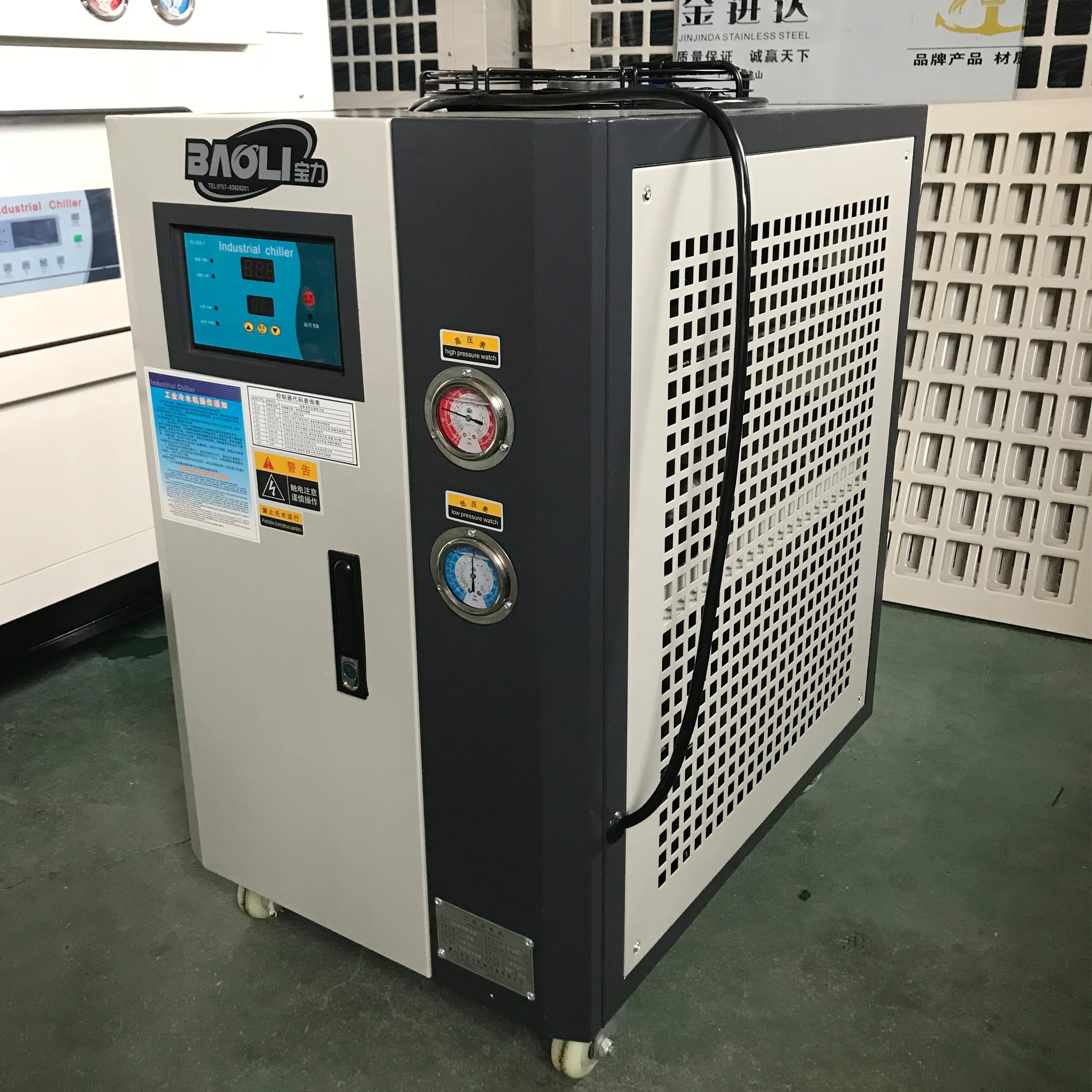

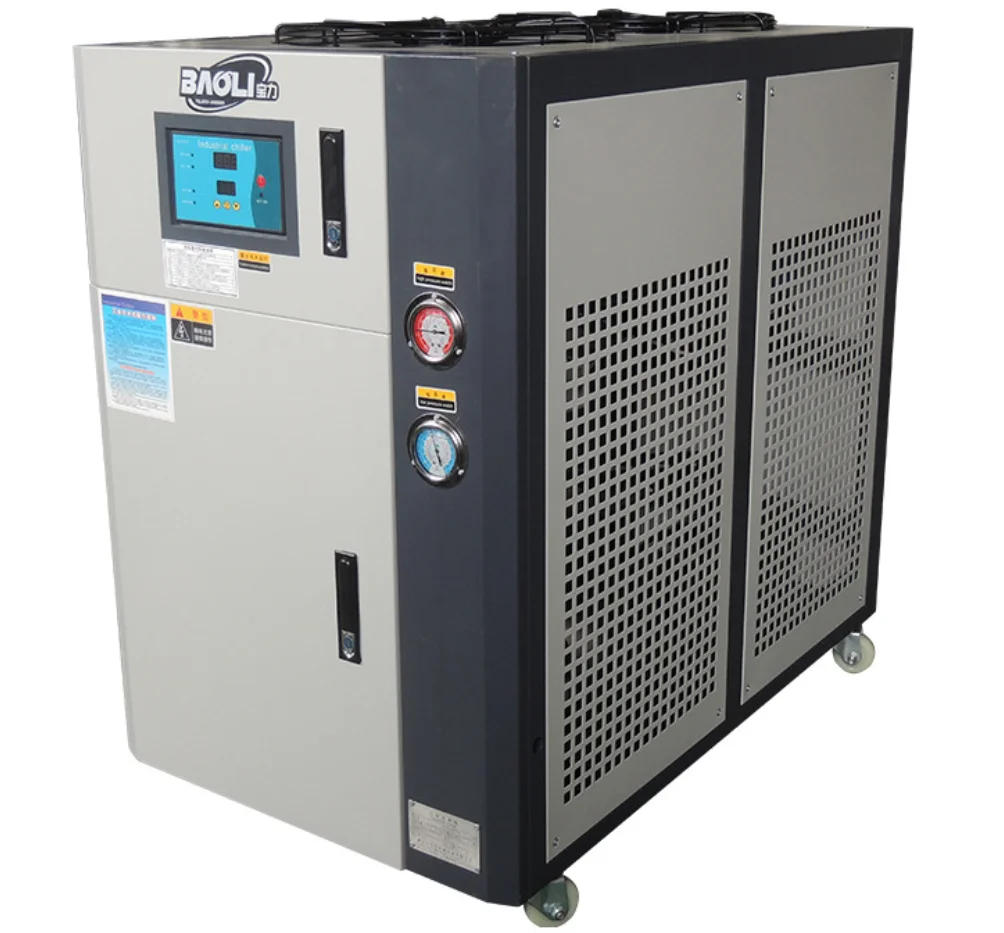

APT- Baoli brand 1HP laser cutting or CNC cutting processing machinery chiller
APT BaoLiTM high-quality laser machine cooling water chillers
1。 Imported high quality brand new compressor, imported filter, expansion valve, high and low pressure meter, temperature controller and other main accessories.
2。 Built in water pump, no need to add water pump in the external pipeline, the plant area is cleaner.
3。 The cabinet structure is beautiful and generous, occupying a small area, easy to install and move.
4。 The standard type contains water tank, which can realize automatic water replenishment and put an end to no water operation when it is used for closed loop refrigeration such as mould or machinery.
5。 Shell and tube evaporator can be purchased to prevent overflow when cooling large capacity containers such as open containers or rollers.
6。 According to the requirements of customers, multi in and multi output can be made to realize centralized refrigeration of multiple equipment or molds.
2。 Built in water pump, no need to add water pump in the external pipeline, the plant area is cleaner.
3。 The cabinet structure is beautiful and generous, occupying a small area, easy to install and move.
4。 The standard type contains water tank, which can realize automatic water replenishment and put an end to no water operation when it is used for closed loop refrigeration such as mould or machinery.
5。 Shell and tube evaporator can be purchased to prevent overflow when cooling large capacity containers such as open containers or rollers.
6。 According to the requirements of customers, multi in and multi output can be made to realize centralized refrigeration of multiple equipment or molds.
PRODUCT SPECIFICATIONS
型号Model | APTBL-1FCS | APTBL-2FCS | APTBL-3FCS | APTBL-5FCS | APTBL-8FCS | ||||||
Capacity | w | 2500 | 5000 | 7500 | 12500 | 20000 | |||||
Compressor | kw | 0.8 | 1.6 | 2.4 | 4.0 | 6.4 | |||||
Chilled flow | L/min | 7.2 | 14.4 | 21.6 | 36 | 58 | |||||
Water ports | inch | 1“ | 1” | 1“ | 1” | 1“ | |||||
Pump motor | HP | 0.5 | 0.5 | 0.5 | 0.5 | 1 | |||||
Water tank | L | 20 | 40 | 45 | 50 | 100 | |||||
Weight | KG | 73 | 106 | 165 | 195 | 410 | |||||
Size | L*W*H（mm） | 850*520*900 | 850*520*900 | 900*520*800 | 1200*680*1100 | 1300*700*1300 | |||||
Power Supply | 220V/50HZ | 三相3N-380V /50HZ | |||||||||
Refrigerant | R22/R410a/R134a/R407C | ||||||||||
Throttle device | Capillary Tube /Expansion valve | ||||||||||
condenser | Fin tube type Air cooled condenser | ||||||||||
Evaporator | Stainless steel water tank copper coil evaporator | ||||||||||
A. The cooling capacity is based on the following standard temperature conditions
1 Chilled water return temperature 12 ° C
2 Chilled water outlet temperature 7 ° C
3 Condensation temperature 35 ° C
B Scope of working condition
1 Ambient temperature 30 ° C ° to 45 ° C
2 Chilled water outlet temperature difference 2.5 ° C to 7 ° C 3 Chilled water outlet temperature 5 ° C to 20 ° C
FEATURES AT A GLANCE
1 Safety-6 protection function
1 High and low pressure protection, effective protection of compressor and other core components
2. Real time monitoring of water flow and over-current protection
3 Under voltage self detection, under voltage protection, to ensure the safety of electricity
4 Temperature monitoring to prevent icing
5 Anti leakage protection
6 overload protection
Choose APT industrial chiller： Safety，quality and trust
2 High quality core components of APT chiller
All the plastic chiller spare parts are Top refrigeration brands including compressor, heat exchanger and air blower.
And the skilled workers from APT can make sure each plastic chiller manufactured is under good cooling performance.
And the skilled workers from APT can make sure each plastic chiller manufactured is under good cooling performance.
Water pump
The pumps are selected from Italy and Taiwan, with high flow and high head, high pressure and corrosion resistance to meet the needs of customers

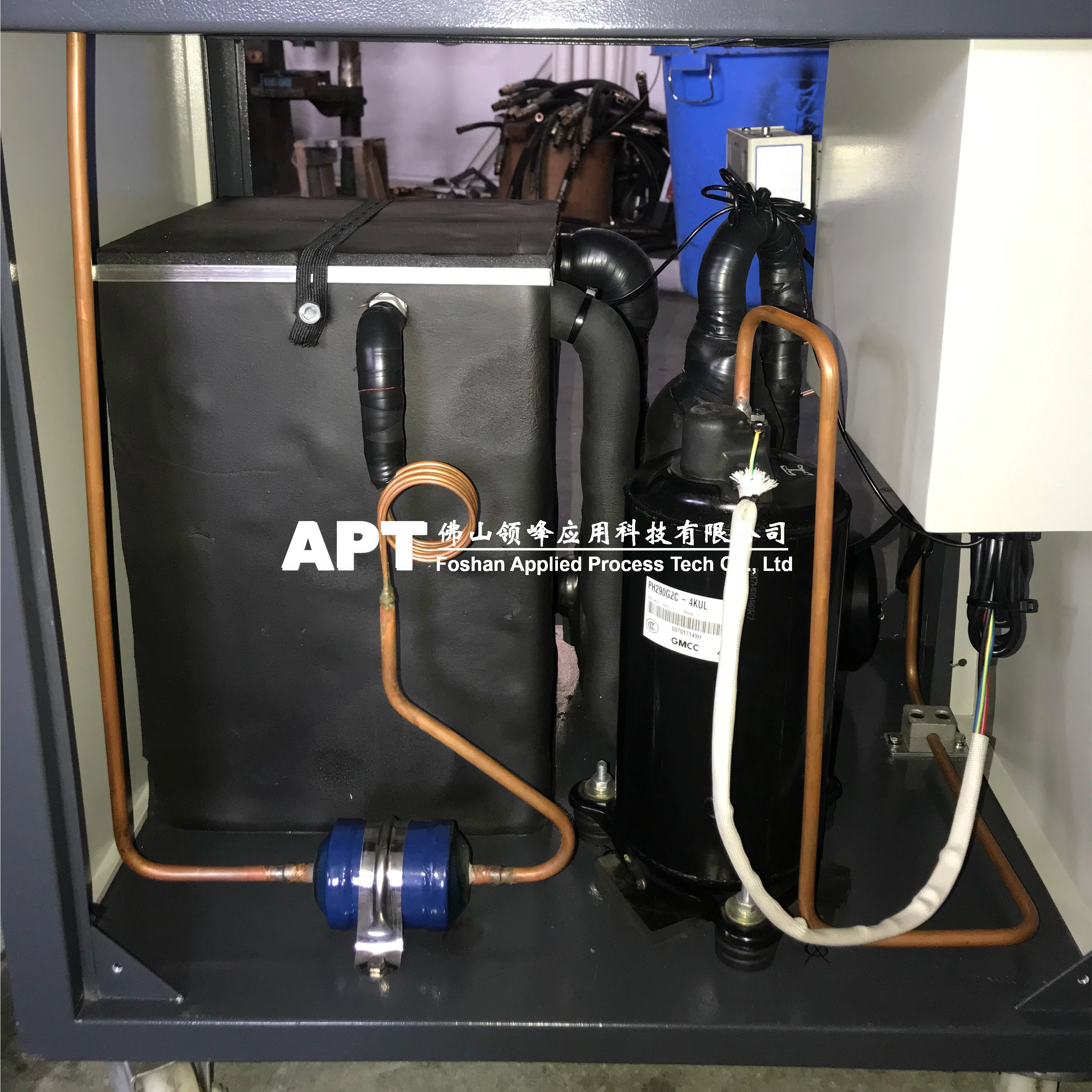

compressor
High performance compressor imported from Europe and America, high eer value, low noise and stable operation.
Condenser
Low noise fan motor, cooling and condensation effect, stable throttling mechanism, excellent antirust treatment
Control console
The contactor belongs to Schneider Series in France. The control system adopts modular design, and is equipped with multiple protection devices such as acid-base protection, current overload protection, high-low-voltage protection and time-delay protection. If there is a fault, it will alarm and display the fault in time
APT, Refrigeration system solution expert for equipment
COMPACT DIMENSIONS
EXTENDING UNDERCARRIAGE
SAFETY FRAME
SIMPLE CONTROL
SEASY MAINTENANCE
VERSATILITY
EXTENDING UNDERCARRIAGE

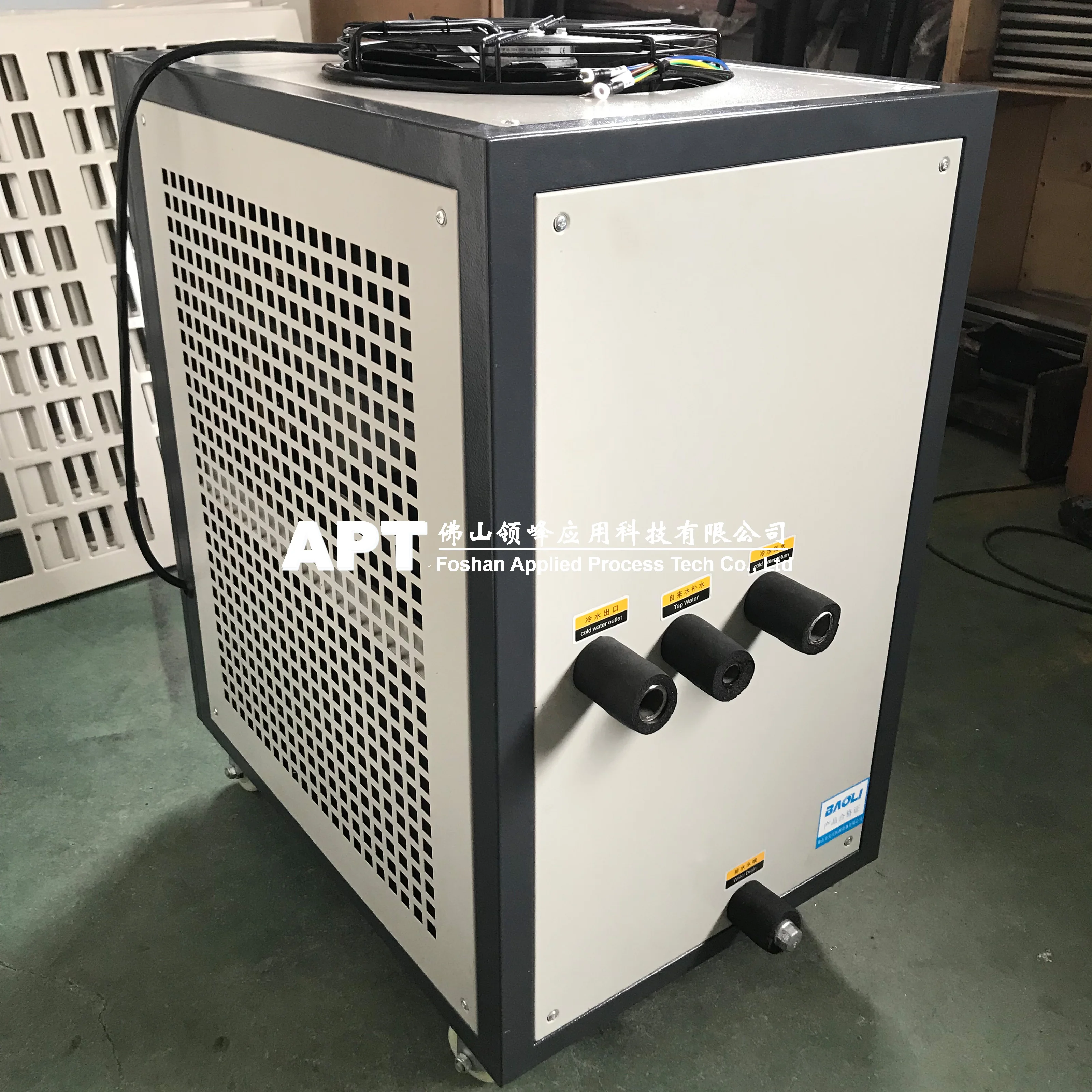

Right elevation
Left elevation
Front elevation
SALES AND SERVICE NETWORK
Successful Project
APT BaoLiTM series industrial chiller‘s typical application and successful projects
Industrial chillers are mainly used in laser technology, welding, plastic molding, injection molding, extrusion, bottle blowing, thermal molding, mechanical cutting, non cutting processing, casting, surface treatment, electroplating, electrophoresis, medical equipment, electronic industry, circuit board production, electronic chip manufacturing, chemical industry, papermaking, pharmaceutical industry, food processing industry, aluminum profile, aluminum alloy, steel Glass, coated glass production, ultrasonic cleaning, jewelry processing, leather, fur processing, ink production, aquaculture.
Project in Thailand-laser machine cooling system
APT 3HP air cooled industrial chiller
Project in India-Injection Molding Machine chiller
APT 2HP plastic process chiller
Project in Russia- Extrusion Blow Molding machine cooling
APT 3HP air cooled industrial chiller
Applied in Mechanical cutting machine cooling systems
APT BaoLiTM series industrial chiller
Chiller typical application- Refrigeration system of electroplating production line
APT 20HP refrigeration unit
APT chiller for Circuit board production line
APT customization cooling unit
APT chiller application-
Food processing industry
Food quick freezing
APT chiller service area for industrial-Ultrasonic cleaning line
APT stainless steel chiller
APT chiller service area for industrial-Seafood farm
APT stainless steel chiller
Introduction of APT water chiller
In the production process of modern industrial machinery, the temperature control is the main factor to promote productivity and product quality. Therefore, the market competitiveness of the manufacturing industry depends on the help of water chiller and mold temperature control machine to improve product quality and increase profits. Baoli machinery understands the needs of various manufacturers and sincerely introduces a series of brand-new industrial water chillers; laser chillers; mold temperature control machines to provide perfect services, so as to reduce the production costs of various manufacturers to a lower price. The products are suitable for: injection mold cooling, electroplating bath liquid cooling, chemical liquid cooling, printing equipment cooling, laser equipment cooling, food preservation, medical equipment Cooling, ultrasonic cleaning solution cooling, electronic industry, hardware industry, food industry, bleaching and dyeing industry, fish industry, sauna, cold bath, central air conditioning, etc.
APT BaoLiTM series Air cooled industrial chiller
APT BaoLiTM series water cooled industrial chiller
APT ice bath/ swimming pool /Spa/ spring pool Thermostat
APT BaoLiTM series Ultra low temperature water chiller
Manufacturing Technique

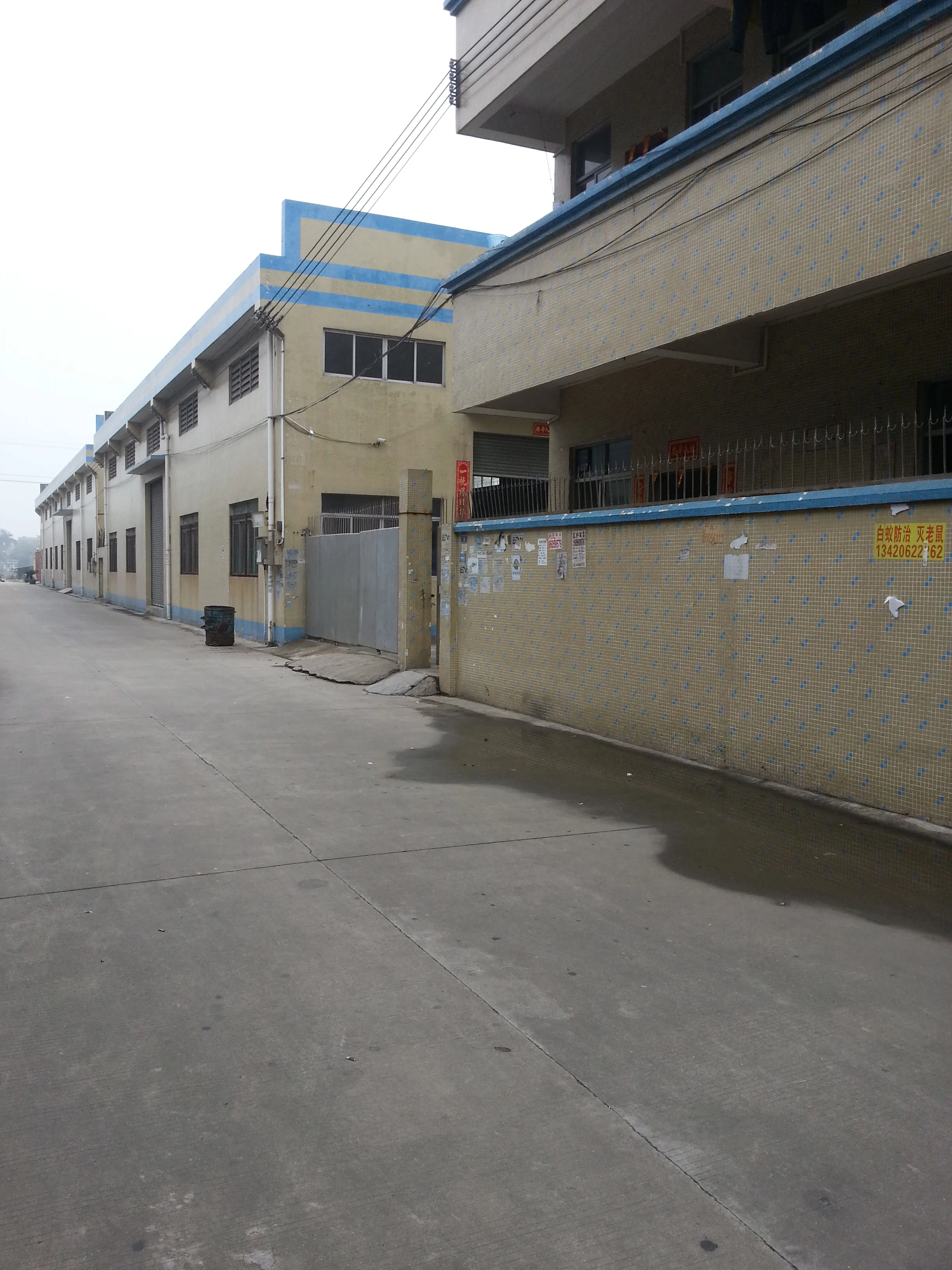

APT Foshan Factories production line
APT is a professional manufacturer and applicator of refrigeration equipment. The industrial chiller, mold temperature controller,
laser chiller, ultra-low temperature industrial chiller and laboratory refrigeration equipment are sold well in domestic and foreign markets.
APT also designs and produces heat exchangers. Including: coils, coils in shell, tube in tube coaxial, tubular heat excahnger which are produced by the company has the characteristics of reasonable design, high energy efficiency, long-term service, etc.,
welcome to customize and purchase.
laser chiller, ultra-low temperature industrial chiller and laboratory refrigeration equipment are sold well in domestic and foreign markets.
APT also designs and produces heat exchangers. Including: coils, coils in shell, tube in tube coaxial, tubular heat excahnger which are produced by the company has the characteristics of reasonable design, high energy efficiency, long-term service, etc.,
welcome to customize and purchase.
Welcome to visit our Foshan factory. Please contact us immediately. Foshan factory will communicate with you about the visit.
FAQ
1 Q： APT is trading company or manufacturer supplier
A：APT， the specialist applicator of refrigeration systems and heat exchanger. APT own three factories in Foshan. So APT manufacture the chiller and tube heat exchanger. We also have the oversea business department for better service for the customer all over the world.
2 Q： About APT production capacity.
A：Over 5000 m2 workshop area. More 100 employees serve in APT. We have professional production management, tell us the demand, we will tell you the exact delivery date.
3 Q： How do APT provide the service for oversea customer?
A：APT has a very professional design team and after-sales service. Our products are equipped with detailed operating instructions and troubleshooting. In general, customers can solve common problems by themselves. If you need the help of engineers, we have 24-hour after-sales telephone service and video guidance. We can also provide on-site services, whether you are in Africa or in the United States.
4 Q： APT's terms of payment
A：100% advance payment
5 Transportation of chillers
A Due to the refrigerant and compressor, the chiller belongs to the transportation of special items. Please contact our company to confirm the appropriate transportation mode before placing the order. Our company and good reputation, affordable freight forwarder long-term cooperation, the greatest possible cost savings for customers. Customers can also obtain goods through their own forwarders.
